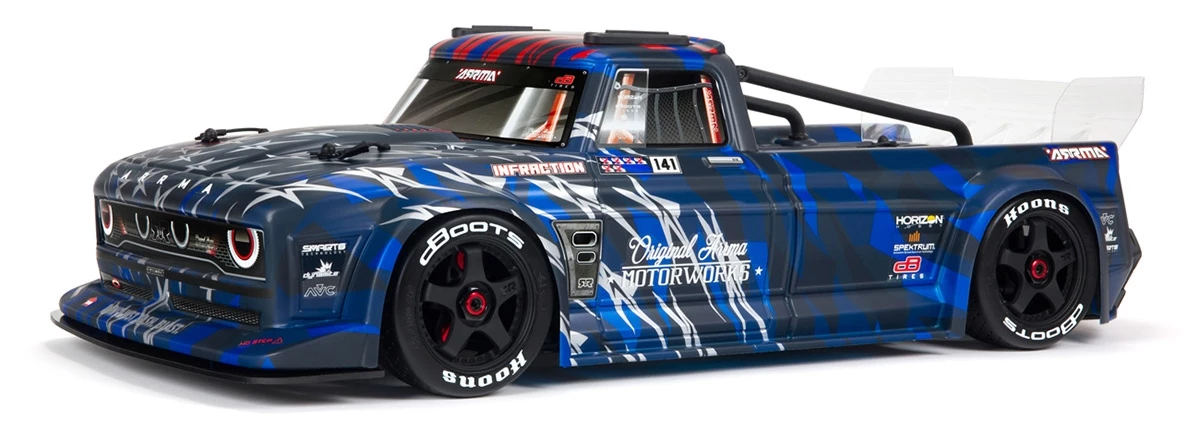

ARRMA 1/7 INFRACTION V2 6S BLX Street Bash 4WD RTR – Blue
Take high-speed street bashing performance to another level with the 1/7 scale ARRMA® INFRACTION 6S BLX 4WD RTR. Capable of 80+ MPH speeds out of the box over on-road, dirt, and oval tracks, it now includes a handbrake and Spektrum® Smart electronics.
Key Features:
Spektrum® 3-Channel DX3 2.4GHz DSMR® radio and SR6110AT Receiver with AVC® (Active Vehicle Control)
Compatible with Spektrum® Dashboard app for iOS or Android
Spektrum® Firma 150A Smart ESC
dBoots® Hoons all-road tires
RTR Completion Level includes everything needed besides batteries and a compatible charger
Includes:
(1) 1/7 ARRMA® INFRACTION Resto Mod Street Bash 6S BLX 4WD RTR
(1) Spektrum® Firma 150A Smart ESC (installed)
(1) Spektrum® Firma 4074 2050Kv Brushless Motor (installed)
(1) ARRMA® ADS-15M Waterproof* Servo (installed)
(1) Spektrum® SPMS650 Waterproof* Brake Servo (installed)
(1) Spektrum® SR6110AT AVC Receiver (installed)
(1) Spektrum® DX3 DSMR® Radio
(1) Product Manual
Needed to Complete:
(2) 2S or 3S LiPo batteries
Compatible charger
Safe LiPo charging bag
(4) AA transmitter batteries
Features:
Spektrum® 3-Channel DX3 2.4GHz DSMR® radio and SR6110AT Receiver with AVC® (Active Vehicle Control)
Compatible with Spektrum® Dashboard app for iOS or Android
ARRMA® ADS-15M Waterproof* Steering Servo
Spektrum® SPMS650 Waterproof* Brake Servo
Spektrum® Firma 150A Smart ESC
Spektrum® Firma 4074 2050Kv Brushless Motor with Safe-D pinion gears
New electronics module
New mechanical handbrake feature
Fresh street body look with matte gloss effect designs
Tunable wing for customizing the downforce
Full-width front splitter balances downforce distribution
Rear diffuser increases downforce and grip for cornering faster and with confidence
Adjustable front and rear body mounts
3mm Plate, 6061-T6 anodized aluminum chassis
Center brace for maximum durability
Heavy-duty drivetrain with durable steel driveshafts throughout
High-speed center driveshaft support
Rubber-shielded bearings
All-metal diff outdrives and gearbox internals
Updated internal gears with new tooth profile for increased strength
Lower internal gear ratio to reduce the center line transmission RPM, reducing center drive shaft resonance and increasing drivetrain durability
Oil-filled, adjustable, anodized aluminum shocks
Black-anodized aluminum front and rear shock towers
Waterproof* receiver box
Large battery trays
5-spoke wheels
Durable wheel hubs
dBoots® Hoons all-road tires
2-year limited warranty (see manual for details)
* For details on waterproof standards, please refer to the product instruction manuals
Overview
The ready-to-run INFRACTION 6S BLX 4WD 1/7 scale truck tops off a tough and powerful ARRMA® brushless platform with stunning style ideal for intermediate-level drivers who are eager to experience street bashing at 80+ MPH speeds (achievable in optimum conditions using a 6S LiPo and the included speed pinion gear). Its Spektrum® DX3 radio and Smart brushless power system components provide real-time telemetry that also helps you reach and maintain maximum performance.
Another feature new to the INFRACTION 6S BLX 4WD is a handbrake. The chassis includes a module for a rear vented disc brake and a powerful Spektrum® SPMS650 brake servo. You control the handbrake from a convenient switch on the DX3 transmitter for thrilling drifting, “hooning” and stunt action.
With its 4X4 traction, you can run the INFRACTION 6S BLX 4WD on all roads, in all conditions over loose gravel, asphalt, smooth dirt, and short grass, in the sun, rain, and ice while enjoying fresh RESTO MOD looks. The street body arrives factory-finished with new matte gloss effect designs. The included tunable wing lets you customize the downforce just the way you want it.
To further enhance the aerodynamics, the chassis includes a full-width front splitter that balances downforce distribution. A rear diffuser increases downforce and grip, enabling you to corner faster and with confidence. Mounted on realistic 5-spoke wheels, the four dBoots® Hoons all-road tires keep their grip on the surface to pour on speed or stop on a dime.
Underneath those streamlined Street Bash looks is a chassis which proves to the world, once again, that ARRMA® builds the most durable bashers. The 6061-T6 anodized aluminum chassis houses a heavy-duty drivetrain with steel driveshafts, plus all-metal diff outdrives and gearbox internals. Updated internal gears feature a new tooth profile for increased strength. A lower internal gear ratio reduces the center line transmission RPM, reducing the center drive shaft resonance and increasing drivetrain durability. Chassis toughness is reinforced with a center brace. Bearings are rubber-shielded, and the adjustable, oil-filled, anodized aluminum shocks are mounted on strong, black-anodized aluminum shock towers.
ARRMA® has equipped the ready-to-run INFRACTION 6S BLX 4WD with the 3-channel Spektrum® DX3 radio and an SR6110AT receiver featuring AVC® (Active Vehicle Control) technology for high-speed stability. A convenient voltage level indicator is built into the transmitter which lets you easily track on-board Smart battery power. The vehicle’s brushless power system also features Spektrum® Firma Smart components, so it’s easy to receive real-time updates of ESC temperature, receiver (BEC) voltage, drive pack voltage and motor RPM. Just download the Spektrum® Dashboard app for iOS or Android, available for free at the App Store or Google Play.

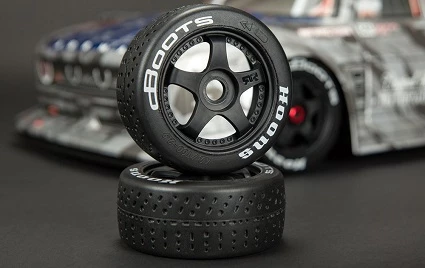

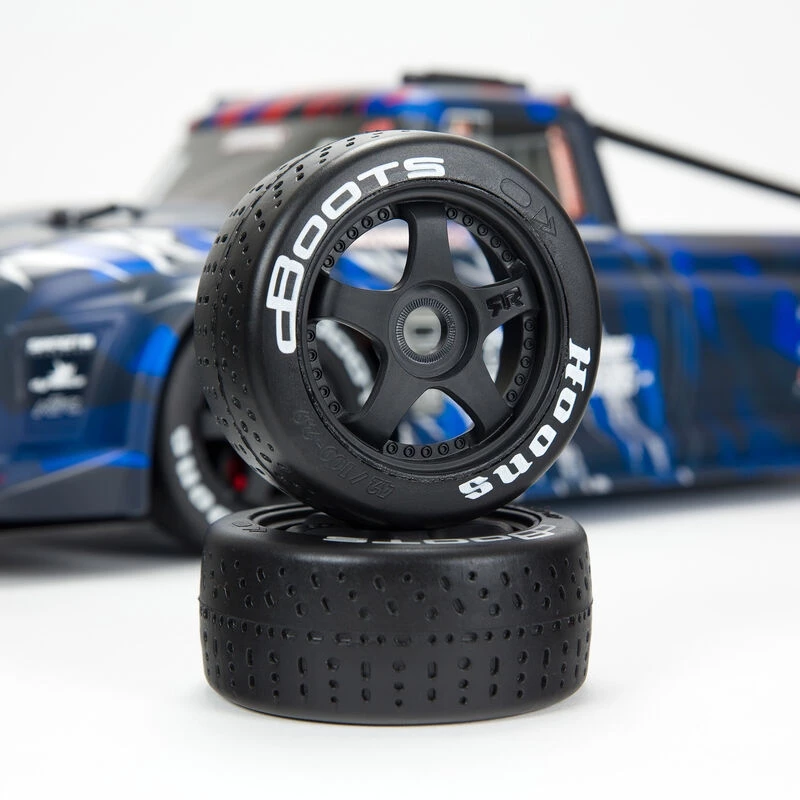

| STUNNING NEW BODY PRINTS Two new striking color schemes to choose between. Which one will you pick? | ALL-ROAD AGGRESSION dBoots HOONS tires designed for extreme all-road action. Classic 5-spoke wheels. |

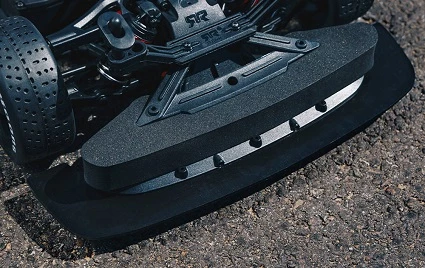

| FULLY INTEGRATED AERO Integrated chassis and diffuser for slick underside airflow | DYNAMIC DUO Front bumper protection and aerodynamic splitter |

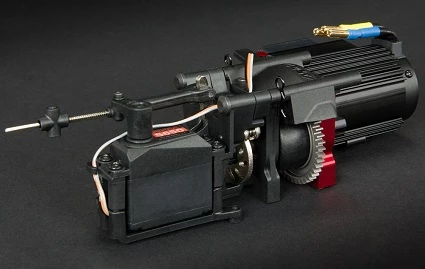

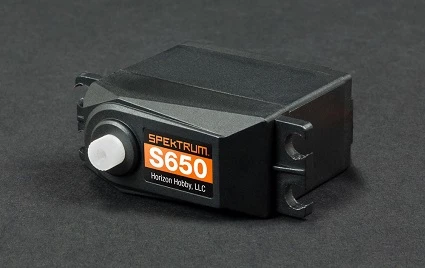

| HANDBRAKE MODULE Innovative ARRMA design – mechanical rear brake operated by a thumb switch on the transmitter | SPEKTRUM BRAKE SERVO Strong, metal gears used throughout Waterproof, dustproof case 23 tooth output spline Torque: 6kg-cm (84oz-in) @6V Speed: 0.12sec/60deg @6V Dimensions: 40x38x20mm (industry standard size) |

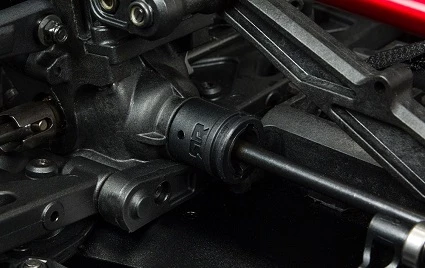

| WELL SUPPORTED The included center driveshaft high-speed support set prevents vibrations and increases drivetrain durability | HEAVY DUTY Tough A-arms and drivetrain components that keep you bashing for longer |

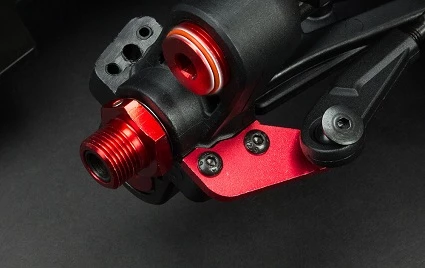

| CAPTURED & SEALED Captured ball ends that will never pop off and hub nut o-rings. | SAFE-D FIRST Input gears are keyed to the drive cups composite sleeves to fortify the retention of the drive cup set screw |

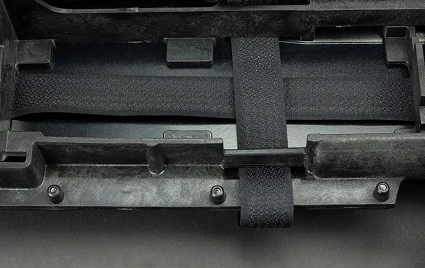

| HAVING IT LARGE Large battery trays allow you to fit up to 7.09″ (180mm) x 2.17″ (55mm) x 2.76″ (70mm) size batteries | ARRMA ADS-15M SERVO Strong, metal gears used throughout Waterproof, dustproof case 25 tooth output spline Torque: 14kg-cm (194oz-in) @6V Speed: 0.16sec/60deg @6V Dimensions: 40x38x20mm (industry standard size) |

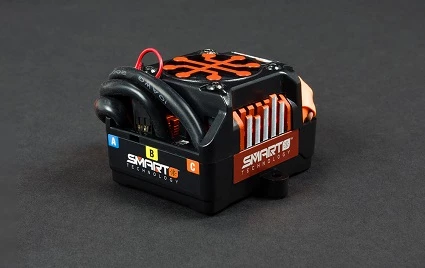

| SPEKTRUM FIRMA ESC Waterproof, dustproof design 150A, 6S LiPo ready (3S, 4S, & 6S compatible) Spektrum Smart Technology Fitted with reliable IC5 connectors (EC5 compatible) Integrated fan for reduced heat during extreme running High Quality 10awg wires Low voltage cut-off and thermal overload protection User programmable punch, brake, BEC, LVC sensitivity, reverse speed, and motor timing settings | SPEKTRUM FIRMA MOTOR 2050Kv 4074 size 6S brushless motor Beautifully etched aluminum can 4-pole construction for smooth, consistent power 4mm gold bullet connectors for reliable and efficient connection Black anodized aluminum motor can for increased heat dissipation Super strong 5mm shaft Groove at the end of the motor shaft allows the installation of a pinion retaining E-clip |

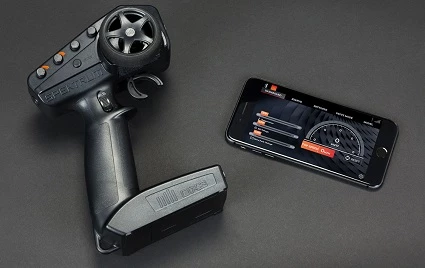

| SPEKTRUM DX3 RADIO & SR6110AT AVC RECEIVER Ergonomic steering wheel for precise control On-the-fly adjustable AVC gain for personalized handling Lightweight and ergonomic design for long bashing 3 channel radio system 2.4GHz connection built around DSMR technology Full-range telemetry capabilities | SPEKTRUM DASHBOARD DX3 Radio system can be equipped with the Spektrum Dashboard Requires: Download the free Spektrum Dashboard app for your smart phone at your preferred app store* Optional items that need to be purchased separately *Not Included |
Manufacturer’s title: 1/7 INFRACTION 6S BLX V2 All-Road Truck RTR, Blue
