The 1/7 scale ARRMA® MOJAVE 6S BLX 4WD Desert Truck RTR is ready for big bashing action on any terrain. Its Spektrum SLT3 3-channel radio, dual protocol receiver, Smart ESC and more combine to reach new levels of speed, toughness and versatility.

Key Features:
Updated with Spektrum components and Smart compatible
60+ MPH (97km/h) speeds achievable in optimum conditions using a 6S LiPo battery and the optional pinion gear included
EXB compatible front brace
Large volume waterproof receiver box
Ready-to-run – just install a charged 4 cell or 6 cell LiPo battery of your choice

Includes:
ARRMA® MOJAVE 6S BLX 1/7 Desert Truck RTR
Spektrum Firma 150A Smart 4S/6S ESC (installed)
Spektrum Firma 4074 2050Kv Brushless Motor with ARRMA® Heatsink (installed)
Spektrum S652 Metal-Geared Digital Servo (installed)
Spektrum SR315 3-Channel Dual Protocol Receiver (installed)
Spektrum SLT3 2.4GHz 3-Channel Radio
Product Manual

Needed to Complete:
4S or 6S LiPo Battery
LiPo Compatible Charger
LiPo Charging Bag
(4) AA Batteries

Introduction:
Experience the speed and durability of ARRMA® bashing in a big way with the 1/7 scale brushless MOJAVE 6S BLX 4WD Desert Truck. Designed Fast and Designed Tough, it’s ready for extreme performance right out of the box, whether you’re thrashing through coastal sand dunes or blasting across concrete sidewalks

Features:
Ready-to-run
Spektrum SLT3 2.4GHz 3-Channel Radio
Spektrum SR315 Dual Protocol 3-Channel Receiver
Spektrum S652 Digital Servo
Spektrum Firma 150A Smart ESC
Spektrum Firma 4074 2050Kv Brushless Motor
EXB compatible front brace
Stronger rear brace mount
Large volume waterproof* receiver box
+1mm wheel hexes
Stronger body mounts
Anodized aluminum chassis
Strong composite chassis side pods
Center brace for maximum durability
Center roll hoop interfaces with body roll cage for enhanced body durability
Nerf bars for body and side impact support

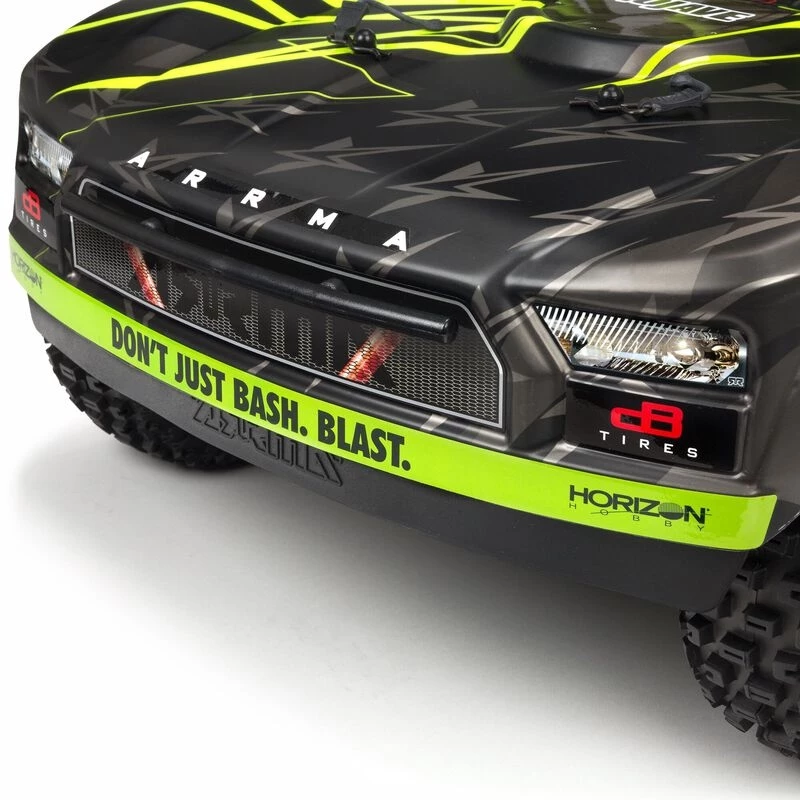

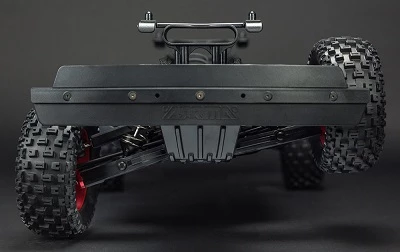

Realistic front and rear bumper protection
Independent suspension for superior handling
Flexible front bumper valance
Heavy-duty suspension arms with red-anodized aluminum strengthening cap
Oil-filled adjustable shocks
Black-anodized aluminum front and rear shock towers
Durable steel driveshafts throughout
Heavy-duty drivetrain
All-metal diff outdrives and gearbox internals
Never-loose red aluminum servo saver
Never-pop ball ends
5-Bolt center diff removal
Easy-access sliding motor mount for quick motor removal
Super-durable wheel hubs for increased strength
Color-coordinated multi split-spoke wheels
Multi-terrain dBoots® FORTRESS tires

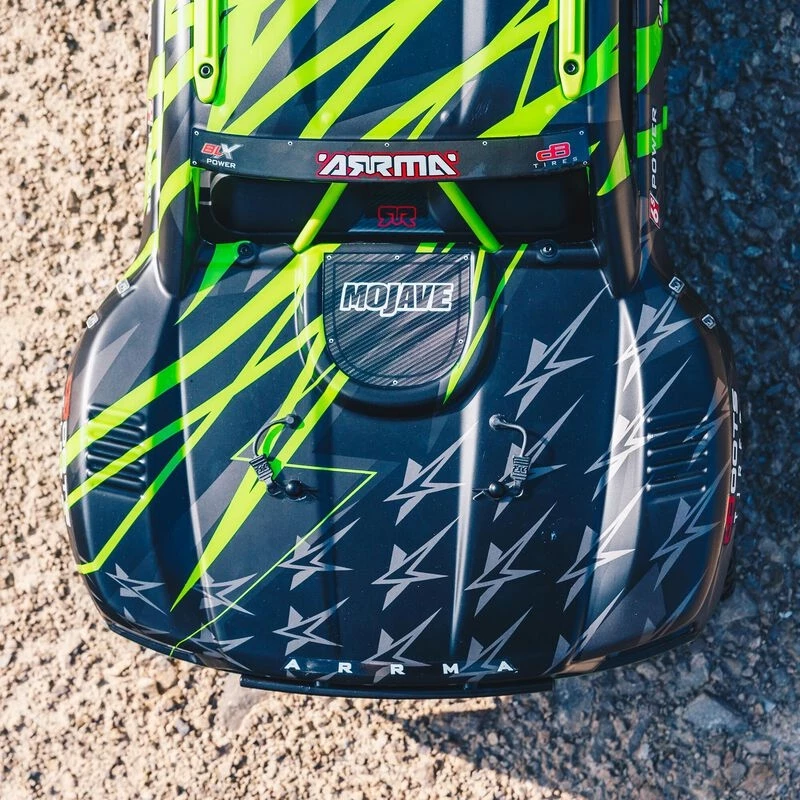

Multi-finish matte and gloss body
Realistic cockpit detail
Ultra-detailed decals
Color coordinated protective roll cage and roof rails
IC5® connectors (EC5 compatible)
2-year limited warranty (see manual for details)

*For details on waterproof standards, please refer to the product instruction manual

Overview
ARRMA® engineers have updated the MOJAVE 6S BLX 4WD Desert Truck with a brushless power system featuring the Spektrum Firma 150A Smart ESC and Firma 2050Kv brushless motor. The combination lets you cut loose with incredible torque, acceleration and speed, while the heavy-duty aluminum and steel chassis and transmission components take it all in its stride. For improved steering, ARRMA® also includes a new, steel gear Spektrum S652 Digital Servo which is 32% stronger and 5% faster than the previous version’s ADS-15M servo.

The ready-to-run package now also includes a 3-channel Spektrum SLT3 radio and Spektrum SR315 dual protocol receiver. Perfect for long hours of fatigue-free bashing, the transmitter’s ergonomic design features a foam steering wheel for precise fingertip control and an improved hand grip and trigger feel. If you’re a new driver, you’ll be able to set throttle limits at 50% or 75% until you’re ready to use the full speed potential. The SLT3 is compatible with Tactic® SLT receivers to run other RTR vehicles you may own, and includes a third channel to control optional features such as lights and winches on models that have them.

Because the SR315 receiver can use SLT and DSMR® protocols, you can easily upgrade to a Spektrum DSMR® transmitter later then, download the free Spektrum Dashboard app for your mobile device and take full advantage of the Smart telemetry capabilities already present in the Firma electronics. You’ll be able to receive real-time updates of ESC temperature, receiver (BEC) voltage, drive pack voltage and motor RPM.

With the rugged construction of the MOJAVE 6S BLX 4WD Desert Truck, you’ll have the strength needed to survive anything bashing through dirt, asphalt and grass, in sun, rain or snow. The tough-as-nails anodized aluminum chassis is reinforced with front, rear and center braces for maximum durability. Bumpers and nerf bars supply impact protection on all sides. Thanks to independent suspension with bump-soaking oil-filled shocks, the Desert Truck handles equally well over wicked and well-travelled tracks.

The drivetrain is a masterpiece of heavy-duty design. Featuring steel driveshafts, metal gears, and all-metal diff outdrives, it’s ready to take full advantage of the brushless power system’s potential. As it comes out of the box, the MOJAVE 6S BLX Desert Truck is incredibly fast. Use a 6S LiPo with the optional pinion gear upgrade (gear is included), and the resulting 60+ MPH speed potential is enough to crush any competitor. Keeping your truck in top form is easy. A sliding mount gives you access to the motor in seconds. You can remove the center diff for maintenance by taking out just five bolts.

Multi-terrain dBoots® FORTRESS tires on multi split-spoke wheels give your MOJAVE 6S BLX Desert Truck the grip to get up, over, or through anything in your way. And it doesn’t just perform like a winner. It looks like one, too, with a painted and decaled desert truck body, color-coordinated roll cage and roof rails, and even a detailed cockpit.

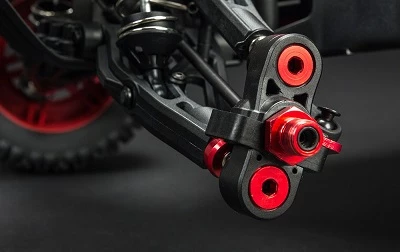

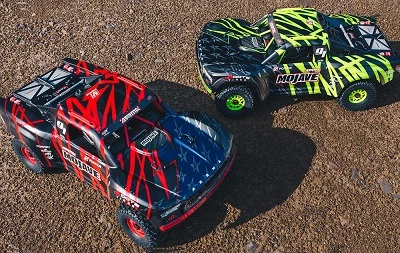

TWO BROTHERS, TWO COLORS Each with color coordinated wheels, roll cage, and roof rails	FROM STRENGTH TO STRENGTH Red anodized aluminum strengthening cap with pivot ball geometry

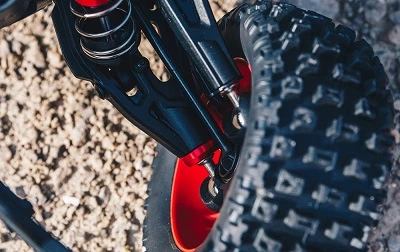

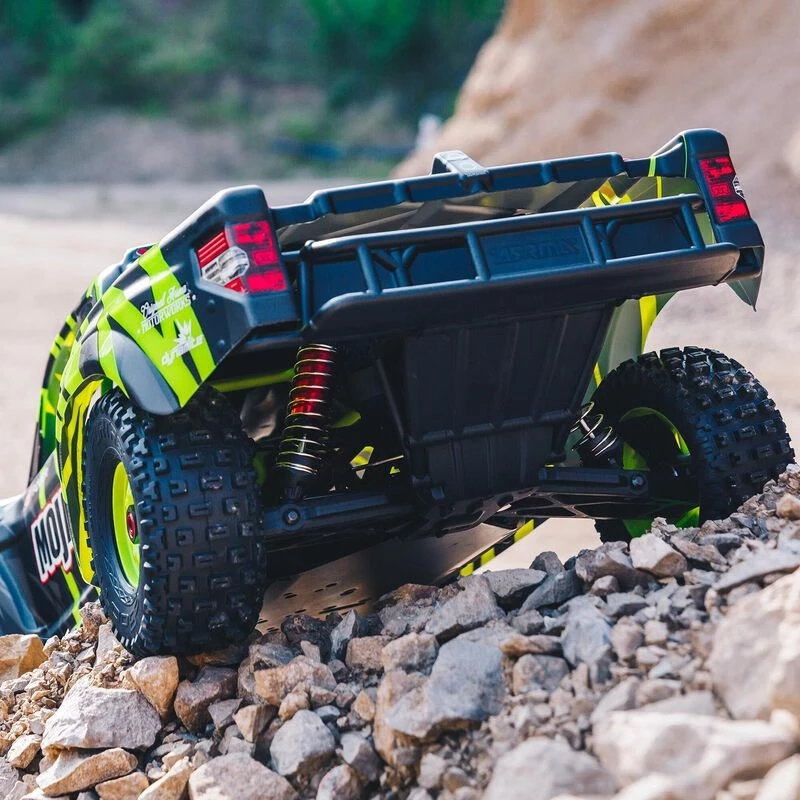

LONG RANGE Independent suspension for superior handling	SIDE NERF BARS Attached to body for side impact support

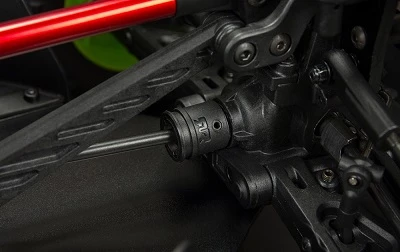

SAFE-D FIRST Input gears are keyed to the drive cups composite sleeves to fortify retention of the drive cup ser screw.	FRONT PIVOT BALL SUSPENSION For precise handling at top speeds

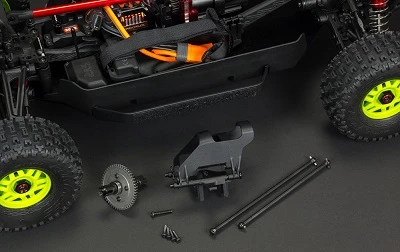

QUICK MAINTENANCE 5 bolt center diff removal for easy access	SPEKTRUM® SMART TECHNOLOGY INCLUDED FIRMA 150A SMART Brushless ESC and FIRMA 4074 2050Kv Brushless Motor

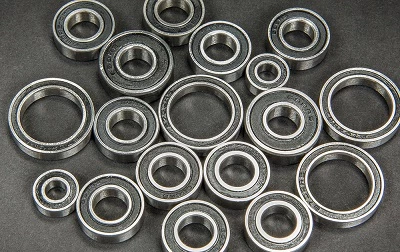

RUBBER SHIELDED BEARINGS Longer life, less maintenance	GO LARGE Large volume waterproof receiver box

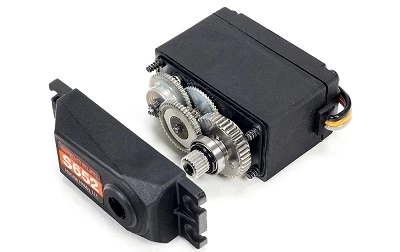

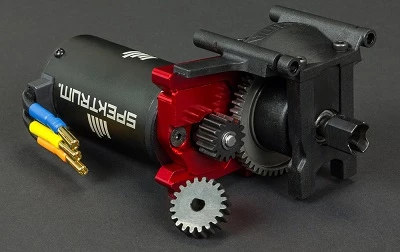

OPTIONAL SPEED PINION INCLUDED Red anodized motor mount and Mod 1 spur and pinion gears to handle optimum performanc	SPEKTRUM® SPMS652 DIGITAL SERVO All Steel Gears Waterproof* 19.08kg-cm/265oz-in Torque @7.4V 32% More Torque & 5% Faster than ADS-15M Servo *For details on waterproof standards please refer to the product instruction manual

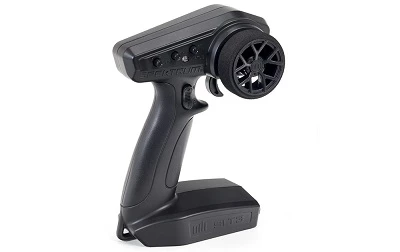

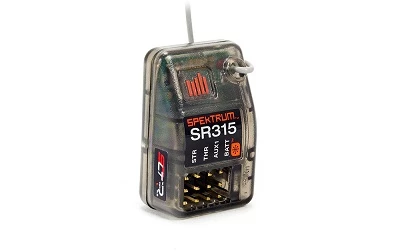

SPEKTRUM® SLT3® RADIO Superb SLT response rate 50% and 75% throttle limited switch – great for beginners Steering & throttle rate & trim adjustments with throttle and steering reversing Foam steering wheel grip Compatible with Tactic Receivers	SPEKTRUM® SR315 RECEIVER Dual Protocol – Compatible with SLT and DSMR® 2.4GHz protocol transmitters Fast reponse rate and outstanding range No tool binding and protocol switching SMART telemetry compatible (in DMSR mode and with SPEKTRUM dashboard app) 3-Channels

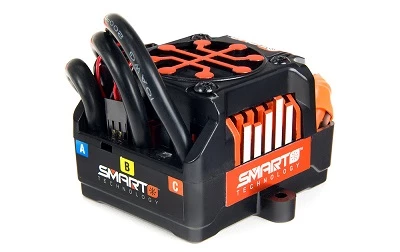

FIRMA 150A SMART Brushless ESC Waterproof* and dustproof design 150A, 6S LiPo ready (3S, 4S & 6S LiPo compatible) Spektrum® SMART Technology Fitted with reliable IC5® connectors (EC5 compatible) Integrated fan for reduced heat during extreme running High quality 10awg wires Low voltage cut off and thermal overload protection User programmable punch, brake, BEC, reverse speed and motor timing settings *For details on waterproof standards, please refer to the product instruction manual	FIRMA 4074 2050Kv Brushless Motor 2050Kv 4074 size 6S brushless motor Beautifully etched aluminum can 4-pole construction for smooth and consistent power 4mm gold bullet connectors for reliable and efficient connection Black anodized aluminum motor can for increased heat dissipation Super strong 5mm shaft Groove at the end of the motor shaft allows the installation of a pinion retaining E-Clip
