Introduction

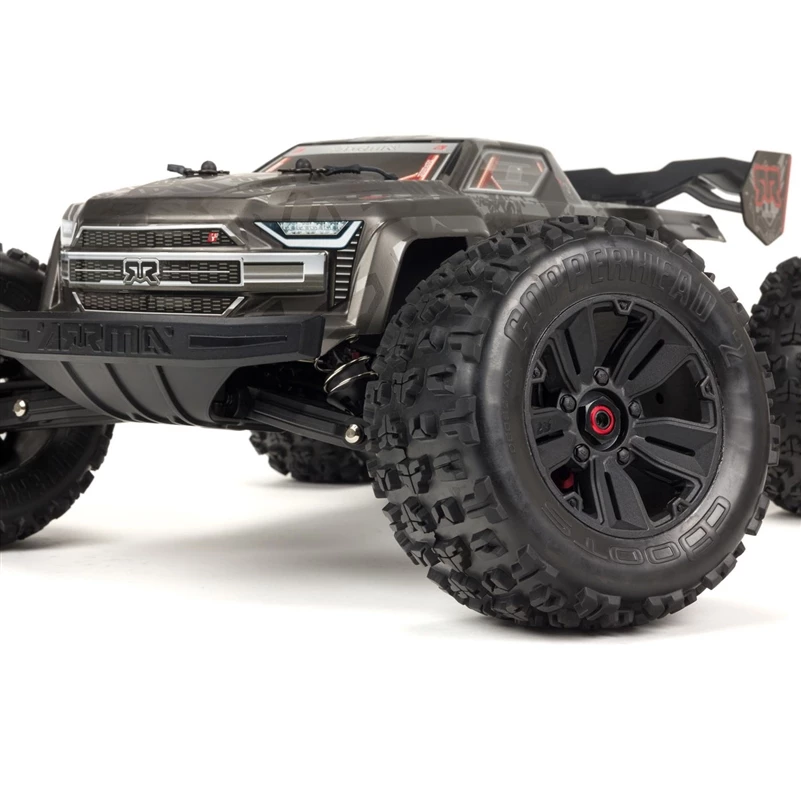

The ARRMA® KRATON Extreme Bash Roller Monster Truck adds extra toughness everywhere it counts, making this 1/8 scale chassis the perfect platform for high-speed bashing over brutal terrain. It’s fully assembled and ready to accept your choice of powerful electronics. Top off the KRATON Extreme Bash Roller Monster Truck with the included, exclusive EXB matte and gloss finish body and you’re ready to bash without boundaries.

Features

Designed Fast, Designed Tough
EXB (Extreme Bash) components for extreme durability
7075 T6 Aluminum laser-etched chassis plate
Aluminum front and rear chassis braces
Center body support and brace for maximum durability
Strong composite chassis side pods
Aluminum front upper hanger, top plate, and rear suspension mount
Heavy-duty front and rear arms with aluminum strengthening cap
Heavy-duty steel turnbuckles
Heavy-duty front upper steel hinge pins
Heavy-duty drivetrain
Durable steel driveshafts
All-metal diff outdrives and gearbox internals
Plated limited-slip differentials
Safe-D input gears
Oil-filled adjustable shocks
7075 T6 Anodized aluminum front and rear shock towers
Red-anodized aluminum servo mount
Large volume waterproof receiver box
Black matte and gloss effect body
Front bumper
High downforce wing
Multi-terrain DBoots® Copperhead 2 tires on multi-split spoke wheels
Durable wheel hubs
2-year warranty (see website support for details)

Overview
“Designed Fast, Designed Tough” may be an understatement when describing the KRATON® Extreme Bash Roller Monster Truck. Made of strong anodized 7075 T6 aluminum, the laser-etched chassis plate gains further rigidity from the use of front and rear aluminum chassis braces. Strong composite chassis side pods and a center body support and brace provide more rugged resilience.

Durable steel driveshafts plus all-metal diff outdrives and gearbox internals keep the heavy-duty 4-wheel drivetrain rolling over punishing tracks. An Extreme Bash toughened suspension system smooths the ride, with a steel rear suspension mount and adjustable oil-filled shocks mounted on 7075 T6 anodized aluminum front and rear shock towers.

The KRATON Extreme Bash Roller Monster Truck’s list of EXB components also includes the following and more to give this big machine uncompromising muscle:

EXB Heavy-duty front and rear arms with aluminum strengthening cap
EXB Heavy-duty steel turnbuckles
EXB Heavy-duty front upper steel hinge pins
EXB Plated limited-slip differentials
EXB Red-anodized aluminum servo mount
EXB Large volume waterproof receiver box
EXB Front bumper

Its aggressive dBoots® Copperhead 2 tires arrive mounted on multi-spoke wheels with durable hubs to deliver all-terrain traction assisted by a high downforce wing that adds an aggressive edge to the look of the exclusive EXB matte and gloss effect finished truck body.

Needed to Complete:
Transmitter and Receiver
Steering Servo
Electronic Speed Controller
Motor
Batteries (1 or 2)

What’s in the Box?
(1) ARRMA® KRATON 1/8 Scale Extreme Bash Roller Monster Truck 4WD
(1) Product Manual

EXCLUSIVE EXB MATTE & GLOSS EFFECT BODY

ETCHED TO PERFECTION

EXB FOR EXTREME BASH TOUGHNESS

REDESIGNED ALL-METAL INTERNALS FOR
HANDLING GREATER POWER

EXB ALUMINUM FRONT SHOCK TOWER

EXB ALUMINUM REAR SHOCK TOWER

EXB PLATED LIMITED SLIP DIFFERENTIAL

RED ANODIZED ALUMINUM FRONT UPPER HANGER

WIDER TOOTH PROFILE = STRONGER GEARS

SAFE D FIRST – PLASTIC LOCKING SLEEVE,
NO RED THREAD LOCK REQUIRED

RUBBER SHIELDED BEARINGS THROUGHOUT

EXB HEAVY-DUTY STEEL TURNBUCKLES

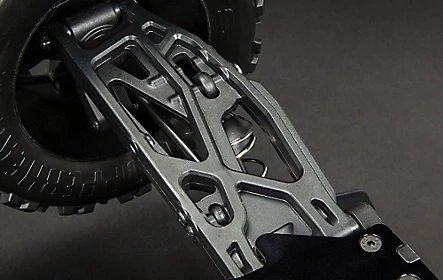

HEAVY-DUTY FRONT ARMS WITH ALUMINUM STRENGTHENING CAPS
HEAVY-DUTY REAR ARMS

EXB HEAVY-DUTY FRONT UPPER STEEL HINGE PINS

EXB HEAVY-DUTY FRONT & REAR SHOCK PINS

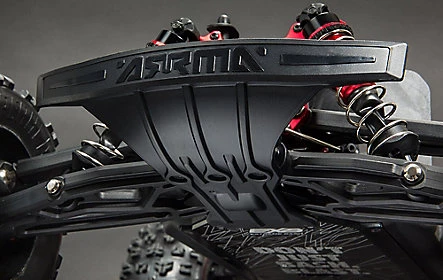

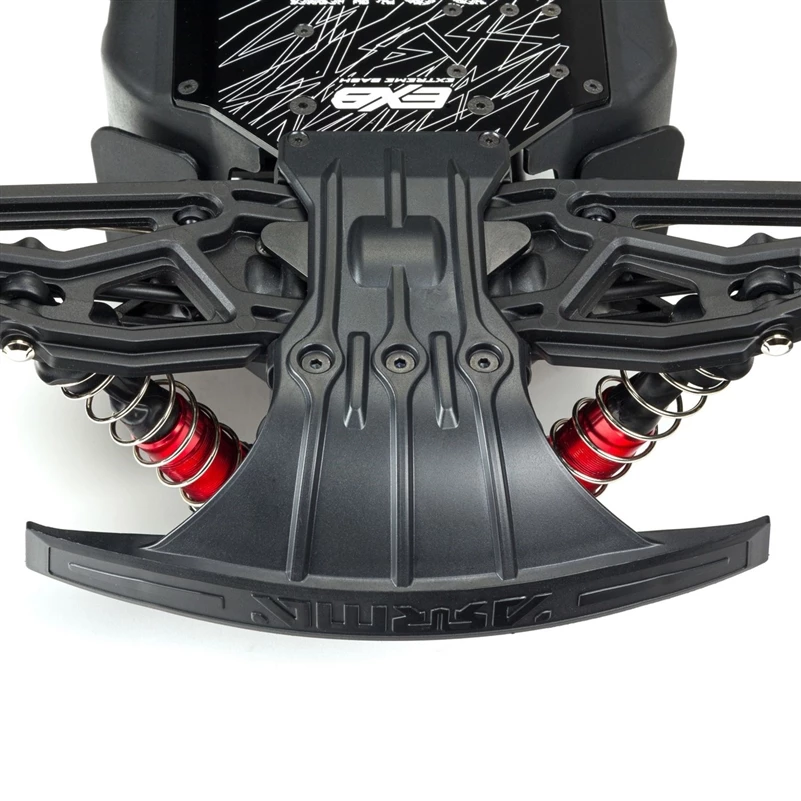

EXB FRONT BUMPER WITH BUILT IN SKID PROTECTION
AND CRASH ABSORBING DESIGN
EXB FRONT ALUMINUM CHASSIS BRACE

EXB REAR ALUMINUM CHASSIS BRACE

EXB ANODIZED ALUMINUM SERVO MOUNT

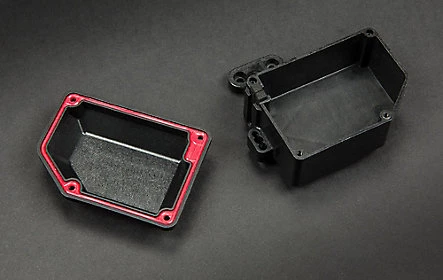

LARGE VOLUME WATERPROOF RECEIVER BOX

Specifications:
Approximate Assembly Time: 1-3 Hours
Ball Bearings: Yes, full set
Batteries: Two 2- 3S at least 5000mAh recommended
Body: Painted, decaled and trimmed
Brakes: Integral with ESC
Bushing Material: Metal
Charger: Sold separately
Chassis: CNC 7075-T6 Aluminum plate, 0.12″ (3mm) thick
Differential: Three oil-filled metal gear
Drivetrain: 2WD
Final Drive Ratio: 17.92
Gear Pitch: 1.0 Module
Height: 7.68 in (195mm)
Length: 23.39 in (594mm)
Max Battery Dimensions: 7.1 x 2.2 x 2.7 in (180 x 55 x 70mm)
Motor Size: 4074, sold separately
Motor Type: Brushless, sold separately
Pinion: 12T
Radio: Sold separately
Scale: 1/8
Servos: Sold separately
Shock Type: Adjustable, oil-filled, coil-over springs
Speed Control: Sold separately
Spur Gear: 50T
Suspension: Independent
Tire Diameter: 6.65 in (169mm)
Tire Tread: dBoots COPPERHEAD2
Vehicle Type: Monster truck
Water-Resistant: Yes
Weight: 9.35 lb (4.25kg)
Wheel Hex Size: 17mm
Wheel Type: Monster truck
Wheelbase: 14.84 in (377mm)
Width: 18.15 in (461mm)
