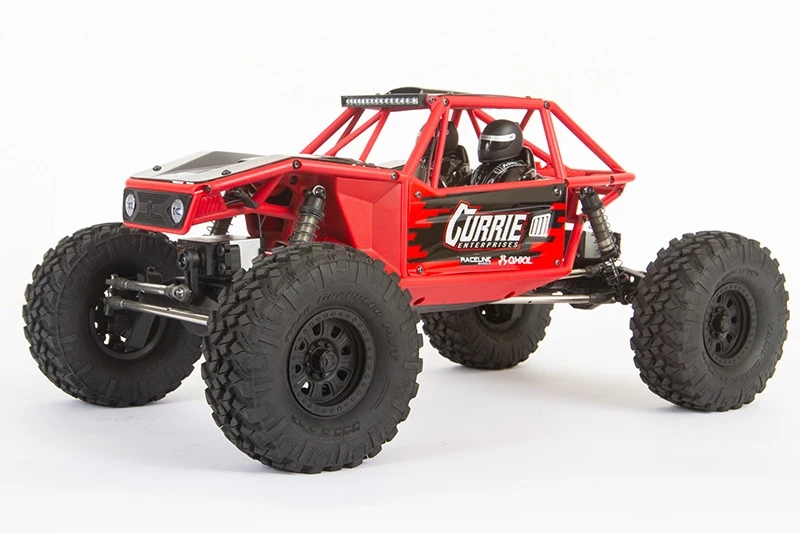

Axial Capra 1.9 4WS Unlimited Trail Buggy RTR – Currie Red

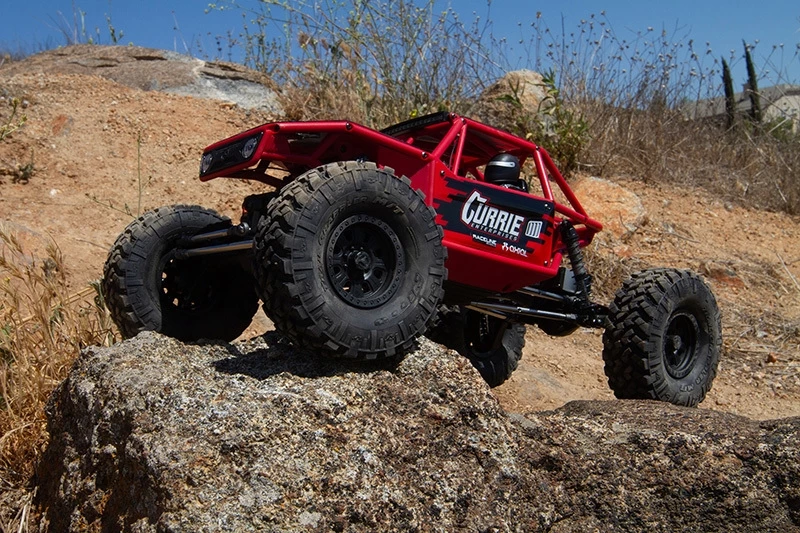

The Axial® Capra 1.9 Unlimited Trail Buggy is now available in a new version that gives crawling enthusiasts an even more realistic and effective way to maneuver. Out of the box, the ready-to-run Capra 1.9 4WS Unlimited Trail Buggy features front and rear steer to make it super capable on the rocks.

Axial® engineers have installed steer axles at both ends of this Capra for the enhanced maneuverability of 4-wheel steering. Using the third channel button of the included Spektrum DX3 transmitter, you can steer the rear axle from 0 (straight) to 50% or 100%, left and right, to position the tires perfectly for conquering obstacles. In full-scale crawling competition, such subtle maneuvering is a must to avoid losing points from reversing or hitting a marker on the course. With the Capra 1.9 4WS, you experience more true rock crawling realism!

The transmission also includes an optional Dig setup that’s disabled from the factory (and requires upgrading to a 4-channel radio and micro servo for use). To have Dig and rear steering capabilities, remove the spacer from inside the transmission and install your micro servo. With the flick of a transmitter button, you can now activate Dig and lock the rear drive axle. That allows you to pull the buggy around by the front end while holding the rear in place.

The tube chassis of the Capra 1.9 4WS Unlimited Trail Buggy offers realistic scale rock crawler buggy looks and is optimized for suspension and tire clearance. Currie F9 Portal Axles deliver over 45% of steering with extra ground clearance. Both axles feature metal universals that produce smooth action for an efficient and durable drivetrain. All links and suspension pivots are made of rust-proof stainless steel and provide precise, durable suspension points.

The included Spektrum DX3 transmitter features exclusive DSMR® technology for superior range, response, and interference resistance. It’s also fully compatible with the Smart telemetry potential provided by the vehicle’s Spektrum Firma 2-in-1 40A Smart ESC/Receiver. Using a Spektrum Smart LiPo pack, you can follow on-board battery capacity on the transmitter’s voltage level indicator while driving with confidence in any weather and trail conditions the electronics are protected by a waterproof and dustproof design.

The Capra 1.9 4WS Unlimited Trail Buggy includes larger, licensed Nitto Trail Grappler M/T tires that increase ground clearance while offering a wider tire patch for more traction wherever you crawl on a trail, a comp course, or backyard crawl course. The tires are mounted on licensed Raceline injection-molded wheels with a 3-piece beadlock design for easy tire removal and replacement without gluing.

Factory-assembled and finished, the Axial® Capra 1.9 4WS Unlimited Trail Buggy RTR comes with the transmitter, receiver/ESC, motor, two steering servos, and AA transmitter batteries. All you need to supply is your choice of suitable battery and charger.

Features:
Includes front and rear steering out of the box for the ultimate in precise maneuverability
Also includes an optional Dig setup unlock the Dig transmission and upgrade to a 4-channel radio and micro servo to operate the Dig feature while also having rear steering
Currie F9 Portal Axles offer over 45% of steering with extra ground clearance for the best crawling performance
Tube chassis design offers the realistic scale looks of a rock crawler buggy and is optimized for suspension and tire clearance
Included Spektrum DX3 2.4GHz DSMR® radio provides superior range, response, and interference resistance and is compatible with Smart technology
Front and rear axles each come with a Spektrum S614 Metal-Gear servo installed for steering
Adjustable oil-filled shocks feature hard anodized, threaded shock bodies and a single coilover spring
All pivot points are on stainless steel balls for a durable, long-lasting suspension point
Metal universal joints on both axles provide smooth action and 45 degrees of steering for an efficient, high-performance drivetrain
Nitto Trail Grappler 1.9 tires are mounted on injection-molded, 3-piece, licensed Raceline beadlock wheels

Includes:
(1) Axial® Capra 1.9 4WS Unlimited Trail Buggy RTR
(1) Spektrum DX3 2.4GHz Smart 3-Channel Radio (installed)
(1) Spektrum Firma 40A Brushed Smart 2-in-1 ESC and Receiver (installed)
(1) Axial® 35T Brushed Motor (installed)
(2) Spektrum 15Kg Waterproof Servo 23T (installed)
(1) Axial® LED Light Set (installed)
(1) Product manual

Needed to Complete:
(1) 2-3S Shorty LiPo Battery
(1) Compatible LiPo Battery Charger


FRONT AND REAR STEERING Axial® designers have installed two steer axles at both ends of this Capra to give you the ultimate in maneuverability. Using the included Spektrum DX3 transmitter’s third-channel button, you can choose to steer the rear axle from 0 (straight) to 50% or 100%, left and right. Want to make it even more maneuverable? Then unlock the Dig transmission and upgrade to a 4-channel radio to operate the Dig feature while also having rear steering!	“DIG” OPTIONED TRANSMISSION The Capra 1.9 4WS Unlimited Trail Buggy transmission includes an optional Dig setup that’s disabled from the factory. Using the Dig function requires a transmitter and receiver with at least four channels plus a micro servo. After installing the receiver, simply remove the spacer from inside the transmission and install your micro servo. With the flick of a button on your transmitter, you’re now able to activate Dig and lock the rear drive axle. That allows you to pull the buggy around by the front end while holding the rear in place.

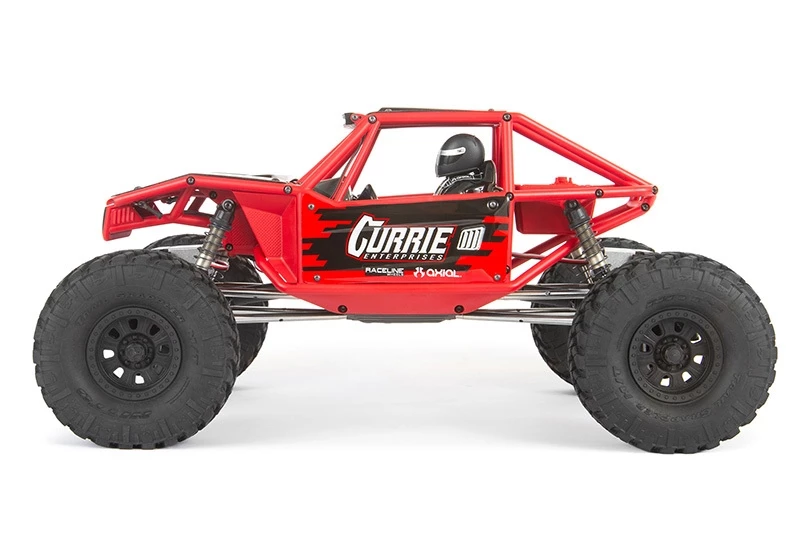

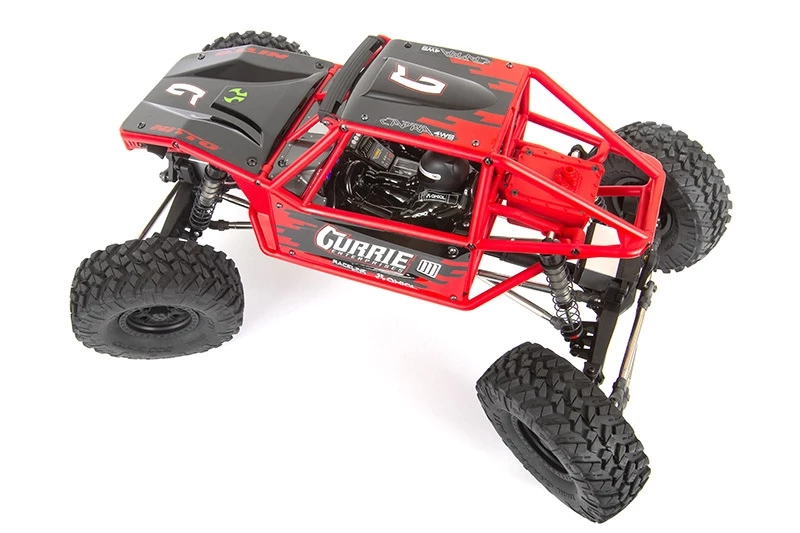

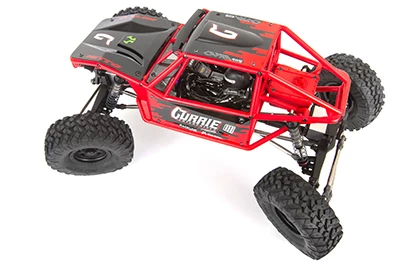

CURRIE F9 LICENSED PORTAL AXLES The Currie F9 Portal Axles are designed specifically for the best performance when crawling, offering over 45% of steering with extra ground clearance.	TUBE CHASSIS DESIGN The tube chassis design offers the realistic scale looks of a rock crawler buggy and is optimized for suspension and tire clearance.

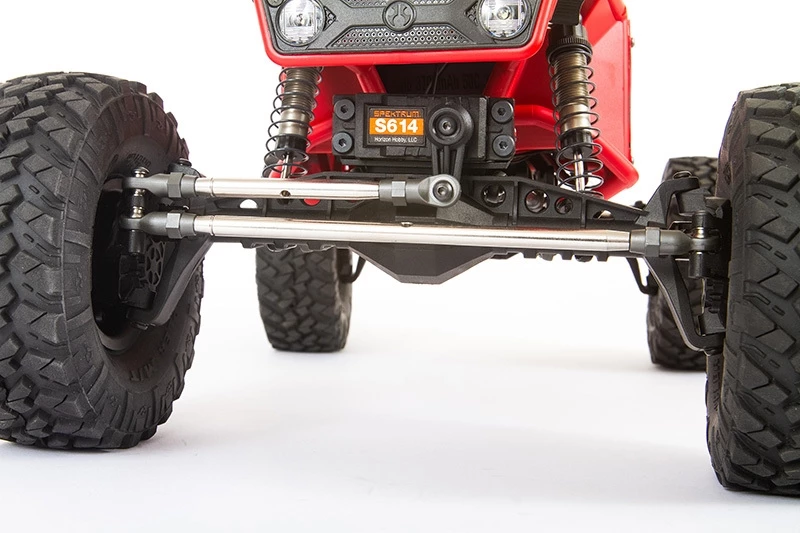

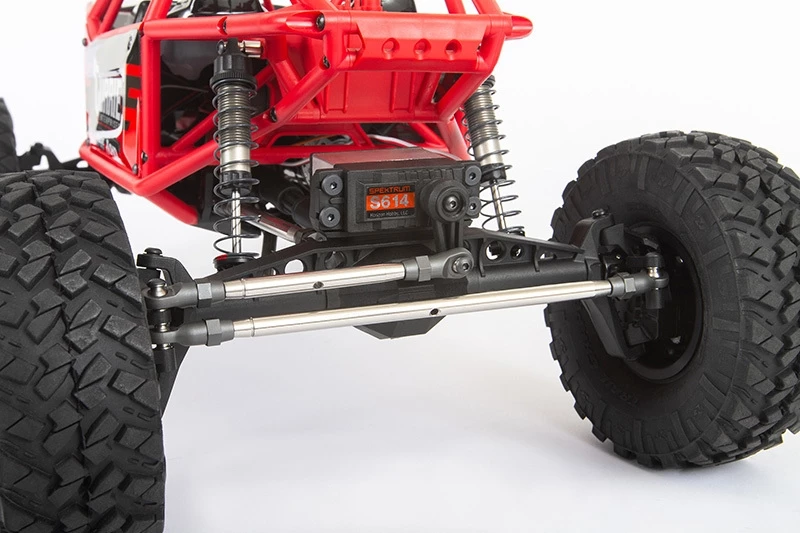

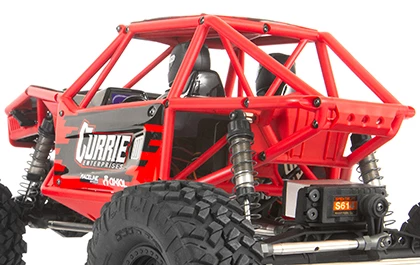

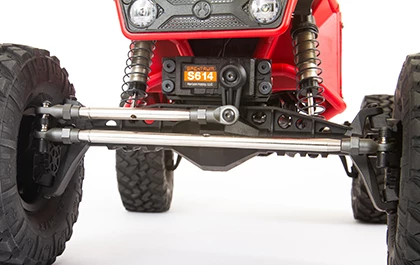

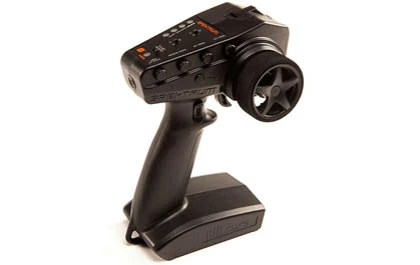

SPEKTRUM DX3 2.4GHz DSMR® TRANSMITTER The included Spektrum DX3 radio features exclusive DSMR® technology for superior range, response, and interference resistance. It’s also fully compatible with the Smart telemetry potential provided by the vehicle’s installed Spektrum Firma 2-in-1 40A Smart ESC/Receiver.	TWO METAL-GEARED SERVOS Each end of the Capra 1.9 4WS Unlimited Trail Buggy is equipped with a Spektrum S614 Metal-Gear servo to steer the front and rear axles.

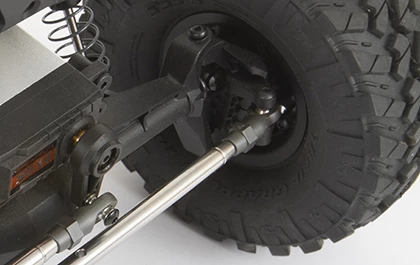

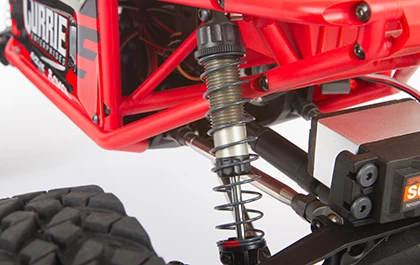

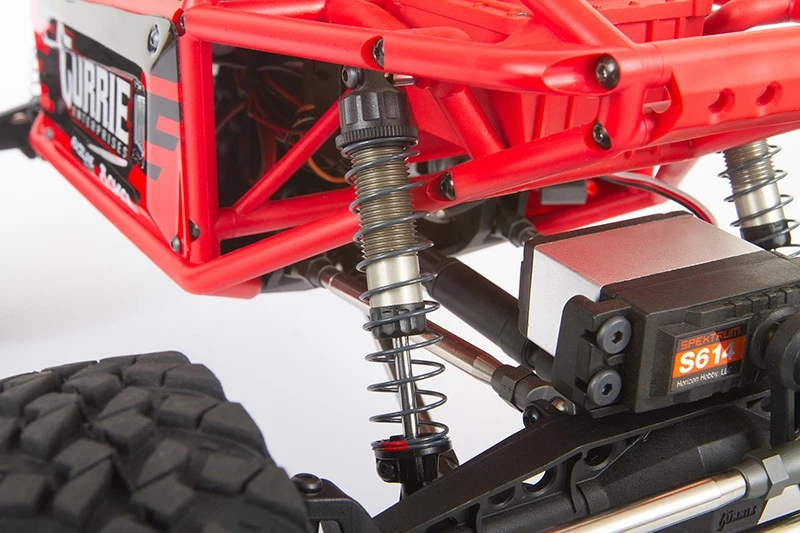

ALUMINUM OIL-FILLED SHOCKS The shock bodies are threaded and hard-anodized for a smooth, long-lasting finish. Adjust the dampening to your optimal suspension settings by increasing or decreasing the spring pre-load simply by rotating the threaded shock collars.	METAL UNIVERSAL JOINTS Both axles feature metal universals that deliver smooth action for an efficient and durable drivetrain. The universals provide 45 degrees of steering, too.

STAINLESS STEEL SUSPENSION LINKS AND PIVOT BALLS All links and suspension pivots are made of rust-proof stainless steel and provide precise, durable suspension points.	3-PIECE BEADLOCK WHEELS The licensed Raceline injection-molded wheels feature a 3-piece beadlock design, allowing the tires to be removed and replaced easily without gluing.

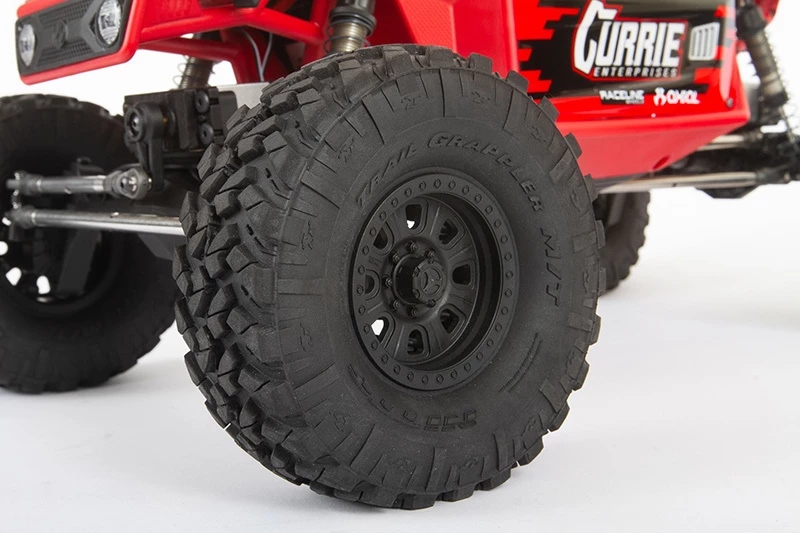

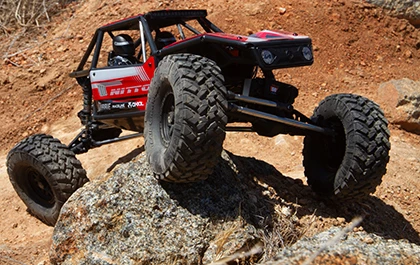

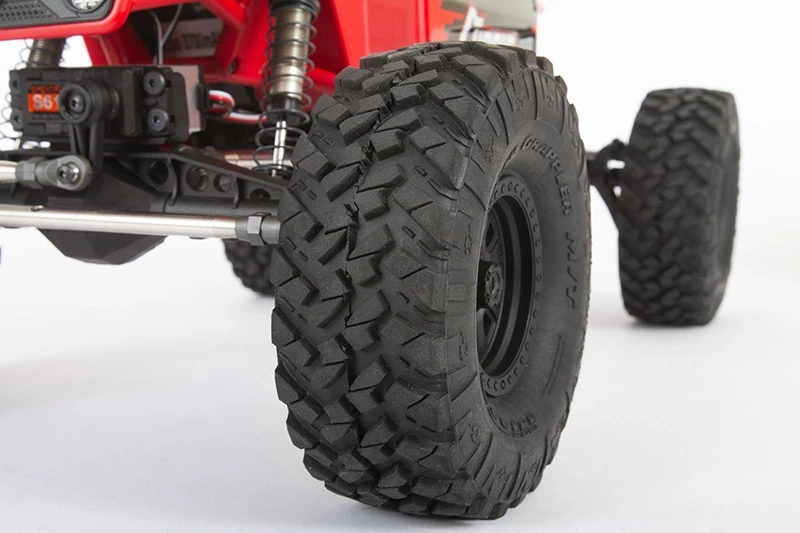

LARGER NITTO TRAIL GRAPPLER TIRES The Capra 1.9 4WS Unlimited Trail Buggy includes the updated, licensed 4.75 Nitto Trail Grappler M/T 1.9 tires from the SCX10 III. These larger tires increase ground clearance while offering a wider tire patch for more traction.	READY-TO-RUN The Capra 1.9 4WS Unlimited Trail Buggy comes assembled and includes a transmitter, receiver/ESC, motor, two steering servos, and AA transmitter batteries. All you need to supply is a battery and charger.

Specifications:
Approximate Assembly Time: No assembly required
Ball Bearings: Full set
Battery: Sold Separately
Body: Screened polycarbonate
Brakes: Integral with ESC
Charger: Sold Separately
Chassis: Injection molded tubular
Completion Level: Ready-To-Run
Differential: Locked
Drivetrain: 4WD
Drive Type: Forward/Brake/Reverse
Final Drive Ratio: 37:1
Front Track: 8.75″ (222.25mm)
Power Type: Electric
Gear Pitch: 32P
Ground Clearance: 3″ (76.2mm)
Internal Gear Ratio: 5.14:1
Motor Type: Brushed
Product Height: 8.25″ (210 mm)
Product Length: 17″ (432 mm)
Product Weight: 4.5lbs (2.04kg)
Product Width: 10.25″ (260 mm)
Radio: Included
Rear Track: 8.75″ (222.25mm)
Receiver: Included
Scale: 1/10
Servos: Included
Shock Type: Aluminum body coil-over spring
Speed Control: Included
Suspension: 4-link solid axle
Vehicle Type: Rock Crawler
Water-Resistant: Yes
Wheelbase: 12.5″ (318 mm)
