Specifications:
BEC: Yes
BEC Maximum Burst Current: 3A
BEC Voltage: 6.0V
Battery Connector: IC3
Battery Input Lead: 16AWG, 5.5″ (140mm) long
Brakes: Controlled via Motor/ESC
Forward: Yes
Height: 1.1″ (28.5mm)
Input Voltage: 7.4-11.1V (2-3S LiPo), 6-10.8V (5-9 cells NiMH/NiCd)
Length: 1.8″ (46.5mm)
Motor Connector: 3.5mm Bullet
Motor Output Lead: 0.14″ (3.5mm) female bullet connectors
Reverse: Yes
Sensored: No
Type: Forward/Reverse with Drag Brake
Weight: 2.5oz (70g)
Width: 1.3″ (34mm)

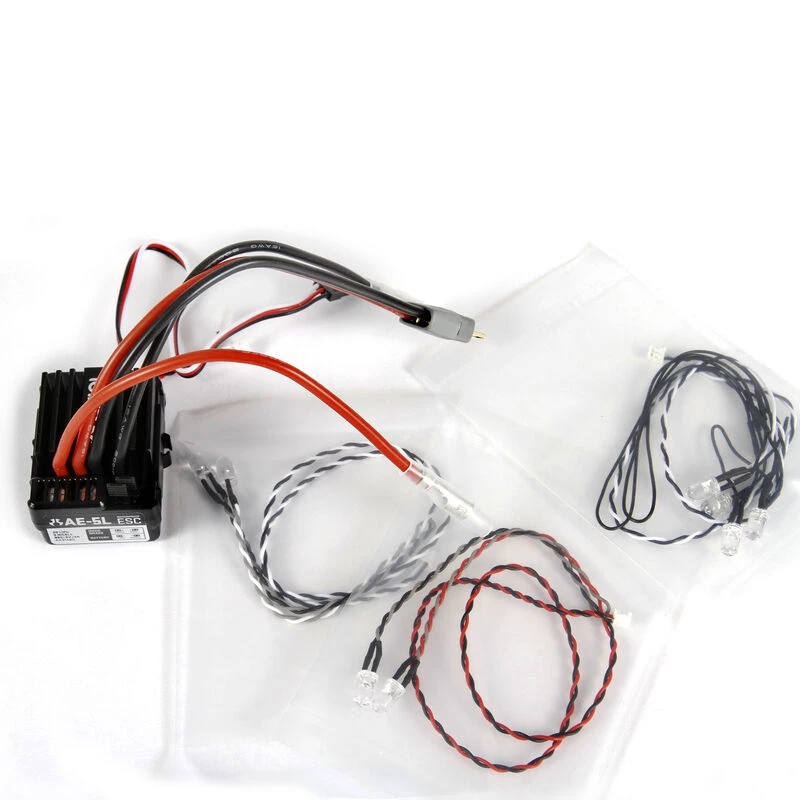

NOTE:
LED LEADS NOT COMPATIBLE WITH AXIAL’S OLD LED LIGHT STRINGS, or THIRD
PARTY LED LIGHT STRINGS. Connecting your old LED light strings to these leads will cause damage to the AE-5L ESC and the light strings. Works with AX31481
