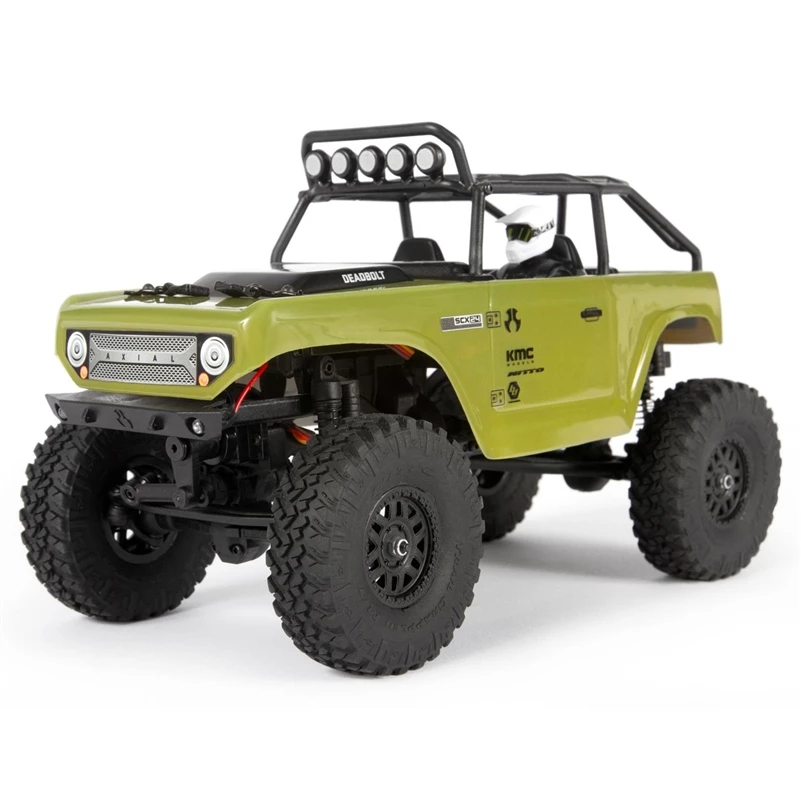

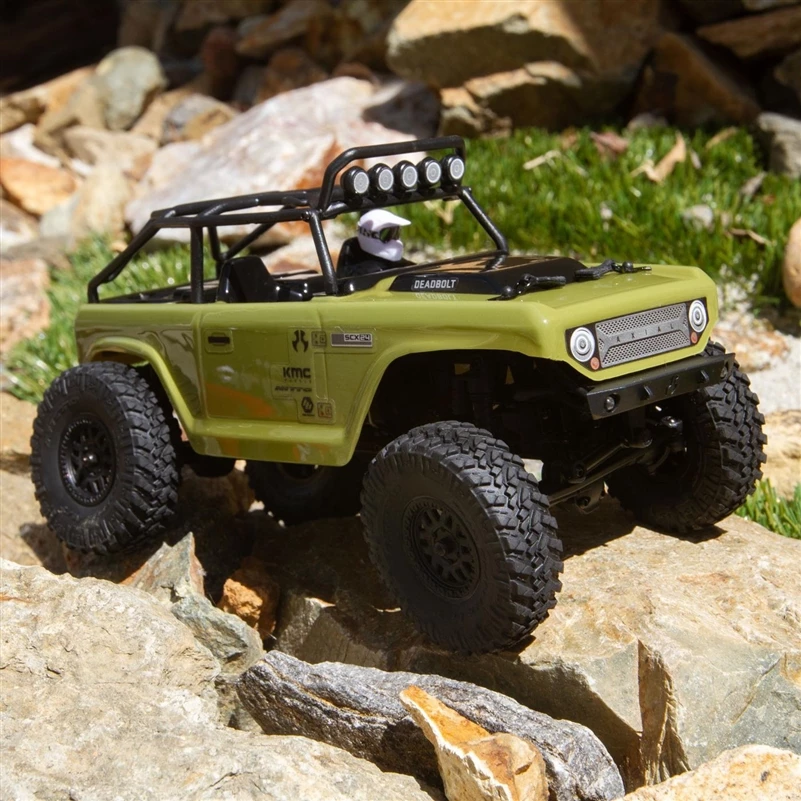

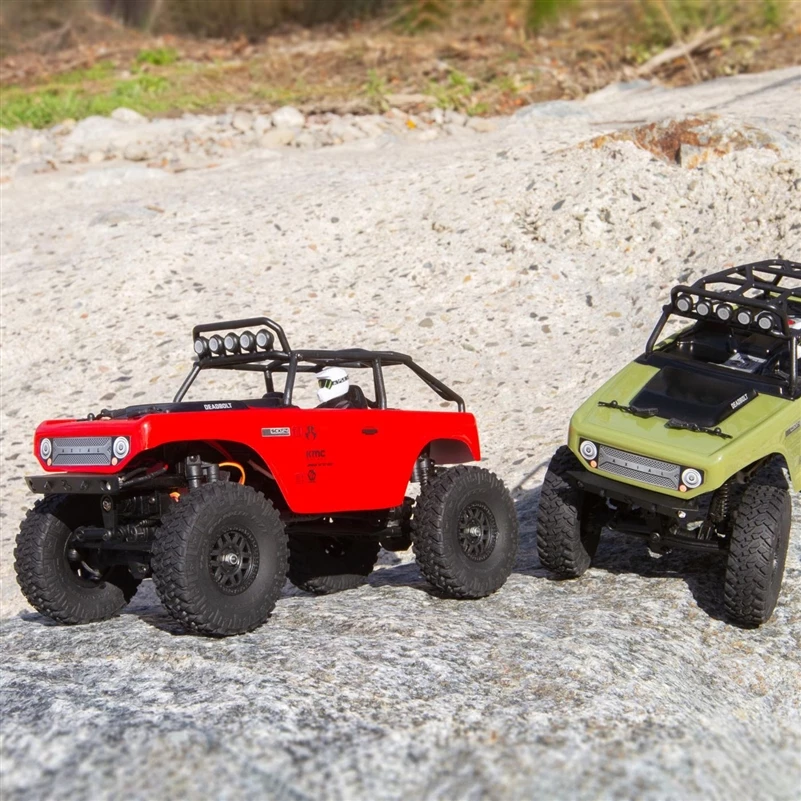

Equally at home on creative indoor trails and challenging outdoor terrain, this Deadbolt is eager for adventure almost anywhere the 1/24 scale SCX24 chassis proves that BIG fun comes in small packages! The chassis shares many familiar features with its highly successful 1/10 scale SCX10 inspiration. It has rugged steel C-channel frame rails with bracing and officially licensed Nitto® Trail Grappler tires on KMC® XD Machete wheels, providing the toughness and tread to tackle off-road challenges (and the freedom to face them down on-road, too). The SCX10 hinged body system has been carried over into this rig as wellso you can change the battery or check out other on-board components with barely a break in the action.

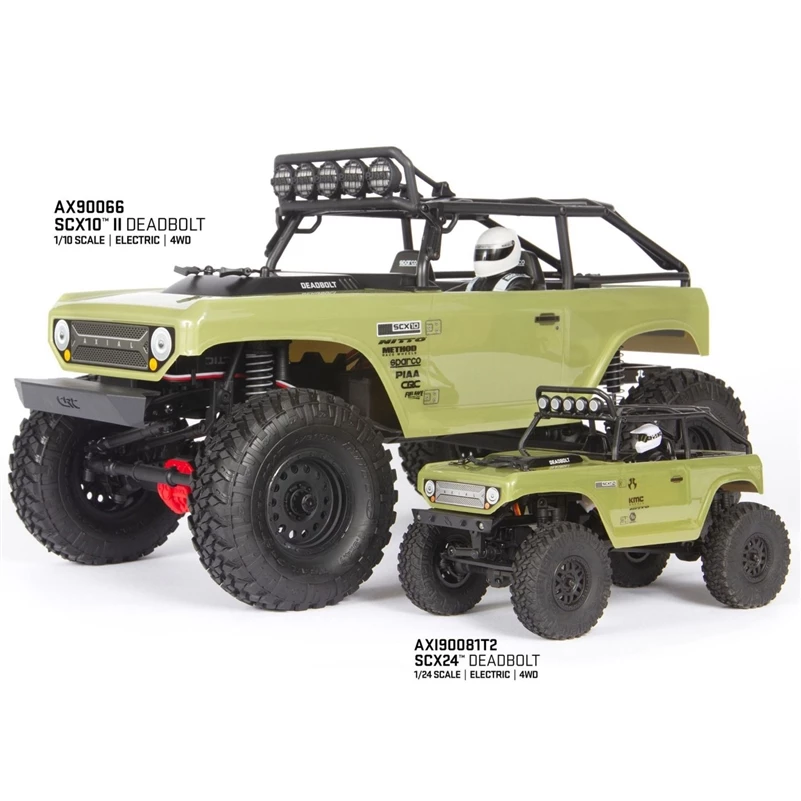

The SCX24 Deadbolt 4WD is the first Axial® off-roader in 1/24 scale. At less than 8 long, its the perfect rig to take along on your hiking, camping, and other outdoor and indoor adventures offering factory-assembled ease, scale looks, and confident handling on any trail.

Even new modelers driving the SCX24 chassis will be well-equipped to tackle tough climbs and rough trails. Like the larger SCX10 chassis, this smaller version uses plenty of steel components from the C-channel frame rails to the front and rear axles and dogbones. Even over off-road, mountainous, rocky and desert terrain, it has the strength to keep pushing onward and upward.
For the most reliable handling, the SCX24 chassis features a three-link front and four-link rear suspension. The combination of coil-over shocks and durable plastic suspension links delivers Axial-worthy crawling performance even at this small scale. The worm gear drive setup permits a high ground clearance plus a low gear ratio that reduces torque twist.

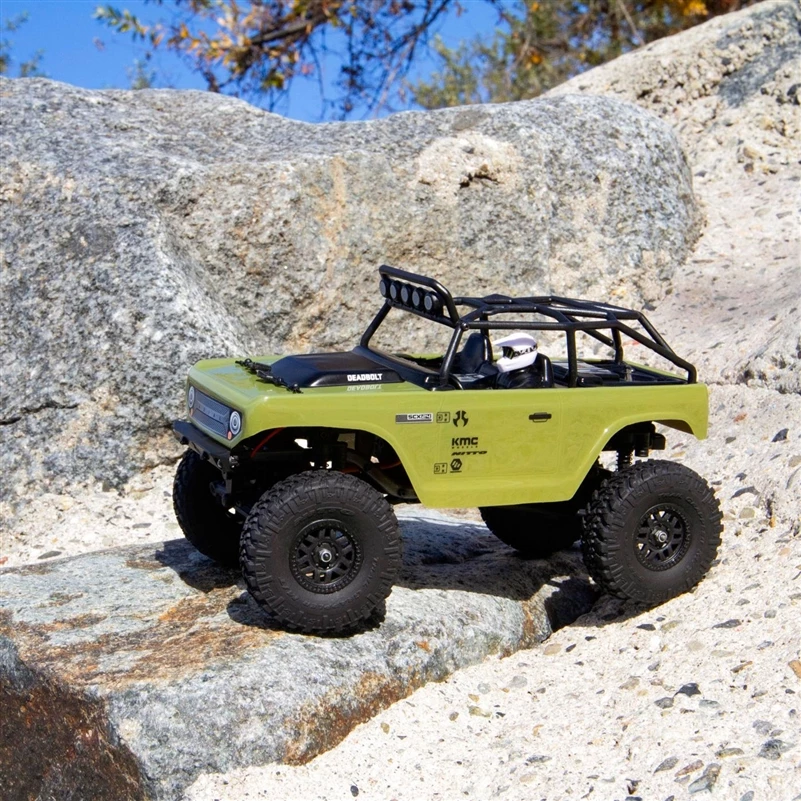

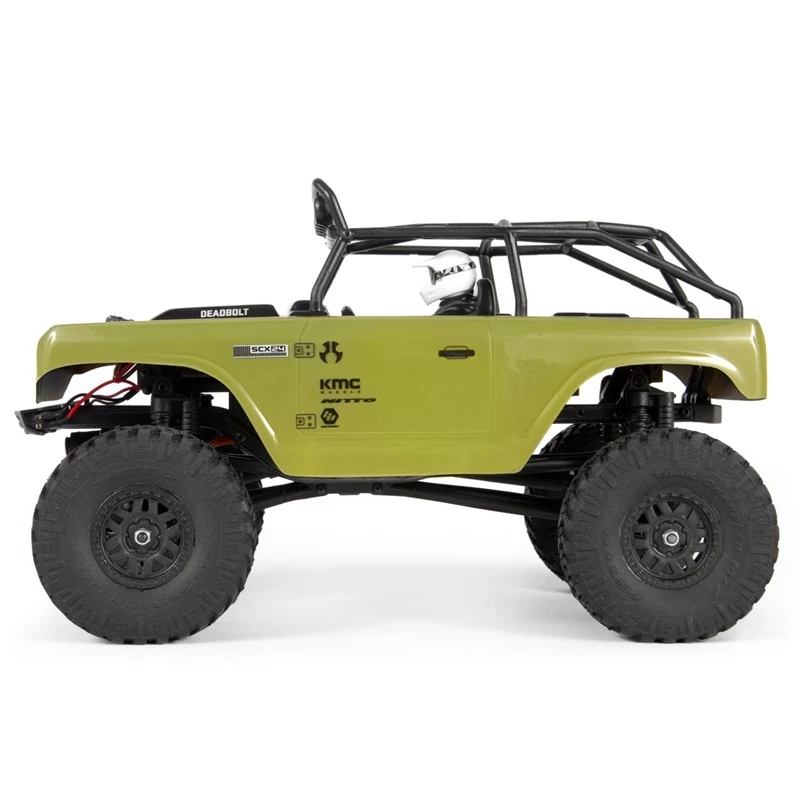

Powered by an included 180-size motor and LiPo battery, the SCX24 Deadbolt shows off competence and charisma on the trails. Check out that Deadbolt body with its narrow stance, bulging hood, LED lights mount in the front bumper, realistic driver figure, and molded roll cage with realistic light bar. The realism continues right down to the ground, where youll find licensed KMC XD229 Machete Crawl wheels wrapped in Nitto Trail Grappler tires.

Adding even more to its beginner appeal, the SCX24 Deadbolt comes 100% complete and ready to run. Everything required for action is in the box: assembled and finished vehicle; Axial 2-channel 2.4GHz radio system with servo and ESC/receiver unit; Dynamite® 88T brushed electric motor and 350mAh 2S 7.4V LiPo battery; USB LiPo charger; and even four AA cells for the transmitter!

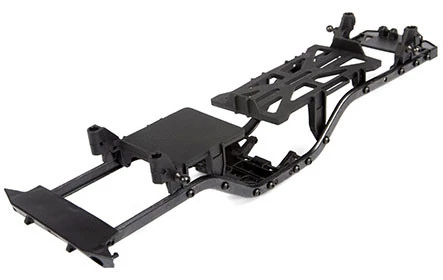

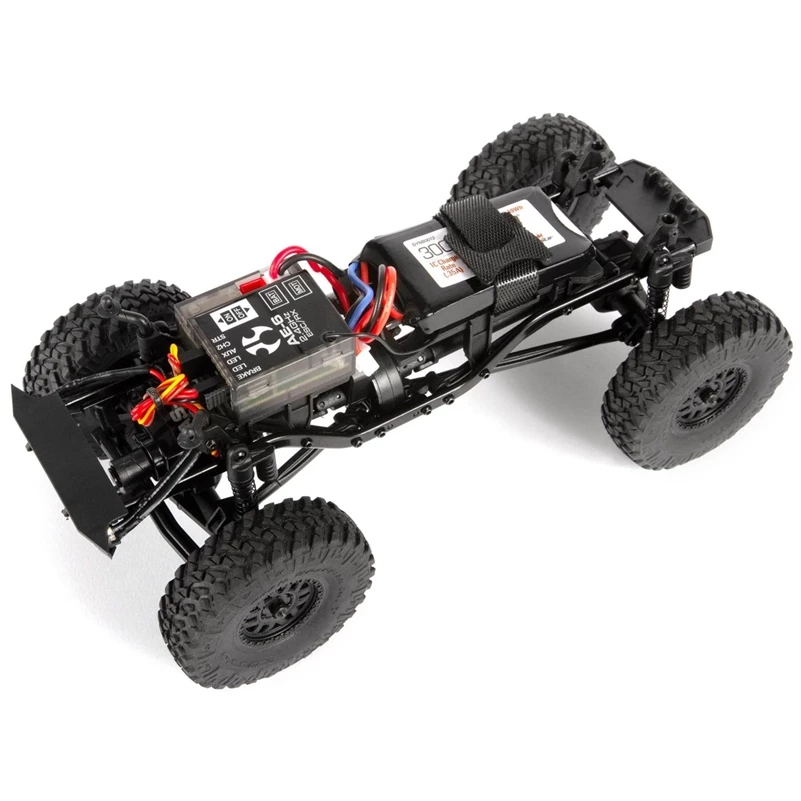

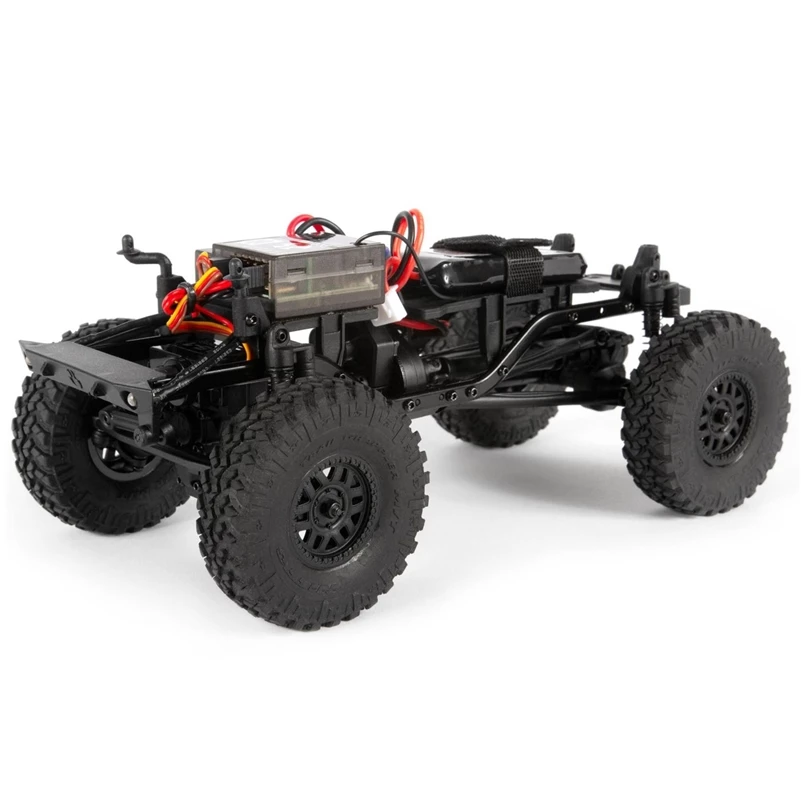

STEEL C-CHANNEL CHASSIS FRAME RAILS

Just like the 1/10th scale SCX10 platform, the SCX24 chassis features rugged and sturdy steel c-channel frame rails with bracing to keep everything intact and aligned.

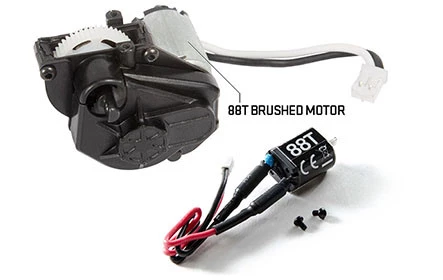

DYNAMITE® 88T BRUSHED MOTOR

The Dynamite 88T brushed electric motor provides the right amount of torque to help ascend steep climbs. It’s mated to a steel motor mount to keep flex to a minimum, which helps protect the gears.

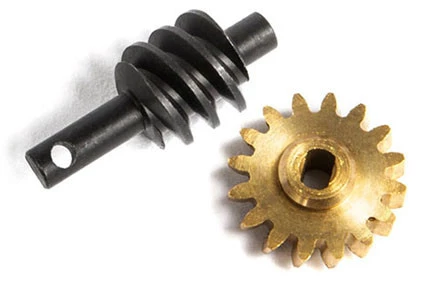

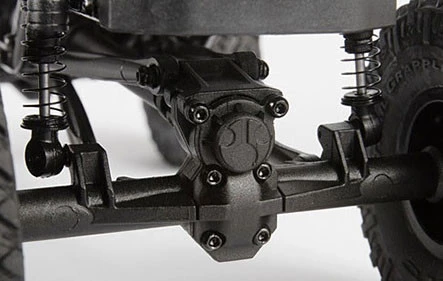

WORM GEARS

The front and rear differentials each house a worm screw and worm gear setup to get the power to the axles and create higher ground clearance.

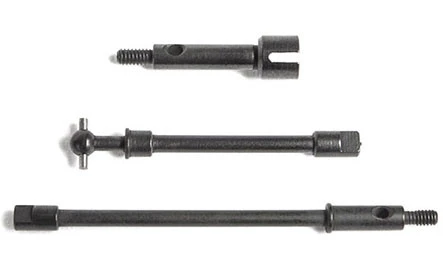

DURABLE STEEL AXLES

Steel front and rear axles, front stub axles along with steel dogbones provide strength and durability to keep things running during tough climbs and rough trails.

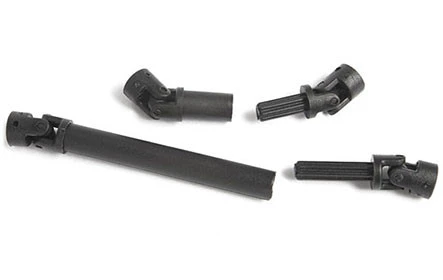

SPLINED DRIVE SHAFTS

The front and rear drive shafts are splined and sleeved to allow for maximum suspension travel while keeping the power to the wheels.

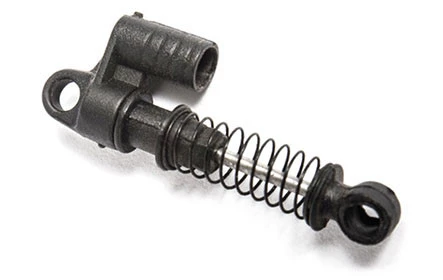

COILOVER SHOCK ABSORBERS

Even at this small scale, the combination of coilover shocks with simulated reservoirs and durable plastic suspension links delivers the crawling performance you’ve known and expect from Axial.

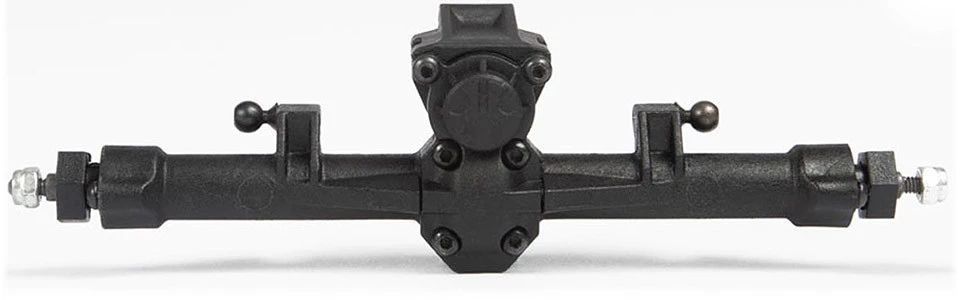

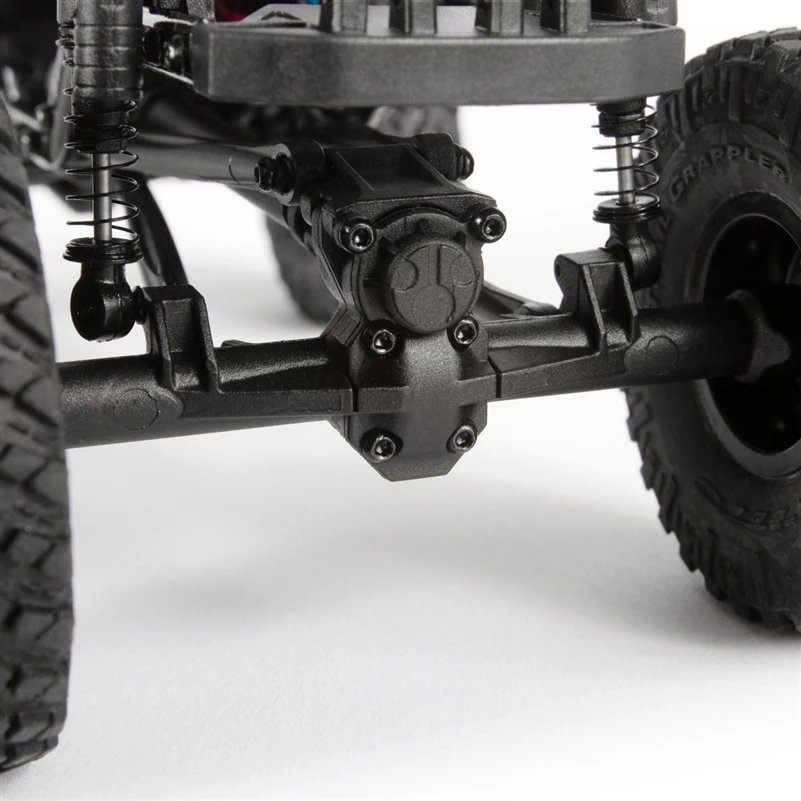

FRONT AND REAR SOLID AXLES

The front and rear axles consist of a two piece, molded plastic solid axle design. For optimal handling, the SCX24 suspension features a three-link front and four-link rear setup.

LED LIGHTS INCLUDED

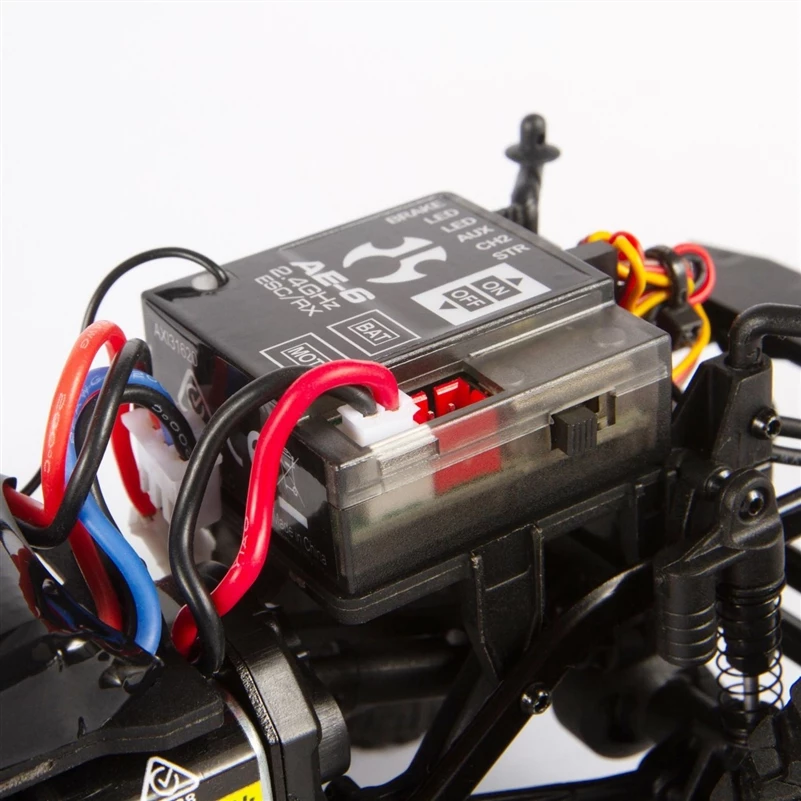

Two bright LED lights are included and are mounted in the front bumper. An extra LED light port on the ESC allows you to add optional LED lights.

4-LINK REAR SUSPENSION

The suspension geometry utilizes a 4-Link design for the rear which is optimized to reduce axle steer and torque twist. We’ve also included extra suspension links for adjusting your wheelbase length.

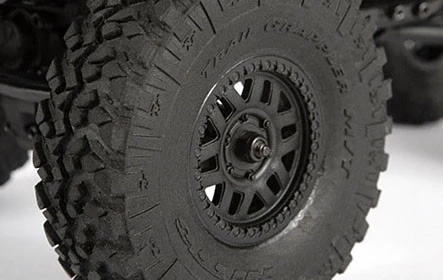

KMC XD229 MACHETE CRAWL WHEELS & NITTO TRAIL GRAPPLER M/T TIRES

Officially licensed KMC XD Machete wheels are legendary in the off-road world. They are molded in black and feature stunning scale details, despite the small scale.

The officially licensed Nitto Trail Grappler M/T Tires offer a fantastic blend of off-road performance while still retaining excellent composure for on-road use.

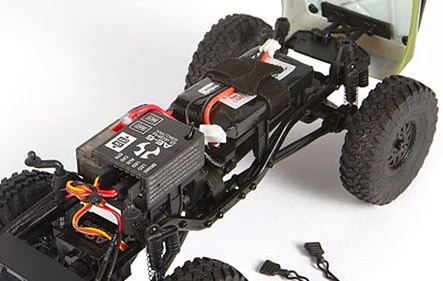

HINGED BODY SYSTEM

The hinged body system offers easy access to on-board components. You can quickly reach the battery and chassis by removing just two body clips and swinging the body up.

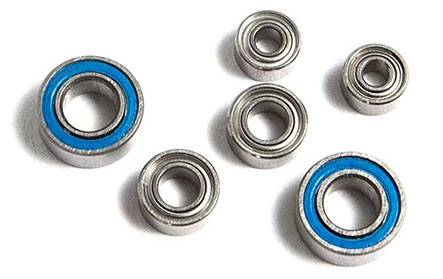

FULL BALL BEARINGS

Just because the SCX24 is smaller in size doesn’t mean the features need to follow suit. No bushings found here, instead the drivetrain is freely spinning on sealed cartridge bearings throughout the entire vehicle.

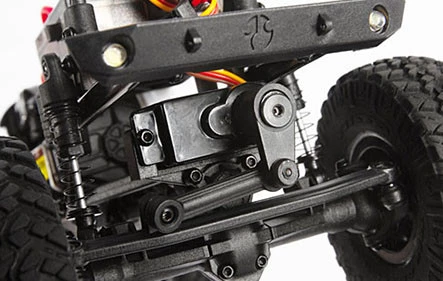

AXIAL AS-1 SERVO

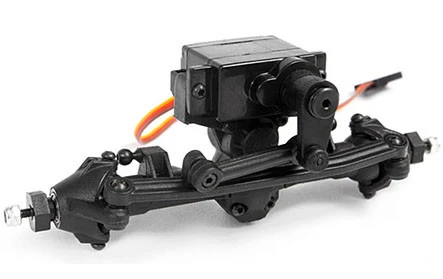

Mounted just above the front axle is the Axial AS-1 servo, with a servo saver that allows for steering accuracy, while also providing protection for the servo gears in the event of a bind or impact.

INCLUDED:
Axial AX-4 2.4GHz, 3 Channel Radio System W/3 position switch on CH3
Axial AS-1 Servo
Axial AE-6 ESC/Receiver Combo
USB Charger
Dynamite 88T 180 Brushed Electric Motor
Dynamite 350mAh 2S LiPo 7.4V Battery Pack
4AA Batteries for the Transmitter

SPECIFICATIONS:
Completion Level: Ready-to-Run
Scale: 1/24
Length: 7.8 in (199.5 mm)
Width: 3.9 in (99.5 mm)
Height: 4.3 in (110 mm)
Weight : 0.5 lb (0.22 kg)
Ground Clearance: 0.7 in (18 mm)
Wheelbase: 5.25 in (133.5 mm)
Track: 3.9 in (99.5 mm)
Front Track: 3.9 in (99.5 mm)
Rear Track: 3.9 in (99.5mm)
Chassis: Stamped steel chassis rails
Suspension: Solid axle front and rear
Shock Type: Plastic coil-over 0.9-1.3 in (24-33.4 mm)
Drivetrain: 4-wheel drive
Differential: Worm gear 16T/4T
Wheel Type: Black plastic
Wheel Diameter: 1.0 in (26 mm)
Wheel Width: 0.48 in (12.4 mm)
Tire Tread: Nitto Grappler M/T
Tire Diameter: 2.0 in (51 mm)
Motor Type: Dynamite® 88T brushed electric motor
Motor Size: 180
Pinion: 10T
Spur Gear: 55T
Speed Control Included: Yes (Axial AE-6 ESC/Receiver combo)
Radio: Axial® AX-4 2.4GHz 2-channel
Servo Included: Axial AS-1
Batteries: Dynamite 7.4V 350mAh 2S 30C LiPo 7.4V and 4 AA transmitter batteries
Charger: USB LiPo charger
Body: Axial Deadbolt, painted
Experience Level: Beginner to Intermediate
Recommended Environment: All-terrain
Is Assembly Required: No
