EQUIPMENT NEEDED (not included)

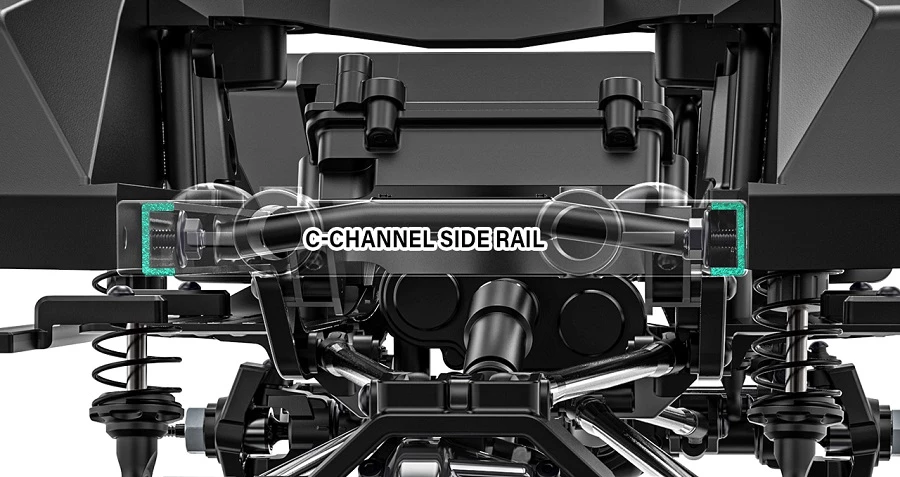

STEEL LADDER FRAME
GS02F frame is designed to look as a chassis of a real car frame and the material of the frame is made of high strength steel, C-channel side rail and is with hex wrench bolted with cross members, which make it resistant to twisting or wraping.
Also, steel parts are black powder coated finish to prevent rust.

Inner Fenders
The inner fender is directly fixed to the frame to reduce the flex and bending of the chassis and parts, it also reduces external objects to entering to the chassis during driving.

Adjustable wheelbase
GS02F chassis allows three type of easy adjustment of wheelbase convert kit to use any type of 313 and 324mm custom bodies. (optional link kits are sold separately)

Front weight balance
GS02F’s weight balance designed to be placed on the forward of the chassis.
This will increase the tire tracktion to the front wheel to provide better crawling on a high tilt angle rocks and better driving performance when hill climbing and this will help minimizing the vehicle’s rolling over when climbing.

Front Mounted Motor
Able to use 540 or 550 size motor with cooling fan with option.
The motor is designed to mounted in front of the chassis, so it can increases more tire traction to the front side.

Multiple Battery Locations
GS02F can use all sizes of lipo batteries and Ni-MH batteries, and can be freely locate the battery position purpose of uses.

Standard Pack (Max width: 156mm) or Shorty Pack (Max width: 98mm)

Chassis Mounted Servo system with panhard bar
GS02F steering system has a steering servo on the frame just like a 1:1 real car.
It is designed to make it as closed to the zero bump steer so bump steer movement does not appear by front wheel suspension movements, so we ended up with maximizing the steering performance of the vehicle.
In addition, the Panhard-bar is designed to avoid interference with nearby parts, so that the front suspension and shocks can move freely without any loss.

Drivelines
The drive lines of the front and rear axles are arranged in straight-line to reduce the fatigue stress of the universal shaft and reduce the loss of driving power by providing efficient driving lines.

Transmission
The GS02F transmission is designed to look as a real 1:1 scale vehicle, and provides the best performance according to the driving situation.

Overdrive
Overdrive means, front and rear wheels rotate at the different speeds.
The GS02F transmission is designed to rotate the front wheel faster than the rear wheel.

No overdrive (Option) 30T / 30T (GM30172)	Overdrive 1 (Stock) 32T / 28T	Overdrive 2 (Option) 33T / 27T (GM30168)

Various surface terrain, When there is a large percentage of driving on flat land. Overdrive percentage : 0% front wheel : 100rpm / rear wheel : 100rpm	Various surface terrain. Overdrive percentage : 14.29% front wheel : 114rpm / rear wheel : 100rpm	Extreme surface terrain. Overdrive percentage : 22.22% front wheel : 122rpm / rear wheel : 100rpm


Better steering radius Vehicles with overdrive on the front axle has an improved steering radius compared to non-overdrive vehicles, making it easier to control when driving on the rough surfaces.	Better climbing Increasing of the tire traction allows the vehicle to pass through steep slopes and obstacles without lifting the front of the body upward.

2-speed HI/LO transmission
The 1st gear is for hardcore rock crawling and the 2nd gear is for hill climb or high-speed driving.

Torque twist reduce transmission
GS02F transmission is designed to drive in a stable position without pulling the balance of power transmitted to the axle.
The front and rear universal shafts based on the transmitter each rotates clockwise and counterclockwise, this compensates for the forces acting on the opposite rotational forces due to the action(torque) and reaction(reverse torque) because of that this vehicle can run in a super stable conditions.

Easy adjust motor mount
You can easily replace and install the motor pinion gear to changing the gear ratio.

MT-1903 1.9 INCH M/T OFF-ROAD TIRE The MT 1903 off-road tires, made of super soft compound material provide much traction to the surfaces. The tread patterns are suitable for off-road driving and the large diameter of the tires enables it to run smoothly on any uneven road surfaces. SPEC Tire Height: 109mm Tire Width: 40mm Inner Diameter: 48mm (1.9″)

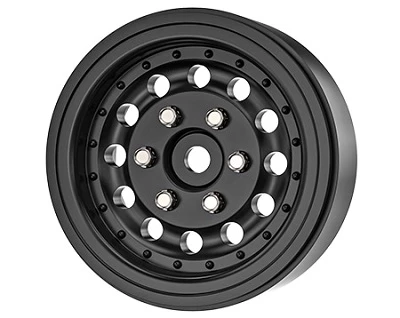

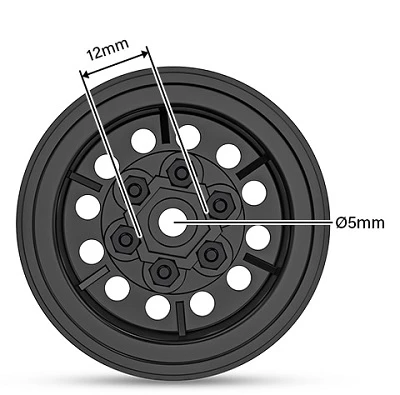

1.9INCH NR01 BEADLOCK WHEEL Width : 22mm Diameter : 48mm (1.9″) Offset : Zero offset Hex mount : 12mm

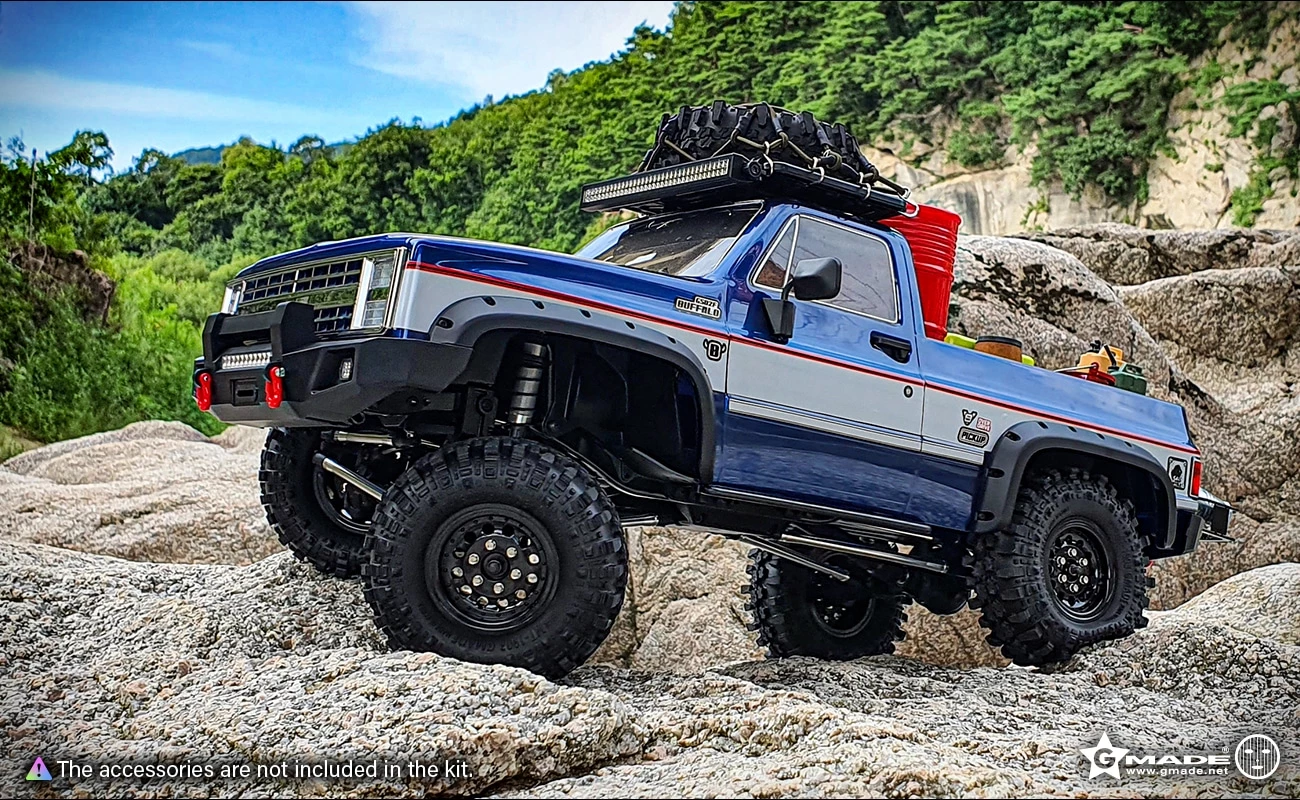

BUFFALO pickup LEXAN BODY
Body of the buffalo pickup is made of high quality lexan which has 1.5mm thickness with high strength and details.
To add realistic details it offers high-strength plastic accessories which are a front grille, light buckets, side mirrors, wipers, door handles, overfenders and a roof rack with an LED light bar, so you can have a realistic off-road vehicle to match the concept of true off-road adventures.
Also the body includes decals with realistic details.

Stealth body mount
This mount allows the body to be secured to the chassis without drilling unnecessary holes in the body, increase the realistic scale of the vehicle.
