Note: This product does not fit the Axial SCX24. These wheels are pin drive, not hex drive. You will need custom pins to get these to work on the SCX24.
Specifications:
CNC Machined
Billet Aluminum
Black Anodized Finish
Wheel Size: 1.0″
Fit 1.0″ Size Tires
OD: 1.09in / 27.5mm
Width: 0.60in / 15.3mm
Center Hole OD: 0.1in / 2.5mm
Positive Offset: 0.22in / 5.7mm
Each Weigh: 0.47oz / 13.3g

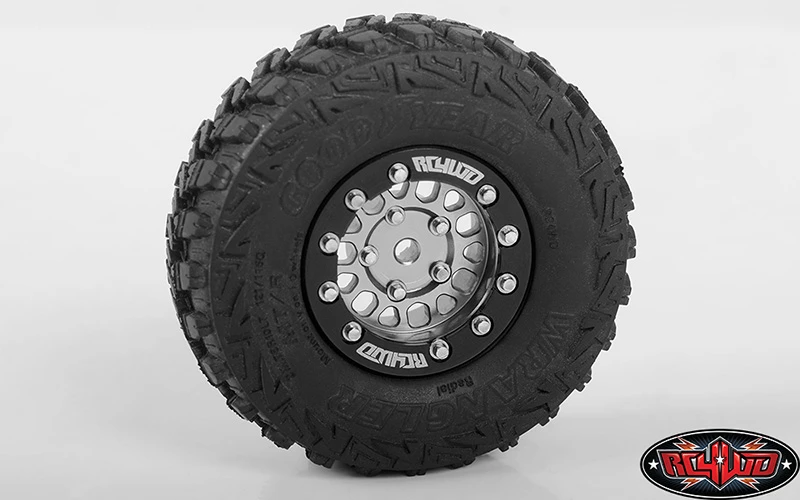

Shown installed with RC4WD Goodyear Wrangler MT/R 1.0″ Micro Scale Tires (RC4Z-T0161) for example (Not Included)

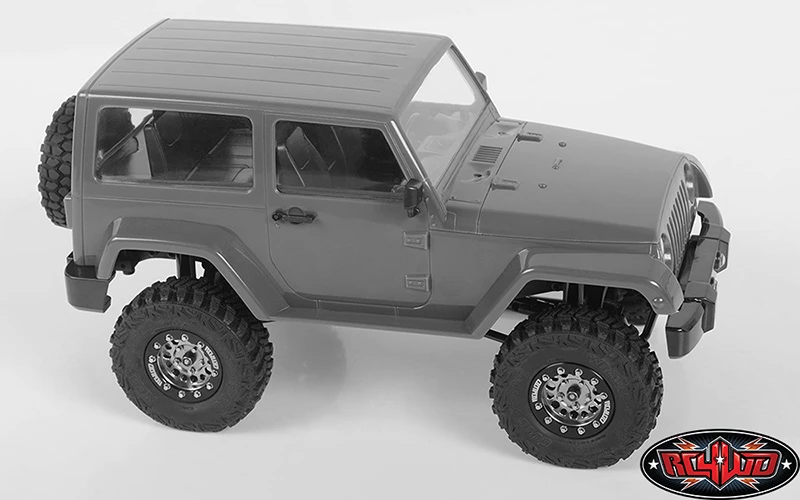

Shown installed on RC4WD 1/18 Gelande II RTR w/Black Rock Body Set (RC4Z-RTR0037) with RC4WD Goodyear Wrangler MT/R 1.0″ Micro Scale Tires (Z-T0161) for example (Not Included)
What’s Included:

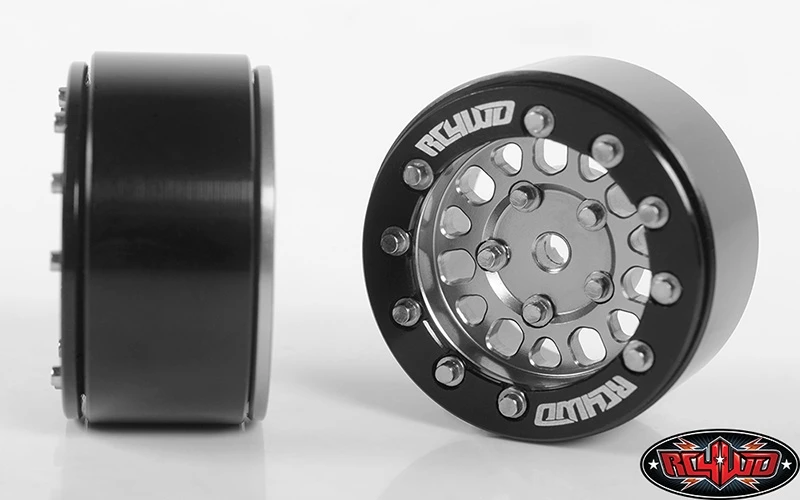

4x RC4WD 1.0″ Competition Beadlock Wheels
1x Miniature Scale Hex Bolt Tool for M1.6 Scale Bolts (1.5 mm Hex)
Replacement Hardware:
Steel Flat Head Socket Cap Screw M2 x 6mm (Silver)
RC4WD Miniature Scale Hex Bolts (M1.6 x 4mm) (Silver) (Z-S1124)
Miniature Scale Hex Bolt Tool for M1.6 Scale Bolts (1.5 mm Hex) (Z-S1328)
Notes:
Fits RC4WD 1/18 Gelande II RTR w/D90 Body Set (Blue) (RC4Z-RTR0039)
Fits RC4WD 1/18 Gelande II RTR w/BlackJack Body Set (RC4Z-RTR0036)
Fits RC4WD 1/18 Gelande II RTR w/Black Rock Body Set (RC4Z-RTR0037)
Fits RC4WD 1/18 Gelande II RTR w/D90 Body Set (Black) (RC4Z-RTR0038)
Due to many different methods to design tires and wheels, we have no control over other manufacturers products, so we can only tell you that RC4WD tires and wheels work together. In some cases, our wheels and tires will work with other brand wheels and tires, but we can not guarantee the outcome.
