RC4WD 1/18 Gelande II RTR with Black Rock Body Set – Orange

Experience the versatility and advanced design of the 1/18 Gelande II for yourself. Packed full of capability, the Gelande II is ready for any challenging condition. Put your off-road driving to the test and see why the G2 is unmatched in its class!

The G2 is built with quality materials and craftsmanship. It can maneuver extreme descents and climbs with ease. The new 1/18 Mini Transmission provides power to the 1/18 Yota II Axles.

The core of the G2 is built for the true off-road enthusiast. From emergency and expedition vehicles, down and dirty off-road rigs and even daily drivers, the G2 can be customized to pull off any look you choose. The G2 delivers on performance and looks to match the drivers identity.

The G2 comes with double triangulated 4 Link Front and Rear Suspension. The servo is mounted on the chassis out of view for a more scale appearance.

Are you ready for your off-road experience?

Custom Designed for True to Scale Looks
Realistic Aluminum Ladder Frame Chassis
RC4WD Milestar Patagonia M/T 1.0” Micro Crawler Tires
R5 1/18 Mini Transmission V2
JK 1.0 Scale Beadlock Wheels
9G Analog Metal Gear Micro Servo
1/18 Cast Front and Rear Axle Set
The Ultimate Mini Scale Shocks (40mm)
4 Link Front and 4 Link Rear Suspension

All New R5 1/18 Mini Transmission V2
Total Gear Ratio: 5.5 : 1
Pinion Gear: 55P 10T
Gear Material: Hardened Brass and Steel
Case Material: Plastic Injection Molded

All New 1/18 Cast Yota II Axles
Ratio: 2.55 : 1
Width at Hex : 92mm Case Material: Zinc Alloy

G2 Suspension
Double Triangulated 4 Link Front and Rear Suspension

Shock Absorbers
Ultimate 40mm Scale Shocks – Can not be Oil Filled

Wheels
Type: JK 1.0 Scale Beadlock Wheels Hub: 7mm Hex
Width: 15mm
OD: 27.5mm

Bumpers
Molded Plastic Bumper, Light Weight

G2 Truck Dimensions
Wheelbase: 130.7mm (5.15″) Length: 231mm (9.09″)
Width: 113.6mm (4.47″)
Height: 115.9mm (4.56″)
Ground Clearance: 30.8mm (1.21″) Final Drive Ratio: 112 : 1
Weight: 1.25lbs / 0.57kg

SUSPENSION

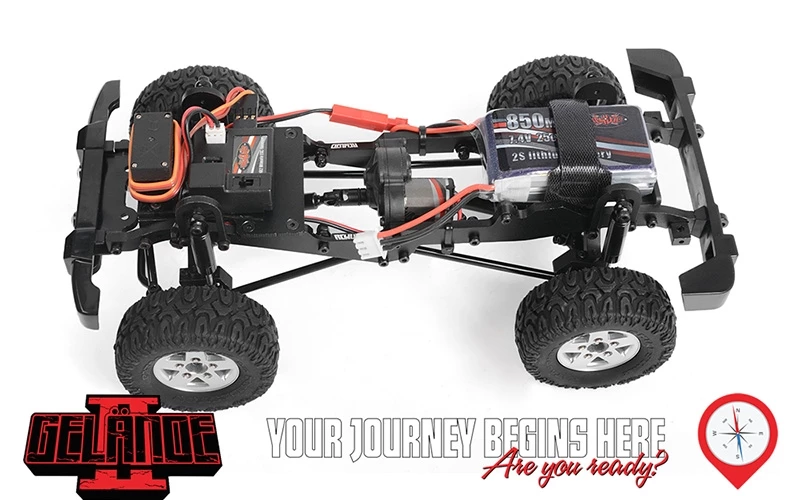

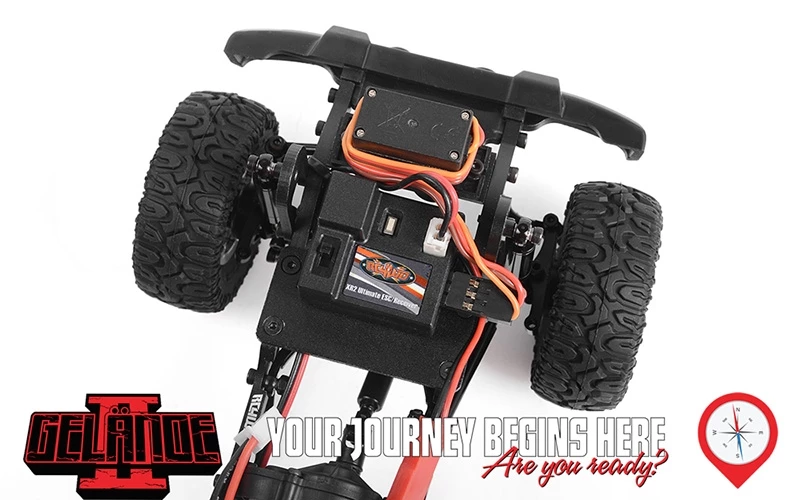

The G2 Chassis features a simple front mounted electronics plate for easy mounting of the XR2 Micro ESC/Receiver combo.

The G2 includes a set of RC4WD Micro Ultimate Scale Shocks. Designed for ultimate scale looks and ultimate performance. The shocks are machined from billet aluminum and internally sprung.

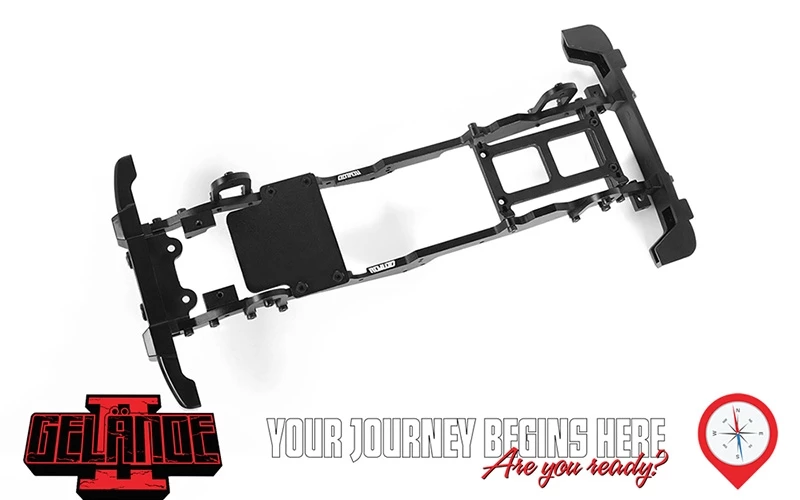

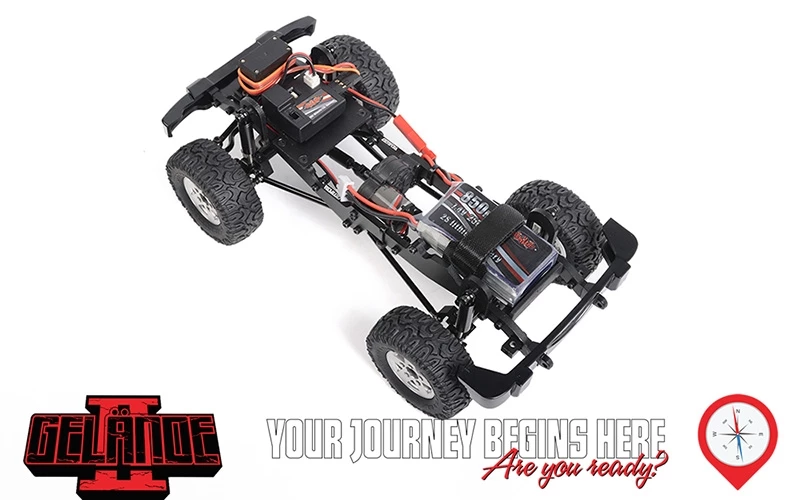

The G2 Chassis is a machined billet aluminum ladder frame with a 4 link suspension design, scale shock hoops, chassis servo mounts and hard body mounting points for the ultimate in strength.

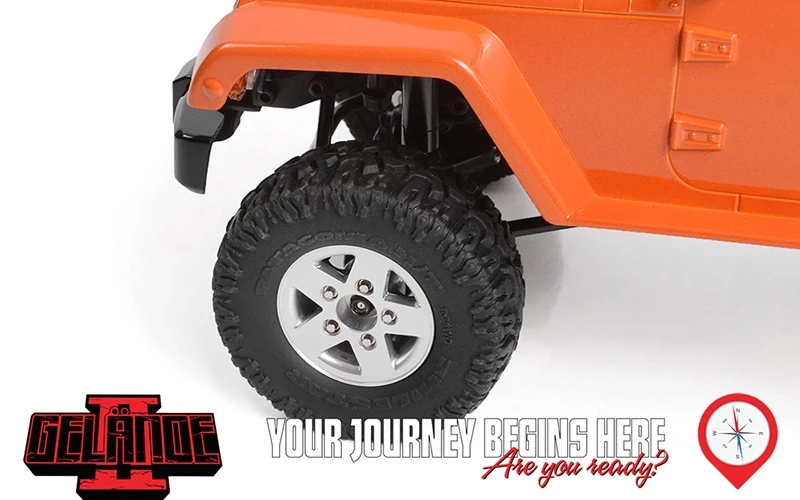

The G2 includes a set of JK 1.0 Scale Beadlock Wheels. These are machined from billet aluminum with a smooth silver finish.

Every G2 needs a tough set of RC4WD Milestar Patagonia M/T 1.0” Micro Crawler Tires in our advanced X2 compound deliver the traction you need as well as perfect scale looks in just the right size.

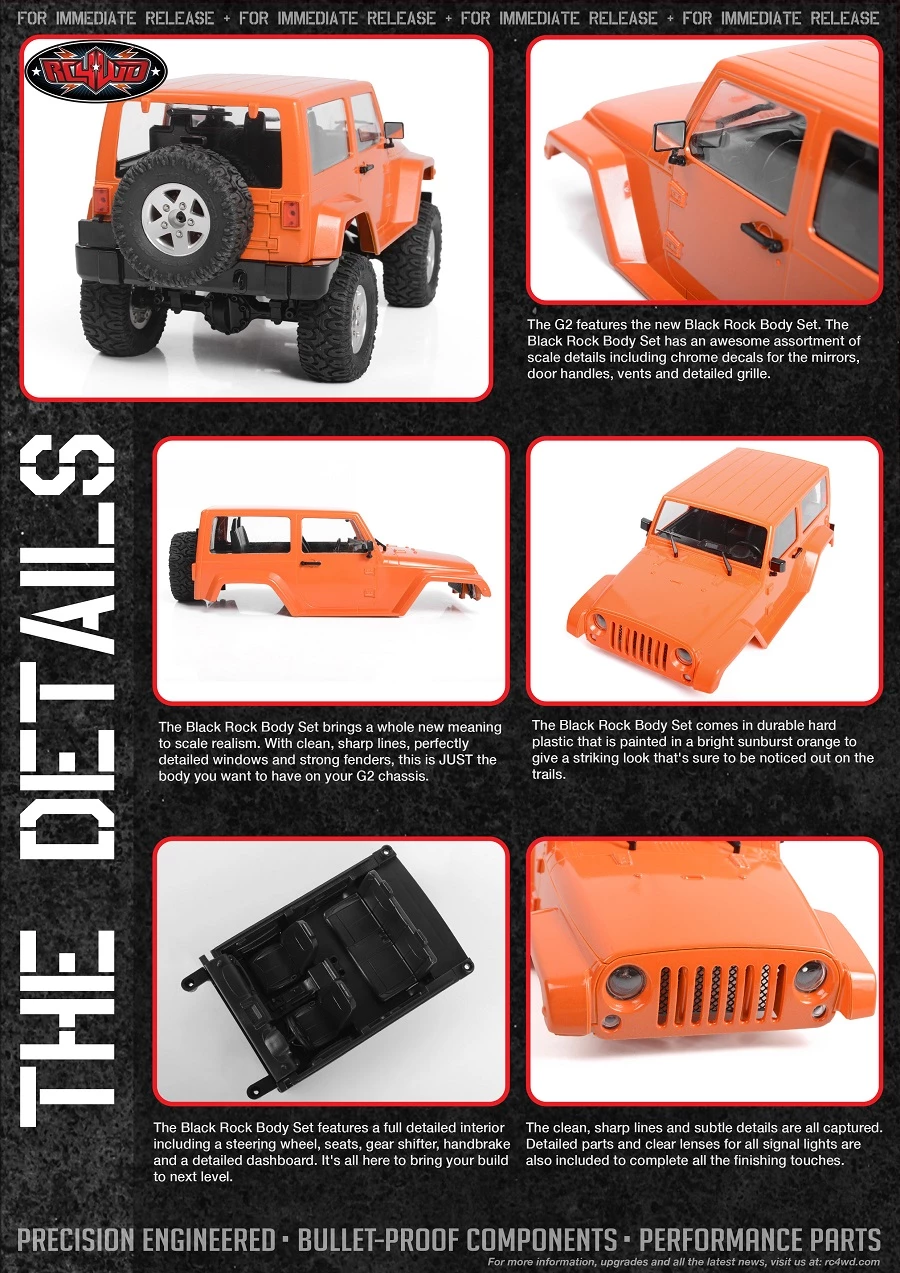

DETAILS

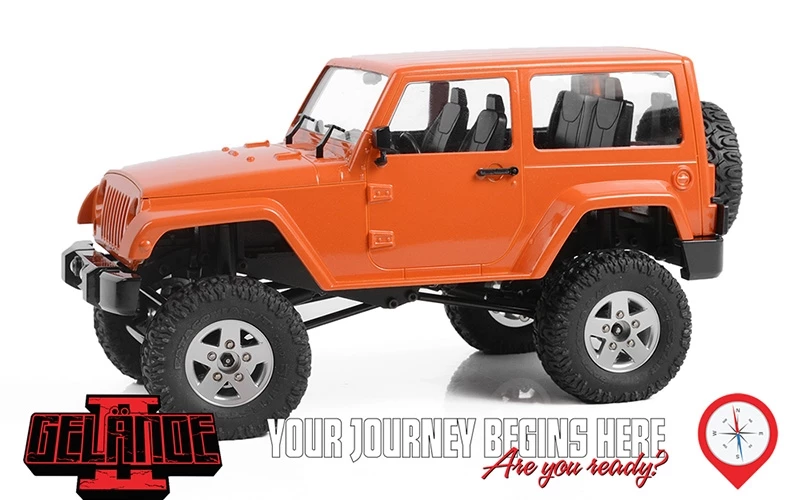

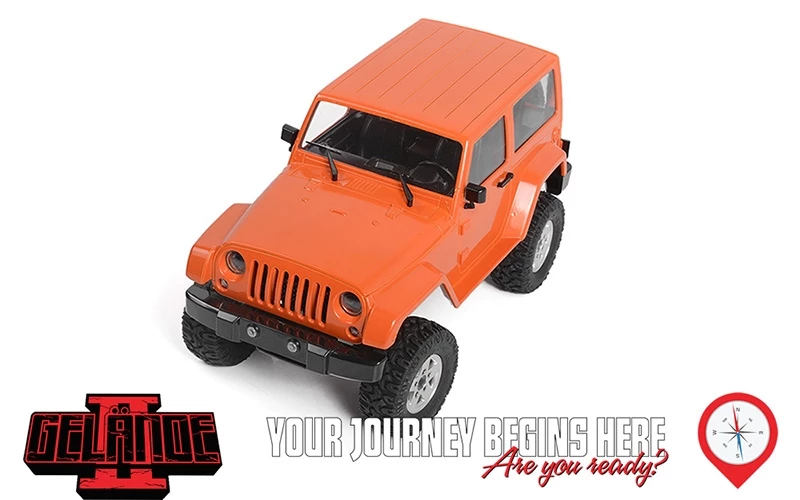

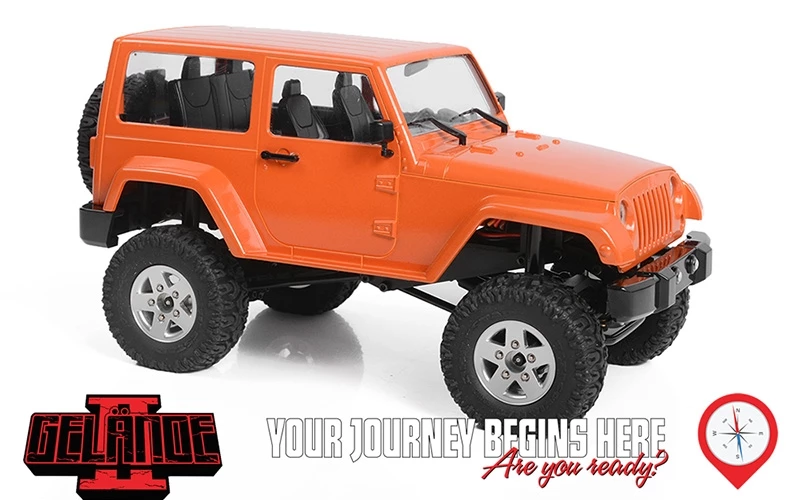

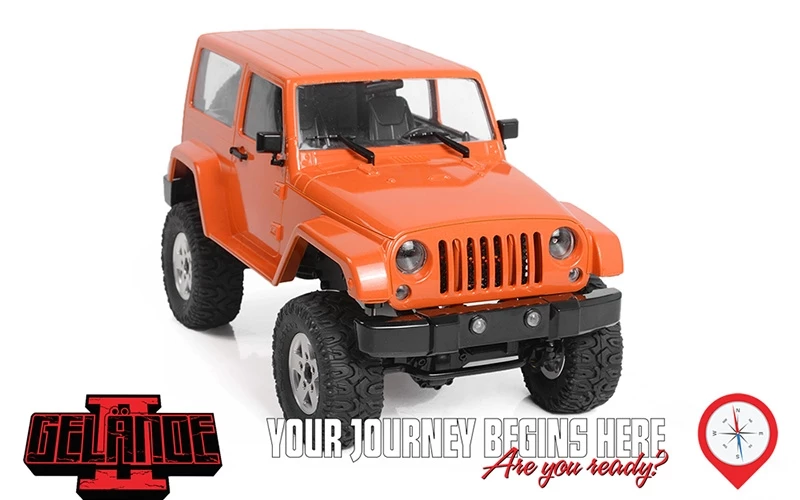

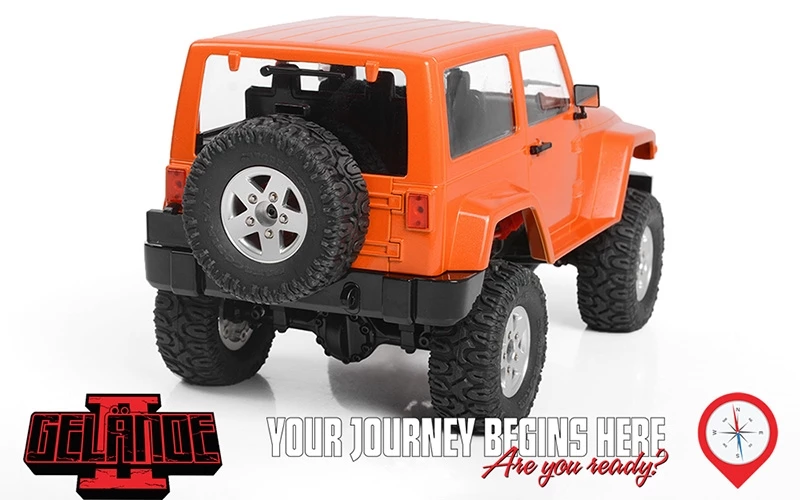

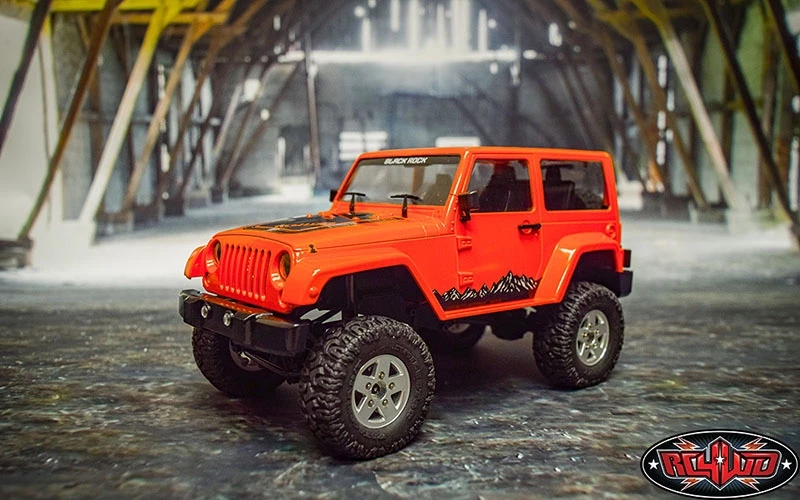

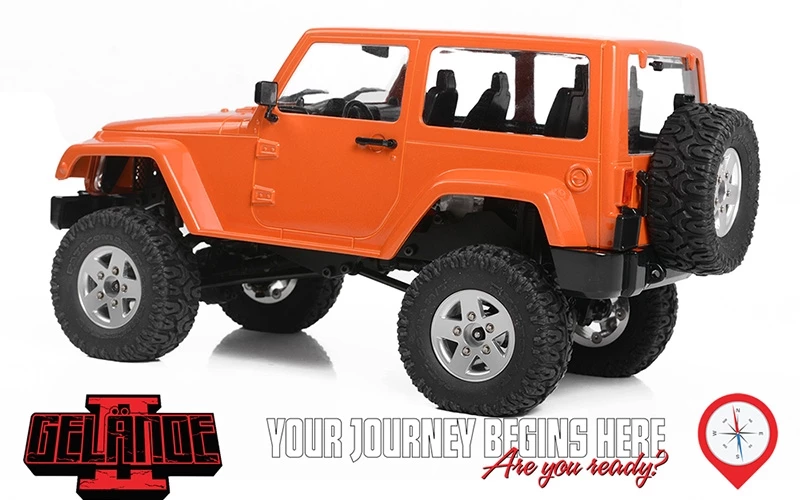

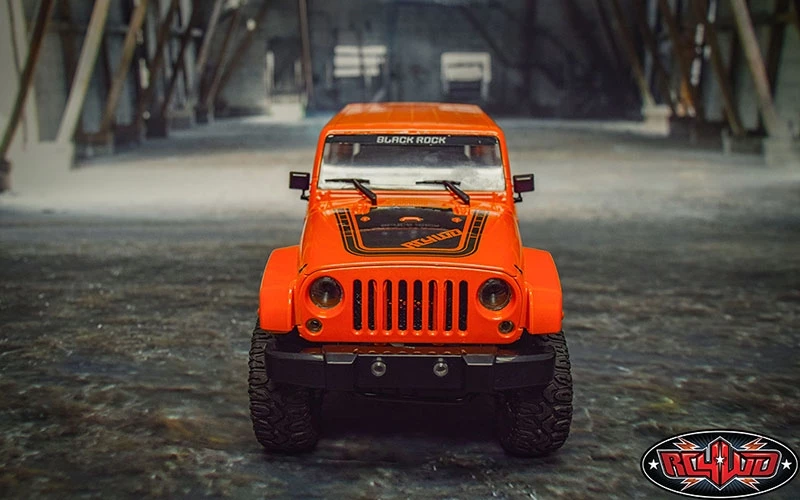

The G2 features the new Black Rock Body Set. The Black Rock Body Set has an awesome assortment of scale details including chrome decals for the mirrors, door handles, vents and detailed grille.

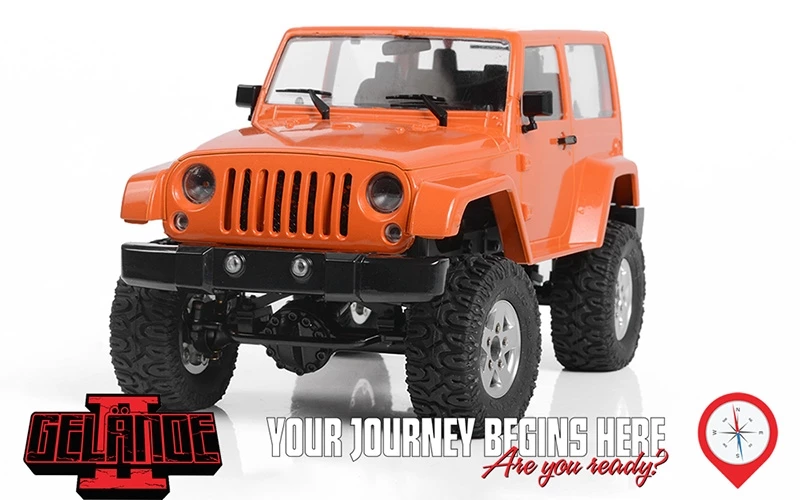

The Black Rock Body Set brings a whole new meaning to scale realism. With clean, sharp lines, perfectly detailed windows and strong fenders, this is JUST the body you want to have on your G2 chassis.

The Black Rock Body Set comes in durable hard plastic that is painted in a bright sunburst orange to give a striking look that’s sure to be noticed out on the trails.

The Black Rock Body Set features a full detailed interior including a steering wheel, seats, gear shifter, handbrake and a detailed dashboard. It’s all here to bring your build to next level.

The clean, sharp lines and subtle details are all captured. Detailed parts and clear lenses for all signal lights are also included to complete all the finishing touches.

DRIVETRAIN
The 1/18 G2 includes a quality 2-in-1 Micro ESC + Receiver paired with the XR2 Micro Radio system and is ready for your next scale adventure!

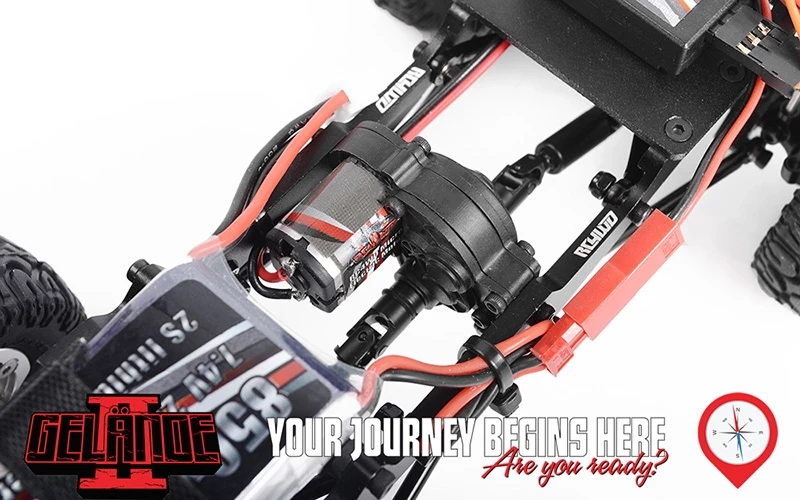

The G2 includes the new R5 1/18 Mini Transmission V2. Packed with scale detail, the R5 features a high quality plastic exterior and heavy duty gears for durability.

The Driveshafts for the G2 feature bulletproof steel universals and a new high quality steel shaft for great driveline angles and durability on the trail.

The most scale accurate axles on the market, the RC4WD 1/18 Cast Yota II Axles feature innovative 8 degree round knuckles, unique removable diff covers, new lower mounting points and a compact offset pumpkin in the front.

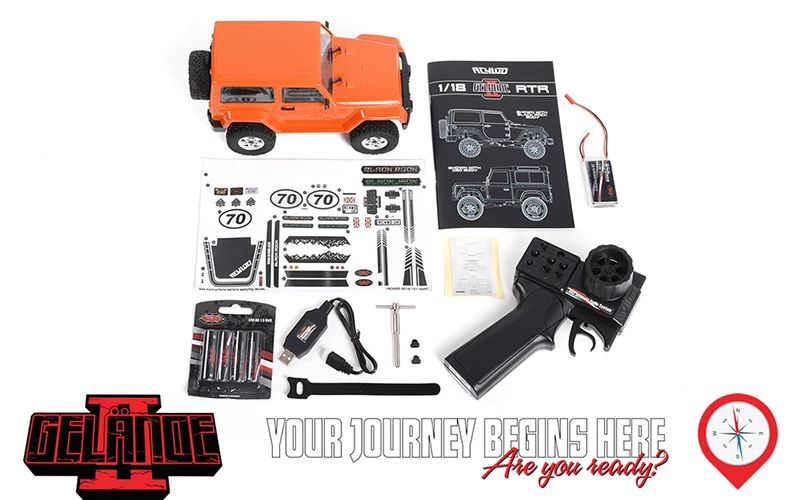

It’s ALL in the box! Everything you need is provided to get you on the trails today!

What’s Included:
1x RC4WD 1/18 Gelande II RTR w/ Black Rock Body Set (Orange)

Replacement Parts:
RC4WD Milestar Patagonia M/T 1.0” Micro Crawler Tires (Z-T0164)
9G Analog Metal Gear Micro Servo (Z-E0077)
Punisher Shafts 1/18 (42mm – 50mm / 1.57″ – 1.96″) 3mm Hole (Z-S1684)
Yota II 1/18 Cast Front and Rear Axle Set (Z-A0117)
The Ultimate Mini Scale Shocks (40mm) (Z-S1686)
FF-030 Micro Electric Motor (Z-E0079)
R5 1/18 Mini Transmission V2 (Z-U0036)
JK 1.0 Scale Beadlock Wheels (Z-W0279)
RC4WD 7.4V 850mAh 2S LiPo Battery w/ Balance Plug (Z-E0110)

Optional Parts:
Rok Lox 1.0″ Micro Comp Tires (Z-T0028)
Rage 1.0″ Beadlock Wheels (Z-W0061)
RC4WD Mickey Thompson Baja Claw TTC 1.0″ Micro Crawler Tires (Z-T0067)
RC4WD Interco Super Swamper TSL/Bogger 1.0″ Micro Crawler Tires (Z-T0069)
Chubby Mini 3 TON Scale Jack Stands (Z-S0731)
RC4WD Raceline Monster 1.0″ Beadlock Wheels (Z-W0252)
RC4WD Ballistic Fabrications Diff Cover for 1/18th Yota II (Z-S1813)
RC4WD ARB Diff Cover for 1/18 Yota II Axle (Red) (Z-S1822)
R5 1/18 Mini Transmission V2 (Z-U0036)
Dirt Grabber 1.0″ All Terrain Tires (Z-T0142)
RC4WD Goodyear Wrangler MT/R 1.0″ Micro Scale Tires (Z-T0161)
Interior for 1/18 Mini D90 (Z-B0166)
Rock Crusher 1.0″ Micro Crawler Tires (Z-T0027)
LED Basic Lighting System for 1/18 Black Rock Body (Z-E0103)
Low CG Battery Tray for the 1/18th Mini Gelande (Z-S1900)
Stamped Steel 1.0” Stock Beadlock Wheels (White) (Z-W0111)
RC4WD Black Rock Body Set for 1/18 Gelande II (Z-B0125)
Stamped Steel 1.0″ Stock Beadlock Wheels (Chrome) (Z-W0263)
RC4WD Stocker 1.0″ Beadlock Wheels (Z-W0275)
RC4WD Safari Snorkel For 1/18 Black Rock Body (Z-S1905)
Emblem Set for 1/18 Gelande II RTR w/Black Rock Body (VVV-C0576)
Front Hood Logo for 1/18 Gelande II RTR W/Black Rock Body (White) (VVV-C0577)
Front Hood Logo for 1/18 Gelande II RTR W/Black Rock Body (Black) (VVV-C0578)
Roof Rack for 1/18 Gelande II RTR w/Black Rock Body (VVV-C0579)
Steel Stinger Front Bumper W/Plastic Winch for 1/18 Gelande II RTR W/Black Rock Body (Silver) (VVV-C0584)
Front Window Guard Roll Cage for 1/18 Gelande II RTR w/Black Rock Body (VVV-C0591)
Front Window Guard Roll Cage W/IPF Lights for 1/18 Gelande II RTR w/Black Rock Body (VVV-C0592)
Velbloud Tire Carrier for 1/18 Gelande II RTR w/Black Rock Body (VVV-C0593)
Metal Side Window Guard for 1/18 Gelande II Black Rock (VVV-C0594)
Snorkel for 1/18 Gelande II RTR w/Black Rock Body (VVV-C0596)
Metal Side Diamond Plates for 1/18 Gelande II Black Rock (VVV-C0595)
Eon Metal Rear Bumper for 1/18 Gelande II RTR w/Black Rock Body (Silver) (VVV-C0590)
Eon Metal Rear Bumper for 1/18 Gelande II RTR w/Black Rock Body (Black) (VVV-C0589)
Eon Metal Front Bumper w/Plastic Winch for 1/18 Gelande II RTR w/Black Rock Body (Silver) (VVV-C0588)
Eon Metal Front Bumper for 1/18 Gelande II RTR w/Black Rock Body (Silver) (VVV-C0587)
Eon Metal Front Bumper w/Plastic Winch for 1/18 Gelande II RTR w/Black Rock Body (Black) (VVV-C0586)
Eon Metal Front Bumper for 1/18 Gelande II RTR w/Black Rock Body (Black) (VVV-C0585)
Steel Stinger Front Bumper for 1/18 Gelande II RTR W/Black Rock Body (Silver) (VVV-C0583)
Steel Stinger Front Bumper W/Plastic Winch for 1/18 Gelande II RTR W/Black Rock Body (Black) (VVV-C0582)
Steel Stinger Front Bumper for 1/18 Gelande II RTR W/Black Rock Body (Black) (VVV-C0581)
Roof Rack w/IPF Lights for 1/18 Gelande II RTR w/Black Rock Body (VVV-C0580)
RC4WD Classic 8-Hole 1.0″ Beadlock Wheels (Z-W0280)
RC4WD Breaker 1.0″ Beadlock Wheels (Z-W0277)
Stamped Steel 1.0″ Stock Beadlock Wheels (Black) (Z-W0229)
Tough Armor Side Steel Sliders for 1/18th Gelande II (Z-S1886)
RC4WD 1.0″ Competition Beadlock Wheels (Z-W0278)
RC4WD N-Fab N-Durastep for 1/18 Gelande II (Z-S1891)
RC4WD 1/18 Scale Warn Front and Rear Hubs (Z-S1921)
Tough Armor Competition Stinger Bumper for 1/18 Gelande II (Z-S1890)
Tough Armor Rear Bumper w/Spare Tire Mount for 1/18 Gelande II RTR w/Black Rock Body (Z-S0701)
Tough Armor Bumper w/Tire Carrier for 1/18 Gelande II (Z-S1934)
XR2 Ultimate Micro Radio and ESC/Receiver (Z-E0098)
Classic 10-Hole Chrome 1.9″ Beadlock Wheels (Z-W0296)
XR2 Ultimate Micro ESC/Receiver (Z-E0099)
RC4WD Old Man Emu Nitrocharger Sport Shocks for 1/18th Gelande II (Z-D0076)

Replacement Hardware:
Steel Socket Head Cap Screws M1.6 x 4mm (10) (Z-S1232)
Steel Socket Head Cap Screw M2 X 4mm (10) (Z-S0922)
Steel Socket Head Cap Screws M2 X 6mm (10) (Z-S0611)
Steel Socket Head Cap Screws M2 x 8mm (Z-S0750)
Steel Socket Head Cap Screws M2 x 10mm (10) (Z-S0849)
Steel Socket Head Cap Screws M2.5 X 8mm (10) (Z-S0829)
Steel Flat Head Cap Screw M2 X 4mm (10) (Z-S1516)
Steel Flat Head Cap Screw M2 X 6mm (10) (Z-S1518)
Nylock Nuts M2 (Black) (Z-S0906)

Items of Interest (not required for completion):
Hex Drivers (1.5mm, 2mm)
Long Nose Pliers
Associated Thread Locking Adhesive
4mm Nut Driver (OD less than 5.5mm)
Instant glue / Plastic Cement (preferably non whitening)
Cross Phillips Screwdrivers (small)
Grease and Lubrication (Z-S1199) (Z-S1197)
Double Sided Tape for ESC (Z-S0934)

Instruction Manual:
Click here to download.

Press Information:
Click here to download.

Notes:
While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
A velcro strap is included to secure the battery to the chassis. It is recommended, but not necessary to use when attaching the battery to the chassis.
