Experience the versatility and advanced design of the Gelande 2 for yourself. Packed full of capability, the Gelande 2 is ready for any challenging condition. Put your off-road driving to the test and see why the G2 can easily maneuver extreme descents and climb with ease.

The G2 is built with quality materials and craftsmanship like the R3 single speed transmission providing power down to the transfer case and out to the Yota II axles.

The G2 comes with a 4 link rear and 3 link panhard bar suspension as a standard feature. The chassis mounted servo is out of view for a more scale appearance.

The G2 is completely versatile and can pull off many looks and styles. With the countless options available, RC4WD let’s you customize your G2 exactly how you want without sacrificing performance. From emergency and expedition vehicles to daily drivers and hard core rock climbing rigs, the core of the G2 is built for the true off-road enthusiast!

The G2 now includes everything you need down to the battery and charger to start hitting the trails right out of the box!

Are you ready for your off-road experience?

Yota II Ultimate Scale Cast Axles
Custom Designed for True to Scale Looks
Twister High Torque Metal Gear Digital Servo
Chassis Mounted Steering servo
540 Crawler Brushed Motor 45T
3 Link Front and 4 Link Rear Suspension
Super Grip Dirt Grabber Tires
R3 Single Speed Transmission
Realistic Aluminum Ladder Frame Chassis
Center Mounted Realistic 4×4 Transfer Case
Outcry III Waterproof ESC
Plastic Fuel Cell Receiver Box
Dual Spring Oil Filled Shock Absorbers
1.9″ Stamped Steel Beadlocks W/Lug Nuts
6-Cell 3000MAH NiMH Battery Pack
NiMH Peak Battery Charger

Hammer Transfer Case
Ratio: 1.47:1
Gears: Wide 0.8 Mod Hardened Steel Gears
Features: 8 Bearings, Cast Casing, Hardened Gears

R3 Single Speed Transmission
Ratios: Pinion/Spur 14/64 = 4.57:1 Internal Ratio: 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch

Cast Yota II Axles
Ratio: 15/40 = 2.67:1
Width at Hex: 178.2mm

G2 Suspension
Double Triangulated 4 Link Rear Suspension
3 Link Suspension with Panhard Bar

Shock Absorbers
Dual Spring 80mm Shocks: Can be Oil Filled

Wheels
Type: 1.9” 5 Lug Wagon Wheels
Hub: Pin Type
Width: 25mm
Back Spacing: 11mm

Bumpers
Machined Billet Aluminum, Lightweight

G2 Truck Dimensions
Wheelbase: 275mm (10.8″)
Length: 426mm (16.7″)
Height: 252mm (9.9″)
Ground Clearance: 58mm (2.28″)
Final Drive Ratio: 31.9:1
Weight: 6.83Lbs / 3.1Kg

DRIVETRAIN
The R3 Single Speed Transmission comes with a tough cast metal case and wider gears to allow for more abuse along with a Delrin Spur with Slipper Clutch. It also features a sturdy billet aluminum motor mount for durability.

The G2 includes the Hammer Transfer Case. Packed with scale detail, the case features a cast metal exterior and heavy duty .8Mod Widened Gears for durability.

Drawing on the success of the RC4WD MOA Gear Sets, the G2 Drivetrain has the most durable gears RC4WD has to offer so the G2 will stay on the trail, day after day.

The most scale accurate axles on the market, the RC4WD Cast Yota II Axles feature innovative 8 degree round knuckles, unique removable diff covers, lower mounting points and a compact offset pumpkin in the front.

The Driveshafts for the G2 are a design featuring bulletproof steel universals and a high quality plastic shaft for great driveline angles and durability on the trail.

SUSPENSION
The G2 Chassis features a molded fuel cell that doubles as an electronics storage box plus an aluminum, frame-mounted under cab electronics tray for multiple electronics mounting options. Also includes a sturdy battery tray with strap mounts.

The G2 includes a set of new RC4WD Dual Spring Shocks. An all new design, these ultimate scale shocks offer realistic looks and the ultimate in performance. Machined from billet aluminum with dual springs and totally rebuildable.

The G2 Chassis is a machined billet aluminum ladder frame with an all link suspension design, scale shock hoops, chassis servo mounts and hard body mounting points for the ultimate in strength.

The G2 includes a set of RC4WD Black Stamped Steel 1.9” internal Beadlock Wheels. Featuring a super tough black finish, aluminum internal locking ring and popular 5 lug design with separate hub.

Every G2 needs a tough set of rock grabbing tires and the included Dirt Grabbers in X3 Compound deliver the traction as well as perfect scale looks in just the right size.

DETAILS

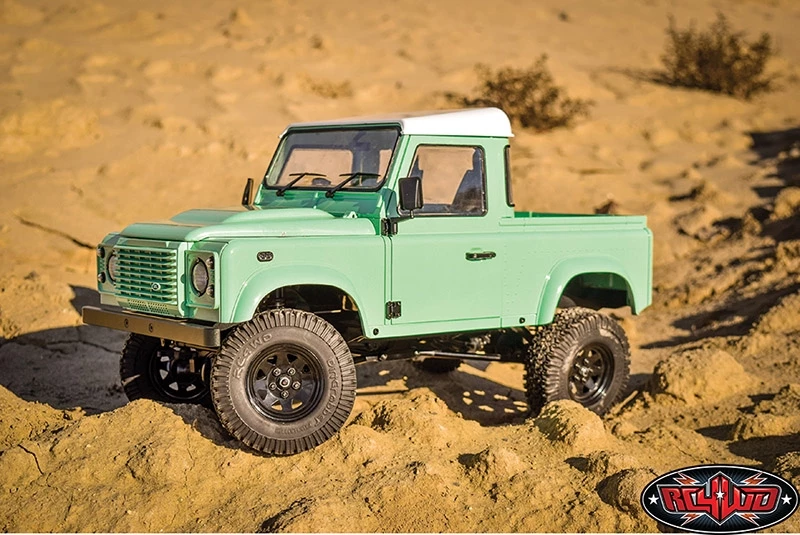

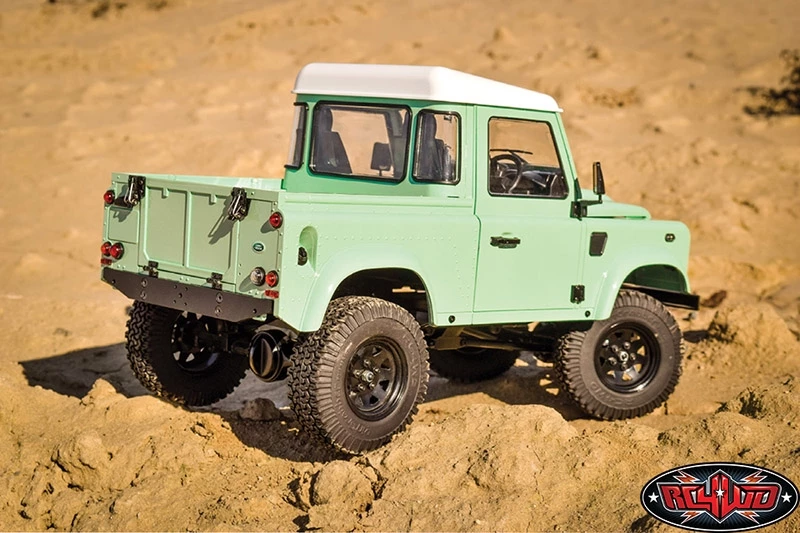

The G2 features the 2015 Land Rover Defender D90 Body Set, which comes with an awesome assortment of scale details including mirrors, door handles, vents and grille to match the 1:1 vehicle.

Its officially licensed with Land Rover with opening side and rear tailgate and hood, the 2015 Land Rover Defender D90 Body Set is the most scale replica in the market.

The 2015 Land Rover Defender D90 Body Set features a Grasmere Green paint job with exact details to replicate the Heritage Edition launched in 2015 to commemorate the last production year of the classic.

The body features a full detailed interior, seats, opening center console, plastic and rubber mirrors and a detailed dashboard. It’s all here to bring your scale experience to a new level.

The body features many intricate details and is almost unmistakable from its full size counterpart.

ELECTRONICS
The G2 includes a high quality XR3 3 Channel 2.4Ghz Radio System. Use the third channel to control the winch and add even more fun to your scale adventure!

The G2 is powered by the RC4WD 45 Turn Crawler Motor. With its sealed endbell for increased durability and long lasting performance, you’re sure to get where you’re going!

The G2 features the popular RC4WD Outcry II Brushed Speed Controller with built-in drag brake and a separate 6V 5amp Turbo BEC for reliable, constant power on demand. Anytime.

It’s All in the box! Everything you need is provided to get you on the trails today!

What’s Included:
1x RC4WD Gelande II RTR W/ 2015 Land Rover Defender D90 (Heritage Edition)

Replacements Parts:
Gelande 2 Front 3 Link & Panhard Mount (Black) (Z-S0794)
Gelande 2 Rear 4 Link Mount (Z-S0795)
Yota II Ultimate Scale Cast Axle (Front) (Z-A0080)
Yota II Ultimate Scale Cast Axle (Rear) (Z-A0081)
M3 Medium Straight Plastic Rod End (20x) (Z-S0399)
M3 Short Bent Plastic Rod End (20x) (Z-S0402)
M3 Mini Plastic Rod End (20x) (Z-S0398)
M3 Offset Short Plastic Rod End (20x) (Z-S0401)
14t 32p Hardened Steel Pinion Gear (Z-S0430)
Yota Front Steel Axle Shaft (Z-S0060)
Yota Steel Straight Axle Shaft (Rear) (Z-S0061)
Gelande 2 Aluminum Body Mounts (Z-S0790)
Gelande 2 Chassis Set (Z-C0040)
Battery Plate for Gelande 2 (Z-S0792)
Servo Mounts for Gelande 2 Chassis (Z-S0791)
Fuel Cell Radio Box (Z-S0592)
Hammer Transfer Case (1.47/1) (Z-U0024)
Transfer Case and Lower 4 Link Mount for Gelande 2 Chassis (Z-U0027)
R3 Scale Single Speed Transmission (Z-U0028)
RC4WD 12mm Axle Wheel Hexes (2 way) (Z-S0238)
Front Shock Hoops for Gelande 2 Chassis (Z-S0798)
Rear Shock Hoops for Gelande 2 Chassis (Z-S0799)
Gelande 2 Front Replacement Bumper (Z-S0800)
Gelande 2 Rear Replacement Bumper (Z-S0801)
R3 Single Speed Transmission Mounts (Z-S0802)
Metal Drive Coupling for Gelande 2 (Z-S0803)
73mm (2.87″) Aluminum Link for Gelande 2 (Z-S0805)
59mm (2.32″) Aluminum Link for Gelande 2 (Z-S0807)
65.3mm (2.57″) Aluminum Link for Gelande 2 (Z-S0817)
70mm (2.75″) Aluminum Link for Gelande 2 (Z-S0819)
RC4WD Standard Hitch with Hitch Mount (Z-S1781)
Dual Spring 80mm Scale Black Shocks (Ver 2) (Z-D0039)
5 Lug Wagon 1.9″ Steel Stamped Beadlock Wheels (Black) (Z-W0129)
Dirt Grabber 1.9″ All Terrain Tires (Z-T0005)
Heavy Duty Nylon Strap Lock (5) (Z-S0552)
Heavy Duty Metal Servo Arm 25t Futaba (Z-S0822)
1mm Black Spacer with M3 Hole (10) (Z-S0809)
2mm Black Spacer with M3 Hole (10) (Z-S0600)
3mm Black Spacer with M3 Hole (10) (Z-S0806)
5mm Black Spacer with M3 Hole (10) (Z-S0821)
540 Crawler Brushed Motor 45T (Z-E0004)
Twister High Torque Metal Gear Digital Servo (Z-E0035)
Outcry III Waterproof ESC (Z-E0113)
RC4WD 6-Cell 3000mAh NIMH Battery Pack (Z-E0090)
XR3 3-Channel 2.4Ghz Transmitter/Receiver Radio (Z-R0009)

Replacement Hardware:
Steel Button Head Cap Screws M3 x 6mm (10) (Z-S0651)
Steel Button Head Cap Screws M3 x 8mm (10) (Z-S0652)
Steel Button Head Cap Screws M3 x 10mm (10) (Z-S0653)
Steel Button Head Cap Screws M3 x 12mm (10) (Z-S0654)
Steel Button Head Cap Screws M3 x 14mm (10) (Z-S0655)
Steel Button Head Cap Screws M3 x 16mm (10) (Z-S0656)
Steel Flat Head Socket Cap Screw M3 x 8mm (10) (Z-S0649)
Steel Flat Head Cap Screws M3 x 10mm (10) (Z-S0860)
Steel Flat Head Cap Screws M3 x 14mm (10) (Z-S0746)
Gelande II Electronics Deck (Z-S0793)
Nylock Nuts M3 (Black) (Z-S0629)
M3 x 15mm Set Screw (10) (Z-S0650)
M3 X 10mm Set Screw (10) (Z-S0308)
M3 Driveshaft Screw Pin (5) (Z-S0804)
Steel Socket Head Cap Screws M2 x 10mm (10) (Z-S0849)
Steel Socket Head Cap Screws M2.5 x 6mm (10) (Z-S0855)
Button Head Self Tapping Screws M2.5 x 8mm (Black) (Z-S1572)
M4 Flanged Lock Nut (Black) (Z-S0620)

Upgraded Front / Rear Shock:
RC4WD King Off-Road Dual Spring Shocks (90mm Medium OD) (Z-D0061)
RC4WD King Off-Road Dual Spring Shocks (100mm Medium OD) (Z-D0063)
RC4WD 90mm Old Man Emu Nitrocharger Sport Shock by ARB (Z-D0038)

Optional Parts:
RC4WD Snorkel for Gelande II D90/D110 (Z-S0247)
Inner Fender Set for Gelande II D90/D110 Body (Z-S1194)
Gelande II D90/D110 Window Protection Roll Cage (Z-S0958)
RC4WD ARB 1/10 Roof Rack with Window Guard for Gelande II D90 (Z-X0009)
LED Basic Lighting System For Gelande II D90/D110 Body Set (Z-E0062)
Functional Metal Light & Winch Bumper for Gelande II D90/D110 (VVV-C0125)
Side Window Guards Pair for Gelande II D90/D110 (VVV-C0121)
Land Rover D90/D110 – Heritage Grill (Z-S1875)
Land Rover 1/10 D90/D110 Metal Grill (Z-S1887)
Land Rover Mud Flaps for Gelande II D90/D110 (Z-S1888)
D90/110 Aluminum Hood and Side Vents (Z-S1656)
Big Boss Fender Flare Set for D90/D110 (Z-S1741)
Kahn Style Front Grille for D90/D110 Bodies (Silver) (VVV-C0317)
Kahn Style Front Grille for D90/D110 Bodies (Black) (VVV-C0316)
1.9 5 Lug Steel Wheel Hex Hub with Brake Rotor (Z-S0532)
1.9″ Landies Internal Beadlock Wheels (Z-W0075)
RC4WD Drive Flange Wheel Nut Cover (Z-S0756)
RC4WD Mickey Thompson Metal Series 1/10 Wheel Center Caps (2) (Z-S0850)
Gelande 2 Steering Guard (Z-S0824)
RC4WD King Off-Road Dual Spring Shocks (90mm Medium OD) (Z-D0061)
RC4WD King Off-Road Dual Spring Shocks (100mm Medium OD) (Z-D0063)
RC4WD 90mm Old Man Emu Nitrocharger Sport Shock by ARB (Z-D0038)
Superlift Adjustable Steering Stabilizer (90mm-120mm) (Z-S0986)
Mud Flaps for Gelande 2 (Z-S0890)
Gelande 2 Mounting kit for Jack Stand Truck Display (Z-S1324)
LED Basic Lighting System For Gelande II D90/D110 Body Set (Z-E0062)
Twister Ultimate High Performance Waterproof Servo (Z-E0063)
Scale Rear Hubs V2 (Z-S1266)
1/10-1/14 D90 Large Red Light (Detailed) (VVV-C0091)
1/10-1/14 D90 Small Yellow Light (Detailed) (VVV-C0099)
Land Rover 1/10 D90/D110 Metal Grill (Z-S1887)
Blade Snow Plow Mounting kit for Gelande 2 (Z-S1504)
RC4WD Ballistic Fabrications Diff Cover for Yota II Axle (Z-S1605)
Scale Steel Punisher Shaft (77mm – 100mm / 3.03″ – 3.94″) (Z-S1054)
Cruiser Body Conversion Kit for D90 (Z-S1706)
RC4WD Teraflex Diff Cover for Yota II Axle (Z-S1681)
M3 Offset Short Aluminum Rod Ends (Red) (10) (Z-S1631)
M3 Offset Short Aluminum Rod Ends (Blue) (10) (Z-S1633)
Rear Ladder for Gelande II (D90/D110) (VVV-C0246)
Grid Design Steering Guard for Gelande II (D90/D110) (VVV-C0239)
Metal Front Bumper w/Lights for Gelande II D90/D110 (VVV-C0284)
Metal Exhaust for Gelande II D110 (VVV-C0288)
Metal Front Bumper w/Stinger for Gelande II D90/D110 (VVV-C0285)
Metal Front Bumper for Gelande II D90/D110 (VVV-C0283)
Metal Front Bumper w/Stinger and Lights for Gelande II D90/D110 (VVV-C0286)
Kahn Style Front Lamp Guard for D90/D110 Bodies (Black) (VVV-C0318)
Metal Exhaust for Gelande II D90 (VVV-C0287)
Gelande II Leaf Spring Kit (Z-S1752)
RC4WD Ballistic Fabrications Diff Cover for K44 Cast Axle (Z-S1841)
Front Tube Bumper for Gelande II (D90/D110) (VVV-C0455)
RC4WD Hawkeye 1.9” Scale Tire (Z-T0162)
Truescale Series 1.7″ Beadlock Wheels (Z-W0265)
OEM Stamped Steel 1.55″ Beadlock Wheels (Plain) (Z-W0258)
OEM Stamped Steel 1.55″ Beadlock Wheels (White) (Z-W0260)
OEM Stamped Steel 1.55″ Beadlock Wheels (White) (Z-W0262)
OEM Stamped Steel 1.55″ Beadlock Wheels (Chrome) (Z-W0264)
RC4WD Interco IROK ND 1.55″ Scale Tires (Z-T0163)
RC4WD Bilstein SZ Series 80mm Scale Shock Absorbers (Z-D0072)
RC4WD Bilstein SZ Series 90mm Scale Shock Absorbers (Z-D0075)
Ultra Punisher Shafts (83.7MM – 105MM / 3.29″ – 4.13″) 5MM Hole (Z-S0573)
RC4WD Ballistic Off Road Rage 1.9” Beadlock Wheels (Z-W0261)
RC4WD Advance Adapters Atlas II Transfer Case (1.47/1) (Z-U0037)
Scamp 1.55″ Beadlock Wheels (Z-W0152)
JK 1.9″ Scale Beadlock Wheels (Z-W0151)
RC4WD Rotiform Six-OR 1.55″ Beadlock Wheels (Z-W0115)
RC4WD Ballistic Off Road Morax 1.7″ Beadlock Wheels (Z-W0118)
1/10-1/14 Work Light (VVV-C0475)
1/10-1/14 Work Light (w/LED) (VVV-C0476)
1/10-1/14 Work Lights (w/LED) (VVV-C0477)
RC4WD KC HiLiTES KC Light Set (Z-S1855)
RC4WD KC HiLiTES Daylighter Light Set (Z-S1856)
RC4WD 1911 1.9” Beadlock Wheels (Z-W0274)
RC4WD Enforcer 1.9″ Beadlock Wheels (Z-W0122)
RC4WD Benchmark 1.7″ Beadlock Wheels (Z-W0266)
RC4WD Falken Wildpeak A/T3W 1.55 Scale Tires (Z-T0169)
Ultra 1.55″ Beadlock Wheels (Z-W0268)
Breaker 1.55″ Beadlock Wheels (Z-W0273)
TRunner Classic 1.55” Beadlock Wheels (Z-W0121)
Stamped Steel 1.7″ Beadlock Wagon Wheels (Clear) (Z-W0272)
Stamped Steel 1.7″ Beadlock Wagon Wheels (Chrome) (Z-W0271)
Stamped Steel 1.7″ Beadlock Wagon Wheels (White) (Z-W0269)
RC4WD Over/Under Drive Transfer Case (Z-U0039)
Black Mesh 1.55″ Beadlock Wheels (Z-W0103)
Deep Dish Wagon 1.55″ Stamped Steel Beadlock Wheels (Black) (Z-W0281)
Deep Dish Wagon 1.55″ Stamped Steel Beadlock Wheels (White) (Z-W0284)
Deep Dish Wagon 1.55″ Stamped Steel Beadlock Wheels (Chrome) (Z-W0285)
Deep Dish Wagon 1.55″ Stamped Steel Beadlock Wheels (Clear) (Z-W0286)
Lotus 1.9″ Aluminum Wheels (VVV-C0615)
Lotus 1.9″ Aluminum Wheels (Wide Rear) (VVV-C0616)
Super Soft Flex Leaf Springs for Gelande II (4) (Z-S1897)
Scale Steel Punisher Shaft (87mm – 110mm / 3.42″ – 4.33″) (Z-S1902)
Stocker 1.55″ Internal Beadlock Wheels (Z-W0276)
Tango Down 1.9″ Internal Beadlock Wheels (Black) (Z-W0038)
RC4WD Yota Narrow Offset 1.9″ Beadlock Wheels (Z-W0283)
RC4WD Rancho Diff Cover for Yota II Axle (Z-S1924)
Vintage Yota 6 Lug Stamped Steel 1.55″ Beadlock Wheels (White) (Z-W0288)
Vintage Yota 6 Lug Stamped Steel 1.55″ Beadlock Wheels (Clear) (Z-W0289)
Scale Radiator for Gelande II D90/D110 (VVV-C0652)
Air Intake Cover for Gelande II D90/D110 (VVV-C0653)
RC4WD Goodyear Wrangler Duratrac 1.55” 4.19” Scale Tires (Z-T0177)
RC4WD Falken Wildpeak M/T 1.7″ Tires (Z-T0179)
RC4WD Fuel Zephyr Beadlock Wheels 1.9″ (Z-W0294)
Rover Classic 1.9″ Beadlock Wheels (VVV-C0695)
Rover Vogue 1.9″ Beadlock Wheels (VVV-C0696)
RC4WD Raceline Combat 1.55″ Beadlock Wheels (Z-W0292)
RC4WD Black Rhino Armory Internal Beadlock Deep Dish 1.9″ Wheels (Z-W0293)
RC4WD Milestar Patagonia A/T 1.7″ Tires (Z-T0181)
Tango Down 1.9″ Internal Beadlock Wheels (Gun Metal) (Z-W0297)
Hull Front Bumper W/ Steering Guard for Gelande II (D90/D110) (VVV-C0707)
Hull Front Bumper W/ Steering Guard and IPF Lights for Gelande II (D90/D110) (VVV-C0708)
RC4WD Dirty Life RoadKill 1.7″ Beadlock Wheels (Silver) (Z-W0298)
RC4WD Dirty Life RoadKill 1.7″ Beadlock Wheels (Black) (Z-W0299)
RC4WD Interco Narrow TSL SS 1.55 Scale Tires (Z-T0182)
RC4WD Rancho Adjustable Steering Stabilizer (70-100mm) (Z-S1949)
RC4WD Level 8 Bully Pro 6 1.9″ Beadlock Wheels (Z-W0300)
RC4WD ION Style 71 1.9″ Beadlock Wheels (Z-W0303)
RC4WD Dirty Life MB 1.9″ Beadlock Wheels (Z-W0306)
OEM 6-Lug Stamped Steel 1.55″ Beadlock Wheels (Plain) (Z-W0308)
OEM 6-Lug Stamped Steel 1.55″ Beadlock Wheels (White) (Z-W0309)
OEM 6-Lug Stamped Steel 1.55″ Beadlock Wheels (Black) (Z-W0310)
Six-Spoke 1.55″ Internal Beadlock Wheels (Black) (VVV-C0806)
Six-Spoke 1.55″ Single Internal Beadlock Wheel (Black) (VVV-C0807)
Six-Spoke 1.55″ Internal Beadlock Wheels (Gold) (VVV-C0808)
Six-Spoke 1.55″ Single Internal Beadlock Wheel (Gold) (VVV-C0809)
Dome Spoked 1.9″ Classic Beadlock Wheels (VVV-C0810)
Vehement 1.9″ Internal Beadlock Wheels (VVV-C0811)
Vehement 1.9″ Single Internal Beadlock Wheel (VVV-C0812)
RC4WD Rancho RS9000 XL Shock Absorbers 80mm (Z-D0077)
RC4WD Rancho RS9000 XL Shock Absorbers 90mm (Z-D0078)
RC4WD Rancho RS9000 XL Shock Absorbers 100mm (Z-D0079)
RC4WD TUFF T21 1.9″ Internal Beadlock Wheels (Z-W0307)
RC4WD Cali Off-Road Distorted 1.9″ Beadlock Wheels (Z-W0295)
OEM XJ 1.9″ Beadlock Wheels (Chrome) (VVV-C0849)
OEM XJ 1.9″ Beadlock Wheels (Gunmetal) (VVV-C0850)
RC4WD Ridler 645 1.9″ Internal Beadlock Wheels (Z-W0305)
RC4WD Walker Evans 501 Legend 1.55″ Beadlock Wheels (Z-W0319)
RC4WD Walker Evans 501 Legend 1.9″ Beadlock Wheels (Z-W0318)
BigDog 1/10 Tri Axle Widebody Scale Boat Trailer (Z-H0016)
RC4WD Raceline Monster Deep Dish 1.7″ Beadlock Wheels (Z-W0304)
Rally 1.9″ Beadlock Wheels (Gold) (Z-W0324)
Rock Tamer 1.9″ Beadlock Wheels (Z-W0321)
RC4WD Enforcer 1.9″ Beadlock Wheels (Red) (Z-W0323)
RC4WD Rogue 1.9″ Beadlock Wheels (Z-W0314)
RC4WD Rogue 1.7″ Beadlock Wheels (Z-W0315)
RC4WD Rogue 1.55″ Beadlock Wheels (Z-W0317)
Compass M/T 1.55″ Scale Tires (Z-T0186)
RC4WD BFGoodrich Mud Terrain T/A KM2 1.55″ Scale Tires (Z-T0190)
RC4WD BFGoodrich Krawler T/A KX 1.7″ Scale Tires (Z-T0189)
Stamped Steel 1.7″ 10-Oval Hole Wheels (White) (Z-W0311)
Stamped Steel 1.7″ 10-Oval Hole Wheels (Plain) (Z-W0312)
Stamped Steel 1.7″ 10-Oval Hole Wheels (Black) (Z-W0313)
Stamped Steel 1.7″ Beadlock Wagon Wheels (Black) (Z-W0270)
RC4WD BFGoodrich Mud Terrain T/A KM3 1.7″ Tires (Z-T0191)

Metal Rod End Upgrades:
M3 Bent Short Aluminum Rod Ends (Silver) (10) (Z-S1653)
M3 Bent Short Aluminum Rod Ends (Red) (10) (Z-S1655)
M3 Bent Short Aluminum Rod Ends (Blue) (10) (Z-S1657)
M3 Medium Straight Aluminum Rod Ends (Silver) (10) (Z-S1638)
M3 Medium Straight Aluminum Rod Ends (Red) (10) (Z-S1640)
M3 Medium Straight Aluminum Rod Ends (Blue) (10) (Z-S1642)

Instruction Manuals:
Gelande II RTR Instruction (Click here to download)
Mirror Installation (Click here to download)

Press Information:
Click here to download

Items of Interest: (not required for completion)
Grease and Lubrication (Z-S1199) (Z-S1197)
Double Sided Tape for ESC (Z-S0934)

Notes:
While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
Use good quality hex drivers to avoid stripping screw heads.
Use thread lock when putting metal screws into metal parts.
Steps marked with an asterisk (*) require thread lock.
Use thread lock sparingly.
Do not over tighten screws otherwise you may strip the thread.
