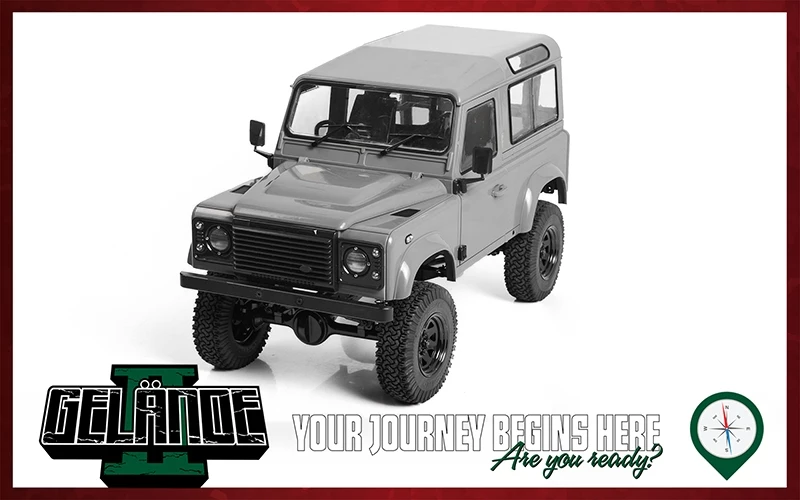

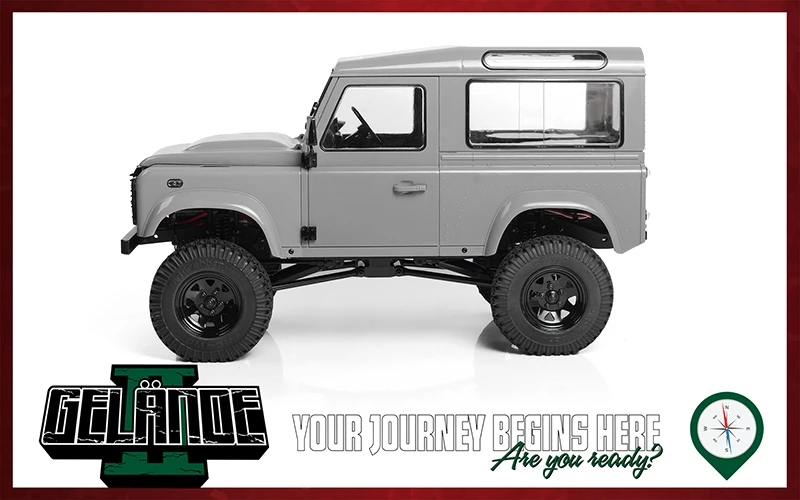

RC4WD Gelande II Truck Kit with 2015 Land Rover Defender D90 Body Set

This is the new licensed RC4WD Gelande II Kit w/ 2015 Land Rover Defender D90 Hard Body Set. These have been Officially Licensed by Land Rover and are only available from RC4WD and our Dealers.

Experience the versatility and advanced design of the G2 for yourself. Packed full of capability, the G2 is ready for any challenging condition. Put your off-road driving to the test and see why the G2 can easily maneuver extreme descents and climb with ease.

The G2 is built with quality materials and craftsmanship like the R3 single speed transmission providing power down to the transfer case and out to the Yota II Axles.

The G2 comes with a 4 link rear and 3 link panhard bar suspension as a standard feature. The chassis mounted servo is out of view for a more scale appearance.

The G2 is completely versatile and can pull off many looks and styles. With the countless options available, RC4WD let’s you customize your G2 exactly how you want without sacrificing performance. From emergency and expedition vehicles to daily drivers and hard core rock climbing rigs, the core of the G2 is built for the true off-road enthusiast!

Are you ready for your off-road experience?

Custom Designed for True to Scale Looks
Realistic Aluminum Ladder Frame Chassis
R3 Single Speed Transmission
Center Mounted Realistic 4×4 Transfer Case
Yota II Ultimate Scale Cast Axles
3 Link Front and 4 Link Rear Suspension
1.9″ Stamped Steel Beadlocks W/Lug Nuts
Super Grip Dirt Grabber Tires
Chassis Mounted Steering servo
Plastic Fuel Cell Receiver Box
Dual Spring Oil Filled Shock Absorbers

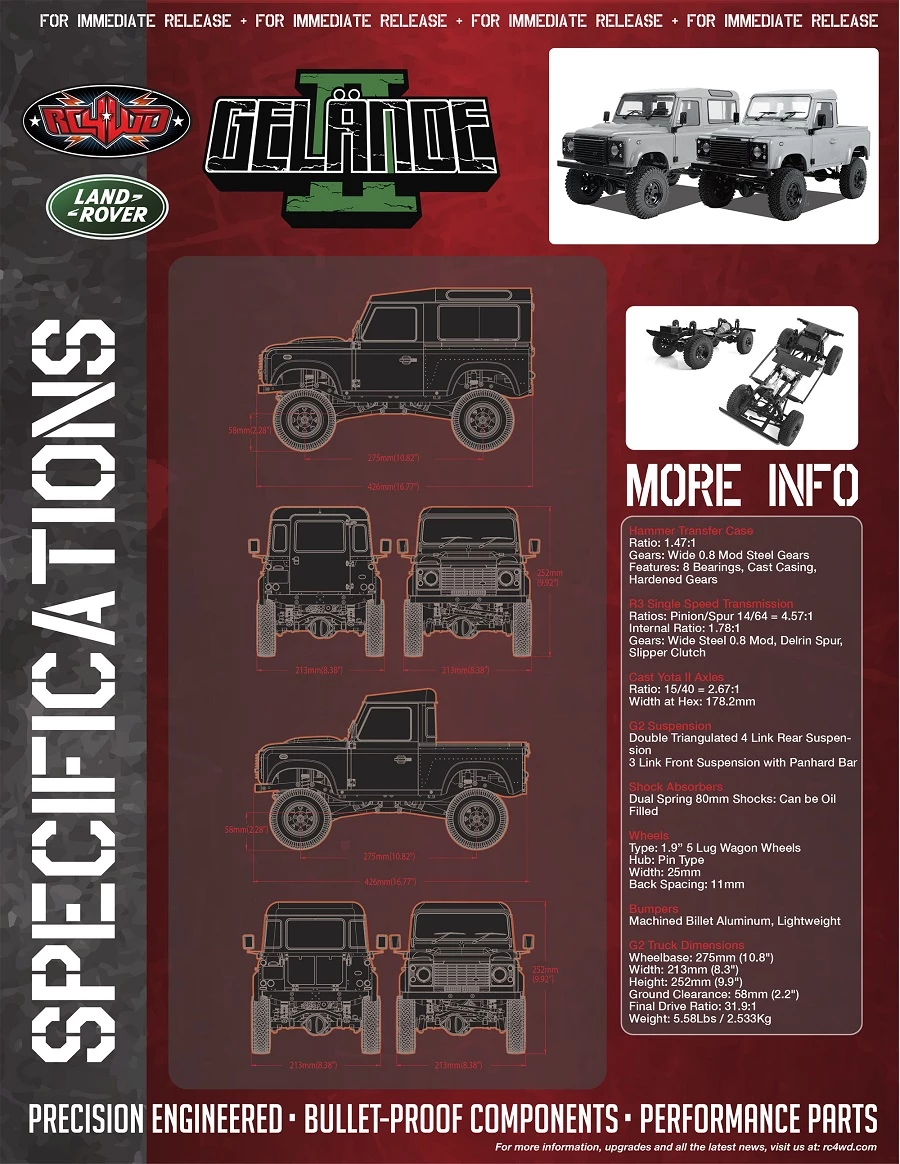

Hammer Transfer Case
Ratio: 1.47:1
Gears: Wide 0.8 Mod Hardened Steel Gears
Features: 8 Bearings, Cast Casing, Hardened Gears

R3 Single Speed Transmission
Ratios: Pinion/Spur 14/64 = 4.57:1 Internal Ratio: 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch

Cast Yota II Axles
Ratio: 15/40 = 2.67:1
Width at Hex: 178.2mm

G2 Suspension
Double Triangulated 4 Link Rear Suspension
3 Link Suspension with Panhard Bar

Shock Absorbers
Dual Spring 80mm Shocks: Can be Oil Filled

Wheels
Type: 1.9” 5 Lug Wagon Wheels
Hub: Pin Type
Width: 25mm
Back Spacing: 11mm

Bumpers
Machined Billet Aluminum, Lightweight

G2 Truck Dimensions:
Wheelbase: 275mm (10.8″)
Width: 213mm (8.3″)
Height: 252mm (9.9″)
Ground Clearance: 58mm (2.2″)
Final Drive Ratio: 31.9:1
Weight: 5.58Lbs / 2.533Kg

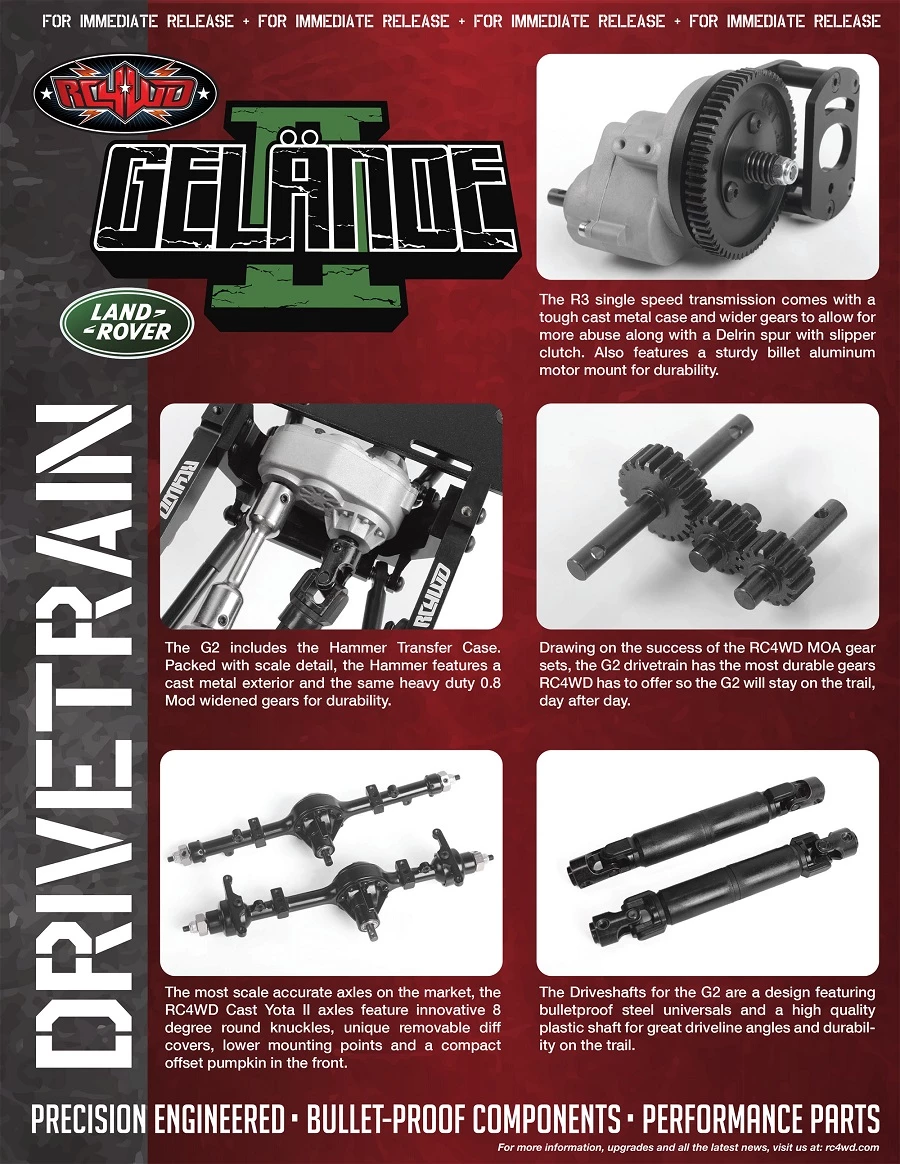

DRIVETRAIN

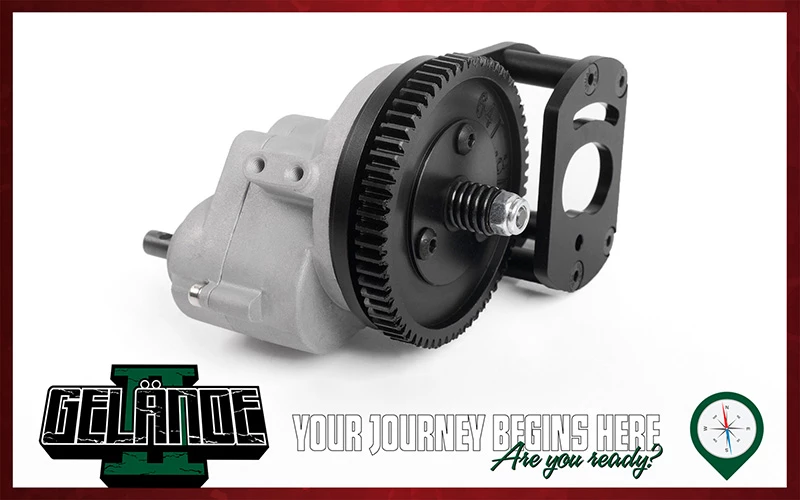

The R3 single speed transmission comes with a tough cast metal case and wider gears to allow for more abuse along with a Delrin spur with slipper clutch. Also features a sturdy billet aluminum motor mount for durability.

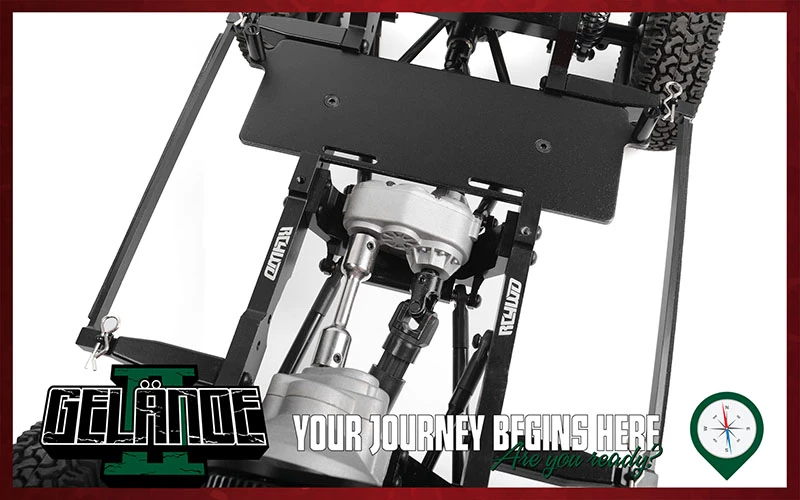

The G2 includes the Hammer Transfer Case. Packed with scale detail, the Hammer features a cast metal exterior and the same heavy duty 0.8 Mod widened gears for durability.

Drawing on the success of the RC4WD MOA gear sets, the G2 drivetrain has the most durable gears RC4WD has to offer so the G2 will stay on the trail, day after day.

The most scale accurate axles on the market, the RC4WD Cast Yota II axles feature innovative 8 degree round knuckles, unique removable diff covers, lower mounting points and a compact offset pumpkin in the front.

The Driveshafts for the G2 are a design featuring bulletproof steel universals and a high quality plastic shaft for great driveline angles and durability on the trail.

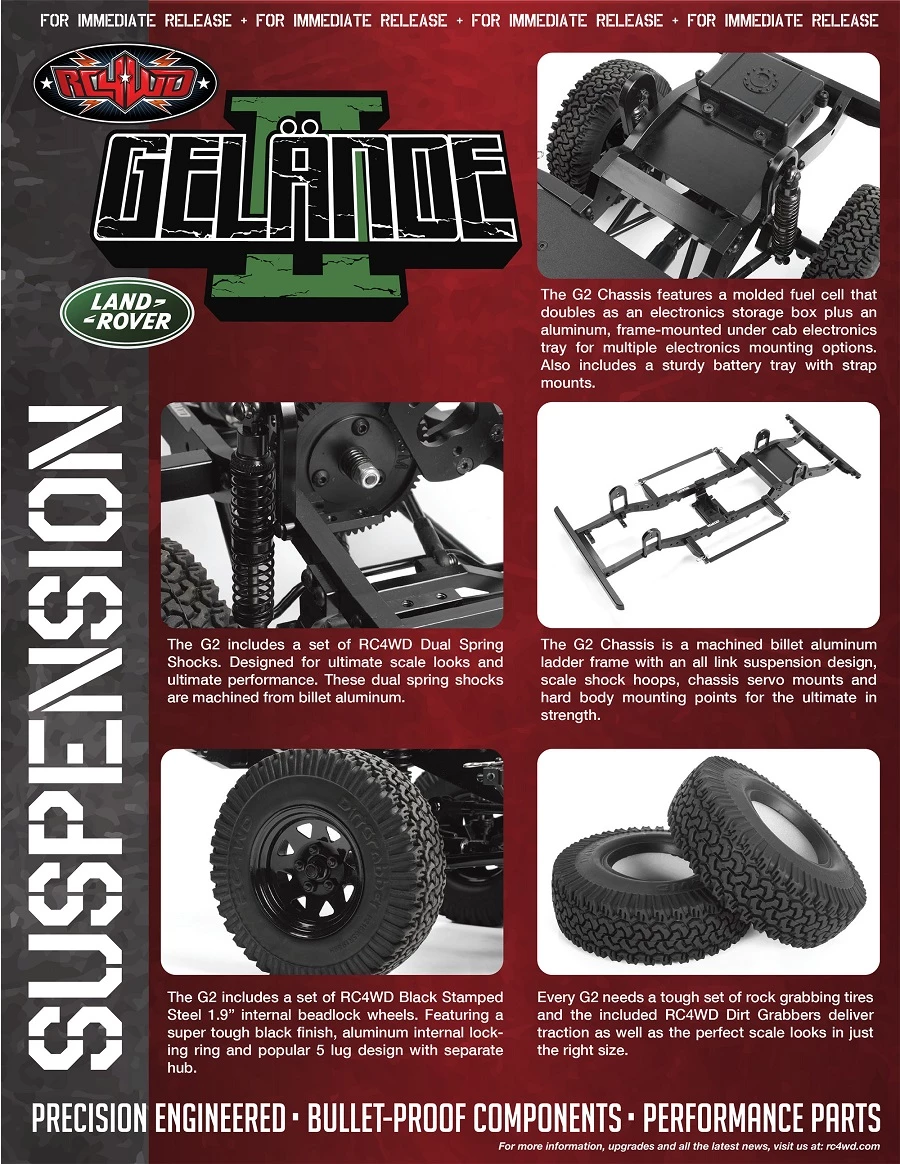

SUSPENSION

The G2 Chassis features a molded fuel cell that doubles as an electronics storage box plus an aluminum, frame-mounted under cab electronics tray for multiple electronics mounting options. Also includes a sturdy battery tray with strap mounts.

The G2 includes a set of RC4WD Dual Spring Shocks. Designed for ultimate scale looks and ultimate performance. These dual spring shocks are machined from billet aluminum.

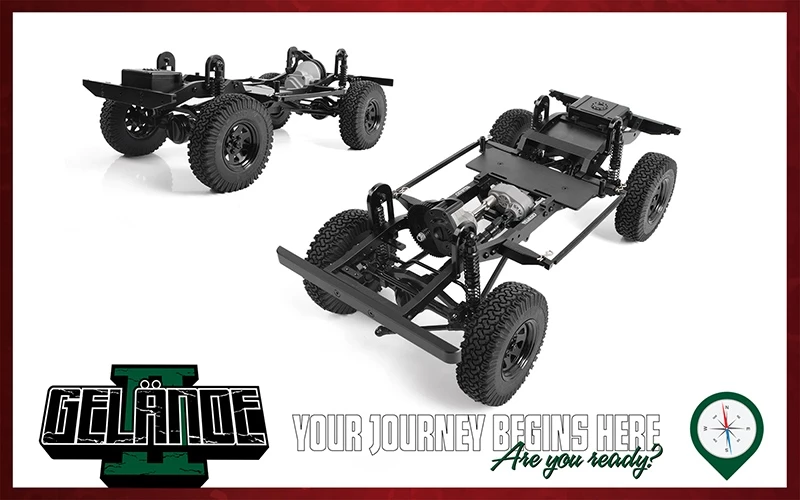

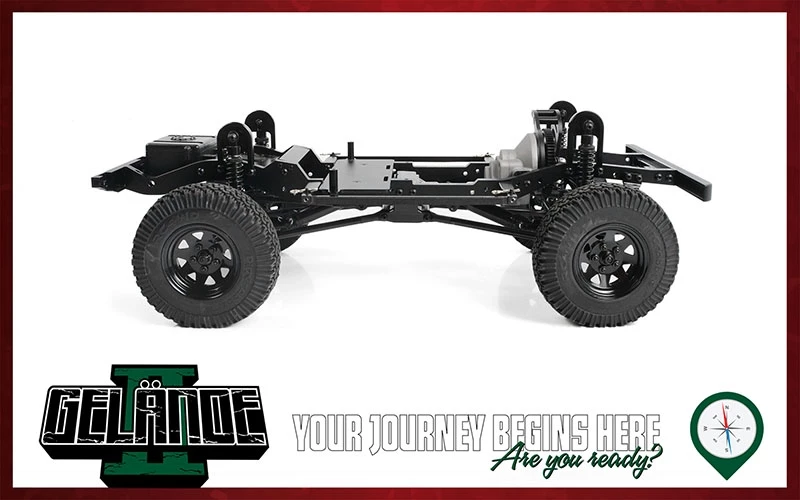

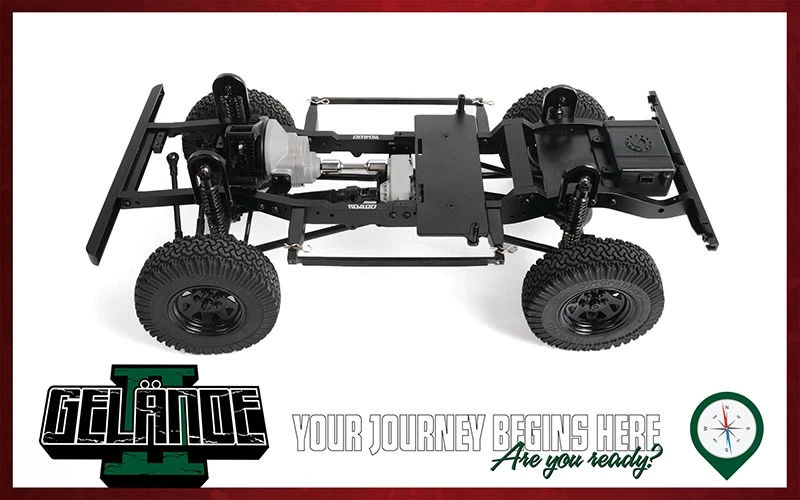

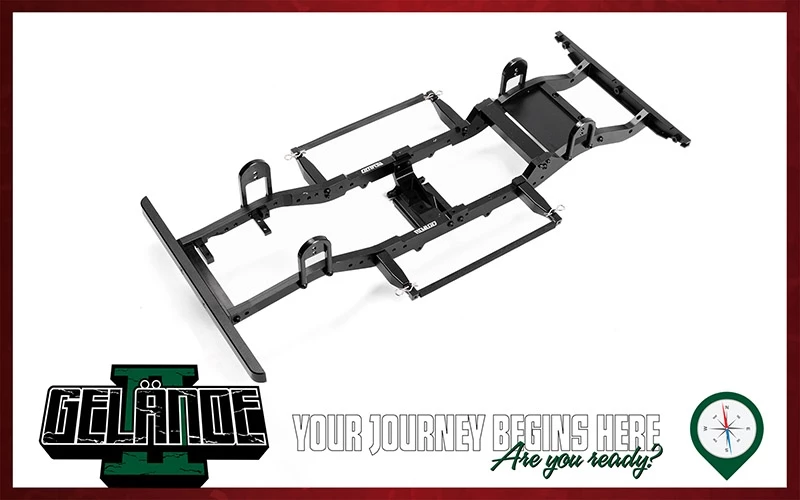

The G2 Chassis is a machined billet aluminum ladder frame with an all link suspension design, scale shock hoops, chassis servo mounts and hard body mounting points for the ultimate in strength.

The G2 includes a set of RC4WD Black Stamped Steel 1.9” internal beadlock wheels. Featuring a super tough black finish, aluminum internal lock- ing ring and popular 5 lug design with separate hub.

Every G2 needs a tough set of rock grabbing tires and the included RC4WD Dirt Grabbers deliver traction as well as the perfect scale looks in just the right size.

DETAILS

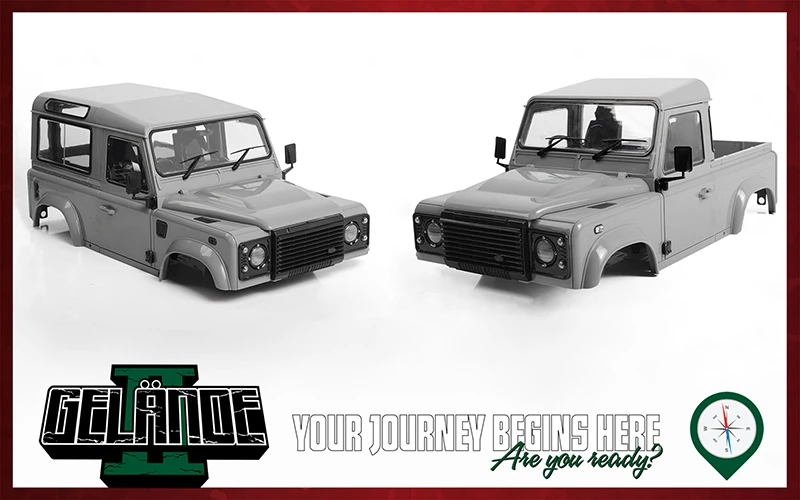

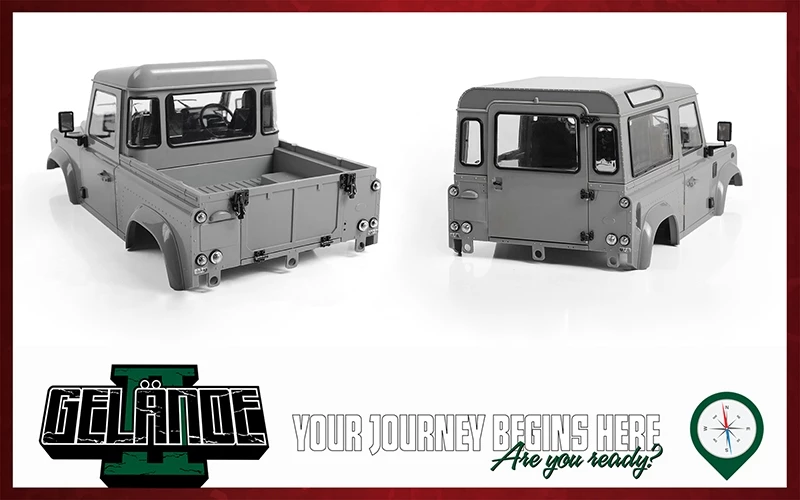

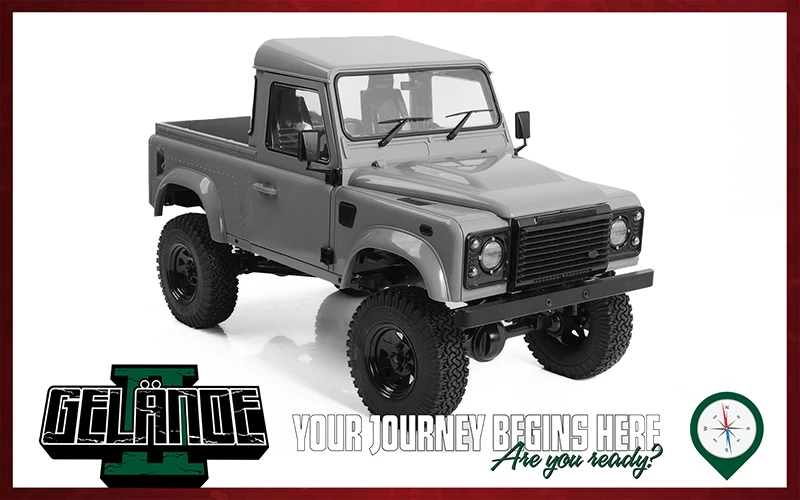

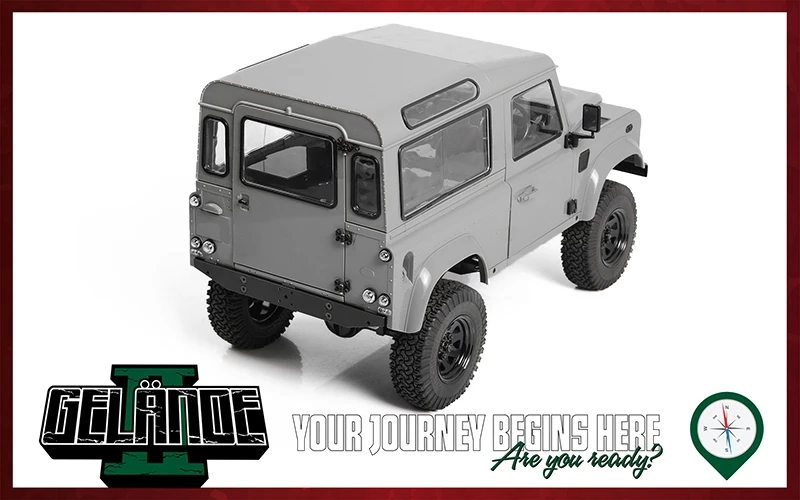

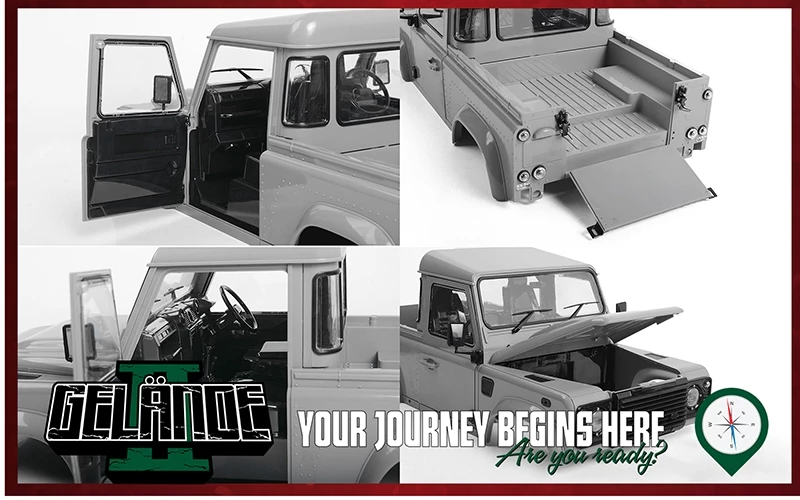

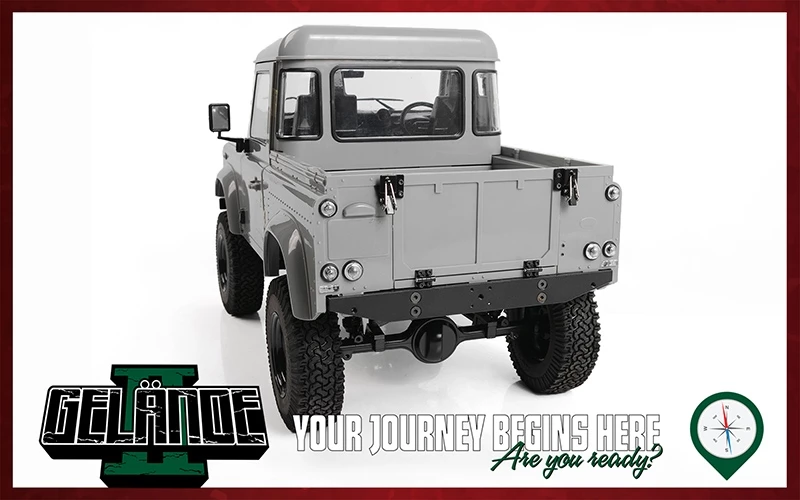

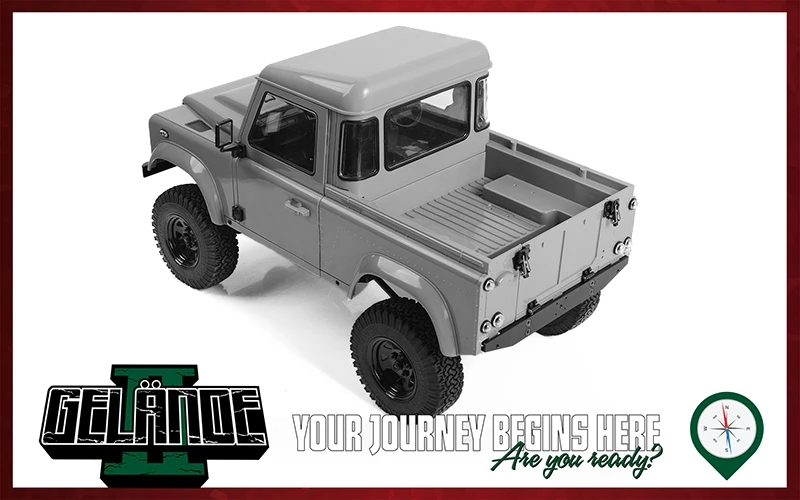

The G2 features the 2015 Land Rover Defender D90 Body Set. The custom 4 door Defender body has an awesome assortment of scale details including mirrors, door handles, vents and grilles to match the 1:1 vehicle.

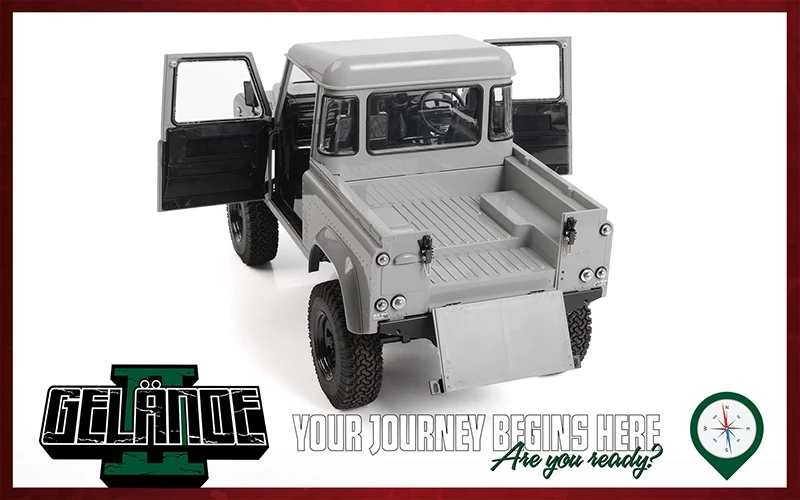

It’s officially licensed with Land Rover with open- ing side and rear doors and hood, the 2015 Land Rover Defender D90 Body Set is the most scale replica in the market.

The body features a full detailed interior, seats, opening center console, plastic and rubber mirrors and a detailed dashboard. It’s all here to bring your scale experience to a level.

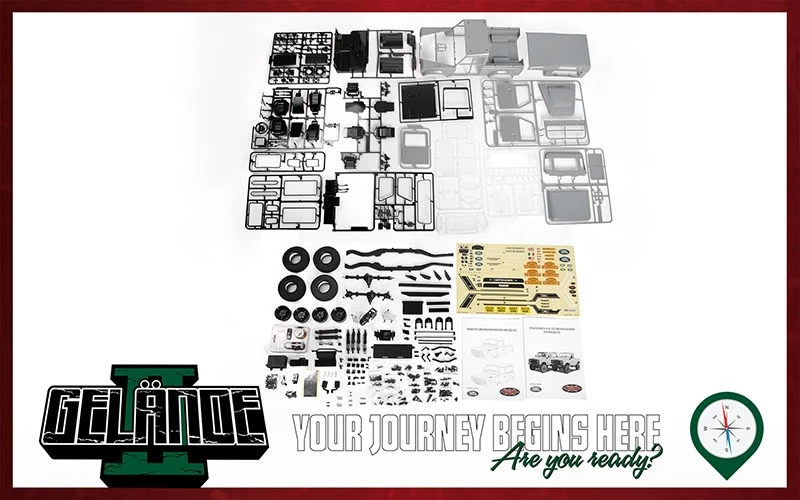

Comprised of over 100 parts, the 2015 Land Rover Defender D90 Body Set features a full detailed interior. Fold-down rear seats, gear shifter, hand- brake and detailed dash. It’s all here to bring your build to next level

The crisp lines and subtle details are all captured. Functional light parts are included as well as colored lenses for all signal lights. All lamps can be illuminated with an optional RC4WD LED light kit.

What’s Included:
1x RC4WD Gelande II Kit w/ 2015 Land Rover Defender D90 Hard Body Set

This is a kit that requires building time (appro. 2-3 hours) and electronics

Required to Complete:
Truck Kit
Hex Drivers (1.5mm, 2mm, 2.5mm)
Long Nose Pliers
Blue Thread Lock
Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)

Body Kit
Modeling / Craft Knife
Long Nose Pliers
Side Cutters
Instant Glue / Plastic Solvent / ShoeGoo / E6000 / 2-part Epoxy
Hex Drivers (1.5mm, 2mm)
Cross Phillips Screwdriver (Small)

Electronics
Motor (35t 45t or 55t)
Outcry III Waterproof ESC (Z-E0113), or Outcry Extreme Speed Controller ESC w/ Program Card (Z-E0118)
Radio and Receiver (2 channel or more) (3 Channel Z-R0009, or 4 Channel Z-R0006)
Twister High Torque Metal Gear Digital Servo (Z-E0035), or Twister Ultimate High Performance Waterproof Servo (Z-E0063)
Battery (Consult your “ESC” manual) Z-E0090 or 2 cell Lipo battery
Charger (Consult your battery guide) Chargers

Replacements Parts:
Gelande 2 Front 3 Link & Panhard Mount (Black) (Z-S0794)
Gelande 2 Rear 4 Link Mount (Z-S0795)
Yota II Ultimate Scale Cast Axle (Front) (Z-A0080)
Yota II Ultimate Scale Cast Axle (Rear) (Z-A0081)
RC4WD Plastic Punisher Shaft V2(95mm – 110mm / 3.74″ – 4.33″) 5mm Hole (Z-S2019)
M3 Medium Straight Plastic Rod End (20x) (Z-S0399)
M3 Short Bent Plastic Rod End (20x) (Z-S0402)
M3 Mini Plastic Rod End (20x) (Z-S0398)
M3 Offset Short Plastic Rod End (20x) (Z-S0401)
14t 32p Hardened Steel Pinion Gear (Z-S0430)
Yota Front Steel Axle Shaft (Z-S0060)
Yota Steel Straight Axle Shaft (Rear) (Z-S0061)
Gelande 2 Chassis Set (Z-C0040)
Battery Plate for Gelande 2 (Z-S0792)
Servo Mounts for Gelande 2 Chassis (Z-S0791)
Fuel Cell Radio Box (Z-S0592)
Hammer Transfer Case (1.47/1) (Z-U0024)
BigDog 1/10 Tri Axle Widebody Scale Boat Trailer (Z-H0016)
Transfer Case and Lower 4 Link Mount for Gelande 2 Chassis (Z-U0027)
R3 Scale Single Speed Transmission (Z-U0028)
RC4WD 12mm Axle Wheel Hex Set (Z-S0238)
Front Shock Hoops for Gelande 2 Chassis (Z-S0798)
Rear Shock Hoops for Gelande 2 Chassis (Z-S0799)
Gelande 2 Front Replacement Bumper (Z-S0800)
Gelande 2 Rear Replacement Bumper (Z-S0801)
R3 Single Speed Transmission Mounts (Z-S0802)
Metal Drive Coupling for Gelande 2 (Z-S0803)
73mm (2.87″) Aluminum Link for Gelande 2 (Z-S0805)
59mm (2.32″) Aluminum Link for Gelande 2 (Z-S0807)
65.3mm (2.57″) Aluminum Link for Gelande 2 (Z-S0817)
70mm (2.75″) Aluminum Link for Gelande 2 (Z-S0819)
Dual Spring 80mm Scale Black Shocks (Ver 2) (Z-D0039)
5 Lug Wagon 1.9″ Steel Stamped Beadlock Wheels (Black) (Z-W0129)
Dirt Grabber 1.9″ All Terrain Tires (Z-T0005)
Heavy Duty Nylon Strap Lock (5) (Z-S0552)
Heavy Duty Metal Servo Arm 25t Futaba (Z-S0822)
1mm Black Spacer with M3 Hole (10) (Z-S0809)
2mm Black Spacer with M3 Hole (10) (Z-S0600)
3mm Black Spacer with M3 Hole (10) (Z-S0806)
5mm Black Spacer with M3 Hole (10) (Z-S0821)

Replacement Hardware:
Steel Button Head Cap Screws M3 x 6mm (10) (Z-S0651)
Steel Button Head Cap Screws M3 x 8mm (10) (Z-S0652)
Steel Button Head Cap Screws M3 x 10mm (10) (Z-S0653)
Steel Button Head Cap Screws M3 x 12mm (10) (Z-S0654)
Steel Button Head Cap Screws M3 x 14mm (10) (Z-S0655)
Steel Button Head Cap Screws M3 x 16mm (10) (Z-S0656)
Steel Flat Head Socket Cap Screw M3 x 8mm (10) (Z-S0649)
Steel Flat Head Cap Screws M3 x 10mm (10) (Z-S0860)
Steel Flat Head Cap Screws M3 x 14mm (10) (Z-S0746)
Gelande II Electronics Deck (Z-S0793)
Nylock Nuts M3 (Black) (Z-S0629)
M3 x 15mm Set Screw (10) (Z-S0650)
M3 X 10mm Set Screw (10) (Z-S0308)
M3 Driveshaft Screw Pin (5) (Z-S0804)
Steel Socket Head Cap Screws M2 x 10mm (10) (Z-S0849)
Steel Socket Head Cap Screws M2.5 x 6mm (10) (Z-S0855)
Button Head Self Tapping Screws M2.5 x 8mm (Black) (Z-S1572)
M4 Flanged Lock Nut (Black) (Z-S0620)

Upgraded Front / Rear Shock:
RC4WD King Off-Road Dual Spring Shocks (90mm Medium OD) (Z-D0061)
RC4WD King Off-Road Dual Spring Shocks (100mm Medium OD) (Z-D0063)
RC4WD 90mm Old Man Emu Nitrocharger Sport Shock by ARB (Z-D0038)
RC4WD King Off-Road Dual Spring Shocks (90mm Medium OD) (Z-D0061)
RC4WD King Off-Road Dual Spring Shocks (100mm Medium OD) (Z-D0063)
RC4WD 90mm Old Man Emu Nitrocharger Sport Shock by ARB (Z-D0038)
RC4WD Bilstein SZ Series 90mm Scale Shock Absorbers (Z-D0075)
RC4WD Rancho RS9000 XL Shock Absorbers 90mm (Z-D0078)
RC4WD Rancho RS9000 XL Shock Absorbers 100mm (Z-D0079)

Optional Parts:
RC4WD Snorkel for Gelande II D90/D110 (Z-S0247)
Inner Fender Set for Gelande II D90/D110 Body (Z-S1194)
Gelande II D90/D110 Window Protection Roll Cage (Z-S0958)
RC4WD ARB 1/10 Roof Rack with Window Guard for Gelande II D90 (Z-X0009)
LED Basic Lighting System For Gelande II D90/D110 Body Set (Z-E0062)
Land Rover D90/D110 – Heritage Grill (Z-S1875)
Land Rover 1/10 D90/D110 Metal Grill (Z-S1887)
RC4WD Rancho Adjustable Steering Stabilizer (70-100mm) (Z-S1949)
Land Rover Mud Flaps for Gelande II D90/D110 (Z-S1888)
D90/110 Aluminum Hood and Side Vents (Z-S1656)
RC4WD Rancho Diff Cover for Yota II Axle (Z-S1924)
Big Boss Fender Flare Set for D90/D110 (Z-S1741)
Rear Ladder for Gelande II (D90/D110) (VVV-C0246)
Roof Rack w/Lights for Gelande II D90 (VVV-C0241)
Roof Rack for Gelande II D90 (VVV-C0240)
RC4WD 2015 Land Rover Defender D90 Body Set (Z-B0215)
Simi Snorkel for Gelande II D90/D110 (VVV-C0913)
Roof Rack with Tire Mount for Gelande II D90 (VVV-C0265)
1.9 5 Lug Steel Wheel Hex Hub with Brake Rotor (Z-S0532)
RC4WD Drive Flange Wheel Nut Cover (Z-S0756)
RC4WD Mickey Thompson Metal Series 1/10 Wheel Center Caps (2) (Z-S0850)
Gelande 2 Steering Guard (Z-S0824)
Superlift Adjustable Steering Stabilizer (90mm-120mm) (Z-S0986)
Mud Flaps for Gelande 2 (Z-S0890)
RC4WD Standard Hitch with Hitch Mount (Z-S1781)
Gelande 2 Mounting kit for Jack Stand Truck Display (Z-S1324)
Twister Ultimate High Performance Waterproof Servo (Z-E0063)
540 Crawler Brushed Motor 45T (Z-E0004)
Twister High Torque Metal Gear Digital Servo (Z-E0035)
Outcry III Waterproof ESC (Z-E0113)
RC4WD 6-Cell 3000mAh NIMH Battery Pack (Z-E0090)
XR3 3-Channel 2.4Ghz Transmitter/Receiver Radio (Z-R0009)
Scale Rear Hubs V2 (Z-S1266)
1/10-1/14 D90 Large Red Light (Detailed) (VVV-C0091)
1/10-1/14 D90 Small Yellow Light (Detailed) (VVV-C0099)
Land Rover 1/10 D90/D110 Metal Grill (Z-S1887)
Blade Snow Plow Mounting kit for Gelande 2 (Z-S1504)
RC4WD Ballistic Fabrications Diff Cover for Yota II Axle (Z-S1605)
Scale Steel Punisher Shaft (77mm – 100mm / 3.03″ – 3.94″) (Z-S1054)
Cruiser Body Conversion Kit for D90 (Z-S1706)
RC4WD Teraflex Diff Cover for Yota II Axle (Z-S1681)
M3 Offset Short Aluminum Rod Ends (Red) (10) (Z-S1631)
M3 Offset Short Aluminum Rod Ends (Blue) (10) (Z-S1633)
Grid Design Steering Guard for Gelande II (D90/D110) (VVV-C0239)
Metal Exhaust for Gelande II D90 (VVV-C0287)
Gelande II Leaf Spring Kit (Z-S1752)
RC4WD Ballistic Fabrications Diff Cover for K44 Cast Axle (Z-S1841)
Front Tube Bumper for Gelande II (D90/D110) (VVV-C0455)
Ultra Punisher Shafts (83.7MM – 105MM / 3.29″ – 4.13″) 5MM Hole (Z-S0573)
1/10-1/14 Work Light (VVV-C0475)
1/10-1/14 Work Light (w/LED) (VVV-C0476)
1/10-1/14 Work Lights (w/LED) (VVV-C0477)
RC4WD KC HiLiTES KC Light Set (Z-S1855)
RC4WD KC HiLiTES Daylighter Light Set (Z-S1856)
RC4WD Over/Under Drive Transfer Case (Z-U0039)
RC4WD Advance Adapters Atlas II Transfer Case (1.47/1) (Z-U0037)
Super Soft Flex Leaf Springs for Gelande II (4) (Z-S1897)
Scale Steel Punisher Shaft (87mm – 110mm / 3.42″ – 4.33″) (Z-S1902)
Hull Front Bumper W/ Steering Guard for Gelande II (D90/D110) (VVV-C0707)
Hull Front Bumper W/ Steering Guard and IPF Lights for Gelande II (D90/D110) (VVV-C0708)
Kahn Style Front Grille for D90/D110 Bodies (Black) (VVV-C0316)
Oxer Inner Fenders for RC4WD Gelande II 2015 Land Rover Defender D90 (Pick-up/SUV) (VVV-C1081)
Oxer Transfer Case Guard for Gelande II 2015 Land rover Defender D90 (VVV-C1082)
Steel Steering Guard for RC4WD Gelande II 2015 Land Rover Defender D90 (Black) (Pick-up/SUV) (VVV-C1083)
Steel Steering Guard for RC4WD Gelande II 2015 Land Rover Defender D90 (Silver) (Pick-up/SUV) (VVV-C1084)
Steel Front Side Hood Diamond Plates for RC4WD Gelande II 2015 Land Rover Defender D90 (Pick-up/SUV) (VVV-C1085)
Steel Roof Light Bar for RC4WD Gelande II 2015 Land Rover Defender D90 (Pick-up/SUV) (VVV-C1092)
Steel Roof Light Bar w/ Flood Lights for RC4WD Gelande II 2015 Land Rover Defender D90 (Pick-up/SUV) (VVV-C1093)
Spare Wheel and Tire Holder for RC4WD Gelande II 2015 Land Rover Defender D90 (Pick-up/SUV) (VVV-C1097)
Classic Front Bumper for RC4WD Gelande II 2015 Land Rover Defender D90 (Silver) (VVV-C1116)
Classic Front Bumper for RC4WD Gelande II 2015 Land Rover Defender D90 (Black) (VVV-C1117)
Classic Front Winch Bumper for RC4WD Gelande II 2015 Land Rover Defender D90 (Silver) (VVV-C1118)
Classic Front Winch Bumper for RC4WD Gelande II 2015 Land Rover Defender D90 (Black) (VVV-C1119)
Steel Push Bar Front Bumper for RC4WD Gelande II 2015 Land Rover Defender D90 (VVV-C1120)
Steel Push Bar Front Bumper W/ Clear Flood Lights for RC4WD Gelande II 2015 Land Rover Defender D90 (VVV-C1121)
Steel Push Bar Front Bumper W/ Yellow Flood Lights for RC4WD Gelande II 2015 Land Rover Defender D90 (VVV-C1122)
License Plate Holder for RC4WD Gelande II 2015 Land Rover Defender D90 (VVV-C1123)
Mud Hogs 1.55″ Scale Tires (Z-T0029)
RC4WD Interco IROK ND 1.55″ Scale Tires (Z-T0163)
RC4WD Falken Wildpeak A/T3W 1.55 Scale Tires (Z-T0169)
Rocky Country 1.55″ Truck Tires (Z-T0022)
RC4WD BFGoodrich Mud Terrain T/A KM2 1.55″ Scale Tires (Z-T0190)
Compass M/T 1.55″ Scale Tires (Z-T0186)
RC4WD Interco Narrow TSL SS 1.55 Scale Tires (Z-T0182)
RC4WD BFGoodrich Krawler T/A KX 1.7″ Scale Tires (Z-T0189)
RC4WD Michelin LTX A-T2 1.7″ Tires (Z-T0194)
RC4WD BFGoodrich Mud Terrain T/A KM3 1.7″ Tires (Z-T0191)
RC4WD Falken Wildpeak M/T 1.7″ Tires (Z-T0179)
RC4WD Milestar Patagonia A/T 1.7″ Tires (Z-T0181)
RC4WD Mickey Thompson Baja Pro X 4.19 1.7 Scale Tires (Z-T0196)
RC4WD Goodyear Wrangler Duratrac 1.55” 4.19” Scale Tires (Z-T0177)
RC4WD BFGoodrich Mud-Terrain T/A KM2 1.9″ Scale Tires (Z-T0187)
RC4WD BFGoodrich All-Terrain K02 1.9″ Scale Tires (Z-T0188)
RC4WD BFGoodrich Mud Terrain T/A KM3 1.9″ Tires (Z-T0192)
RC4WD Michelin Agilis C-Metric 1.9″ Tires (Z-T0193)
RC4WD Falken Wildpeak A/T Trail 1.9″ Scale Tires (Z-T0195)
RC4WD Hawkeye 1.9” Scale Tire (Z-T0162)
OEM Stamped Steel 1.55″ Beadlock Wheels (Plain) (Z-W0258)
OEM Stamped Steel 1.55″ Beadlock Wheels (White) (Z-W0260)
OEM Stamped Steel 1.55″ Beadlock Wheels (Black) (Z-W0262)
OEM Stamped Steel 1.55″ Beadlock Wheels (Chrome) (Z-W0264)
RC4WD Ballistic Off Road Rage 1.9” Beadlock Wheels (Z-W0261)
Scamp 1.55″ Beadlock Wheels (Z-W0152)
RC4WD Rotiform Six-OR 1.55″ Beadlock Wheels (Z-W0115)
Ultra 1.55″ Beadlock Wheels (Z-W0268)
Breaker 1.55″ Beadlock Wheels (Z-W0273)
TRunner Classic 1.55” Beadlock Wheels (Z-W0121)
Black Mesh 1.55″ Beadlock Wheels (Z-W0103)
Deep Dish Wagon 1.55″ Stamped Steel Beadlock Wheels (Black) (Z-W0281)
Deep Dish Wagon 1.55″ Stamped Steel Beadlock Wheels (White) (Z-W0284)
Deep Dish Wagon 1.55″ Stamped Steel Beadlock Wheels (Chrome) (Z-W0285)
Deep Dish Wagon 1.55″ Stamped Steel Beadlock Wheels (Clear) (Z-W0286)
Vintage Yota 6 Lug Stamped Steel 1.55″ Beadlock Wheels (White) (Z-W0288)
Vintage Yota 6 Lug Stamped Steel 1.55″ Beadlock Wheels (Clear) (Z-W0289)
RC4WD Raceline Combat 1.55″ Beadlock Wheels (Z-W0292)
Stocker 1.55″ Internal Beadlock Wheels (Z-W0276)
OEM 6-Lug Stamped Steel 1.55″ Beadlock Wheels (Plain) (Z-W0308)
OEM 6-Lug Stamped Steel 1.55″ Beadlock Wheels (White) (Z-W0309)
OEM 6-Lug Stamped Steel 1.55″ Beadlock Wheels (Black) (Z-W0310)
RC4WD Walker Evans 501 Legend 1.55″ Beadlock Wheels (Z-W0319)
Six-Spoke 1.55″ Internal Beadlock Wheels (Black) (VVV-C0806)
Six-Spoke 1.55″ Single Internal Beadlock Wheel (Black) (VVV-C0807)
Six-Spoke 1.55″ Internal Beadlock Wheels (Gold) (VVV-C0808)
Six-Spoke 1.55″ Single Internal Beadlock Wheel (Gold) (VVV-C0809)
Truescale Series 1.7″ Beadlock Wheels (Z-W0265)
RC4WD Ballistic Off Road Morax 1.7″ Beadlock Wheels (Z-W0118)
RC4WD Benchmark 1.7″ Beadlock Wheels (Z-W0266)
Stamped Steel 1.7″ Beadlock Wagon Wheels (Clear) (Z-W0272)
Stamped Steel 1.7″ Beadlock Wagon Wheels (Chrome) (Z-W0271)
Stamped Steel 1.7″ Beadlock Wagon Wheels (White) (Z-W0269)
RC4WD Dirty Life RoadKill 1.7″ Beadlock Wheels (Silver) (Z-W0298)
RC4WD Dirty Life RoadKill 1.7″ Beadlock Wheels (Black) (Z-W0299)
RC4WD Raceline Monster Deep Dish 1.7″ Beadlock Wheels (Z-W0304)
RC4WD Rogue 1.7″ Beadlock Wheels (Z-W0315)
Stamped Steel 1.7″ 10-Oval Hole Wheels (White) (Z-W0311)
Stamped Steel 1.7″ 10-Oval Hole Wheels (Plain) (Z-W0312)
Stamped Steel 1.7″ 10-Oval Hole Wheels (Black) (Z-W0313)
Stamped Steel 1.7″ Beadlock Wagon Wheels (Black) (Z-W0270)
Dome Spoked 1.9″ Classic Beadlock Wheels (VVV-C0810)
JK 1.9″ Scale Beadlock Wheels (Z-W0151)
1.9″ Landies Internal Beadlock Wheels (Z-W0075)
RC4WD 1911 1.9” Beadlock Wheels (Z-W0274)
RC4WD Enforcer 1.9″ Beadlock Wheels (Z-W0122)
Tango Down 1.9″ Internal Beadlock Wheels (Black) (Z-W0038)
RC4WD Yota Narrow Offset 1.9″ Beadlock Wheels (Z-W0283)
RC4WD Fuel Zephyr Beadlock Wheels 1.9″ (Z-W0294)
Rover Classic 1.9″ Beadlock Wheels (VVV-C0695)
Rover Vogue 1.9″ Beadlock Wheels (VVV-C0696)
RC4WD Black Rhino Armory Internal Beadlock Deep Dish 1.9″ Wheels (Z-W0293)
Tango Down 1.9″ Internal Beadlock Wheels (Gun Metal) (Z-W0297)
RC4WD Level 8 Bully Pro 6 1.9″ Beadlock Wheels (Z-W0300)
RC4WD ION Style 71 1.9″ Beadlock Wheels (Z-W0303)
RC4WD Dirty Life MB 1.9″ Beadlock Wheels (Z-W0306)
RC4WD Rogue 1.55″ Beadlock Wheels (Z-W0317)
Vehement 1.9″ Internal Beadlock Wheels (VVV-C0811)
Vehement 1.9″ Single Internal Beadlock Wheel (VVV-C0812)
RC4WD TUFF T21 1.9″ Internal Beadlock Wheels (Z-W0307)
RC4WD Cali Off-Road Distorted 1.9″ Beadlock Wheels (Z-W0295)
OEM XJ 1.9″ Beadlock Wheels (Chrome) (VVV-C0849)
OEM XJ 1.9″ Beadlock Wheels (Gunmetal) (VVV-C0850)
RC4WD Ridler 645 1.9″ Internal Beadlock Wheels (Z-W0305)
RC4WD Walker Evans 501 Legend 1.9″ Beadlock Wheels (Z-W0318)
Rally 1.9″ Beadlock Wheels (Gold) (Z-W0324)
Rock Tamer 1.9″ Beadlock Wheels (Z-W0321)
RC4WD Enforcer 1.9″ Beadlock Wheels (Red) (Z-W0323)
RC4WD Rogue 1.9″ Beadlock Wheels (Z-W0314)
Breaker 1.9″ Beadlock Wheels (Gold) (Z-W0325)
1.9″ 5 Lug Steel Wheels w/Beauty Ring (Silver) (Z-W0327)
RC4WD Rogue 2.2 Beadlock Wheels (Z-W0316)
TNK 2.2″ Beadlock Wheels (4x) (VVV-C0986)
TNK 2.2″ Beadlock Wheels w/ Brake Discs (4x) (VVV-C0987)
TNK 2.2″ Beadlock Wheels (2x) (VVV-C0988)
TNK 2.2″ Beadlock Wheels w/ Brake Discs (2x) (VVV-C0989)
Seren 2.2″ Beadlock Wheels w/ Center Caps (Silver) (VVV-C1013)
Seren 2.2″ Single Wheel (Silver) (VVV-C1014)
Seren 2.2″ Beadlock Wheels w/ Center Caps (Black) (VVV-C1015)
Seren 2.2″ Single Wheel (Black) (VVV-C1016)
Burato 2.2″ Beadlock Wheels w/ Center Caps (Silver) (VVV-C1017)
Burato 2.2″ Single Wheel (Silver) (VVV-C1018)
Burato 2.2″ Beadlock Wheels w/ Center Caps (Black) (VVV-C1019)
Burato 2.2″ Single Wheel (Black) (VVV-C1020)

Metal Rod End Upgrades:
M3 Bent Short Aluminum Rod Ends (Silver) (10) (Z-S1653)
M3 Bent Short Aluminum Rod Ends (Red) (10) (Z-S1655)
M3 Bent Short Aluminum Rod Ends (Blue) (10) (Z-S1657)
M3 Medium Straight Aluminum Rod Ends (Silver) (10) (Z-S1638)
M3 Medium Straight Aluminum Rod Ends (Red) (10) (Z-S1640)
M3 Medium Straight Aluminum Rod Ends (Blue) (10) (Z-S1642)

Instruction Manuals:
Click here to download

Press Information:
Click here to download

Items of Interest: (not required for completion)
Paint for body
Grease and Lubrication (Z-S1199) (Z-S1197)
Double Sided Tape for ESC (Z-S0934)

Notes:
While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
Use good quality hex drivers to avoid stripping screw heads.
Use thread lock when putting metal screws into metal parts.
Steps marked with an asterisk (*) require thread lock.
Use thread lock sparingly.
Do not over tighten screws otherwise you may strip the thread.
Requires 5mm Black Spacer with M3 Hole (Z-S0821) to install Hull Front Bumper W/ Steering Guard for Gelande II (D90/D110) (VVV-C0707) and Hull Front Bumper W/ Steering Guard and IPF Lights for Gelande II (D90/D110) (VVV-C0708).
Be sure to shim your axles if needed

Land Rover is a registered trademark of the Land Rover company. The Land Rover logo is property of Land Rover and used under license to RC4WD.
