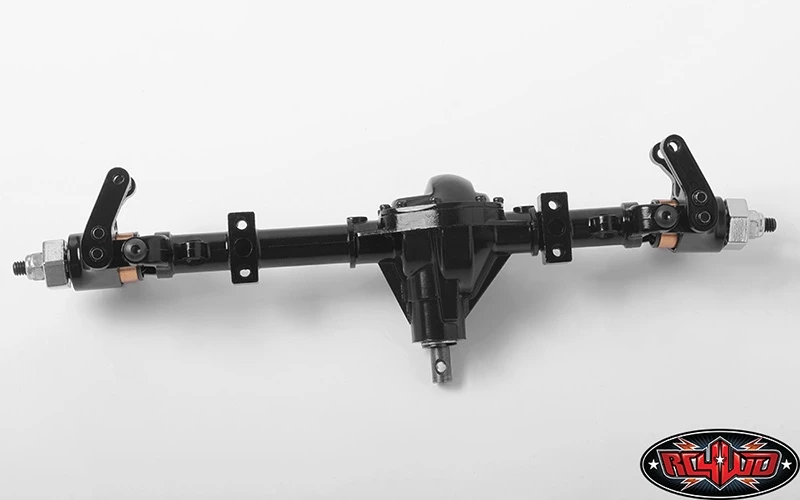

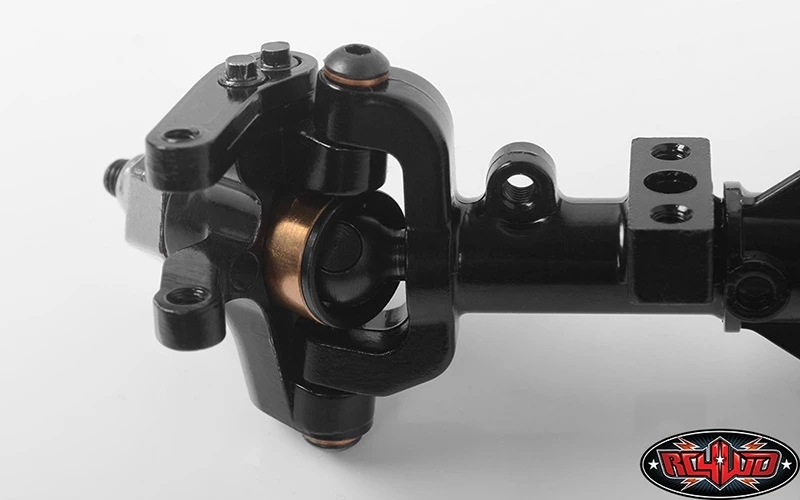

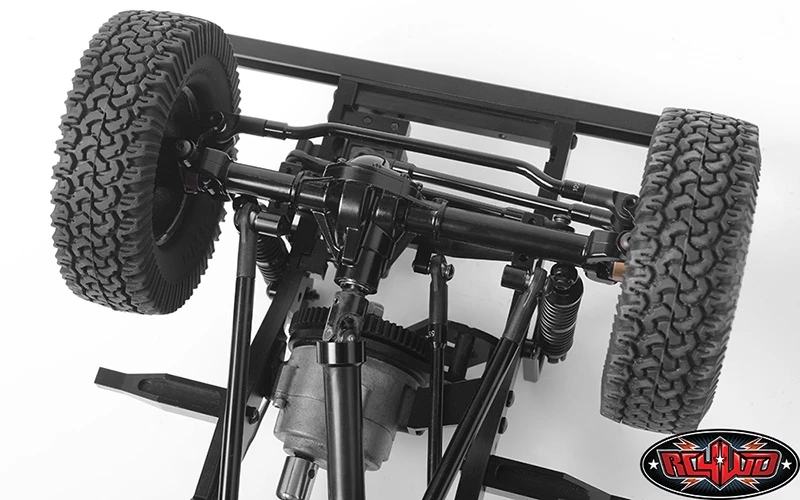

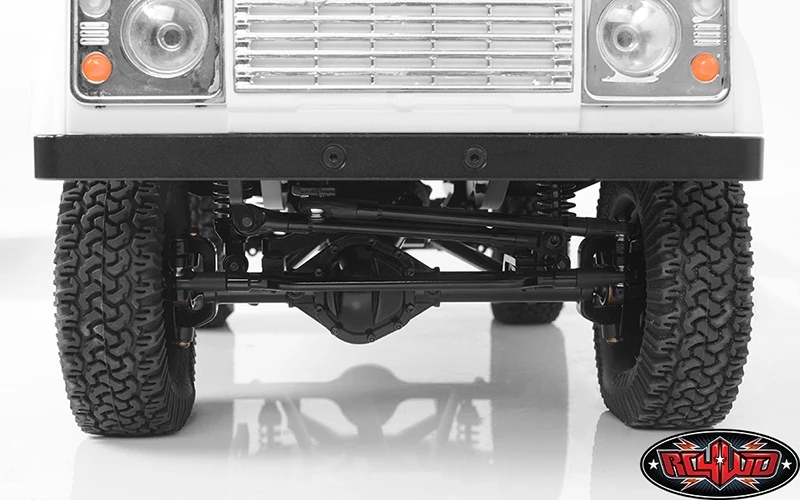

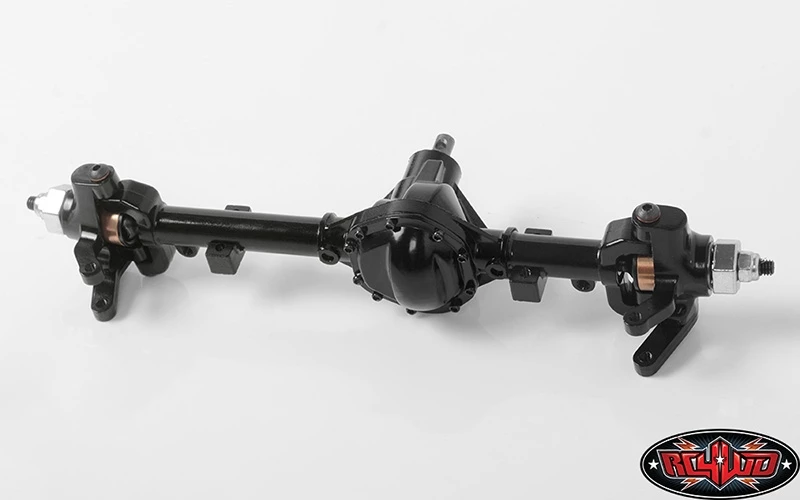

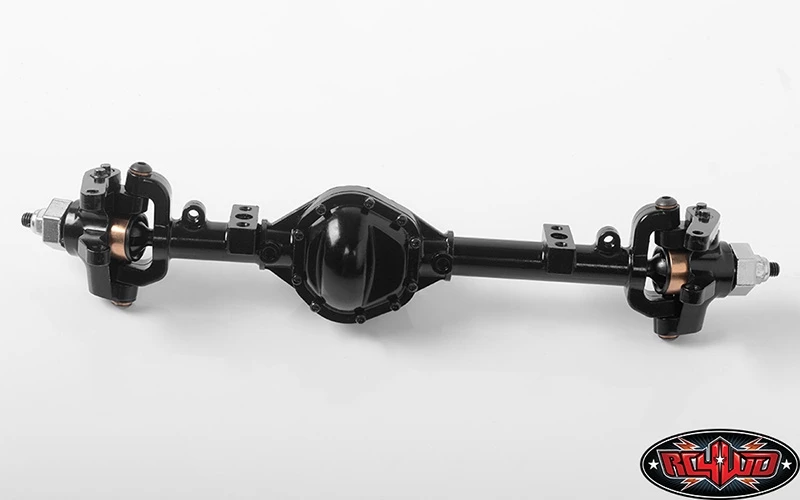

This is the best reproduction to date of a scale axle. The K44 Axles have been designed from the ground up with input from some of the top scale builders in the world. With smaller axle tubes, high steer knuckles and many more features never before found on a set of radio control scale axles. RC4WD keeps pushing the limits on scale items and this new axle is a perfect example!
Specifications:
Die Cast Zinc Alloy Housing
Black Electrophorese
Removable Diff Cover
Hex Thickness: 6mm
12mm Wheel Hex
5mm Axle Output Shaft
Gear Ratio: 2.67 : 1
Designed and Manufactured by RC4WD
Designed for 1/10 Trucks
Hex to Hex Width: 6.97in / 177mm
Pin to Pin Width: 6.46in / 164mm
Pumpkin Height: 1.37in / 34.86mm
Weight: 8.32oz / 236g
What’s Included:
1x K44 Ultimate Scale Cast Front Axle
Rear K44 Axles:
K44 Ultimate Scale Cast Rear Axle (Z-A0096)
Required Parts:
K44 Cast Steering Link Set (Z-S1685)
Replacement Hardware:
10x M1.6 x 4mm SHCS (Black) (Z-S1232)
4x M3 x 8mm BHCS (Black) (Z-S0652)
2x Metal Shield Bearing 8x12x3.5mm (Z-S0681)
6x Metal Shield Bearing 5x11x4mm (Z-S0683)
2x Metal Shield Bearing 5x8x2.5mm (Z-S0684)
2x RC4WD 12mm Axle Wheel Hexes (Z-S0239)
2x Nylock Nuts M4 (Silver) (Z-S1265)
1x M4 E-clip (Black) (Z-S0919)
Optional Parts:
Ultimate Axle 4 Link Mount (Z-S0133)
Aluminum Mini 12mm widener (Z-S0407)
Helical Gear Set for 1/10 Yota Axle (Z-G0059)
The Ultimate Scale Yota 1/10 Axle Ring & Pinion Gears (Z-S0027)
Notes:
Fits Gelande II D110 Truck Kit With Hard Body (Z-K0047)
Fits Gelande II Truck Kit w/Defender D90 Body Set (Z-K0001)
Fits Gelande II Truck Kit w/Cruiser Body Set (Z-K0051)
