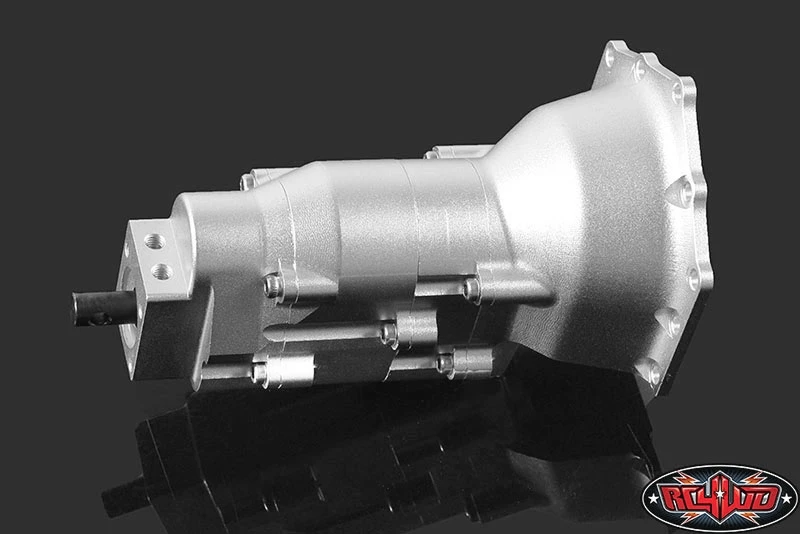

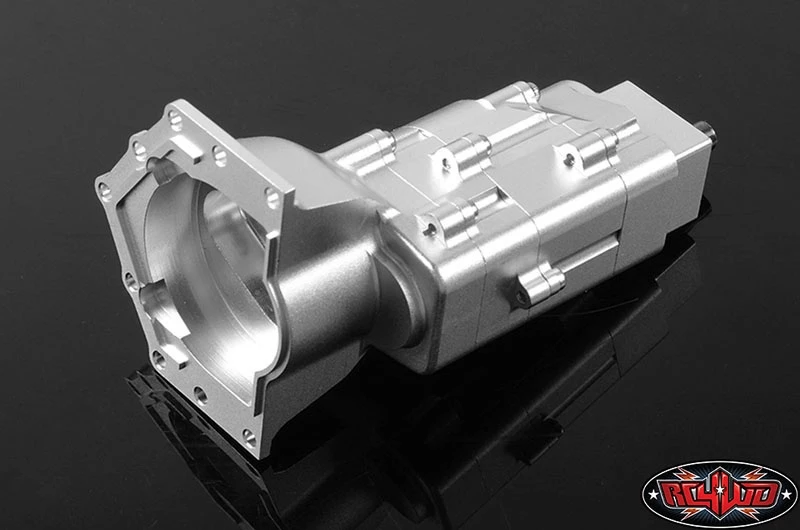

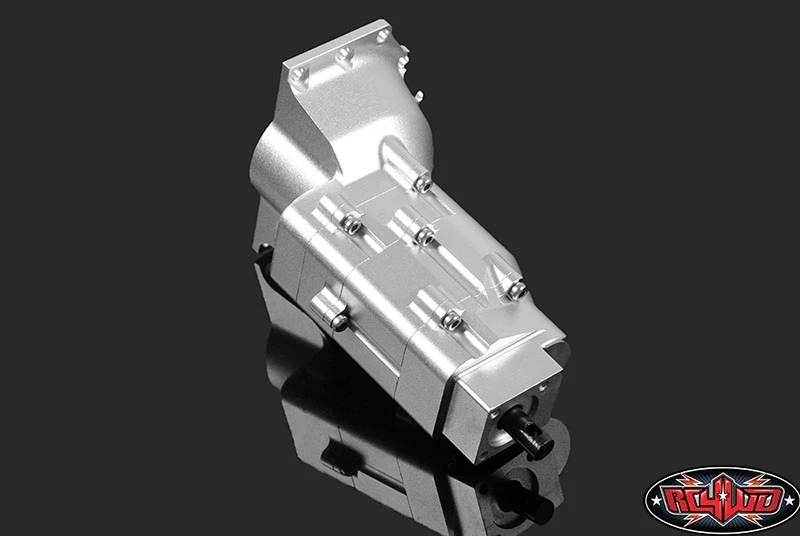

RC4WD TCI Heavy Duty R4 Single Speed Scale Transmission

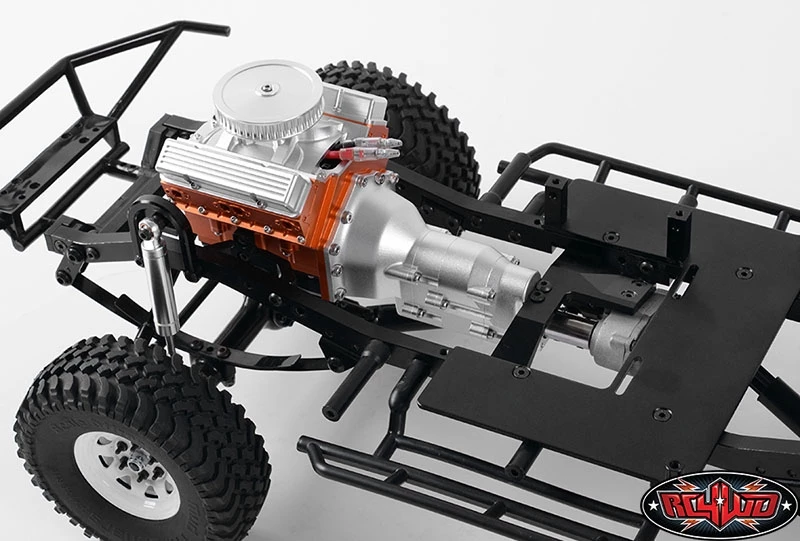

This is the RC4WD TCI Heavy Duty R4 Single Speed Scale Transmission. This transmission will be sure to add a whole new level of realism to your build. Pair it with our RC4WD 1/10 V8 Engine to complete your build. This has been Officially Licensed by TCI Automotive and is only available from RC4WD and our Dealers.

Specifications:
CNC Machined
Billet Aluminum

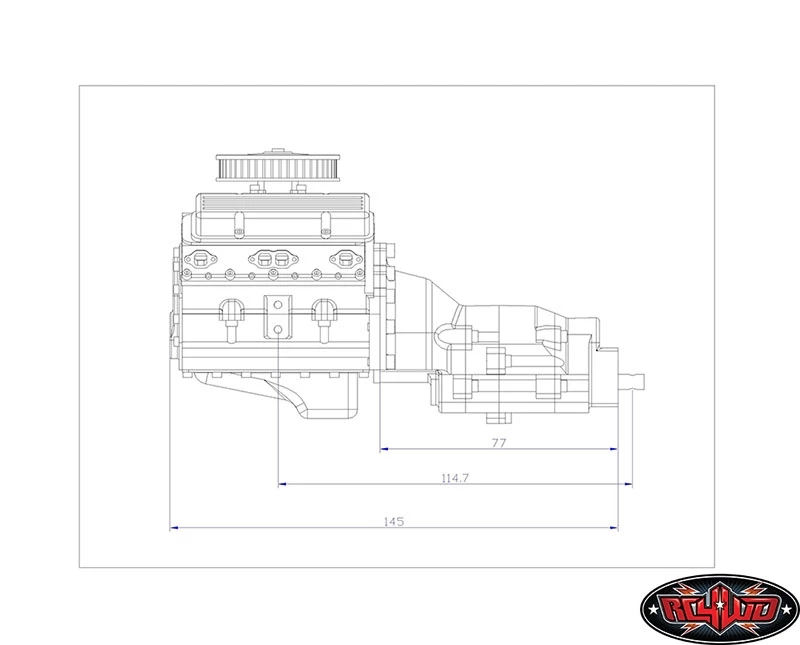

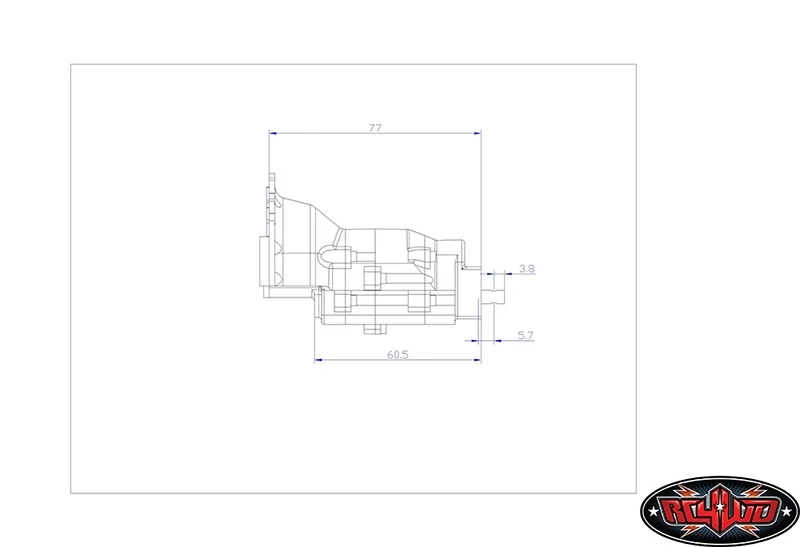

Body Width: 1.99in / 50.6mm
Body Length: 3.07in / 78mm
Body Height: 2.36in / 60mm

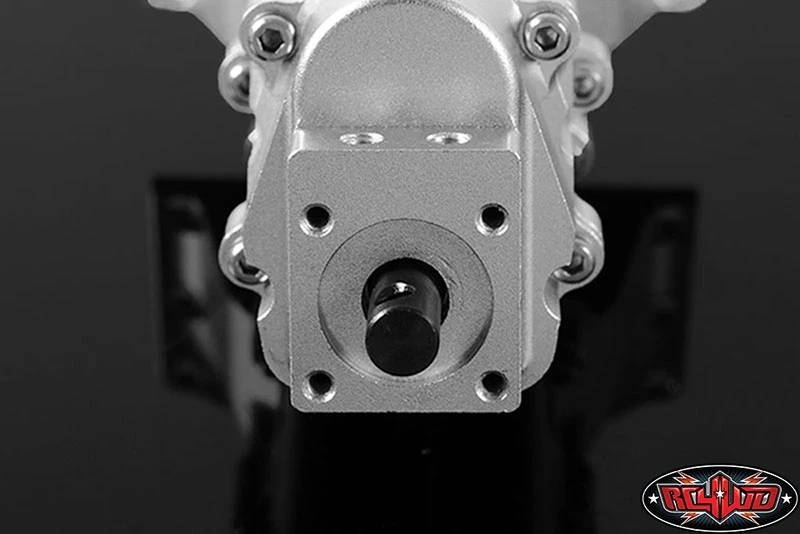

Output Shaft Length: 0.33in / 8.5mm
Output Shaft OD: 0.19in / 5mm
Gear Ratio: 10.1:1
Weight: 5.86oz / 166g

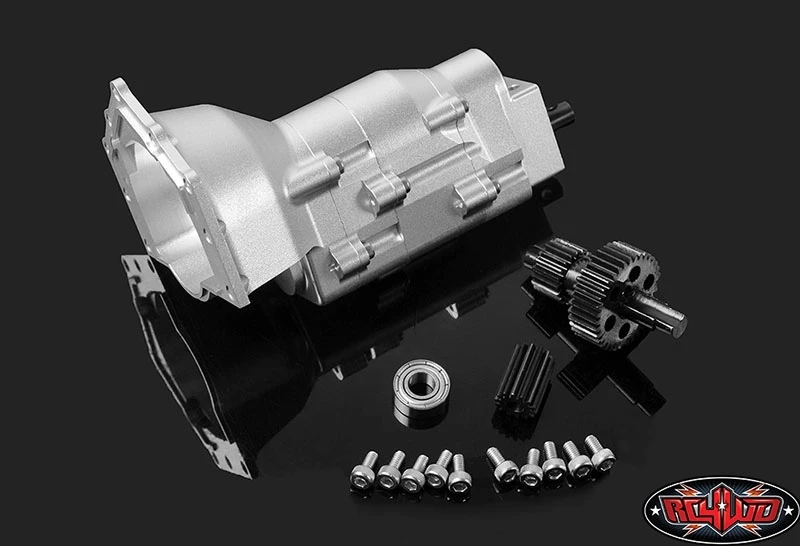

What’s Included:
1x RC4WD TCI Heavy Duty R4 Single Speed Scale Transmission
1x 14T 48P Pinion Gear
1x 36T / 20T 48P Gear
10x M2.5 x 5mm SHCS (Silver) (Z-S1207)
1x Metal Shield Bearing 5 x 11 x 4mm (Z-S0683)

Replacement Parts:
Replacement Gears for R4 Transmission (Z-G0067)

Required Parts:
1/10 V8 Engine (Z-S1043)

Optional Parts:
Trail Finder 2 V8 Engine Mounts (Z-S1239)
Motor Mount for R4 Transmission (Z-S1627)

Replacement Hardware:
7x Metal Shield Bearing 5 x 11 x 4mm (Z-S0683)
1x Metal Shield Bearing 5 x 10 x 4mm (Z-S0686)
11x M2 X 6mm SHCS (Silver) (Z-S0994)

Notes:
Fits Trail Finder 2 Truck Kit w/Mojave Body Set (Z-K0042 “Disc”) with Optional Engine Mounts
Fits RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049) with Optional Engine Mounts
Fits Trail Finder 2 RTR w/Mojave Body Set (Z-RTR0019 “Disc”) with Optional Engine Mounts
Fits RC4WD Trail Finder 2 RTR w/Mojave II Body Set (Z-RTR0024) with Optional Engine Mounts
This product can’t be installed on TF2 with the 3/4 link (Z-S0603) / (Z-S0565)

Instruction Manual:
Click here to download RC4WD TCI Heavy Duty R4 Single Speed Scale Transmission & V8 Engine Assembly Instructions
Click here to download TF2 & V8 Engine Fitting Instructions
