The TF2 LWB Kit has both detailed styling and aggressive performance. You will find a balance of capability and performance built into every TF2 LWB Kit. Performance of the TF2 LWB Kit is smooth with its 2 speed selectable transmission, 4WD drivetrain, bulletproof transfer case and quality metal components throughout. The TF2 LWB Kit is truly a work of art in both appearance and performance.
Every TF2 LWB Kit is compatible with a full range of option and performance parts designed to enhance the performance and add to the scale look of the only true scale 1/10 offroad truck… The TF2 LWB Kit.
Your adventure awaits!
Custom Designed for True to Scale Looks
Realistic Billet Aluminum Ladder Frame Chassis
2 Speed Remote Selectable Transmission
Center Mounted Realistic 4×4 Transfer Case
Cast Metal Axles with Locked Differentials
True to Scale Leaf Spring Suspension
Highly Detailed Body with Dropped Bed and More
1.55″ Stamped Steel Beadlock Wheels with Lug Nuts
Super Grip High Performance Mud Thrasher Tires
Realistic Tube Bumpers – Rock Rails – Skid Plate
What’s Included:

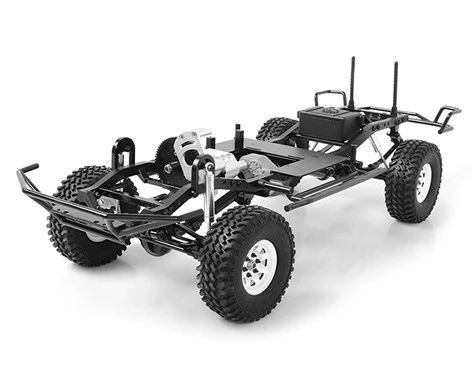

1x Trail Finder 2 Truck Kit “LWB” 1/10 Scale Long Wheel Base Chassis Kit
This kit requires building time (approx. 2-3 hours) for body and electronics.
Required to Complete:
Truck Kit
Hex Drivers (1.5mm, 2mm, 2.5mm)
Long Nose Pliers
Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)
Electronics
Motor (35t 45t or 55t)
Electronic Speed Controller “ESC” (Z-E0007)
Radio and Receiver (3 Channels or more) (3 Channel Z-R0009, or 4 Channel Z-R0006)
2x Standard Size Servos (Z-E0035)
Battery (Consult your “ESC” manual) 6 cell NIMH, or Lipo battery
Charger (Consult your battery guide) Chargers
Suggested Bodies
Mojave II Four Door Complete Body Set (Z-B0119)
Replacements Parts:
Soft Steel Leaf Spring for Trail Finder 2 (Z-S0518)
Hammer Transfer Case (1.47/1) (Z-U0024)
Metal Drive Coupling for Trail Finder 2 (Z-S0599)
Yota Steering Links for Trail Finder 2 (Z-S0601)
R3 Scale 2 Speed Transmission (Z-U0025)
14t 32p Hardened Steel Pinion Gear (Z-S0430)
Fuel Cell Radio Box (Z-S0592)
Trail Finder 2 Plastic Body Posts (Z-B0029)
Leaf Spring Shackles & Mounts Kit (Z-S0047)
RC4WD Marlin Crawlers Front Plastic Tube Bumper for Trail Finder 2 (Z-S0594)
RC4WD Marlin Crawlers Rear Plastic Tube Bumper for Trail Finder 2 (Z-S0595)
M3 Offset Short Plastic Rod End (20x) (Z-S0401)
M3 Mini Plastic Rod End (20x) (Z-S0398)
Stamped Steel 1.55″ Stock White Beadlock Wheel (Z-W0035)
Yota Ultimate Scale Cast Axle (Front) (Z-A0058)
Yota Ultimate Scale Cast Straight Axle (Rear) (Z-A0061)
Scale Nylon Long Punisher Shaft (104mm-150mm) 5mm Hole (Z-S0582)
Scale Nylon Short Punisher Shaft (89mm-120mm) 5mm Hole (Z-S0583)
Trail Finder 2 Bumper Mounts (Z-S0593)
Mud Thrashers 1.55″ Scale Tires (Z-T0100)
The Ultimate Scale Shocks 70mm (Silver) (Z-D0004)
The Ultimate Scale Shocks 90mm (Silver) (Z-D0001)
Heavy Duty Nylon Strap Lock (5) (Z-S0552)
Metal Shield Bearing 5x9x3mm (Z-S0841)
Yota Front Steel Axle Shaft (Z-S0060)
Yota 1/10 Axle Ring & Pinion Gears (Z-S0027)
RC4WD Marlin Crawlers Side Plastic Sliders for TF2 LWB (Z-S1730)
Hopups:
Steel Rear Bumper for RC4WD Trail Finder 2 (Style A) (VVV-C0208)
Steel Rear Bumper for RC4WD Trail Finder 2 (Style B) (VVV-C0212)
Rough Stuff Limited Edition Red Metal Front Bumper for RC4WD Trail Finder 2 (Hella Round and IPF Square Lights) (VVV-C0215)
Rough Stuff Metal Front Bumper for RC4WD Trail Finder 2 (Hella Round Lights) (VVV-C0211)
Rough Stuff Metal Front Bumper for RC4WD Trail Finder 2 (Hella and IPF Round Lights) (VVV-C0209)
Rough Stuff Metal Front Bumper for RC4WD Trail Finder 2 (Double Hella Round Lights) (VVV-C0213)
Rough Stuff Metal Front Bumper for RC4WD Trail Finder 2 (Hella Round and IPF Square Lights) (VVV-C0219)
Rough Stuff Metal Front Bumper for RC4WD Trail Finder 2 (Standard) (VVV-C0206)
Winch (Winch options)
Rear 4 Link Kit (Z-S0603)
Front 3 Link w/Panhard Bar (Z-S0565)
XVD For Yota Front Axle (Z-S0342)
Scale Aisin/Yota Style Hubs (Z-S0196)
RC4WD Marlin Crawlers Front Steel Tube Bumper for Trail Finder 2 (Z-S0778)
Rear Machined Aluminum Bumper w/Hitch (Z-S0579)
Red Super Soft Leaf Springs (Z-S0570)
RC4WD Marlin Crawlers Rear Tube Bumper for Trail Finder 2 (Z-S0767)
Punisher Shaft (Z-S0209)
King 90mm Offroad Shocks (Rear) (Z-D0033)
RC4WD Superlift Superide 90mm Scale Shock Absorbers (Z-D0015)
RC4WD 90mm Old Man Emu Nitrocharger Sport Shock by ARB (Z-D0038)
K44 Scale Front Axle (Z-A0048)
K44 Scale Rear Axle (Z-A0049)
TF2 LWB Body Mounting Kit for Land Cruiser LC70 (Z-S1782)
King Off-Road Scale Dual Spring Shocks (70mm) (Z-D0037)
RC4WD 70mm Old Man Emu Nitrocharger Sport Shock by ARB (Z-D0034)
RC4WD Superlift Superide 90mm Scale Shock Absorbers (Z-D0015)
King Off-Road Scale Dual Spring Shocks (90mm) (Z-D0033)
RC4WD 90mm Old Man Emu Nitrocharger Sport Shock by ARB (Z-D0038)
The Ultimate Scale Shocks 90mm (Black) (Z-D0009)
Items of Interest: (Not required for completion)
Paint for Body
Paint for Body Lenses (V-TAM81526, V-TAM81527)
Notes:
To take advantage of our bundle promotion for this product which includes our Toyota Land Cruiser LC70 1/10 Hard Body Kit (VVV-48601) and TF2 LWB Body Mounting Kit for Land Cruiser LC70 (Z-S1782), check out our TF2 LWB w/ Land Cruiser LC70 Body Set Bundle (Z-BB0001).
Instruction Manual:
Trail Finder 2 Truck Kit “LWB” (Click Here)
