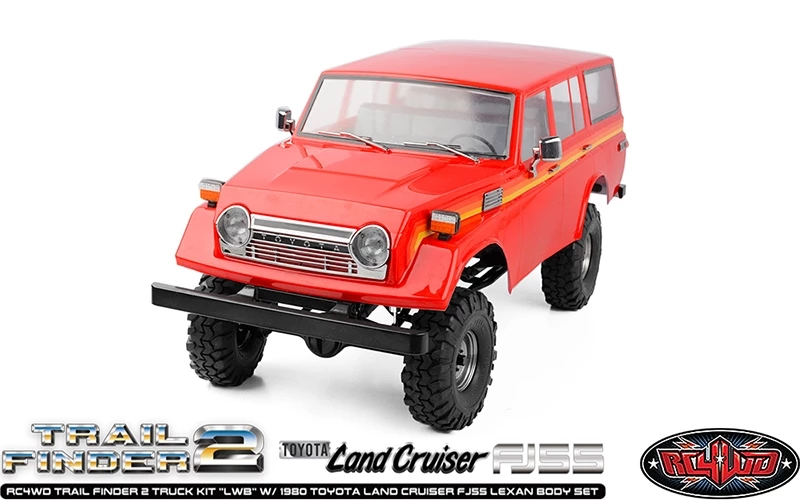

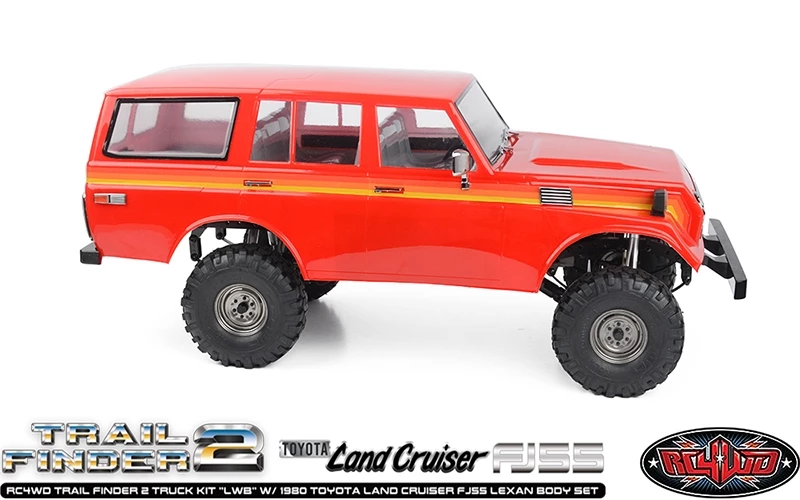

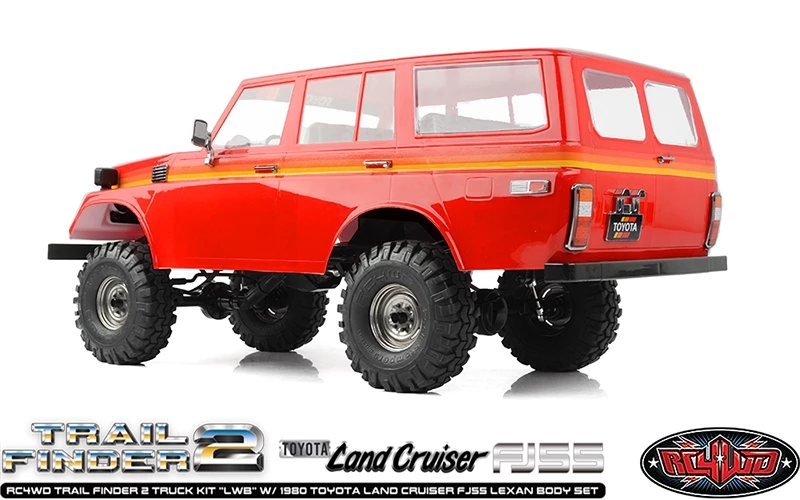

This is the all new Licensed RC4WD Trail Finder 2 Truck Kit “LWB” W/ 1980 Toyota Land Cruiser FJ55 Lexan Body Set. These have been Officially Licensed by Toyota.

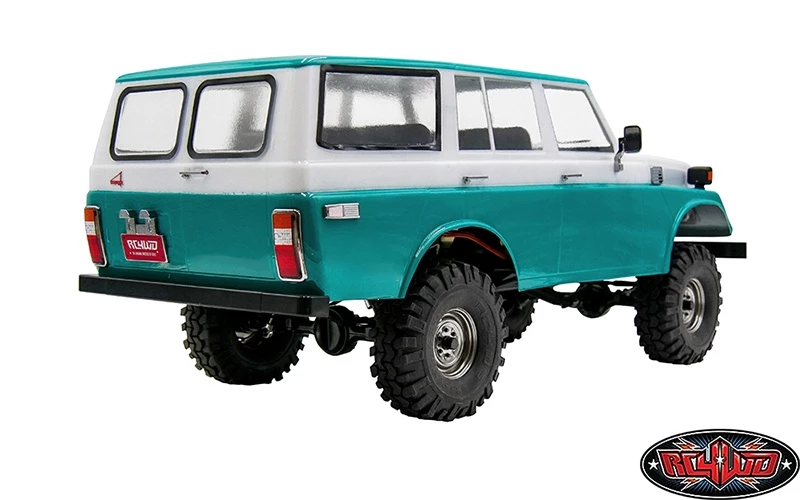

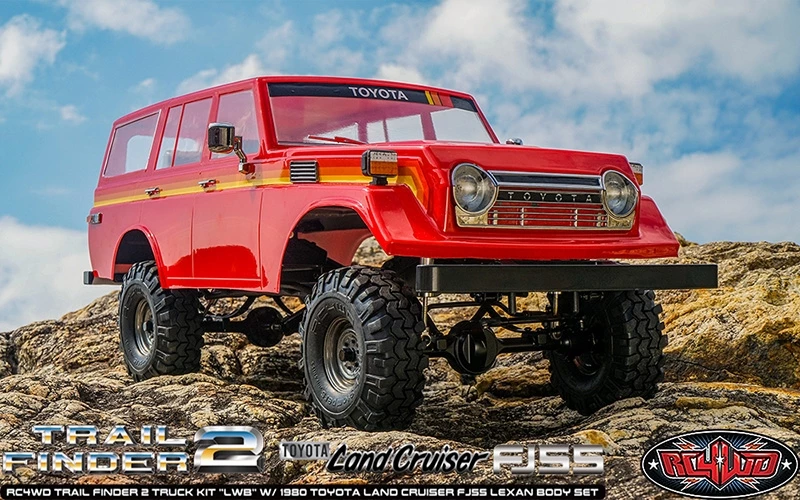

The RC4WD Trail Finder 2 Truck Kit LWB W/ 1980 Toyota Land Cruiser FJ55 Lexan Body Set is an all-new customizable canvas for RC enthusiasts and scale artists alike. This FJ55 Lexan body set replicates the stocky look of the ‘Iron Pig’ and comes molded from quality material. Notice the precise positioning of the circular headlights with bezels and the tapering hood to a compact grill, recreating that distinctive front-end face. Finish it off with a Lexan body designed for any chosen paint job, from a single color to a signature two-tone!

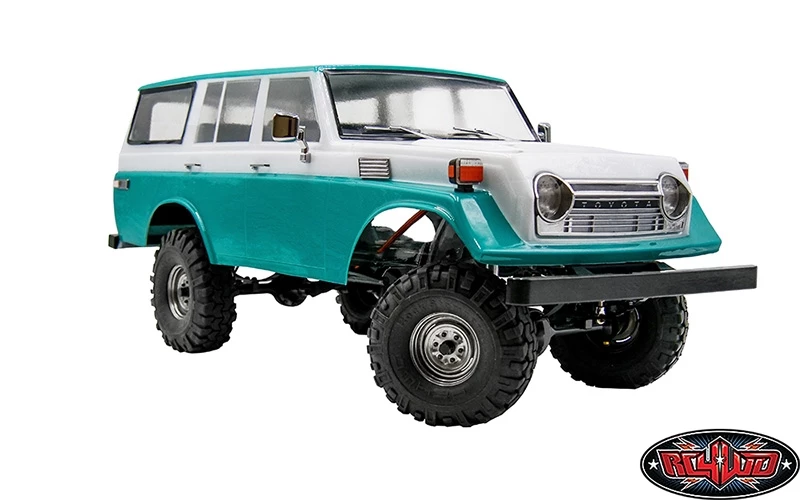

One of the most realistic Lexan bodies on the market, this model features a fully molded interior cabin and an innovative mounting system that hides the body clips under the chassis! All of the lighting on this body is also fully LED capable!

This scale Toyota body set comes mounted to the popular Trail Finder 2 LWB chassis through the hidden body mounts positioned at the front and rear bumpers. The TF2 LWB chassis features the R3 Single Speed Transmission, Yota II Ultimate Scale Cast Axles, and RC4WD Ultimate Scale Shocks ensuring all-terrain capabilities!

Express your inner admiration for vintage builds and separate yourself from the rest with the RC4WD 1980 Toyota Land Cruiser FJ55 Body Set today!

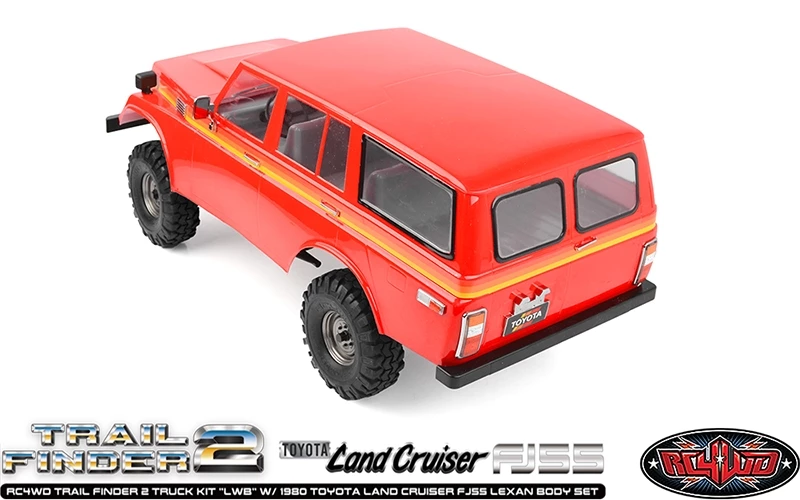

1980 Toyota Land Cruiser FJ55 Lexan Body Set
Trail Finder 2 “LWB” Chassis
Yota II Ultimate Scale Cast Axles
R3 Single Speed Transmission
Center Mounted Hammer Transfer Case
Ultimate Scale Shocks
Vintage Yota 6 Lug Stamped Steel 1.55″ Beadlock Wheels (Clear)
Rock Stompers 1.55″ Offroad Tires

Hammer Transfer Case
Ratio: 1.47:1 Gears: Wide .8 Mod
Features: 8 Bearings, Cast Casing, Hardened Gears

R3 Single Speed Transmission
Ratios: Pinion/Spur 14/64 = 4.57:1
Internal Ratio: 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch

Yota II Ultimate Scale Cast Axles
Ratio: 15/40 = 2.67:1
Width at Hex (Using 4mm TF2 Hexes): 178.20mm

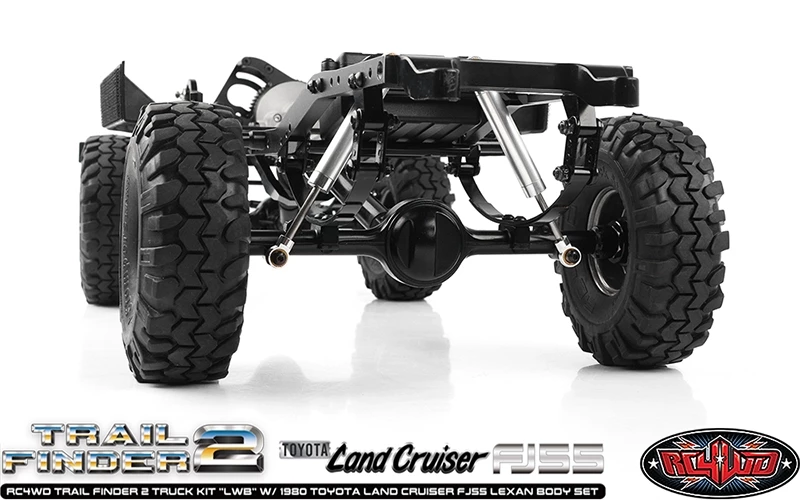

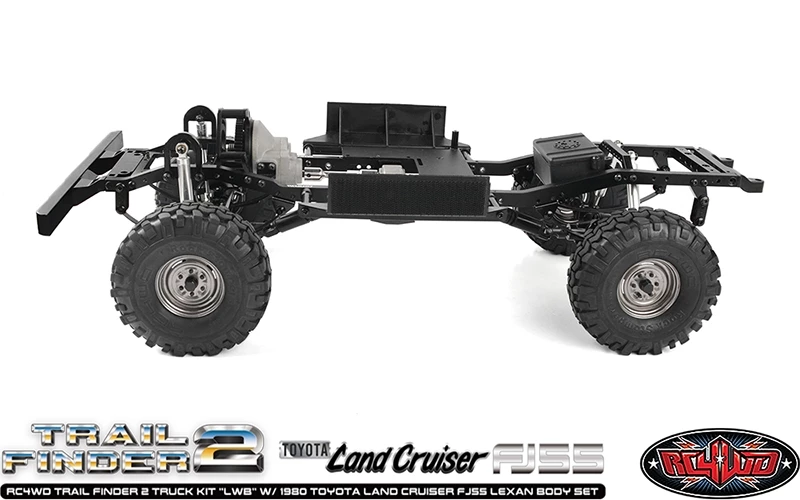

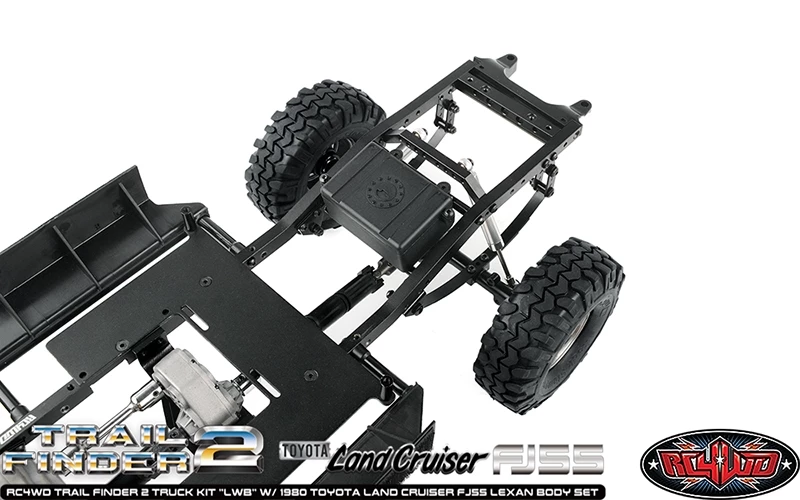

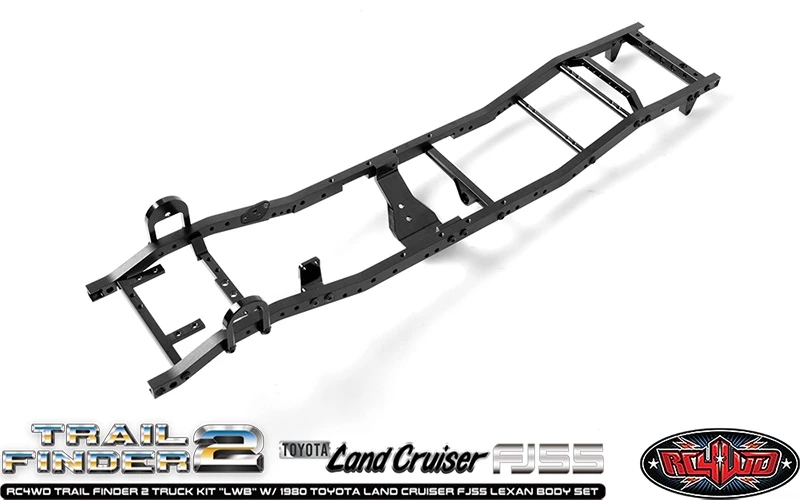

Trail Finder 2 LWB Chassis
Features: Billet Aluminum Construction, Adjustable Shock Hoops

Drive Shafts
RC4WD Plastic Punisher Shaft V2 (102mm-110mm / 4.02″ – 4.33″) 5mm Hole

Wheels
Vintage Yota 6 Lug Stamped Steel 1.55″ Beadlock Wheels (Clear)
Hub: 12mm Hex
Width: 0.92in / 23.40mm
OD: 1.81in / 46.10mm

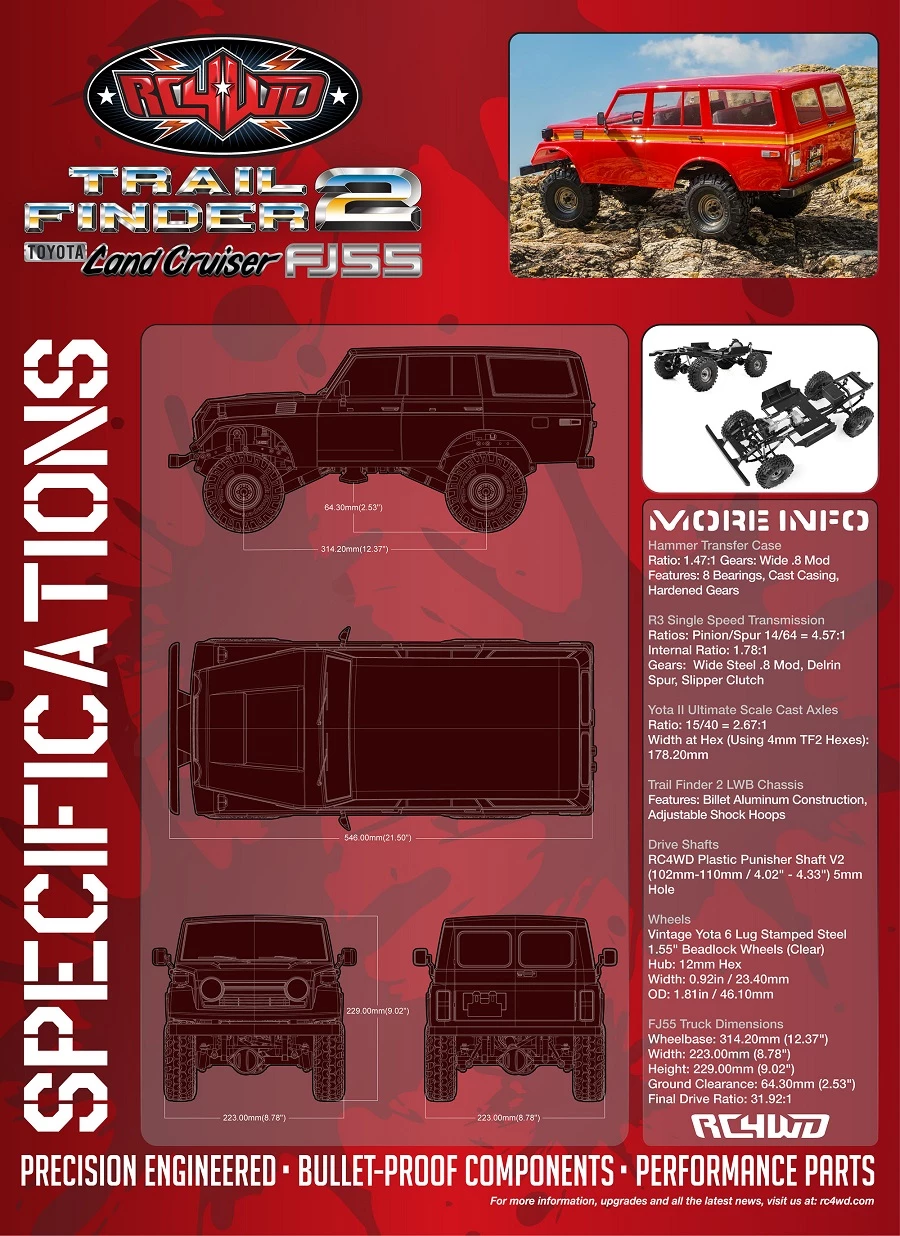

FJ55 Truck Dimensions
Wheelbase: 314.20mm (12.37″)
Width: 223.00mm (8.78″)
Height: 229.00mm (9.02″)
Ground Clearance: 64.30mm (2.53″)
Final Drive Ratio: 31.92:1

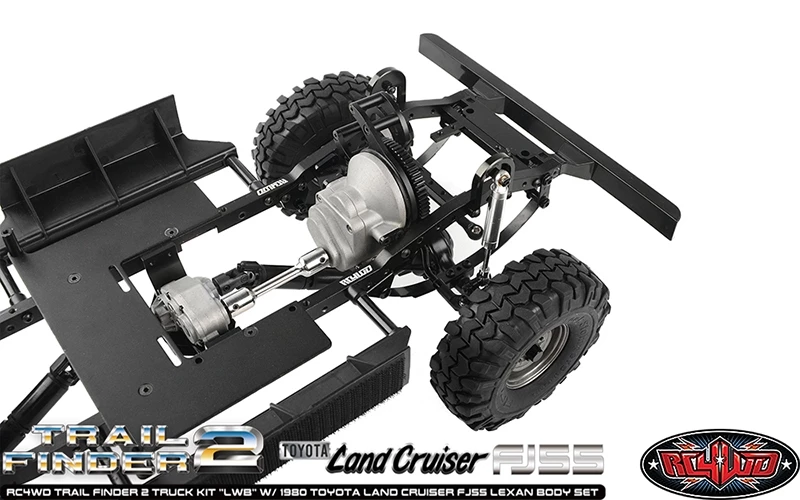

DRIVETRAIN
The R3 Single Speed Transmission comes with a tough cast metal case and wider gears to allow for more abuse along with a Delrin Spur with Slipper Clutch. It also features a sturdy billet aluminum motor mount for durability.

The TF2 Long Wheel Base Chassis includes the Hammer Transfer Case. Packed with scale detail, the case features a cast metal exterior and the same heavy duty 0.8 Mod Widened Gears for durability.

Drawing on the success of the RC4WD MOA gear sets, the TF2 Drivetrain has the most durable gears RC4WD has to offer, so the TF2 will stay on the trail, day after day.

With dedicated detail and profound performance, this Trail Finder 2’s drive shaft design features bulletproof steel universals and a high quality plastic shaft for great driveline angles.

The most scale accurate axles on the market, the RC4WD Yota II Ultimate Scale Cast Axles feature innovative 8 degree round knuckles, unique removable diff covers, lower mounting points and a compact offset pumpkin in the front.

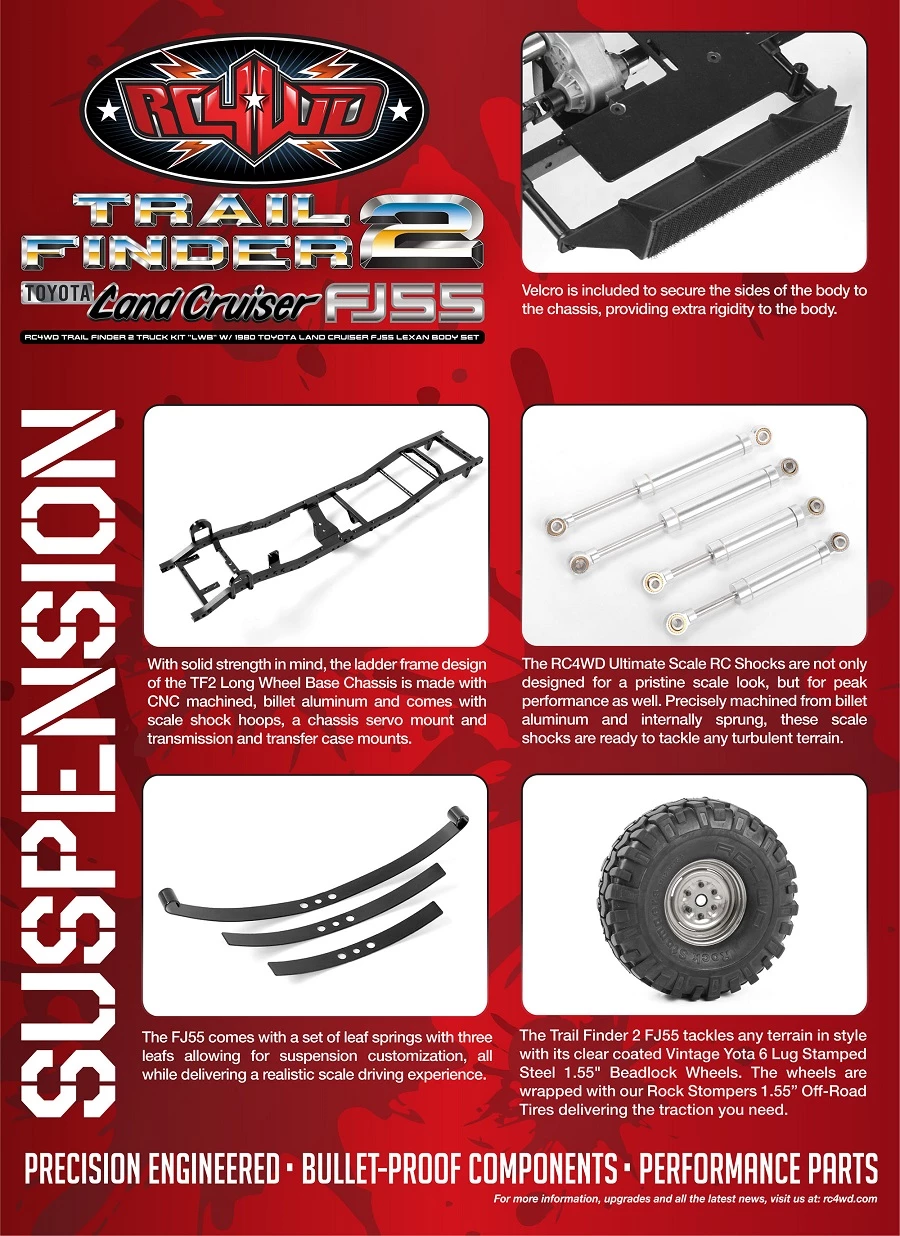

SUSPENSION
Velcro is included to secure the sides of the body to the chassis, providing extra rigidity to the body.

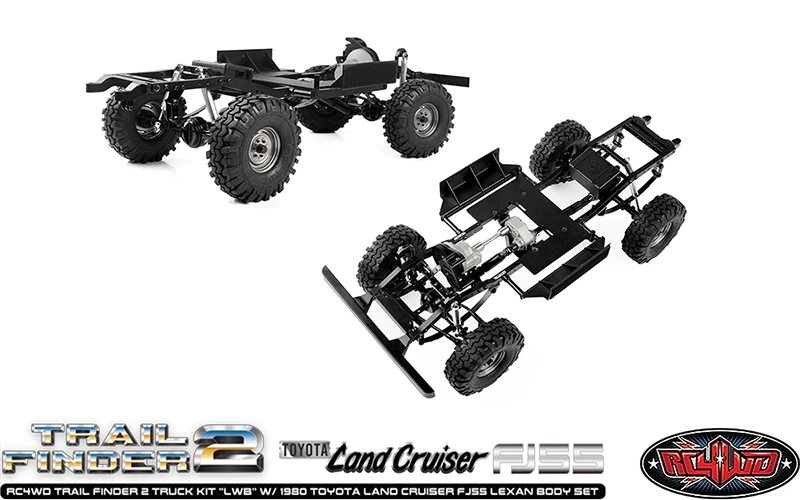

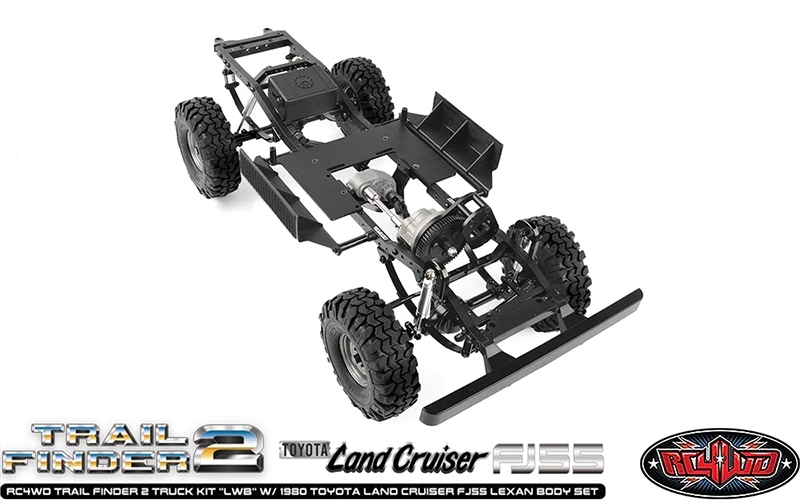

With solid strength in mind, the ladder frame design of the TF2 Long Wheel Base Chassis is made with CNC machined, billet aluminum and comes with scale shock hoops, a chassis servo mount and transmission and transfer case mounts.

The RC4WD Ultimate Scale RC Shocks are not only designed for a pristine scale look, but for peak performance as well. Precisely machined from billet aluminum and internally sprung, these scale shocks are ready to tackle any turbulent terrain.

The FJ55 comes with a set of leaf springs with three leafs allowing for suspension customization, all while delivering a realistic scale driving experience.

The wheels are wrapped with our Rock Stompers 1.55 Off-Road Tires delivering the traction you need.

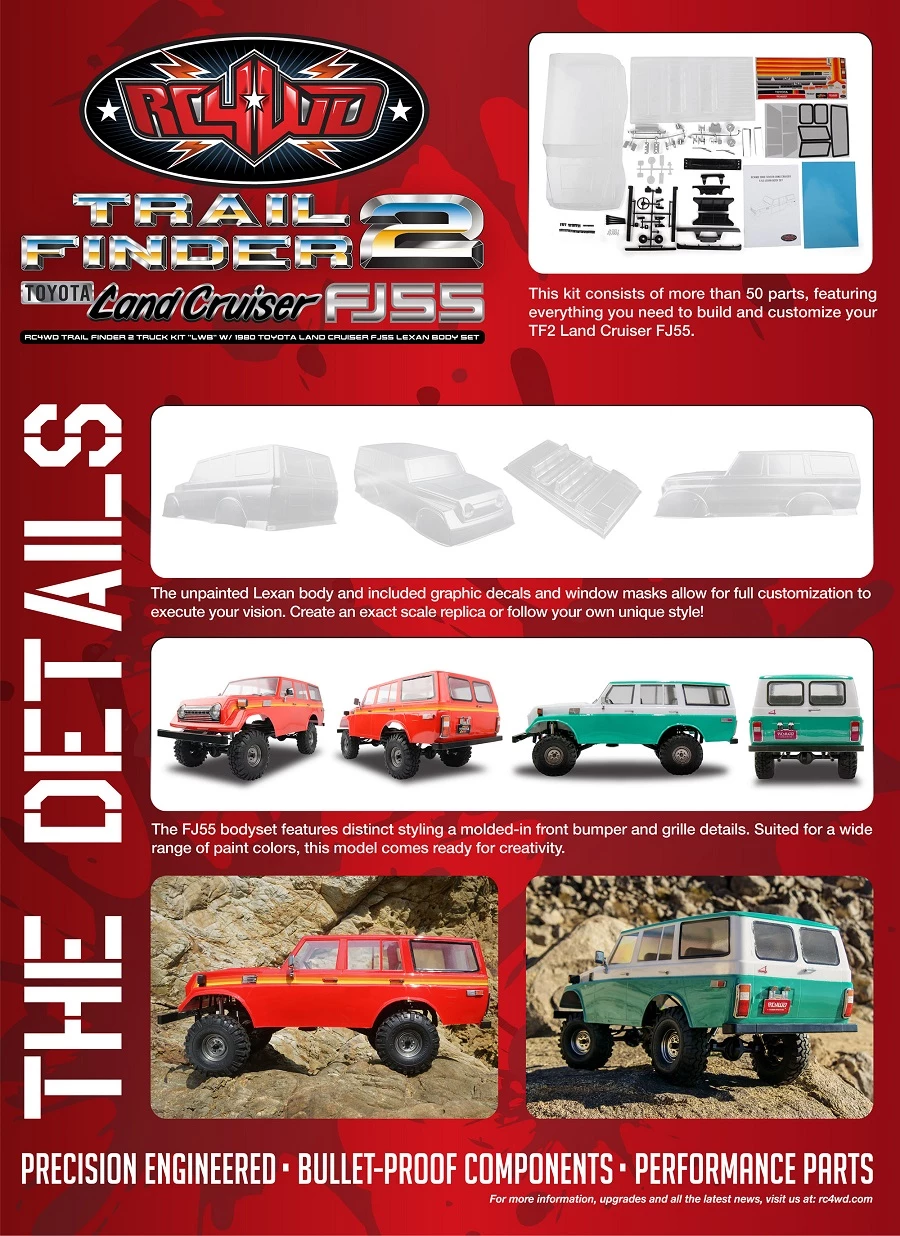

DETAILS

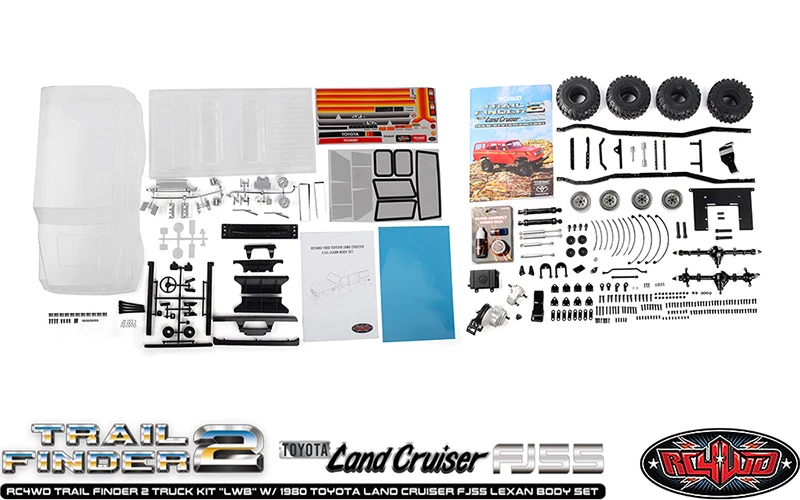

This kit consists of more than 50 parts, featuring everything you need to build and customize your TF2 Land Cruiser FJ55.

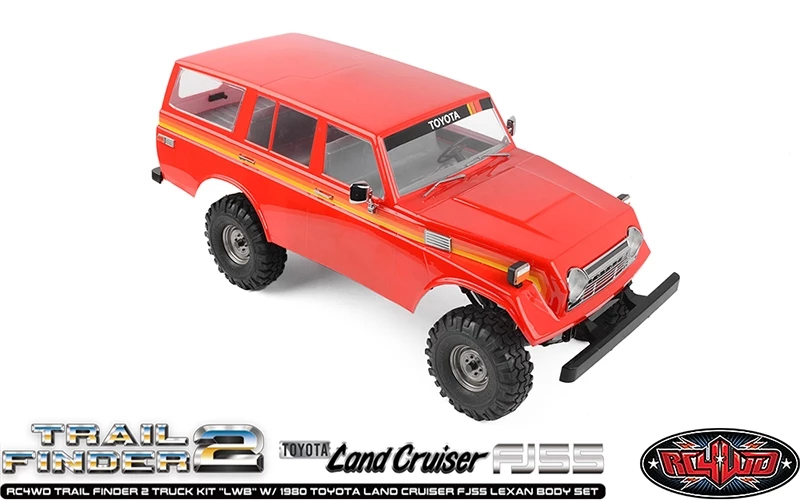

The unpainted Lexan body and included graphic decals and window masks allow for full customization to execute your vision. Create an exact scale replica or follow your own unique style!

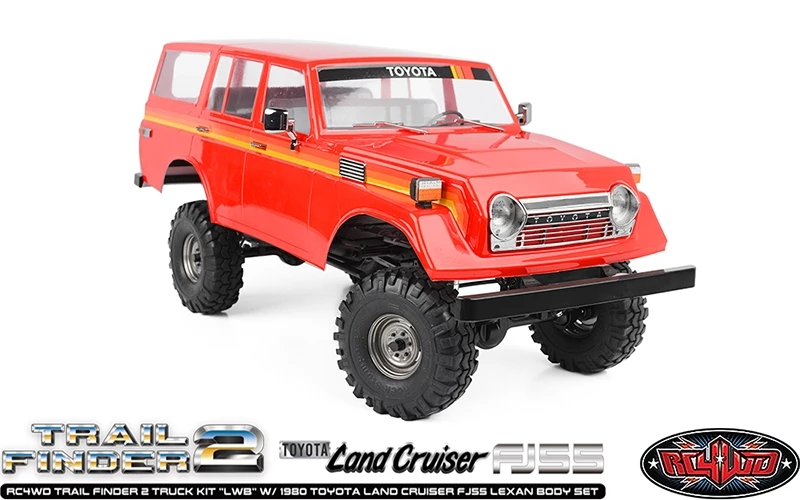

The FJ55 bodyset features distinct styling a molded-in front bumper and grille details. Suited for a wide range of paint colors, this model comes ready for creativity.

What’s Included:
1x RC4WD Trail Finder 2 Truck Kit “LWB” W/ 1980 Toyota Land Cruiser FJ55 Lexan Body Set

Required to Complete:
Truck Kit
Hex Drivers (1.5mm, 2mm, 2.5mm)
Long Nose Pliers
Medium (Blue) Thread Lock Adhesive
Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)

Body Kit
Modeling / Craft Knife
Long Nose Pliers
Side Cutters
Instant Glue / Plastic Solvent / ShoeGoo / E6000 / 2-part Epoxy
Hex Drivers (1.5mm, 2mm)
Cross Phillips Screwdriver (Small)
Paint for Body

Electronics
Motor (35t 45t or 55t)
Electronic Speed Control (Z-E0113 or Z-E0118)
Radio and Receiver (2 channel or more) (3 Channel Z-R0009, or 4 Channel Z-R0006)
Standard Size Servo (Z-E0035)
Battery (Consult your “ESC” manual) Z-E0090 or 2 cell Lipo battery
Charger (Consult your battery guide) Chargers

Replacements Parts:
The Ultimate Scale Shocks 70mm (Silver) (Z-D0004)
The Ultimate Scale Shocks 90mm (Silver) (Z-D0001)
Yota II Ultimate Scale Cast Axle (Front) (Z-A0080)
Yota II Ultimate Scale Cast Axle (Rear) (Z-A0081)
RC4WD 1980 Toyota Land Cruiser FJ55 Lexan Body Set (Z-B0250)
Trail Finder 2 Rear Leaf Spring Reverse Mount (Z-S0415)
RC4WD Plastic Punisher Shaft V2 (102mm-110mm / 4.02″ – 4.33″) 5mm Hole (Z-S2020)
Vintage Yota 6 Lug Stamped Steel 1.55″ Beadlock Wheels (Clear) (Z-W0289)
Rock Stompers 1.55″ Offroad Tires (Z-T0007)
Drag Link for Yota II (101mm / 3.98in) (Z-S1836)
Hammer Transfer Case (1.47/1) (Z-U0024)
R3 Scale Single Speed Transmission (Z-U0028)
Soft Steel Leaf Spring for Trail Finder 2 (Z-S0518)
Fuel Cell Radio Box (Z-S0592)
Trail Finder 2 Plastic Body Posts (Z-B0029)
M3 Mini Plastic Rod End (20x) (Z-S0398)
M3 Offset Short Plastic Rod End (20x) (Z-S0401)
Leaf Spring Shackles & Mounts Kit (Z-S0047)
RC4WD 12mm Hex Wheel Widener Set (+7mm) (Z-S1825)
Heavy Duty Nylon Strap Lock (5) (Z-S0552)

Replacement Hardware:
Steel Button Head Cap Screws M3 x 6mm (10) (Z-S0651)
Steel Button Head Cap Screws M3 x 8mm (10) (Z-S0652)
Steel Button Head Cap Screws M3 x 10mm (10) (Z-S0653)
Steel Button Head Cap Screws M3 x 12mm (10) (Z-S0654)
Steel Button Head Cap Screws M3 x 14mm (10) (Z-S0655)
Steel Button Head Cap Screws M3 x 16mm (10) (Z-S0656)
Steel Button Head Cap Screws M3 x 18mm (10) (Z-S0657)
Steel Flat Head Socket Cap Screw M3 x 6mm (10) (Z-S0648)
Steel Flat Head Cap Screw M3 x 8mm (10) (Z-S0649)
Steel Socket Head Cap Screws M2 x 8mm (10) (Z-S0750)
Nylock Nuts M3 (Black) (Z-S0629)
M3 X 10mm Set Screw (10) (Z-S0308)
M3 Driveshaft Screw Pin (5) (Z-S0804)

Optional Parts:
Winch
4 Link Kit For Trail Finder 2 Rear Axle (Z-S0603)
3 Link Kit For Trail Finder 2 Front Axle w/Panhard Setup (Z-S0565)
XVD Axle for Ultimate Scale Yota II (Z-S0823)
Red Super Soft Flex Leaf Springs (4) (Z-S0570)
Scale Steel Punisher Shaft (100mm – 130mm / 3.94″ – 5.12″) 5mm (Z-S0209)
Scale Steel Punisher Shaft (87mm – 110mm / 3.42″ – 4.33″) (Z-S1902)
Super Soft Flex Leaf Springs for TF2 (4) (Z-S1815)
Reverse Mount Spring Hanger Conversion Kit for TF2 and TF2 LWB (Z-S1923)
RC4WD Lexan Body Mounting System for TF2 LWB (Z-S1895)
1/10 Sleeping Mat w/Straps (Black) (Z-S1302)
RC4WD ARB Intensity LED Light Set (Z-E0112)
Garage Series Cooler (Z-S1765)
Garage Series Flashlight Set (Z-S1766)
RC4WD 2001 Toyota Tacoma 4 Door Body for TF2 LWB 313MM/12.3″ (Z-B0169)
RC4WD Interco IROK ND 1.55″ Scale Tires (Z-T0163)
Scamp 1.55″ Beadlock Wheels (Z-W0152)
Rocky Country 1.55″ Truck Tires (Z-T0022)
Mud Hogs 1.55″ Scale Tires (Z-T0029)
RC4WD Falken Wildpeak A/T3W 1.55” Scale Tires (Z-T0169)
Ultra 1.55″ Beadlock Wheels (Z-W0268)
Breaker 1.55″ Beadlock Wheels (Z-W0273)
TRunner Classic 1.55” Beadlock Wheels (Z-W0121)
Black Mesh 1.55″ Beadlock Wheels (Z-W0103)
RC4WD Raceline Combat 1.55″ Beadlock Wheels (Z-W0292)
Deep Dish Wagon 1.55″ Stamped Steel Beadlock Wheels (Black) (Z-W0281)
Deep Dish Wagon 1.55″ Stamped Steel Beadlock Wheels (White) (Z-W0284)
Deep Dish Wagon 1.55″ Stamped Steel Beadlock Wheels (Chrome) (Z-W0285)
Deep Dish Wagon 1.55″ Stamped Steel Beadlock Wheels (Clear) (Z-W0286)
Stocker 1.55″ Internal Beadlock Wheels (Z-W0276)
Vintage Yota 6 Lug Stamped Steel 1.55″ Beadlock Wheels (White) (Z-W0288)
Vintage Yota 6 Lug Stamped Steel 1.55″ Beadlock Wheels (Clear) (Z-W0289)
OEM 6-Lug Stamped Steel 1.55″ Beadlock Wheels (Plain) (Z-W0308)
OEM 6-Lug Stamped Steel 1.55″ Beadlock Wheels (White) (Z-W0309)
OEM 6-Lug Stamped Steel 1.55″ Beadlock Wheels (Black) (Z-W0310)
Six-Spoke 1.55″ Internal Beadlock Wheels (Black) (VVV-C0806)
Six-Spoke 1.55″ Single Internal Beadlock Wheel (Black) (VVV-C0807)
Six-Spoke 1.55″ Internal Beadlock Wheels (Gold) (VVV-C0808)
Six-Spoke 1.55″ Single Internal Beadlock Wheel (Gold) (VVV-C0809)
RC4WD Ballistic Off Road Morax 1.7″ Beadlock Wheels (Z-W0118)
RC4WD Fuel Offroad Krank 1.7″ Beadlock Wheels (Z-W0256)
RC4WD Benchmark 1.7″ Beadlock Wheels (Z-W0266)
RC4WD Milestar Patagonia A/T 1.7″ Tires (Z-T0181)
RC4WD Dirty Life RoadKill 1.7″ Beadlock Wheels (Silver) (Z-W0298)
RC4WD Dirty Life RoadKill 1.7″ Beadlock Wheels (Black) (Z-W0299)
Stamped Steel 1.7″ Beadlock Wagon Wheels (Clear) (Z-W0272)
Stamped Steel 1.7″ Beadlock Wagon Wheels (Chrome) (Z-W0271)
Stamped Steel 1.7″ Beadlock Wagon Wheels (White) (Z-W0269)
RC4WD Ballistic Off Road Rage 1.9” Beadlock Wheels (Z-W0261)
JK 1.9″ Scale Beadlock Wheels (Z-W0151)
RC4WD 1911 1.9” Beadlock Wheels (Z-W0274)
RC4WD Enforcer 1.9″ Beadlock Wheels (Z-W0122)
Tango Down 1.9″ Internal Beadlock Wheels (Black) (Z-W0038)
RC4WD Yota Narrow Offset 1.9″ Beadlock Wheels (Z-W0283)
RC4WD Fuel Zephyr Beadlock Wheels 1.9″ (Z-W0294)
Lotus 1.9″ Aluminum Wheels (VVV-C0615)
Lotus 1.9″ Aluminum Wheels (Wide Rear) (VVV-C0616)
Rover Classic 1.9″ Beadlock Wheels (VVV-C0695)
Rover Vogue 1.9″ Beadlock Wheels (VVV-C0696)
Tango Down 1.9″ Internal Beadlock Wheels (Gun Metal) (Z-W0297)
RC4WD Black Rhino Armory Internal Beadlock Deep Dish 1.9″ Wheels (Z-W0293)
Classic 10-Hole Chrome 1.9″ Beadlock Wheels (Z-W0296)
RC4WD Interco Narrow TSL SS 1.55” Scale Tires (Z-T0182)
RC4WD Level 8 Bully Pro 6 1.9″ Beadlock Wheels (Z-W0300)
RC4WD ION Style 71 1.9″ Beadlock Wheels (Z-W0303)
RC4WD Dirty Life MB 1.9″ Beadlock Wheels (Z-W0306)
Dome Spoked 1.9″ Classic Beadlock Wheels (VVV-C0810)
Vehement 1.9″ Internal Beadlock Wheels (VVV-C0811)
RC4WD Superlift Superide 90mm Scale Shock Absorbers (Z-D0015)
RC4WD King Off-Road Scale Dual Spring Shocks (90mm) (Z-D0033)
RC4WD 70mm Old Man Emu Nitrocharger Sport Shocks by ARB (Z-D0034)
RC4WD 90mm Old Man Emu Nitrocharger Sport Shocks by ARB (Z-D0038)
RC4WD King Off-Road Scale Dual Spring Shocks (70mm) (Z-D0037)
RC4WD Rancho RS9000 XL Shock Absorbers 80mm (Z-D0077)
RC4WD Rancho RS9000 XL Shock Absorbers 90mm (Z-D0078)
RC4WD Rancho RS9000 XL Shock Absorbers 100mm (Z-D0079)
RC4WD Bilstein SZ Series 80mm Scale Shock Absorbers (Z-D0072)
RC4WD Bilstein SZ Series 100mm Scale Shock Absorbers (Z-D0074)
RC4WD Bilstein SZ Series 90mm Scale Shock Absorbers (Z-D0075)
OEM Stamped Steel 1.55″ Beadlock Wheels (Plain) (Z-W0258)
OEM Stamped Steel 1.55″ Beadlock Wheels (White) (Z-W0260)
OEM Stamped Steel 1.55″ Beadlock Wheels (Black) (Z-W0262)
OEM Stamped Steel 1.55″ Beadlock Wheels (Chrome) (Z-W0264)
RC4WD Walker Evans 501 Legend 1.55″ Beadlock Wheels (Z-W0319)
RC4WD Rogue 1.55″ Beadlock Wheels (Z-W0317)
Compass M/T 1.55″ Scale Tires (Z-T0186)
RC4WD Walker Evans 501 Legend 2.2″ Beadlock Wheels (Z-W0322)
RC4WD Walker Evans 501 Legend 1.7″ Beadlock Wheels (Z-W0320)
RC4WD Raceline Monster Deep Dish 1.7″ Beadlock Wheels (Z-W0304)
RC4WD Rogue 1.7″ Beadlock Wheels (Z-W0315)
RC4WD BFGoodrich Krawler T/A KX 1.7″ Scale Tires (Z-T0189)
RC4WD Michelin LTX A-T2 1.7″ Tires (Z-T0194)
Stamped Steel 1.7″ 10-Oval Hole Wheels (White) (Z-W0311)
Stamped Steel 1.7″ 10-Oval Hole Wheels (Plain) (Z-W0312)
Stamped Steel 1.7″ 10-Oval Hole Wheels (Black) (Z-W0313)
Stamped Steel 1.7″ Beadlock Wagon Wheels (Black) (Z-W0270)
RC4WD BFGoodrich Mud Terrain T/A KM3 1.7″ Tires (Z-T0191)
RC4WD Rogue 1.9″ Beadlock Wheels (Z-W0314)
RC4WD TUFF T21 1.9″ Internal Beadlock Wheels (Z-W0307)
RC4WD Cali Off-Road Distorted 1.9″ Beadlock Wheels (Z-W0295)
RC4WD Ridler 645 1.9″ Internal Beadlock Wheels (Z-W0305)
RC4WD Walker Evans 501 Legend 1.9″ Beadlock Wheels (Z-W0318)
Rally 1.9″ Beadlock Wheels (Gold) (Z-W0324)
Rock Tamer 1.9″ Beadlock Wheels (Z-W0321)
RC4WD Enforcer 1.9″ Beadlock Wheels (Red) (Z-W0323)
OEM XJ 1.9″ Beadlock Wheels (Chrome) (VVV-C0849)
OEM XJ 1.9″ Beadlock Wheels (Gunmetal) (VVV-C0850)
Breaker 1.9″ Beadlock Wheels (Gold) (Z-W0325)
1.9″ 5 Lug Steel Wheels w/Beauty Ring (Silver) (Z-W0327)
RC4WD BFGoodrich Mud-Terrain T/A KM2 1.9″ Scale Tires (Z-T0187)
RC4WD BFGoodrich Mud Terrain T/A KM2 1.55″ Scale Tires (Z-T0190)
RC4WD BFGoodrich Mud Terrain T/A KM3 1.9″ Tires (Z-T0192)
RC4WD Michelin Agilis C-Metric 1.9″ Tires (Z-T0193)
RC4WD Falken Wildpeak A/T Trail 1.9″ Scale Tires (Z-T0195)
RC4WD Mickey Thompson Baja Pro X 4.19 1.7 Scale Tires (Z-T0196)
RC4WD BFGoodrich All-Terrain K02 1.9″ Scale Tires (Z-T0188)

Instruction Manuals:
Click here to download.

Press Information:
Click here to download.

Notes:
While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
Use good quality hex drivers to avoid stripping screw heads.
Use thread lock when putting metal screws into metal parts.
Steps marked with an asterisk (*) require thread lock.
Use thread lock sparingly.
Do not over tighten screws otherwise you may strip the thread.

Toyota is a registered trademark of the Toyota company. The Toyota logo is property of Toyota and used under license to RC4WD.
