RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set

Adventures can happen anywhere. Nothing will give you more fun in the sand, dirt, snow, or mud than the Trail Finder 2. Part scale truck, part adventurer, your TF2 is ready for your mud kicking trail-loving lifestyle!

The TF2 has both detailed styling and aggressive performance. You will find a balance of capability and performance built into every TF2.
Performance of the TF2 is smooth and with its 2 speed selectable transmission, 4WD drivetrain, bullet-proof transfer case and quality metal components throughout.
The TF2 is truly a work of art in both appearance and performance.

Every TF2 is compatible with a full range of option and performance parts designed to enhance the performance and add to the scale look of the only true scale 1/10 offroad truck… The Trailfinder 2. Your adventure awaits….

Custom Designed for True-to-Scale Looks
Realistic Billet Aluminum Ladder Frame Chassis
2 Speed Remote Selectable Transmission
Center Mounted Realistic 4×4 Transfer Case
Yota II Ultimate Scale Cast Axles
True to Scale Leaf Spring Suspension
Highly Detailed Body with Dropped Bed and More
1.55’’ Stamped Steel Beadlock Wheels with Lug Nuts
Super Grip High Performance Mud Thrasher Tires
Realistic Tube Bumpers – Rock Rails – Skid Plate

Hammer Transfer Case
Ratio – 1.47:1
Gears – Wide .8 Mod Steel Gears
Features – 8 Bearings, Cast Casing, Hardened Gears

R3 2 Speed Transmission
Ratios
Pinion/spur 14/64 = 4.57:1
1st Gear 3.47:1
2nd Gear 1.27:1
Gears – Wide Steel .8 Mod, Delrin Spur, Slipper Clutch,
Features – Machined Billet Aluminum Casing, Scale Looking, Motor Mount can be adjusted with up to 10 different Positions, Compatible with other Brand Spurs (Axial, Traxxas, Robinson)

Yota II Ultimate Scale Cast Axles
Ratio: 15/40 = 2.67:1
Width at Hex (using 4mm TF2 Hexes): 178.2mm

Trailfinder 2 Chassis
Features: Billet Aluminum Constriction, Adjustable Shock Hoops

Drive Shafts
High Quality Plastic Material, Very Durable High Quality Steel Yokes

Wheels
Name: 1.55″ OEM Beadlock Wheels
Hub: 12mm Hex
Width: 22mm
Back Spacing: 9mm
Features: Stamped Steel, Aluminum Hub, Internal Beadlock, Very Scale Looking, 6 Bolt Pattern,

Bumpers
Tough Armor TF2 Winch front bumper
Tough Armor TF2 Rear Bumper
Tough Armor TF2 Side Sliders
Authentic Looking Crawler Style Tube Bumper. Very High Quality Flexible Plastic, Very Durable, Very Scale.

TF2 Truck Dimensions
Wheelbase: 278mm (11.3″)
Width: 215mm (8.5″)
Height: 210mm (8.25″)
Ground Clearance: 57mm (2.5″)
Final Drive Ratios: 1st – 62.1:1, 2nd – 22.75:1

DRIVETRAIN

The R3 2 speed transmission comes with a fully machined billet aluminum case and wider gears to allow for more abuse along with a Delrin spur with slipper clutch. The designed motor mount is adjustable in 10 positions.

The TF2 includes the Hammer Transfer Case. Packed with detail, the case features a cast metal exterior and the same new .8 Mod widened gears for durability.

Drawing on the success of the RC4WD MOA gear sets, the TF2 drivetrain has the most durable gears RC4WD has to offer so the TF2 will stay on the trail, day after day.

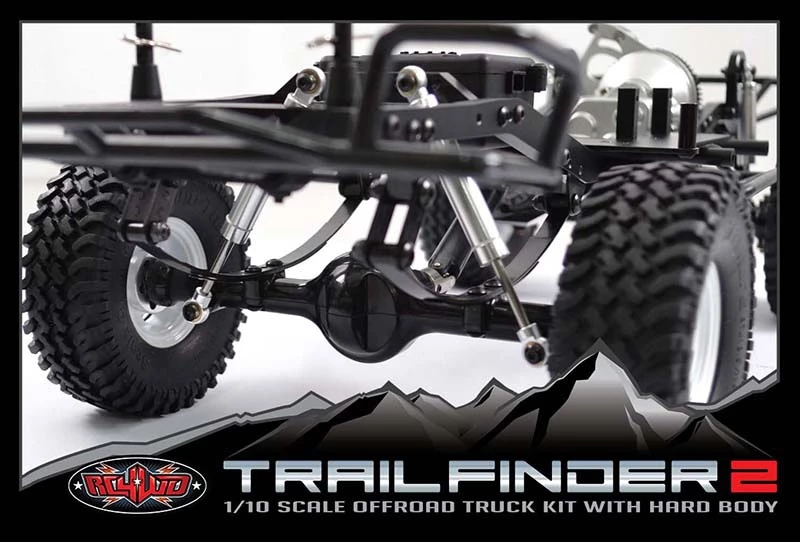

The most scale accurate axles on the market, the RC4WD Yota II Ultimate Scale Cast Axles feature innovative round knuckles, new lower mounting points and compact

The Driveshafts for the TF2 are a design featuring bulletproof steel universals and a high quality plastic shaft for great driveline angles and durability on the trail.

SUSPENSION

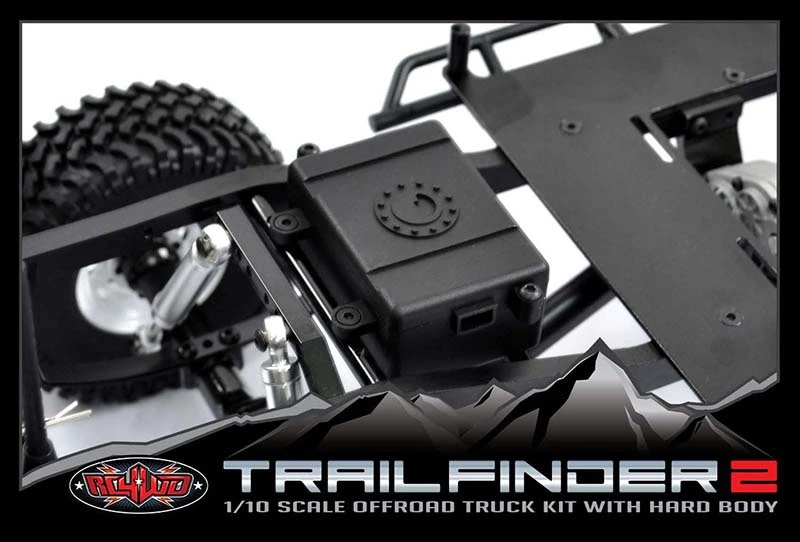

The TF2 Chassis features a molded fuel cell that doubles as an electronics storage box plus an aluminum, frame-mounted under cab electronics tray for multiple electronics mounting options.

The TF2 includes a set of RC4WD Ultimate Scale Shocks. Designed for ultimate scale looks and ultimate performance. Machined from billet aluminum, rebuildable and internally sprung.

The TF2 Chassis is a machined billet aluminum ladder frame design with leaf springs, scale shock hoops, chassis servo mounts and hard body mounts. 4-link conversion available soon!

The TF2 includes a set of RC4WD White Stamped Steel 1.55″ internal beadlock wheels. Super tough paintable white finish, aluminum internal ring and popular 6 lug design.

Every TF2 needs a tough set or rock grabbing tires and the included Mud Thrashers in X3 Compound deliver the traction as well as perfect scale looks in just the right size.

DETAILS

The Mojave Body Set includes add on windshield wipers, mirrors, marker light details and door handles for the ultimate in scale looks. These items are also easily replaceable if damaged.

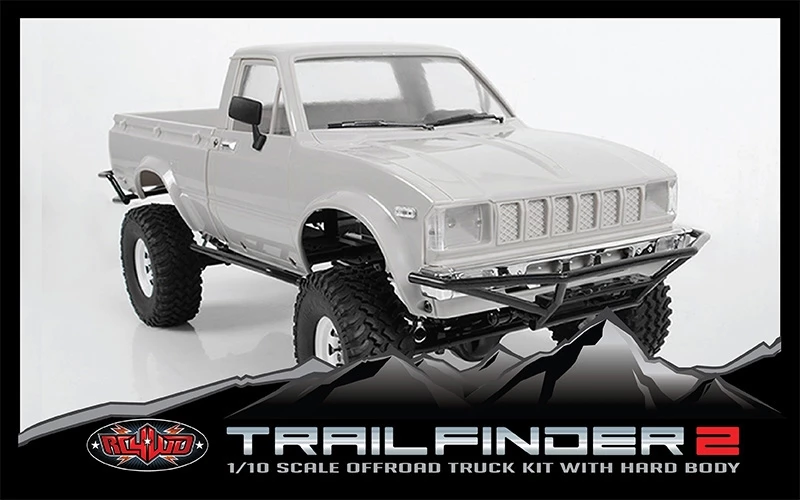

The TF2 Mojave body features new late model style square headlights, chrome bumpers and a redesigned shape of the classic 4×4 body style. More accurately proportioned and better details.

The Mojave Body Set includes a great dropped bed molded directly into the body. It’s perfect for carrying all you scale accessories or spare wheel and tire!

Another industry first, the TF2 Mojave Body Set includes a bolt on, scale accurate molded cab back with every kit so you can use just the cab for a truggy style build.

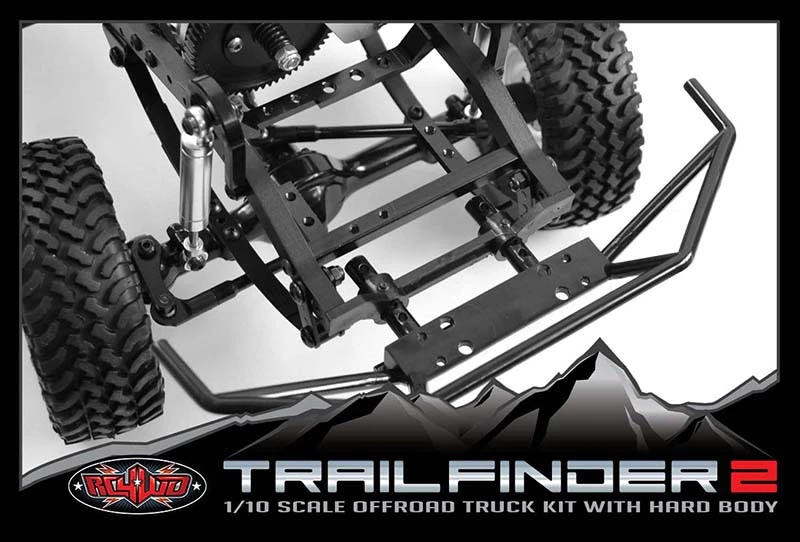

The TF2 kit also includes scale rock rails plus front and rear tube rock guard bumpers. The front bumper has a winch mount built right in for an optional RC4WD winch.

What’s Included:
1x RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set

This is a kit that requires building time (appro. 2-3 hours) and electronics.

Notes:
While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
Use good quality hex drivers to avoid stripping screw heads.
Use thread lock when putting metal screws into metal parts.
Steps marked with an asterisk (*) require thread lock.
Use thread lock sparingly.
Do not over tighten screws otherwise you may strip the thread.

Required to Complete:
Truck Kit
Hex Drivers (1.5mm, 2mm, 2.5mm)
Long Nose Pliers
Associated Thread Locking Adhesive
Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)

Body Kit
Modeling / Craft Knife
Body Reamer
Side Cutters
Instant glue / Plastic Cement (prefer non whitening)
Hex Drivers (1.5mm, 2mm)
Cross Phillips Screwdrivers (small)

Electronics:
Motor (35t, 45t, or 55t)
Electronic Speed Controller “ESC” (Z-E0007)
Radio and Receiver (3 channel or more) (3 Channel Z-R0009, or 4 Channel Z-R0006)
2x Standard Size Servo (Z-E0035)
Battery (Consult your “ESC” manual) Z-E0090 or Lipo battery
Charger (Consult your battery guide) Chargers

Replacements Parts:
Soft Steel Leaf Spring for Trail Finder 2 (Z-S0518)
Hammer Transfer Case (1.47/1) (Z-U0024)
Metal Drive Coupling for Trail Finder 2 (Z-S0599)
Steering Link Set (Z-S0938)
Yota Steering Links for Trail Finder 2 (Z-S0601)
R3 Scale 2 Speed Transmission (Z-U0025)
14t 32p Hardened Steel Pinion Gear (Z-S0430)
Fuel Cell Radio Box (Z-S0592)
Trail Finder 2 Plastic Body Posts (Z-B0029)
Leaf Spring Shackles & Mounts Kit (Z-S0047)
RC4WD Marlin Crawler Front Plastic Tube Bumper for Trail Finder 2 (Z-S0594)
RC4WD Marlin Crawler Rear Plastic Tube Bumper for Trail Finder 2 (Z-S0595)
M3 Offset Short Plastic Rod End (20x) (Z-S0401)
M3 Mini Plastic Rod End (20x) (Z-S0398)
Stamped Steel 1.55″ Stock White Beadlock Wheels (Z-W0035)
Yota II Ultimate Scale Cast Axle (Front) (Z-A0080)
Yota II Ultimate Scale Cast Axle (Rear) (Z-A0081)
RC4WD Marlin Crawler Side Plastic Sliders for Trail Finder 2 (Z-S0596)
Trail Finder 2 Bumper Mounts (Z-S0593)
Mud Thrashers 1.55″ Scale Tires (Z-T0100)
Rear Shocks The Ultimate Scale Shocks 90mm (Silver) (Z-D0001)
Front Shocks The Ultimate Scale Shocks 70mm (Silver) (Z-D0004)
RC4WD Mojave II Body Set for Trail Finder 2 (Primer Gray) (Z-B0084)
RC4WD Mojave II Front Cab (Primer Gray) (Z-B0070)
RC4WD Mojave II Rear Bed (Primer Gray) (Z-B0072)
RC4WD Mojave II Cab Back Panels and Grill Parts Tree (Primer Gray) (Z-B0074)
RC4WD Mojave II Chrome Bumper and Parts Tree (Z-B0076)
RC4WD Mojave II Clear Parts Tree (Z-B0078)
RC4WD Mojave II Dash and Wiper Parts Tree (Black) (Z-B0080)
RC4WD Mojave II Rubber Mirror (Z-B0082)
Mojave II Body Hardware Kit (Z-S1535)
Mojave II Decal Sheet (Z-B0111)

Optional Parts:
Trail Finder 2 V8 Engine Mounts (Z-S1239)
RC4WD Bivouac 1/10 M.O.A.B Camping Trailer w/Tent (Z-H0007)
BigDog 1/10 Dual Axle Scale Boat Trailer (Z-H0006)
Steel Rear Bumper for RC4WD Trail Finder 2 (Style A) (VVV-C0208)
Steel Rear Bumper for RC4WD Trail Finder 2 (Style B) (VVV-C0212)
Rough Stuff Limited Edition Red Metal Front Bumper for RC4WD Trail Finder 2 (Hella Round and IPF Square Lights) (VVV-C0215)
Rough Stuff Metal Front Bumper for RC4WD Trail Finder 2 (Hella Round Lights) (VVV-C0211)
Rough Stuff Metal Front Bumper for RC4WD Trail Finder 2 (Hella and IPF Round Lights) (VVV-C0209)
Rough Stuff Metal Front Bumper for RC4WD Trail Finder 2 (Hella Round and IPF Square Lights) (VVV-C0219)
Rough Stuff Metal Front Bumper for RC4WD Trail Finder 2 (Standard) (VVV-C0206)
Tonneau Cover for RC4WD Mojave II (VVV-C0207)
Rear Bed Rack for Mojave II 4 Door Body Set (VVV-C0330)
T-Runner Classic 1.9” Beadlock Wheels (Z-W0250)
Gold Mesh 1.9″ Beadlock Wheels (Z-W0251)
Steering Guard for Trifecta Front Bumper (VVV-C0400)
OEM Dually 1.7″ Front Wheels (Z-W0223)
OEM Dually 1.7″ Rear Wheels (Z-W0221)
Truck Topper (Z-B0047)
Bench Seat (Z-B0032)
Driver (Z-S0190)
Winch (Winch options)
Rear 4 Link Kit (Z-S0603)
Front 3 Link w/Panhard Bar (Z-S0565)
XVD Axle for Ultimate Scale Yota II (Z-S0823)
XVD For Yota Front Axle (Z-S0342)
Scale Aisin/Yota Style Hubs (Z-S0196)
RC4WD Marlin Crawler Front Steel Tube Bumper for Trail Finder 2 (Z-S0778)
Rear Machined Aluminum Bumper w/Hitch (Z-S0579)
RC4WD Marlin Crawler Side Metal Sliders for Trail Finder 2 (Z-S0753)
Red Super Soft Leaf Springs (Z-S0570)
Punisher Shaft (Z-S0209)
LED Basic Lighting System For Mojave II 2/4 Door Body (Z-E0016)
RC4WD ARB 1/10 Roof Rack(Z-X0008)
Body Lift Kit (Z-S0682)
King 90mm Offroad Shocks (Rear) (Z-D0033)
RC4WD Superlift Superide 90mm Scale Shock Absorbers (Z-D0015)
RC4WD 90mm Old Man Emu Nitrocharger Sport Shock by ARB (Z-D0038)
K44 Scale Rear Axle (Z-A0049)
RC4WD Mickey Thompson 1.55″ Baja MTZ P3 Scale Tires (Z-T0058)
RC4WD Mickey Thompson 1.55″ Baja Claw TTC Scale Tires (Z-T0064)
RC4WD Interco IROK 1.55″ Scale Tires (Z-T0056)
Scale Accessories (Click Here)
Truck Bed Mount Angled Spare Tire Carrier (Z-S0358)
Big Boss Fender Flares (Z-S0590)
Front Inner Fender Set for Mojave / Hilux Body (Z-S1192)
Big Boy Heavy Duty Aluminum Ladder (Z-X0011)
Mounting Kit for Tamiya F350 body on Trail Finder 2 (Z-S1174)
Universal Front Bumper Mount for Trail Finder 2 (Z-S1264)
Rebuildable Super Punisher Shaft (100mm – 118mm / 3.94″ – 4.65″) 5mm Hole (Z-S1261)
Tow Bar Mount for Axial SCX10 (Z-S1125)
Tough Armor Front Tube Bumper w/Winch Mount for Trail Finder 2 (Z-S0765)
RC4WD Marlin Crawler Front Winch Bumper for Trail Finder 2 (Z-S1496)
RC4WD Skid Plate for Trail Finder 2 V8/R4 (Z-S1488)
RC4WD Rock Krawler Replacement 3/4 Link kit for Trail Finder 2 (Z-S1486)
Tough Armor Front Light Bar Bumper for Trail Finder 2 (Z-S1058)
RC4WD Teraflex Revolver Shackle (Z-S1594)
RC4WD Teralfex Revolver Z-Box for Trail Finder, F-350, Hilux, Tundra (Z-S1587)
Steel Tube Rear Bumper for Trail Finder 2 (VVV-C0109)
Steel Tube Rollbar Rack for TF2 Mojave (B) (VVV-C0108)
Steel Push Bar Front Bumper for Trail Finder 2 (VVV-C0107)
Steel Tube Rollbar Rack for TF2 Mojave (A) (VVV-C0106)
RC4WD N-Fab N-Durastep for Trail Finder 2 (Z-S1615)
RC4WD Warn Rock Crawler Rear Bumper for Trail Finder 2 (Z-S1561)
M3 Offset Short Aluminum Rod Ends (Red) (10) (Z-S1631)
M3 Offset Short Aluminum Rod Ends (Blue) (10) (Z-S1633)
Rear Tube Bed for Trail Finder 2 w/Mud Flaps & Lights (Red) (VVV-C0255)
Rear Tube Bed for Trail Finder 2 w/Mud Flaps (Black) (VVV-C0253)
Rear Tube Bed for Trail Finder 2 (Black) (VVV-C0252)
Rear Tube Bed for Trail Finder 2 w/Mud Flaps & Lights (Black) (VVV-C0254)
Roll Bar/Roof Rack w/Light Bar Frame for TF2 Mojave Body (VVV-C0295)
Rear Tube Bed for Trail Finder 2 (Black Style B) (VVV-C0298)
Rear Tube Bed w/Mud Flaps for Trail Finder 2 (Black Style B) (VVV-C0300)
Metal Rear Emblem for TF2 Mojave Body (White) (VVV-C0290)
Metal Vintage Rear Emblem for TF2 Mojave Body (White) (VVV-C0291)
Metal Rear Emblem for TF2 Mojave Body (Black) (VVV-C0292)
Metal Vintage Rear Emblem for TF2 Mojave Body (Black) (VVV-C0293)
K44 Ultimate Scale Cast Rear Axle (Z-A0096)
Low Profile Delrin Transfer Case Mount for TF2 (Z-S1777)
Interior Package for Trail Finder 2 / Mojave (VVV-C0378)
Interior Package for Mojave Body and Axial SCX10 I & II (VVV-C0379)
Mountaineer Roof Rack w/Lights for Mojave II Body Set (VVV-C0385)
1/10 Rear Spare Tire Mount for Mojave Body (VVV-C0387)
RC4WD Chevrolet Blazer Hard Body Complete Set (Yellow) (Z-B0152)
RC4WD Chevrolet Blazer Hard Body Complete Set (Teal) (Z-B0150)
RC4WD Chevrolet Blazer Hard Body Complete Set (Light Blue) (Z-B0148)
RC4WD Chevrolet Blazer Hard Body Complete Set (Orange) (Z-B0146)
RC4WD Chevrolet Blazer Hard Body Set (Digital Camo) (Z-B0147)
Reverse Mount Spring Hanger Conversion Kit for TF2 and TF2 LWB (Z-S1805)
Metal Exhaust for Mojave II 2/4 Door Body Set (VVV-C0428)
Rear Mud Flaps for Mojave II 2/4 Door Body Set (VVV-C0429)
RC4WD Fuel Offroad Krank 1.7″ Beadlock Wheels(Z-W0256)
RC4WD Safari Snorkel for Mojave II 2/4 Door Body Set (Z-S1826)
Low Profile Delrin Skid Plate for Std. TC (TF2) (Z-S1851)
RC4WD Hawkeye 1.9” Scale Tire (Z-T0162)
Truescale Series 1.7″ Beadlock Wheels (Z-W0265)
OEM Stamped Steel 1.55″ Beadlock Wheels (Plain) (Z-W0258)
OEM Stamped Steel 1.55″ Beadlock Wheels (White) (Z-W0260)
OEM Stamped Steel 1.55″ Beadlock Wheels (White) (Z-W0262)
OEM Stamped Steel 1.55″ Beadlock Wheels (Chrome) (Z-W0264)
RC4WD Interco IROK ND 1.55″ Scale Tires (Z-T0163)
RC4WD Bilstein SZ Series 80mm Scale Shock Absorbers (Z-D0072)
RC4WD Bilstein SZ Series 100mm Scale Shock Absorbers (Z-D0074)
RC4WD Bilstein SZ Series 90mm Scale Shock Absorbers (Z-D0075)
RC4WD Ballistic Off Road Rage 1.9” Beadlock Wheels (Z-W0261)
Blade Snow Plow Mounting Kit for Trail Finder 2 / G2 (Z-S1859)
Tough Armor Front Winch Bumper for Mojave II 2/4 Door Body Set (Z-S1845)
Super Soft Flex Leaf Springs for TF2 (4) (Z-S1815)
RC4WD Advance Adapters Atlas II Transfer Case (1.47/1) (Z-U0037)
Scamp 1.55″ Beadlock Wheels (Z-W0152)
JK 1.9″ Scale Beadlock Wheels (Z-W0151)
RC4WD Rotiform Six-OR 1.55″ Beadlock Wheels (Z-W0115)
RC4WD Ballistic Off Road Morax 1.7″ Beadlock Wheels (Z-W0118)
Tough Armor Rear Tube Bumper w/Hitch Mount for Trail Finder 2 (Z-S1827)
Ultra Punisher Shafts (93.7mm – 115mm / 3.69″ – 4.53″) 5mm Hole (Z-S1811)
Hitch Mount for RC4WD TF2 (Z-S1870)
Tough Armor Rear Steel Tube Bumper w/Hitch Mount for Trail Finder 2 (Z-S1830)
Trail Finder 2 Aluminum Side Body Posts (Z-S1882)
Trail Finder 2 Rear Leaf Spring Reverse Mount (Z-S0415)
Tough Armor Comp Series Flush Mount Bumper for TF2 (Z-S1874)
RC4WD Marlin Crawler Roll Bar for Mojave Body (Z-S1478)
RC4WD 1911 1.9” Beadlock Wheels (Z-W0274)
RC4WD Enforcer 1.9″ Beadlock Wheels (Z-W0122)
RC4WD Benchmark 1.7″ Beadlock Wheels (Z-W0266)
RC4WD N-Fab Roof Mounting Light Bracket for Mojave 2/4dr (Z-S0699)
RC4WD Falken Wildpeak A/T3W 1.55 Scale Tires (Z-T0169)
RC4WD Baja Designs Arc Series Light Bar (124mm) (Z-E0105)
Ultra 1.55″ Beadlock Wheels (Z-W0268)
Breaker 1.55″ Beadlock Wheels (Z-W0273)
RC4WD Mojave II Two Door Complete Interior w/Metal Details (Z-B0173)
RC4WD Dirty Stripes for Mojave II 2/4 Door Decal Sheet (White) (Z-B0203)
RC4WD Dirty Stripes for Mojave II 2/4 Door Decal Sheet (Grey) (Z-B0204)
Tough Armor Competition Stinger Bumper for Trail Finder 2 (Z-S1857)
TRunner Classic 1.55” Beadlock Wheels (Z-W0121)
RC4WD Type B Machine Front Winch Bumper for TF2 (Z-X0053)
Stamped Steel 1.7″ Beadlock Wagon Wheels (Clear) (Z-W0272)
Stamped Steel 1.7″ Beadlock Wagon Wheels (Chrome) (Z-W0271)
Stamped Steel 1.7″ Beadlock Wagon Wheels (White) (Z-W0269)
Black Mesh 1.55″ Beadlock Wheels (Z-W0103)
Reverse Mount Spring Hanger Conversion Kit for TF2 and TF2 LWB (Z-S1923)
Deep Dish Wagon 1.55″ Stamped Steel Beadlock Wheels (Black) (Z-W0281)
Deep Dish Wagon 1.55″ Stamped Steel Beadlock Wheels (White) (Z-W0284)
Deep Dish Wagon 1.55″ Stamped Steel Beadlock Wheels (Chrome) (Z-W0285)
Deep Dish Wagon 1.55″ Stamped Steel Beadlock Wheels (Clear) (Z-W0286)
Lotus 1.9″ Aluminum Wheels (VVV-C0615)
Lotus 1.9″ Aluminum Wheels (Wide Rear) (VVV-C0616)
Scale Steel Punisher Shaft (87mm – 110mm / 3.42″ – 4.33″) (Z-S1902)
Stocker 1.55″ Internal Beadlock Wheels (Z-W0276)
Tango Down 1.9″ Internal Beadlock Wheels (Black) (Z-W0038)
RC4WD Yota Narrow Offset 1.9″ Beadlock Wheels (Z-W0283)
Vintage Yota 6 Lug Stamped Steel 1.55″ Beadlock Wheels (White) (Z-W0288)
Vintage Yota 6 Lug Stamped Steel 1.55″ Beadlock Wheels (Clear) (Z-W0289)
RC4WD 1985 Toyota 4Runner Hard Body Complete Set (Z-B0167)
Tough Armor Tube Winch Bumper for 1985 Toyota 4Runner (Z-S1904)
RC4WD Goodyear Wrangler Duratrac 1.55”4.19” Scale Tires (Z-T0177)
RC4WD Falken Wildpeak M/T 1.7″ Tires (Z-T0179)
RC4WD Fuel Zephyr Beadlock Wheels 1.9″ (Z-W0294)
Rover Classic 1.9″ Beadlock Wheels (VVV-C0695)
Rover Vogue 1.9″ Beadlock Wheels (VVV-C0696)
RC4WD Raceline Combat 1.55″ Beadlock Wheels (Z-W0292)
Wood Flatbed for TF2 Mojave Body (VVV-C0709)
Wood Flatbed w/ Mudflaps for TF2 Mojave Body (VVV-C0710)
Kober Rear Bed for TF2 Mojave Body (Black) (VVV-C0711)
Kober Rear Bed W/ Mud Flaps for TF2 Mojave Body (Black) (VVV-C0712)
Kober Rear Bed for TF2 Mojave Body (White) (VVV-C0713)
Kober Rear Bed W/ Mud Flaps for TF2 Mojave Body (White) (VVV-C0714)
Kober Rear Bed for TF2 Mojave Body (Silver) (VVV-C0715)
Kober Rear Bed W/ Mud Flaps for TF2 Mojave Body (Silver) (VVV-C0716)
Tango Down 1.9″ Internal Beadlock Wheels (Gun Metal) (Z-W0297)
RC4WD Milestar Patagonia A/T 1.7″ Tires (Z-T0181)
RC4WD Black Rhino Armory Internal Beadlock Deep Dish 1.9″ Wheels (Z-W0293)
Diamond Plate Rear Bed for RC4WD Trail Finder 2 RTR w/Mojave II Body Set (VVV-C0737)
RC4WD Dirty Life RoadKill 1.7″ Beadlock Wheels (Silver) (Z-W0298)
Classic 10-Hole Chrome 1.9″ Beadlock Wheels (Z-W0296)
RC4WD Interco Narrow TSL SS 1.55 Scale Tires (Z-T0182)
RC4WD Rancho Adjustable Steering Stabilizer (70-100mm) (Z-S1949)
RC4WD Level 8 Bully Pro 6 1.9″ Beadlock Wheels (Z-W0300)
RC4WD ION Style 71 1.9″ Beadlock Wheels (Z-W0303)
RC4WD Dirty Life MB 1.9″ Beadlock Wheels (Z-W0306)
OEM 6-Lug Stamped Steel 1.55″ Beadlock Wheels (Plain) (Z-W0308)
OEM 6-Lug Stamped Steel 1.55″ Beadlock Wheels (White) (Z-W0309)
OEM 6-Lug Stamped Steel 1.55″ Beadlock Wheels (Black) (Z-W0310)
Six-Spoke 1.55″ Internal Beadlock Wheels (Black) (VVV-C0806)
Six-Spoke 1.55″ Single Internal Beadlock Wheel (Black) (VVV-C0807)
Six-Spoke 1.55″ Internal Beadlock Wheels (Gold) (VVV-C0808)
Six-Spoke 1.55″ Single Internal Beadlock Wheel (Gold) (VVV-C0809)
Dome Spoked 1.9″ Classic Beadlock Wheels (VVV-C0810)
Vehement 1.9″ Internal Beadlock Wheels (VVV-C0811)
Vehement 1.9″ Single Internal Beadlock Wheel (VVV-C0812)
RC4WD Rancho RS9000 XL Shock Absorbers 80mm (Z-D0077)
RC4WD Rancho RS9000 XL Shock Absorbers 90mm (Z-D0078)
RC4WD Rancho RS9000 XL Shock Absorbers 100mm (Z-D0079)
RC4WD TUFF T21 1.9″ Internal Beadlock Wheels (Z-W0307)
RC4WD Cali Off-Road Distorted 1.9″ Beadlock Wheels (Z-W0295)
OEM XJ 1.9″ Beadlock Wheels (Chrome) (VVV-C0849)
OEM XJ 1.9″ Beadlock Wheels (Gunmetal) (VVV-C0850)
RC4WD Ridler 645 1.9″ Internal Beadlock Wheels (Z-W0305)
RC4WD Walker Evans 501 Legend 1.7″ Beadlock Wheels (Z-W0320)
RC4WD Walker Evans 501 Legend 1.55″ Beadlock Wheels (Z-W0319)
RC4WD Walker Evans 501 Legend 1.9″ Beadlock Wheels (Z-W0318)
BigDog 1/10 Tri Axle Widebody Scale Boat Trailer (Z-H0016)
RC4WD Raceline Monster Deep Dish 1.7″ Beadlock Wheels (Z-W0304)
Rally 1.9″ Beadlock Wheels (Gold) (Z-W0324)
Rock Tamer 1.9″ Beadlock Wheels (Z-W0321)
RC4WD Enforcer 1.9″ Beadlock Wheels (Red) (Z-W0323)
RC4WD Rogue 1.9″ Beadlock Wheels (Z-W0314)
RC4WD Rogue 1.7″ Beadlock Wheels (Z-W0315)
RC4WD Rogue 1.55″ Beadlock Wheels (Z-W0317)
Compass M/T 1.55″ Scale Tires (Z-T0186)
RC4WD Walker Evans 501 Legend 2.2″ Beadlock Wheels (Z-W0322)

Front:
King Off-Road Scale Dual Spring Shocks (70mm) (Z-D0037)
RC4WD 70mm Old Man Emu Nitrocharger Sport Shock by ARB (Z-D0034)

Rear:
The Ultimate Scale Shocks 90mm (Silver) (Z-D0001)
RC4WD Superlift Superide 90mm Scale Shock Absorbers (Z-D0015)
RC4WD King Off-Road Scale Dual Spring Shocks (90mm) (Z-D0033)
RC4WD 90mm Old Man Emu Nitrocharger Sport Shock by ARB (Z-D0038)

Items of Interest: (not required for completion)
Paint for body
Paint for Body lenses (V-TAM81526, V-TAM81527)
Grease and Lubrication (Z-S0520)

Additional Notes for assembly:
Note for Axle assembly (Download Here) Ver 1. (Download Here) Ver 2.

Instruction Manuals:
Trail Finder 2 Kit Instructions (Download Here)
Mojave Body Kit Instructions (Download Here)

Press Information:
Download Press Release Here
Chevy Blazer Mounted with V8 Motor: Click Here

Videos:
RCSparks Video Series
Axle Shimming Video: Click Here
