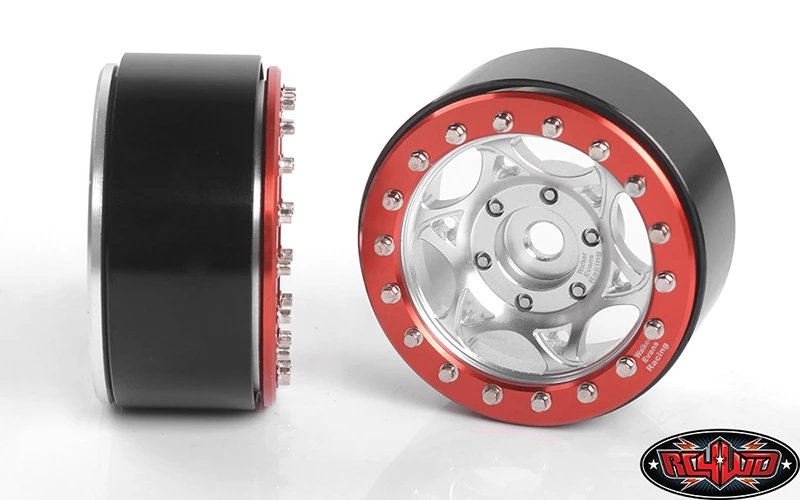

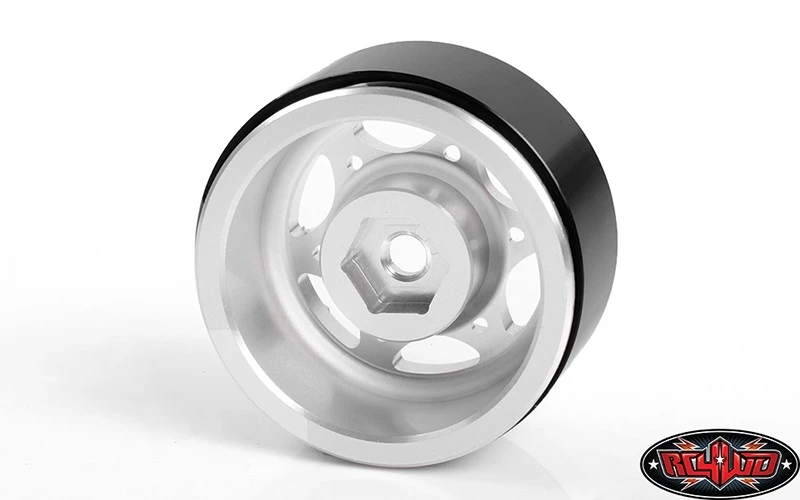

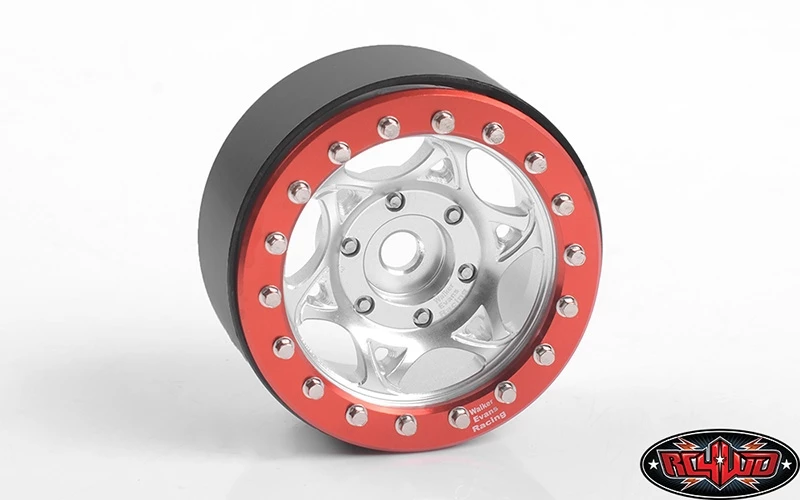

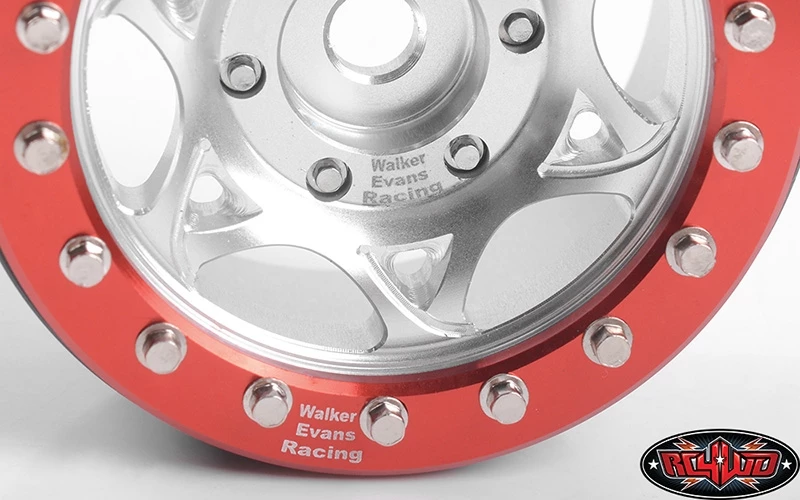

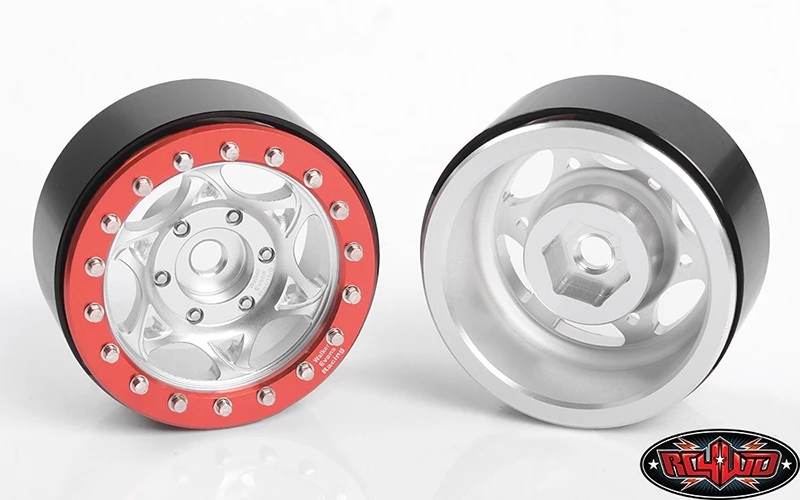

RC4WD Walker Evans 501 Legend 1.7″ Beadlock Wheels

These are the all new Licensed Walker Evans 501 Legend 1.55″ Beadlock Wheels. These have been Officially Licensed by the Walker Wheels and are only available from RC4WD and our Dealers.

Specifications:
CNC Machined
Billet Aluminum
Silver/Red Anodized Finish
Wheel Size: 1.7″
OD: 1.88in / 48.0mm
Width: 0.99in / 25.2mm
Center Hole OD: 0.20in / 5.2mm
Negative Offset: 0.02in / 0.55mm
Each Weigh: 1.63oz / 45.8g

What’s Included:
4x RC4WD Walker Evans 501 Legend 1.55″ Beadlock Wheels
1x Miniature Scale Hex Bolt Tool for M1.6 Scale Bolts (1.5 mm Hex)
1x Miniature Scale Hex Bolt Tool (M2 Hex)
1x Walker Evans Decal Sheet

Replacement Hardware:
RC4WD Miniature Scale Hex Bolts (M1.6 x 4mm) (Silver) (Z-S1124)
RC4WD Miniature Scale Hex Bolts (M2 x 6mm) (Silver) (Z-S1196)
Miniature Scale Hex Bolt Tool for M1.6 Scale Bolts (1.5 mm Hex) (Z-S1328)
Miniature Scale Hex Bolt Tool (M2 Hex) (Z-S0626)

Notes:

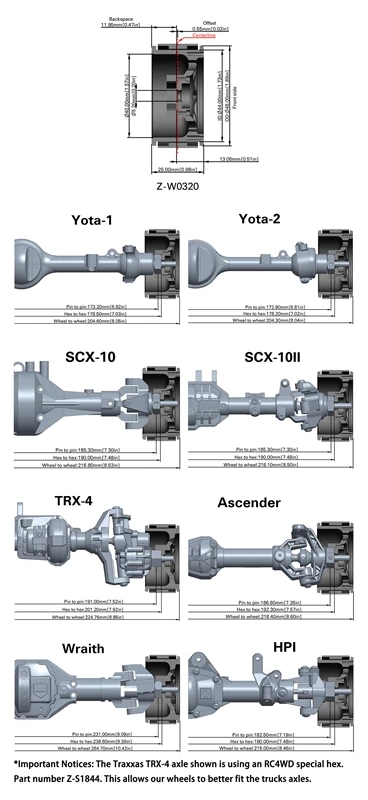

Fits RC4WD Gelande II RTR Truck Kit w/Cruiser Body Set (Z-RTR0029)
Fits RC4WD Trail Finder 2 RTR w/Mojave II Body Set (Z-RTR0024)
Fits RC4WD Trail Finder 2 “LWB” RTR w/Mojave II Four Door Body Set (Z-RTR0030)
Fits RC4WD Gelande II Truck Kit w/Cruiser Body Set (Z-K0051)
Fits RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049)
Fits RC4WD Trail Finder 2 Truck Kit “LWB” w/ Mojave II Four Door Body Set (Z-K0058)
Fits RC4WD Gelande II Truck Kit w/D90 Body Set (Z-K0001)
Fits Axial SCX10
Fits Axial SCX10 II
Fits Traxxas TRX-4 Land Rover Defender
Fits Traxxas TRX-4 ’79 Bronco Ranger XLT
Fits Vaterra Ascender
Fits HPI Venture FJ Cruiser
Fits Axial Wraith
Installing on Traxxas TRX-4 trucks requires the RC4WD 12mm Wheel Hex Conversion for Traxxas TRX-4 (Z-S1844)
Due to many different methods to design tires and wheels, we have no control over other manufacturers products, so we can only tell you that RC4WD tires and wheels work together. In some cases, our wheels and tires will work with other brand wheels and tires, but we can not guarantee the outcome.

Click here to download the RC4WD full wheel comparison list.

Walker are registered trademarks of the Walker Wheels company. The Walker Wheels logo is property of Walker Wheels and used under license to RC4WD.

Shown installed with RC4WD Falken Wildpeak M/T 1.7″ Tires (Z-T0179) for example (Not Included)

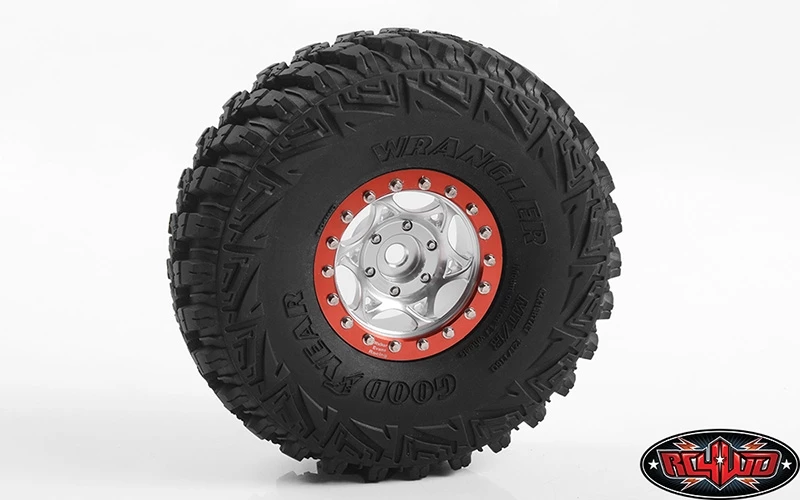

Shown installed with RC4WD Goodyear Wrangler MT/R 1.7″ Scale Tires (Z-T0157) for example (Not Included)

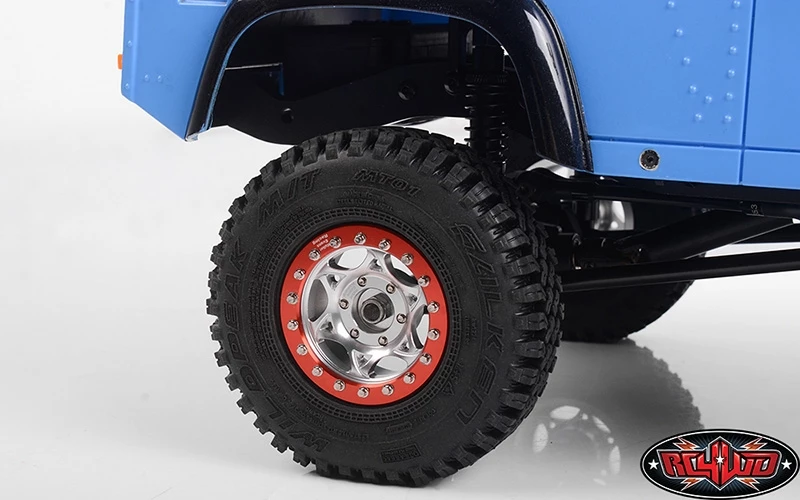

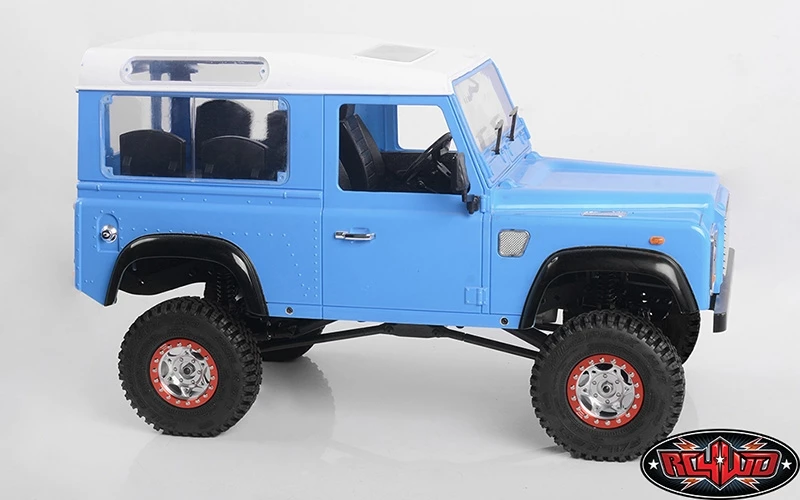

Shown installed on RC4WD Gelande II Truck Kit w/D90 Body Set (Z-K0001) with RC4WD Falken Wildpeak M/T 1.7″ Tires (Z-T0179) for example (Not Included)

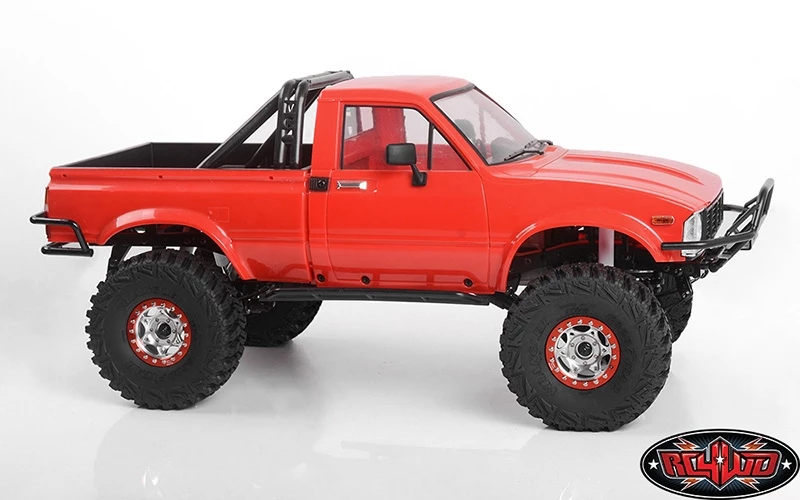

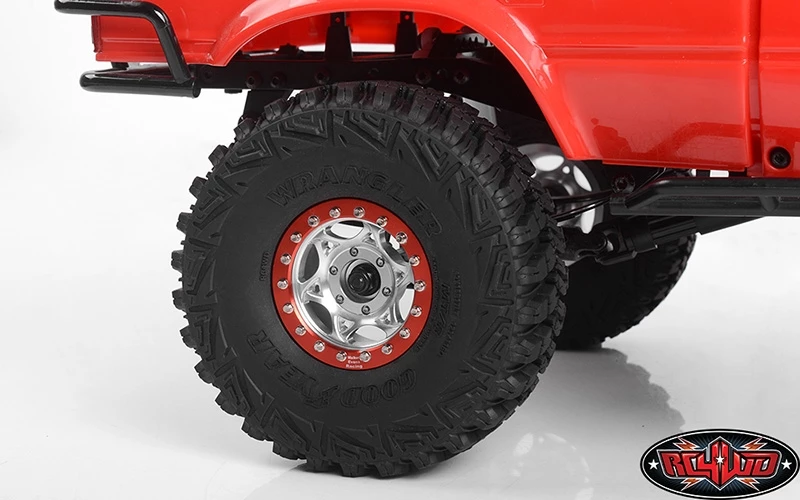

Shown installed on RC4WD Marlin Crawler Trail Finder 2 RTR w/Mojave II Crawler Body Set (Z-RTR0034) with RC4WD Goodyear Wrangler MT/R 1.7″ Scale Tires (Z-T0157) for example (Not Included)
