SSD RC 2 Speed Transmission Kit for Wraith
Original price was: $99.99.$76.00Current price is: $76.00.
- Shop with confidence, we guarantee quality.
- Friendly, efficient service, always online.
- Secure Shopping Starts with Safe Payments
- Your satisfaction is 100% guaranteed.
** Note: Servo and spur cover not included **
Compatible with the stock Axial top shaft and gear cover.
What’s Included:

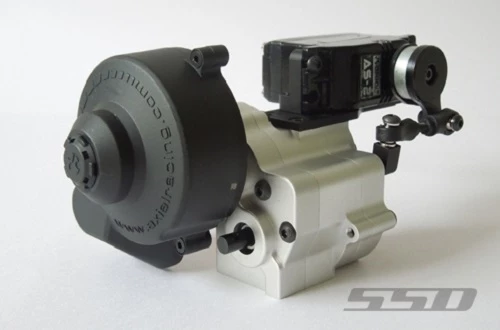

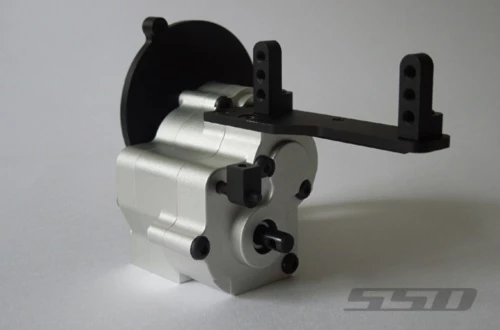

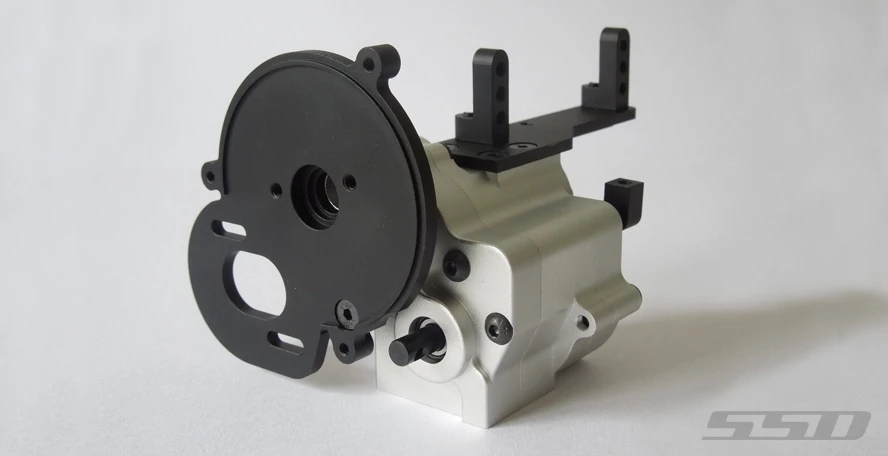

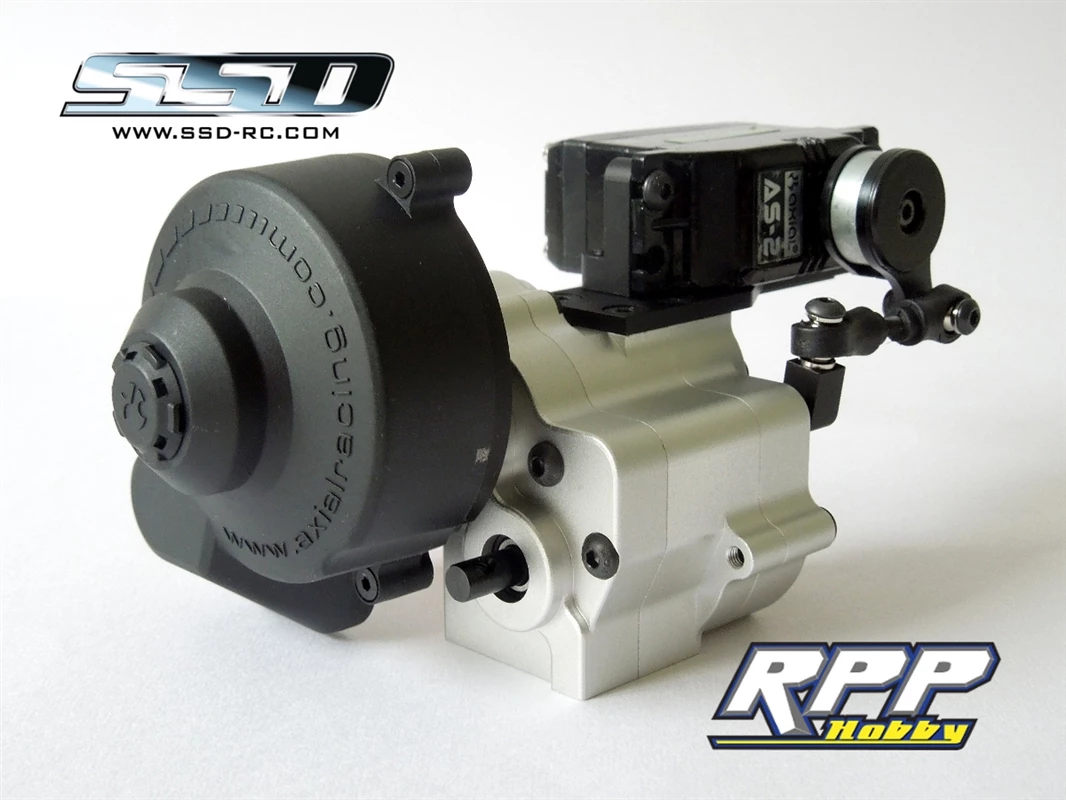

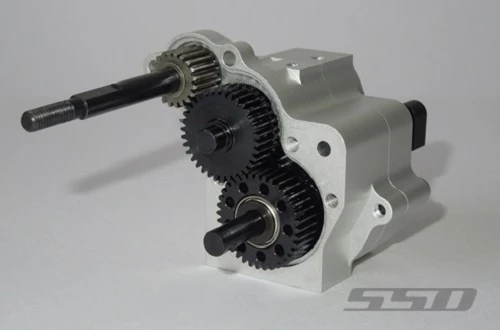

1 X 2 Speed Transmission assembled with motor mount
4 X M3 x 10mm flat head screws
3 X M2.5 x 6mm flat head screws
4 X M3 x 8mm button head screws
2 X M3 x 12mm button head screws
1 X M3 x 15mm threaded set screw
2 X 3mm mini plastic rod ends
Technical Specs:
Internal 1st gear ratio: 4.91:1 (stock Axial is 2.6:1)
Internal 2nd gear ratio: 1.8:1
Output shaft OD: 5mm
Weight (when fully assembled with shift servo) : 335g
Note:
This is a conversion kit, not a complete transmission.
To complete the assembly it requires:
Stock Axial transmission input shaft (AX30198 or AX31149)
Stock 20T drive gear (AX30394, AX30162)
Stock Axial slipper clutch assembly & spur gear
Stock Axial transmission idler shaft (AX31090)
Stock Axial transmission gear cover (AX80078)
Stock Axial transmission bearings:
4 * 5 x 10 x 4mm
5 x 10 x 11mm
8 x 16 x 5mm
15 x 21 x 4mm
Will require shifters to be removed from Wraith interior.
This can be used on an SCX10 but shorter driveshafts are required.
Assembly instructions can be found HERE
