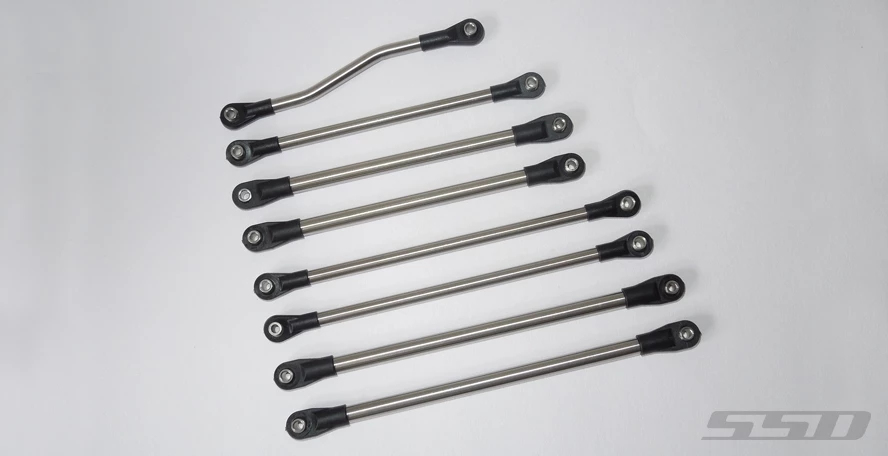

SSD RC HD Titanium Suspension Link Set for SCX10 II 12.3″ WB

Features:
Heavy duty titanium links
Internal thread
Durable plastic rod ends with steel ball
Complete set of suspension links including double bent panhard bar
Direct fit onto Axial SCX10 II (with 313mm / 12.3″ wheelbase)
Stronger than aluminum
Lighter than steel

Includes:

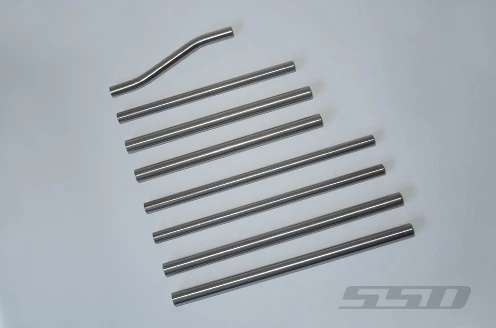

1 X Bent Titanium link (panhard bar)
1 X 80.0mm Titanium link (front upper)
2 X 83.0mm Titanium links (front lower)
2 X 102.0mm Titanium links (rear upper)
2 X 104.5mm Titanium links (rear lower)

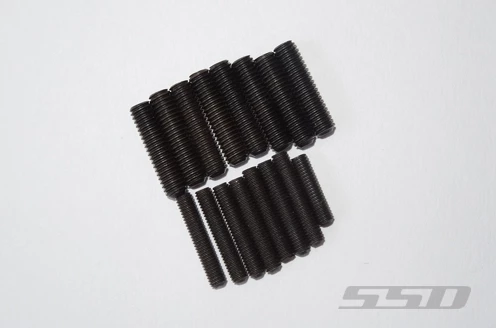

8 X M4 x 16mm threaded rod
8 X M3 x 12mm threaded rod

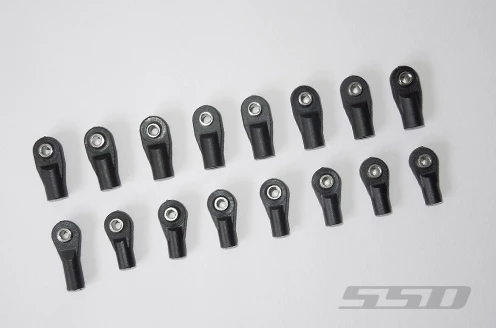

8 X M4 plastic rod ends (SSD00116)
8 X M3 short plastic rod ends (SSD00020)
1 x M3 long plastic rod end (SSD00017)

Specifications:
Length: 80.0mm, Diameter: 5.0mm, Thread: M3
Length: 83.0mm, Diameter: 6.0mm, Thread: M4
Length: 102.0mm, Diameter: 5.0mm, Thread: M3
Length: 104.5mm, Diameter: 6.0mm, Thread: M4

Note:
For panhard bar assembly use one long and one short M3 rod end.
