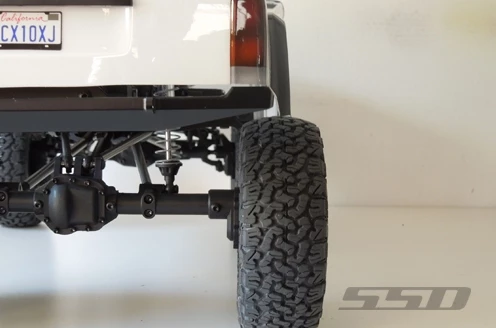

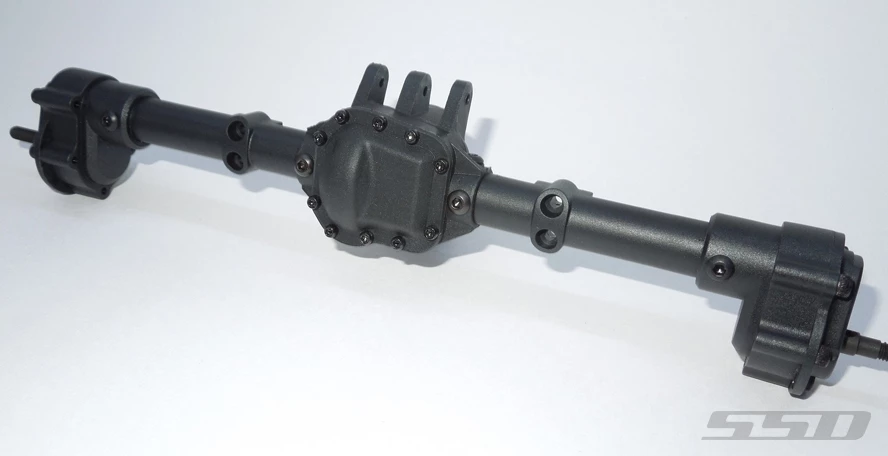

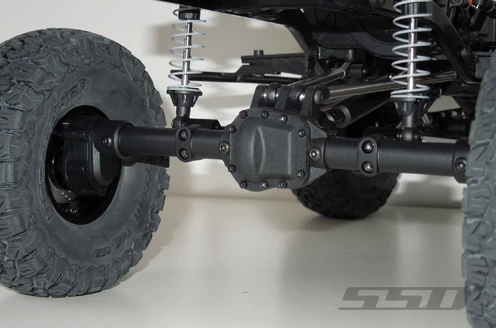

SSD RC Pro44 Portal Rear Axle for SCX10 II

FEATURES:
Scale design and assembly
Injection molded nylon main housing
Removable diff cover
Same size as stock SCX10 II AR44 axle
Same link mount locations as stock SCX10 II axle
Compatible with stock SCX10 II axle gears and bearings
Fit stock SCX10 II AR44 axle lower link mounts
Injection molded nylon portal housings
CNC machined, hardened steel gears
CNC machined, hardened steel axle shafts
Large 13mm bearings
Fit stock SCX10 II wheel hex
Direct fit onto SCX10 II chassis
Increase ground clearance by 12mm
Increase track width by 23.4mm (11.7mm each side)
Gear ratio can be reversed
Fit all SSD 1.9 wheels
Matching portal knuckles are available (SSD00220)

SPECIFICATION:
Gear ratio: 1.14:1 (14T:16T)
Axle width: 213mm (8.4″) hex to hex

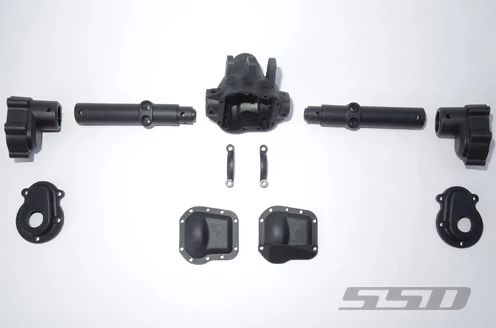

WHAT’S INCLUDED
Pro44 Center housing
2 X Bearing holders
2 X Diff covers
2 X Axle tubes
2 X Portal housings
2 X Portal covers

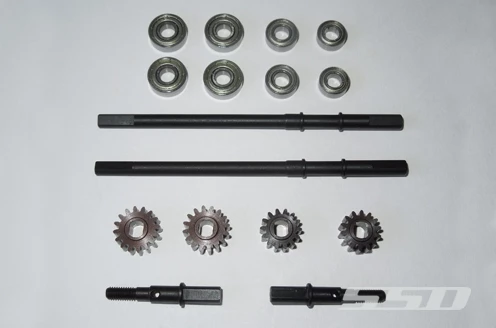

2 X Rear axle shafts
2 X Stub axles
2 X 32P 14T Steel gear
2 X 32P 16T Steel gear

Bearings:
4 * 5 x 13 x 4
2 * 5 x 11 x 4
2 * 5 x 10 x 4

Hardware:
10 * M2 x 5mm cap head
14 * M2.5 x 8mm cap head
8 * M3 x 5mm button head
2 * M3 x 4mm button head
1 * M3 x 25mm button head

Note:
CNC machined aluminum link mounts are available (SSD00159)

Metal diff covers are available black (SSD00227), silver (SSD00214) & red (SSD00216)

Installation instructions can be downloaded here
