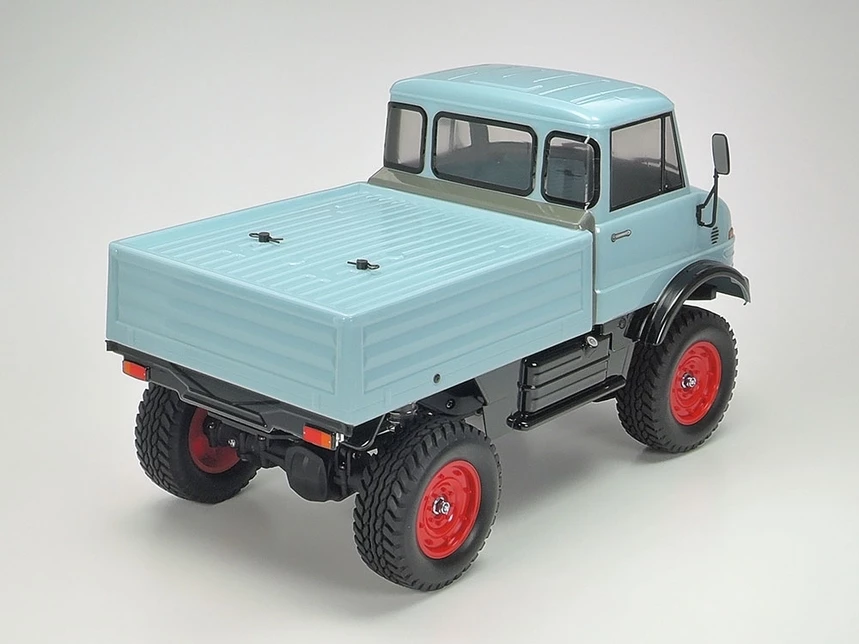

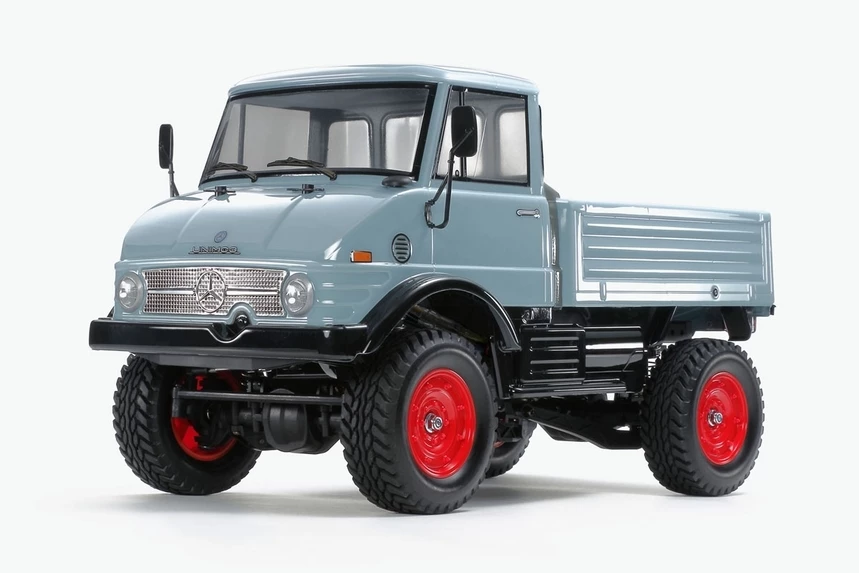

Tamiya RC CC-02S 1/10 Scale Kit with Mercedes-Benz Unimog 406 Series U900 Body

The multi-purpose Mercedes-Benz Unimog is a truck with unrivalled off-road performance and its name is an acronym which stands for the German description “Universal-Motor-Gerät.” The 406, which also has the ability to equip any of approximately 3,000 attachments for every imaginable task, now is depicted on the proven Tamiya CC-02 chassis.

CC-02 Chassis – Off Road, Evolved

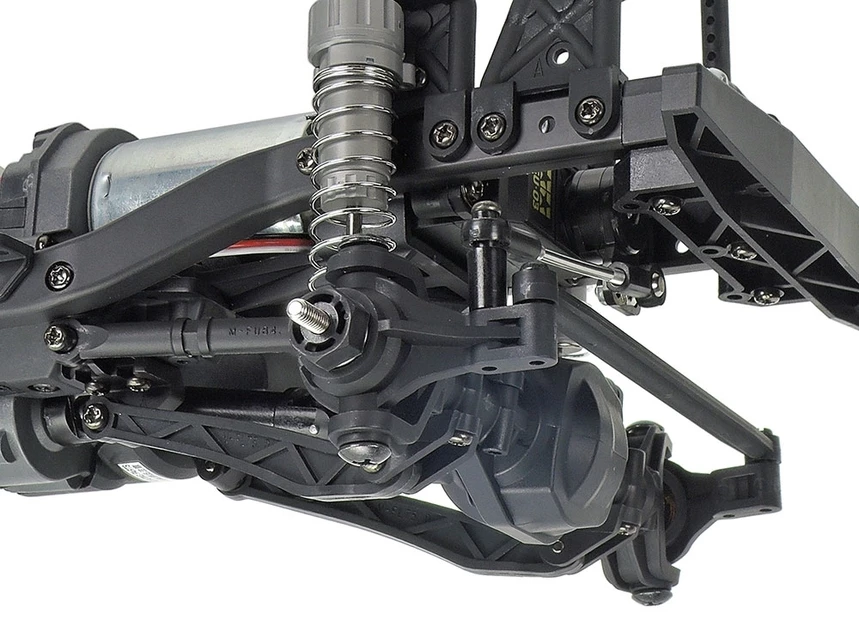

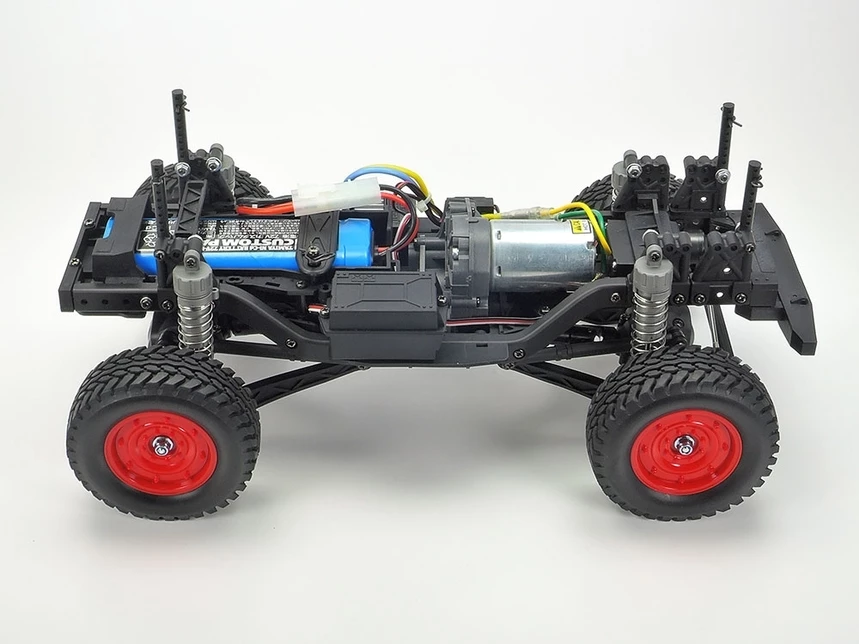

Designed for a wide range of off-road scenes including rocky terrain, the CC-02 chassis’ ladder frame is inspired by full-size vehicles and is the base for its superior durability. A 4WD setup employs the motor longitudinally behind the front axle with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear. Four-link rigid suspension is employed front and rear, with CVA oil dampers for all-encompassing control, even on tricky rock sections. This model comes with red wheels and grippy block pattern tires.

• 1/10 R/C model assembly kit. Length: 384mm, width: 196mm, height: 224mm. Wheelbase: 242mm.

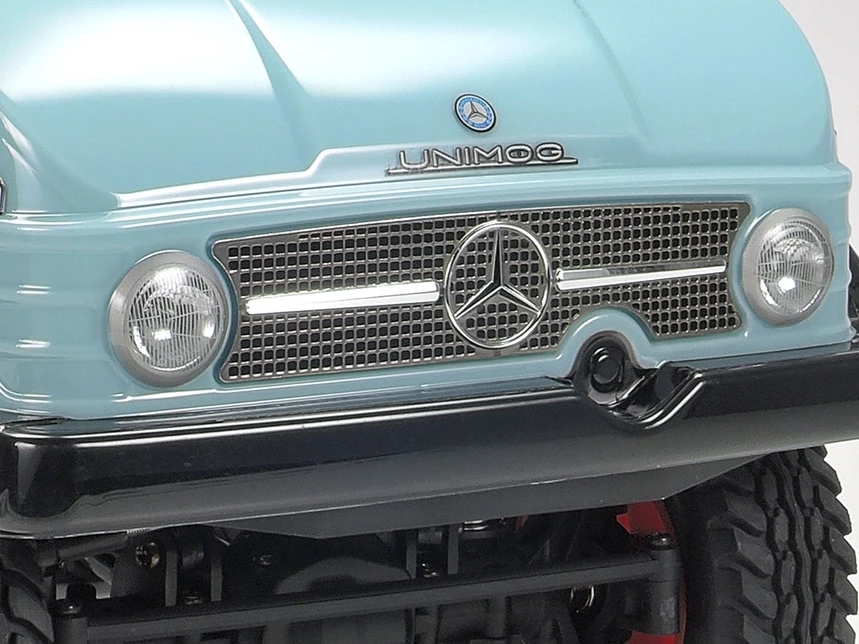

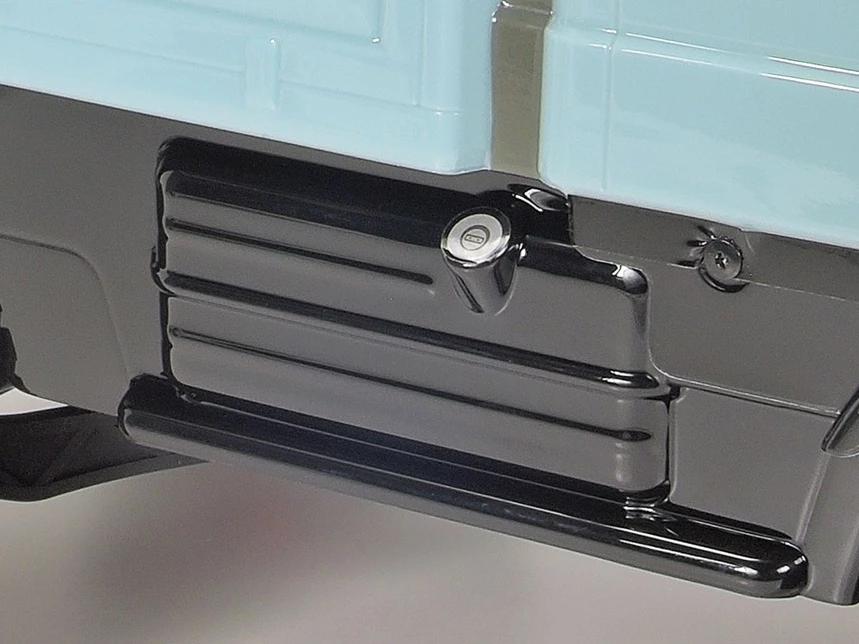

• Polycarbonate body with separate parts included for side mirrors and fuel tank, plus a metal-plated front grille and emblem.
• Includes block pattern tires, and red ABS wheels with a depiction of bead lock designs.
• Propeller shafts (short: 76mm) included.
• The CC-02 chassis is designed for a wide range of off-road scenes including rocky terrain, and its ladder frame is inspired by full-size vehicles and is the base for its superior durability.
• A 4WD setup employs the motor longitudinally behind the front axle with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear.
• Includes 540-brushed type motor.
• Includes NEW TBLE-04S ESC. Compatible with brushless motors (sensored) of 21.5 turns and higher, and Tamiya brushed motors 25 turns and over.

Specifications:
Adjustable Gear Ratio Yes
Bearings Plastic bushings & Metal bearings
Body Material Polycarbonate
Body Stickers Included
Chassis Material FRP Fiberglass Reinforced Plastic
Chassis Type CC02
Construction Type Assembly Kit
Differential Type Gear
Drive Type 4WD
Electronic Speed Control (esc) Includes NEW TBLE-04S ESC. Compatible with brushless motors (sensored) of 21.5 turns and higher, and Tamiya brushed motors 25 turns and over.
Motor 540-brushed type
Scale 1/10
Shock Damper CVA Oil Filled
Suspension 4-Link Rigid Suspension (Front & Rear)
Terrain Use Multi-Purpose

Requires:
2-channel radio system
Steering servo
ESC
7.2-7.4 volt battery & battery charger
Tamiya PS (polycarbonate spray paint)

RC MERCEDES-BENZ UNIMOG 406 Cc-02 Series U900
