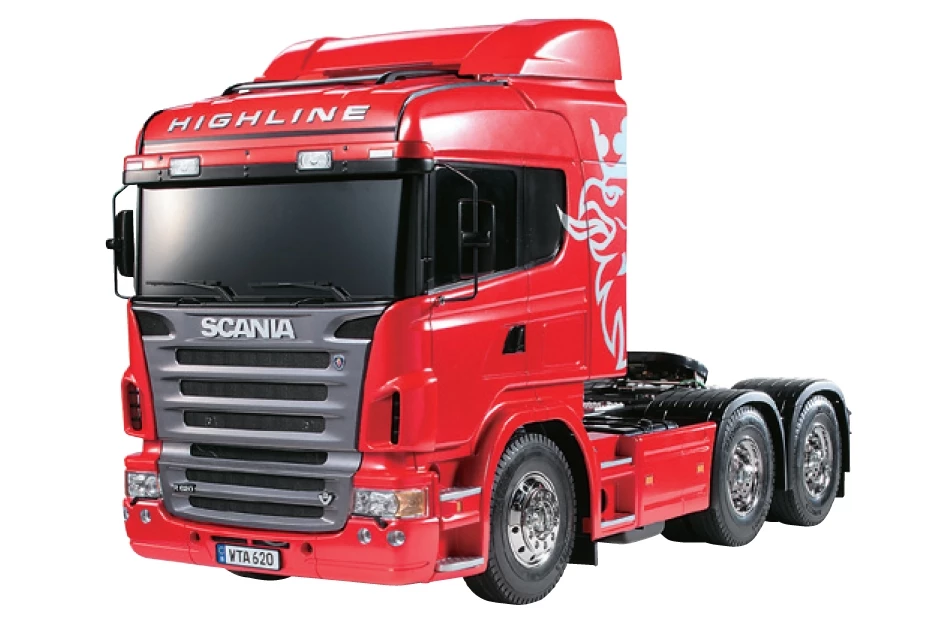

Tamiya RC Scania R620 – 6×4 Highline 1/14 Scale Semi Truck Kit

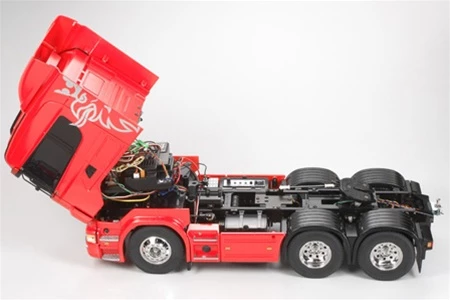

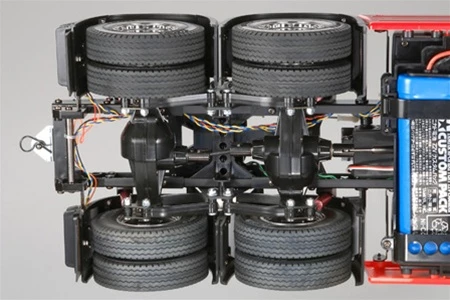

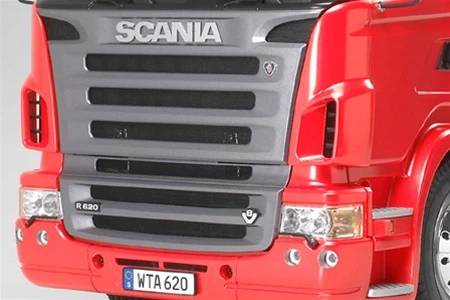

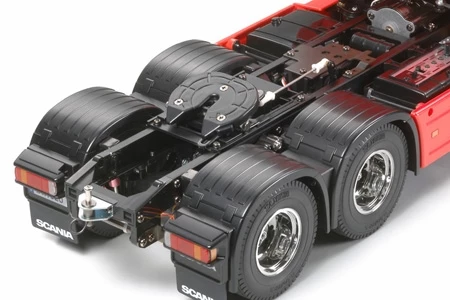

Scania is a world-famous manufacturer of large trucks and buses, and this is an R/C model of the 620hp V8-powered 3-axle R620 6X4 Highline, the flagship model of their 2005 International Truck of the Year-winning R-Series range. The characteristic styling of the truck’s body is reproduced down to the smallest detail. The cabin tilts forward just like the actual truck and the included grille mesh and metal transfer emblems further enhance the realism look of the truck. The model features a ladder frame chassis with aluminum channels, 3-speed transmission, suspension with metal leaf springs and friction dampers, and rear axles equipped with differentials. Exterior details such as side panels, fuel tanks, and rear fenders provide the finishing touches. Kit-included coupler enables linkage with any of Tamiya’s currently available 1/14 scale trailers, and the R620 is compatible with a wide range of Tractor Truck Option Parts as well.

Realistic Lights, Sounds, and Vibration

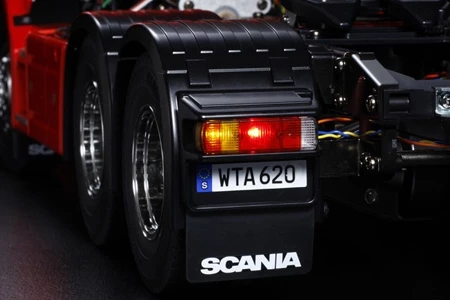

Multi-Function Control Unit (MFC-01) (included for Japanese market only) offers light, sound, and vibration operation to accompany your R/C truck experience. Engine sounds have been digitally recorded from the actual truck, and together with air horn, gear shifting, and many other realistic sounds, lets you feel like you are driving the real thing. Headlights, brake lights, and turn signal operations are also available at your fingertips.

5 Types of Separately Available Semi-Trailers　
5 types of trailers including semi-trailer, tank-trailer, and pole-trailer, are currently available to choose from. Attach any one of them to the Scania R620 to create an exciting combination that is over 1 meter long. Furthermore, the Multi-Function Control Unit (MFC-01) allows realistic low-speed running with semi-trailer attached.

●Length: 520mm, Width: 187mm, Height: 293mm, Weight (without options): Approx. 3.7kg ●Wheelbase: 237＋103mm ●Tread: 156mm (Front), 138mm (Rear, Double Tire) ●Chassis: Aluminum & Polycarbonate Resin Ladder Frame ●Suspension: Front/Rear Leaf Springs ●Caster Angle (Front/Rear): 0°/0° ●Camber Angle: 0°(Front & Rear) ●Toe Angle: 0°(Front & Rear) ●Dampers: Aluminum Dummy Dampers (Front & Rear) ●Drivetrain: Rear Double Axle Drive　●Transmission: 3-gear transmission (gear shifting operated via transmitter) ●Gear Ratio: (1st Gear) 32.49:1, (2nd Gear) 17.76:1, (3rd Gear) 10.66:1 ●Diff. Gear: 3-bevel diff ●Motor: Type RS540 ●Tire Width: 22mm (Front & Rear) ●Tire Diameter: 83mm (Front & Rear)

Specifications:
Adjustable Gear Ratio 3-speed transmission
Bearings metal and plastic bushings
Body Material ABS Plastic
Chassis Material Aluminum and ABS plastic
Construction Type Assembly Kit
Differential Type Gear
Drive Type 2WD
Led Light Buckets yes
Motor 540-brushed type
Scale 1/14
Shock Damper Friction damper
Length: 520mm
Width: 187mm
Height: 293mm
Wheelbase: 272mm
Tread F/R: 156/138mm
Tire Width: F/R both 22mm
Diameter: F/R both 83mm
Gear Ratio: 1st gear 32.49:1, 2nd gear 17.76:1, 3rd gear 10.66:1
Suspension Leaf Spring
Terrain Use On-Road

Required To Complete:
4-channel Radio and receiver
Battery with charger
Tamiya TS Paint
