VS4-10 Ultra
The VS4-10 Ultra represents the top tier of RC scale vehicle kits, providing the highest quality materials, superior design, and the most durable portal axle platform available in its market. The VS4-10 Ultra offers a list of features that have never been matched, providing a building and driving experience out of the box that are sure to impress.

VS4-10 Ultra Portal Drivetrain

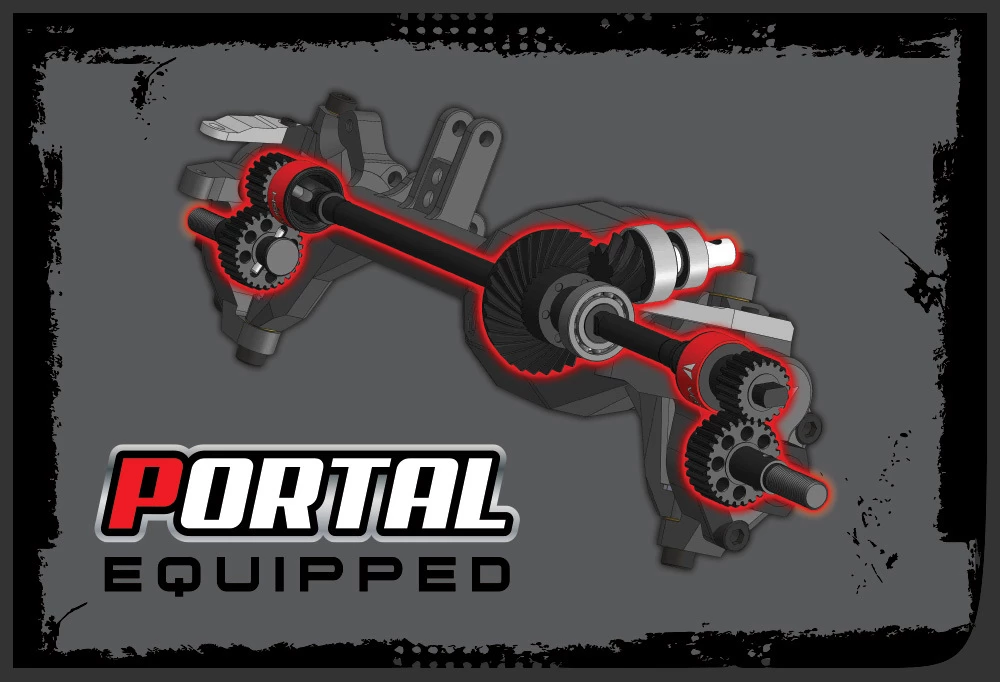

The VS4-10 Ultra drivetrain utilizes the VFD Spec transmission and our proven portal axle design you already know and trust. The licensed Currie Enterprises Portal F9 style front axle features an offset front differential housing and uses chromoly VVD axle shafts, chromoly portal box gears, 6mm output shafts, high-pinion hypoid ring gear, chromoly 6 bolt spool and patent pending one-piece bearing retainers to create an incredibly scale and durable front axle assembly. Integrated inner c-hubs create an unmatched scale look and are strengthened to provide the most durable axle housing possible, with easily replaceable chromoly threaded inserts for the knuckle kingpin screws. The rear Currie Portal F9 style axle features a centered differential housing and equal length chromoly axle shafts, with the same gears and spool found in the front axle.

VFD Spec Transmission
Currie Enterprise Portal Axle Housings
Portal Offset Front Pumpkin
Portal Centered Rear Pumpkin
High-Pinion Hypoid Axle Gears
6-Bolt Ring Gear and Spool
Chromoly Portal Overdrive Gears F/R*
Chromoly VVD front axles
6mm Output shafts with M5 hex nut
Integrated Inner C’s
Chromoly Threaded Inserts
One-Piece Bearing Retainers (patent pending)
Aluminum Portal Knuckles with Scale High Steer Arm
Chromoly Rear Axle Shafts
Scale F9 3rd Members
Double Shear Shock Mounts
Aluminum 12mm Hexes for 6mm output shafts
Incision Steel Driveshafts
Full Ball Bearing

VFD Spec Transmission

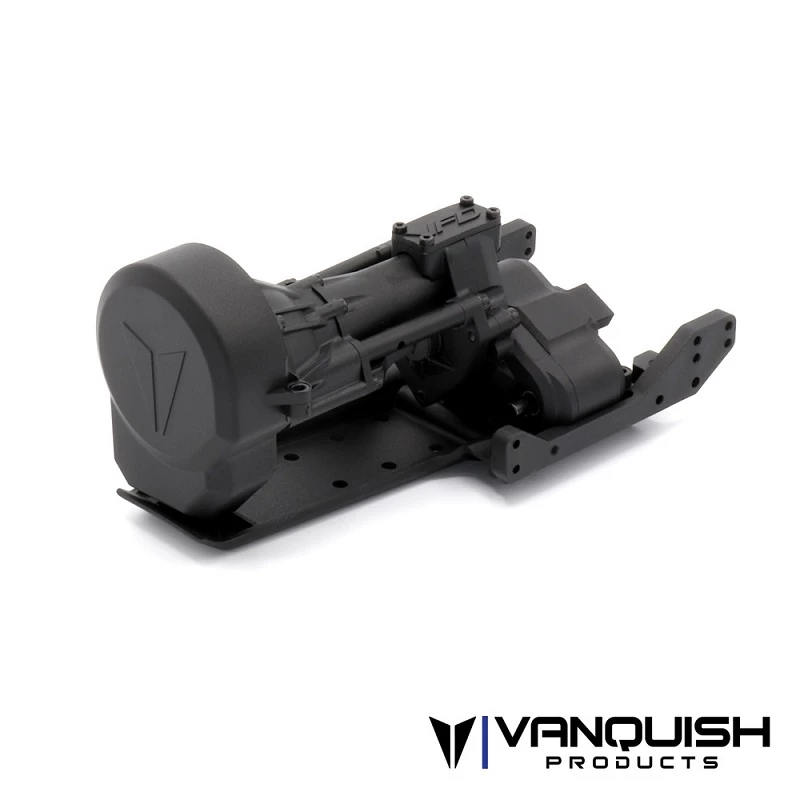

The VFD Spec Transmission from Vanquish Products is designed to provide an optimal balance of performance, scale appearance, strength and versatile optional accessories. The VFD’s design places the motor forward and as low as possible to keep the weight where you want it. The VFD’s combination of offset front T-case output and offset pumpkin of the Currie front axle make this possible. The T-case utilizes unique bearing plates for high strength bearing positioning and the elimination of flex found in traditional housings. The modular design of the bearing plates allow for optional gear ratios to be used inside the T-case.

Wide Profile Sintered Metal Gears
Overdrive Gear Set (6.5% OD)
Hardened Chromoly Shafts
Industry standard 32P spur gears
Low Motor Position (540 Size)
Full ball bearing transmission
Extended Skid Plate for Motor Protection
Offset front output for offset front axle configuration
Scale Molded Transmission Housing
Molded 6mm motor plate
Molded Bearing Plates
Molded Spur Gear Cover
Optional Overdrive gear sets available
Topshaft with slipper eliminator

VS4-10 Ultra Chassis
Vanquish Products VS4-10 Chassis is made to provide you with a balance scale looks and unhindered performance. The steel C-channel design provides scale detail, molded front and rear cross members fill the chassis rails in the highest stress locations for ultimate strength and provide features like dual servo mounts, winch line routing, and a fuel cell. The molded rock sliders come with a replaceable outer portion that perfectly fits the Origin Halfcab body. The VS4-10 chassis is developed to work with the included Vanquish Products VFD Spec transmission. The panhard mount on the chassis is made from machined aluminum to withstand the impacts of severe trail conditions. Molded shock towers capture the top of the 80mm Incision Scale Shocks in double shear for maximum support. The aluminum battery and electronics trays provide multiple locations for battery and electronics placement. Full width molded front and rear bumpers increase approach and departure angles and allow for flexibility during impacts on the trail.

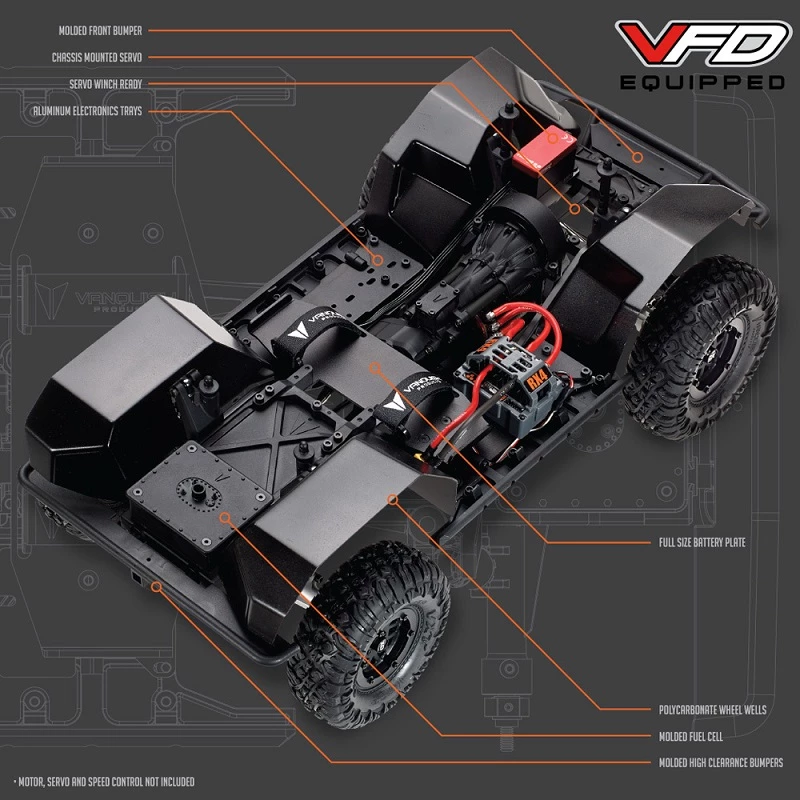

C-Channel Chassis Rails
Chassis Mounted Servo
Aluminum Panhard Mount
Double Shear Shock Mounting
Balanced Battery and Electronics Tray Arrangement
Molded Front and Rear Bumpers
Molded Rock Sliders
Molded Lexan Inner Fenders
Servo Winch Mounting Location
Bodyside Retaining Guides
Optional Rear Upper Link Mounting Locations
Optional Front Upper Link Mounting Locations
Standard Chassis Bumper Mounting Geometry (Fits popular post style bumpers)

Origin Halfcab Body
The Origin Halfcab polycarbonate body offers retro styling with a modern flair. The full polycarbonate interior was designed by Knight Customs with front bucket seats, a detailed dash and large cargo area in the back. The dash attaches to the interior and molded plastic details like steering wheel and gear shifter help bring the interior to life. The detailed front grill assembly is injection molded and features 10mm LED ready headlight buckets, with a scale radiator assembly, fans, and fan shrouds. In addition, the front light buckets can be replaced with optional Vanquish Rigid Industries Q-Series light pods for even more light! The rear light buckets fit 5mm LEDs, so everyone will take notice when you are coming or going. Other scale details like windshield wipers, door handles and fuel filler cap are included to step up the appearance even further. The entire body, interior and mounting holes are all laser cut – so all you need to worry about is paint.

Retro Halfcab Styling
Molded Front Grill
Full Interior
Separate Dash
Molded Steering Wheel and Gear Shifter
10mm LED Ready Headlight Buckets
5mm LED Ready Taillight Buckets
Molded Scale Radiator
Molded Fans and Shrouds
CNC Laser Cut
Extra Scale Details (Wipers, Door Handles, Fuel Filler)
Window Trim, Interior and Logo Decals
Paint Masks

VS4-10 Ultra Suspension
The VS4-10 features New Incision 80mm Scale shocks with aluminum threaded bodies, dual X-ring seals, locking preload collars, keyed spring cups, polished steel shock shafts, and machined pistons. The front 3-link with panhard suspension provides scale looks by keeping the servo out of sight, while still providing room for large suspension travel. The suspension pivots on a full set of stainless steel links to keep the weight down low with a smooth transition from the link to the rod ends. All suspension mounts are sized to fit to the rod end pivot ball perfectly and eliminate excess side to side play.

Incision 80mm Scale Shocks
Incision 45mm scale springs (IRC00216)
3-link with Panhard Front Suspension
Double Triangulated 4-link Rear Suspension
Incision Stainless Steel Links
Double Shear Shock Mounting
Multiple optional link mounting positions at the chassis for suspension tuning

KMC Wheels and VXT Tires
The VS4-10 includes Incision KMC Machete plastic beadlock wheels and Vanquish VXT tires. The wheels are true beadlocks and are compatible with all Incision aluminum hub options. The VXT tires are 4.65″ tall and are molded in a soft and sticky natural rubber compound for performance right out of the box. Firm foams are used to provide sidewall support that helps prevent the tire from rolling over, while keeping the tread in contact with the terrain.

Incision KMC Machete Beadlock Wheels
Adjustable Offset Design
VXT 4.65″ Tires
Soft and Sticky Natural Rubber Compound
Firm Tire Foams

Specifications
12.3″ Wheelbase
9.65″ (245mm) Overall Width
19.3″ (490mm) Overall Length
9.8″ (250mm) Overall Height
5.25:1 Overall Axle Ratio
1.4:1 Portal Box Ratio (VPS08353 20/28 Overdrive Portal Gear Set Front and Rear)*
Internal Trans Ratio: Front 2.95 / Rear 3.15
Overall Gear Ratio: Front 57.8 / Rear 61.7
Overdrive Percentage: 6.5%
15T 32P Pinion for 3mm motor shaft Included
56T 32P Spur Gear Included

Required Items
Shock Oil
Tools
Paint
Grease (VPS01017 Recommended)
Threadlock
Battery
Charger
Radio System
540 size Motor (3mm Motor Shaft Recommended)
ESC
Steering Servo
Servo Horn (20mm Length Recommended)

Option Parts Available
1.9 Beadlocks
Currie Swaybar
Rigid Lightbars
Rigid Q Series (Can be fitted as headlights)
VFD Transmission Dig
VFD Overdrive Gear Sets
Knight Customs Accessories on Shapeways.com

Notes:
Front and Rear axles utilize VPS08353 20/28 Portal Overdrive Gear Sets for strength and overall gearing, to achieve a higher percentage of overdrive you will need to install VPS08354 18/30 and install into the rear axle.

VS4-10 Ultra is shown with items that are not included with the kit. Please see list of required items.

No electronics are supplied with the VS4-10 Ultra Kit.

No Receiver box is included with the VS4-10 Ultra kit.

Items and specifications are subject to change.

Assembly Required. Children 14 and under must have adult supervision.
